Plan 39048ST

Southern Traditional

Heated S.F.
2,686
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 39048ST

Main Level
Main Level
2nd Floor
2nd Floor

Plan 39048ST

M-F 9am-5pm EST |

1-203-761-8500

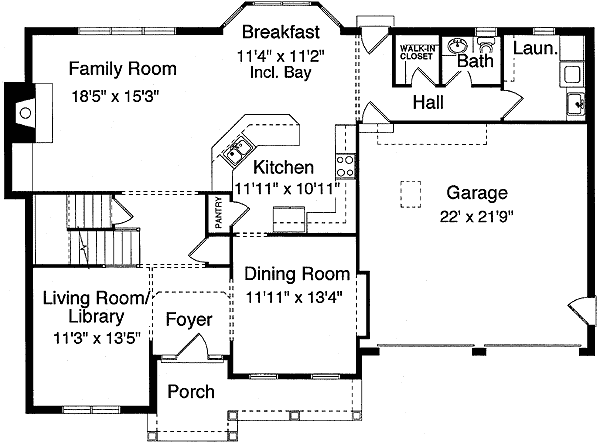

Main Level

Plan 39048ST: Southern Traditional - Floor Plan - Main Level - Southern, Traditional

2nd Floor

Plan 39048ST: Southern Traditional - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • A strong brick exterior decorated with lightweight stone and wood trim create a beautiful facade that will enhance the appearance of any neighborhood. A covered porch with metal roof, wood columns and false dormers add a charming atmosphere.
  • 9' ceilings throughout the first floor are standard. The dining room offers a furniture alcove to provide additional floor space to the formal dining area and the cantilevered breakfast bay creates a bright place to begin your day.
  • Split stairs lead to the second floor where a view to the foyer and an alcove with a desk and built-ins create a spacious balcony. The master bedroom suite has an 8' ceiling at the perimeter and vaults to 9' in the center. The luxurious bath with whirlpool tub, shower enclosure, and dual sink vanity pampers the homeowner. Three additional bedrooms, each with large closets, complete this family friendly home plan.
  • Related Plan: For an alternate exterior, see house plan 3937ST.

What's Included

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,686 sq. ft.

1st Floor

1,419 sq. ft.

2nd Floor

1,267 sq. ft.

Basement Unfinished

1,400 sq. ft.

Deck

110 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

55' 0"

Depth

40' 0"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

477 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - Upstairs

Walk-in Pantry
