Plan 59272ND

Traditional Retreat

Heated S.F.
2,252
Beds
4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 59272ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59272ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59272ND: Traditional Retreat - Floor Plan - Main Level - Southern, Traditional

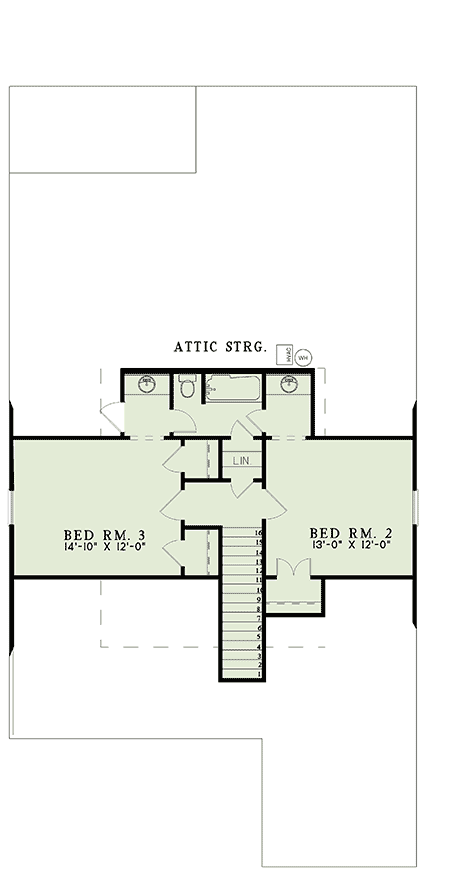

2nd Floor

Plan 59272ND: Traditional Retreat - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • This home plan is a perfect traditional family retreat. An eight foot covered entry porch welcomes you to days gone by. Here, you can entertain friends with lemonade and conversation or move to the rear grilling porch for an afternoon cookout, enhanced by convenient entry to the breakfast room and kitchen.
  • A great room offers plenty of rainy day entertainment with gas fireplace and built-in media center.
  • Attached is a formal dining area enhanced by eight inch wood columns.
  • The master suite has french doors leading you to the bath with large walk-in closet, double vanities, corner whirlpool tub and corner shower.
  • Open stairs from the foyer lead you up to the second floor. Eight foot ceilings create a pleasant openness in the upper two bedrooms, complete with walk-through bath.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,252 sq. ft.

1st Floor

1,694 sq. ft.

2nd Floor

558 sq. ft.

Porch, Combined

289 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 0"

Depth

69' 0"

Max Ridge Height

27' 5"

Garage

Type

Attached

Area

413 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Formal Dining

Jack & Jill Bath

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
