Three Bedroom Duplex

Heated S.F.
1,930
Units
2
Width
Depth

Floor Plan

Plan 59624ND

Main Level
Main Level

Plan 59624ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

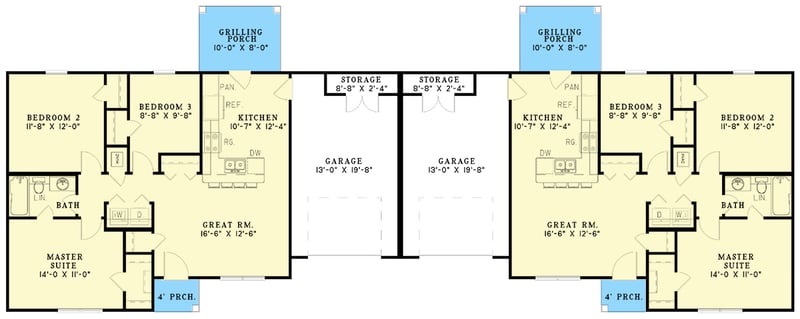

Plan 59624ND: Three Bedroom Duplex - Floor Plan - Main Level

Plan Details

  • This three bedroom duplex house plan is perfect for couples and families beginning to grow.
  • The expansive great room opens to the kitchen area with a convenient grilling porch nearby.
  • The private suite provides you access to the bath. Ample storage space in this home is an absolute bonus feature.
Unit A
Heated Area
965Sq. Ft.
965 Sq. Ft. 1st
Beds
3Beds
Baths
1Full Bath
Cars
Attached
307 Sq. Ft.
Dimensions
48' 4"width
37' 6"depth
16'height
Unfinished Areas
307 Sq. Ft. Garage
102 Sq. Ft. Porch, Combined
Unit B
Heated Area
965Sq. Ft.
965 Sq. Ft. 1st
Beds
3Beds
Baths
1Full Bath
Cars
Attached
307 Sq. Ft.
Dimensions
48' 4"width
37' 6"depth
16'height
Unfinished Areas
307 Sq. Ft. Garage
102 Sq. Ft. Porch, Combined

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,930 sq. ft.

1st Floor

1,930 sq. ft.

Porch, Combined

204 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

96' 8"

Depth

37' 6"

Max Ridge Height

16' 0"

Garage

Type

Attached

Area

614 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,930 sq. ft.

1st Floor

1,930 sq. ft.

Porch, Combined

204 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

96' 8"

Depth

37' 6"

Max Ridge Height

16' 0"

Garage

Type

Attached

Area

614 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
