2 Bed Modern Bungalow Under 1000 Square Feet

Heated S.F.
983
Beds
2
Baths
1
Stories
1

Floor Plan

Plan 801004PM

Main Level
Main Level

Plan 801004PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 801004PM: 2 Bed Modern Bungalow Under 1000 Square Feet - Floor Plan - Main Level - Bungalow, Contemporary, Northwest, Prairie, Transitional

Plan Details

  • This lovely 2 bed, 1 bath urban bungalow features a side entrance with a porch that is set two steps below the main floor in a split level layout. The house is 32 feet 10 inches wide by 36 feet deep, and has 983 square feet of living space.
  • The open home has 9' ceilings and has an L-shaped kitchen with an island, a dining room, a living room, as well as two bedrooms and a bathroom with a glass shower and a podium bathtub.
  • The basement is unfinished and gives you room for mechanicals, storage and expansion.

What's Included

Please note this plan is designed to the National Building Code of Canada.

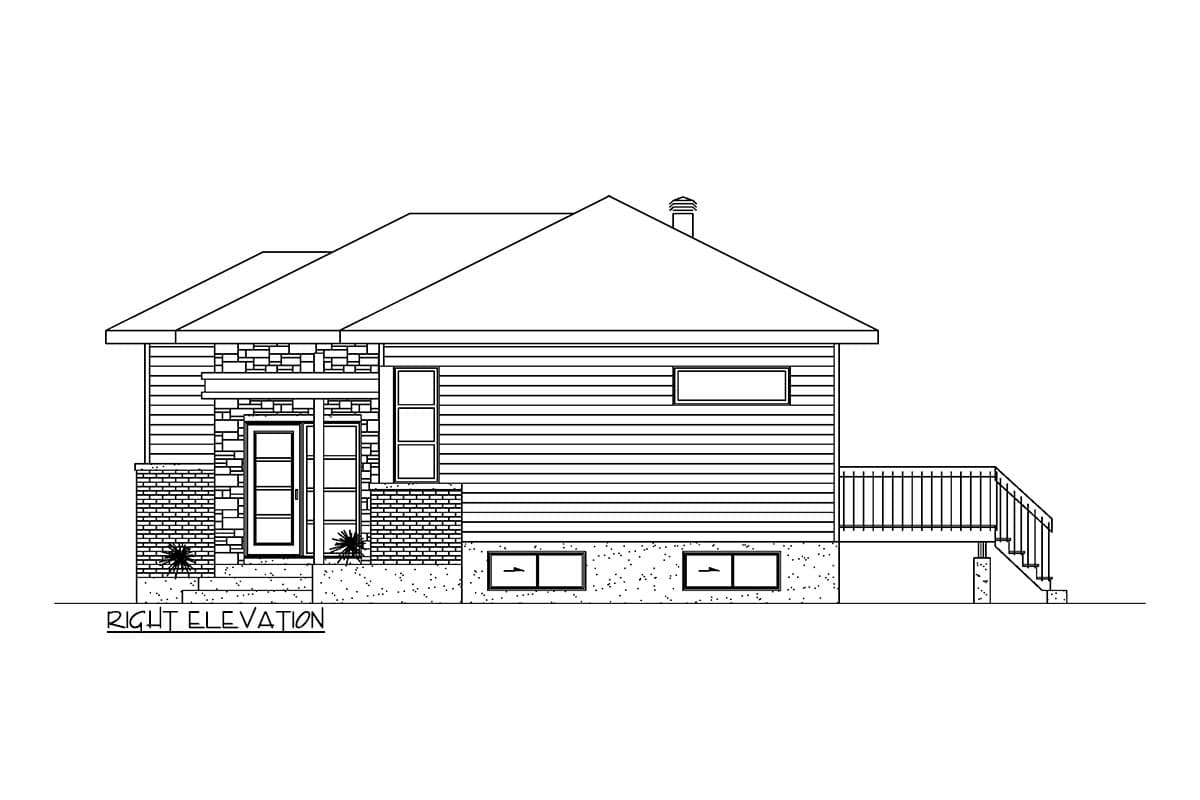

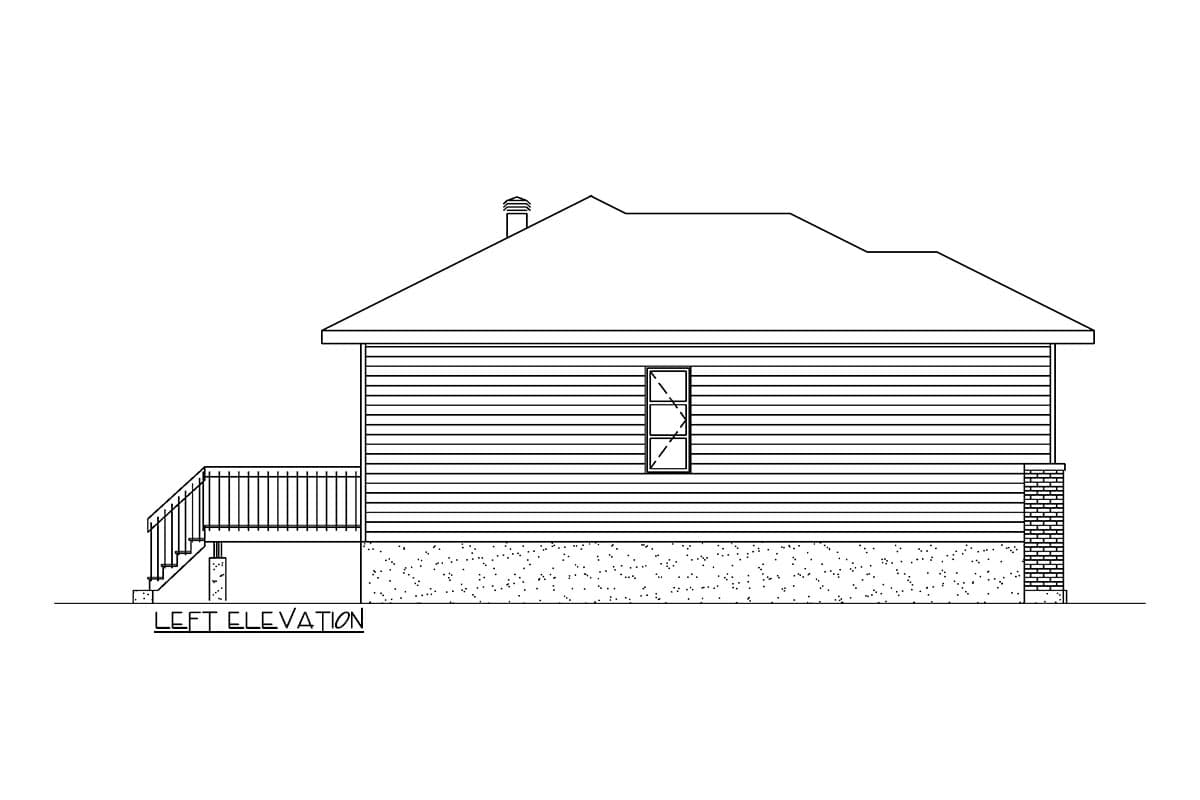

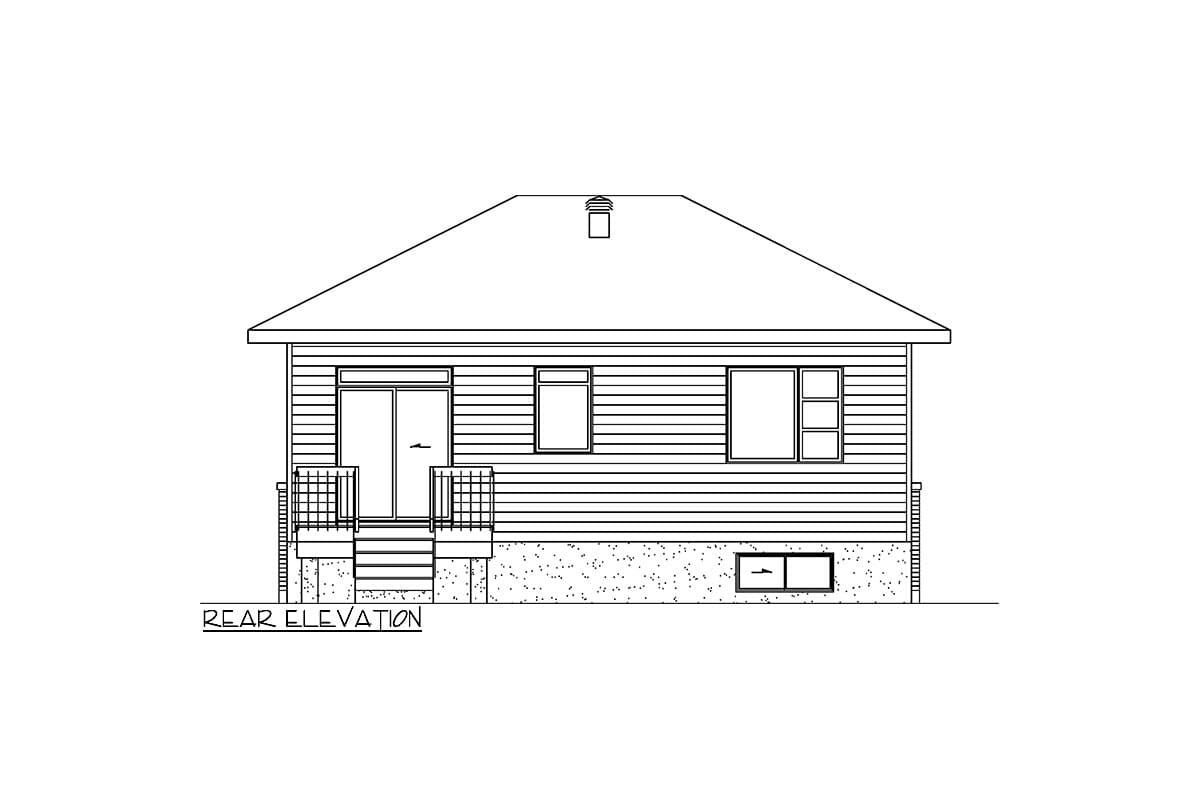

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

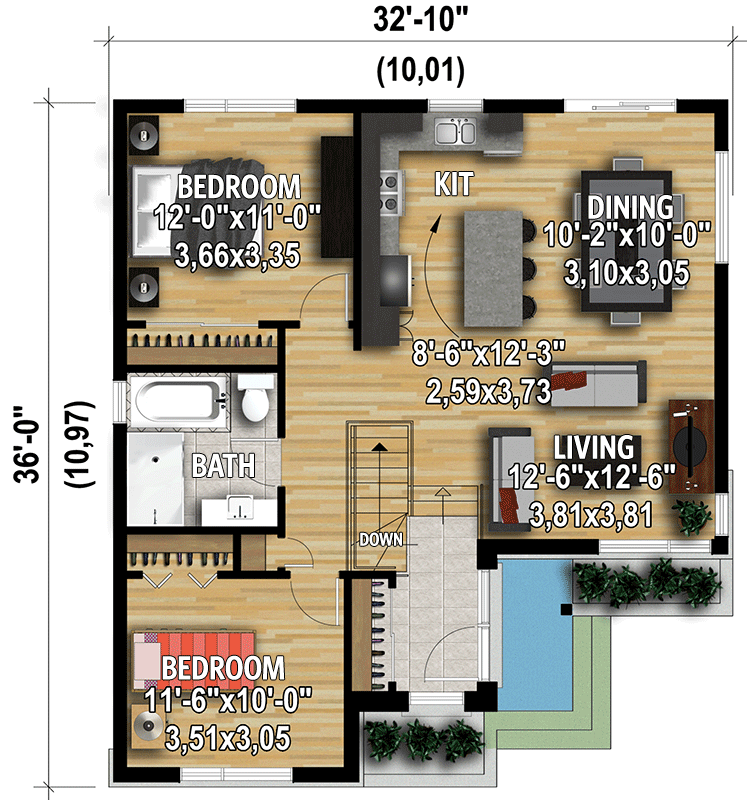

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

983 sq. ft.

1st Floor

983 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 10"

Depth

36' 0"

Max Ridge Height

20' 11"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Bungalow

Contemporary

Northwest

Prairie

Transitional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

983 sq. ft.

1st Floor

983 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 10"

Depth

36' 0"

Max Ridge Height

20' 11"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Bungalow

Contemporary

Northwest

Prairie

Transitional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans
