Plan 710028BTZ

3-Bed Traditional House Plan with Upstairs Rec Room

Heated S.F.
2,095
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 710028BTZ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 710028BTZ

M-F 9am-5pm EST |

1-203-761-8500

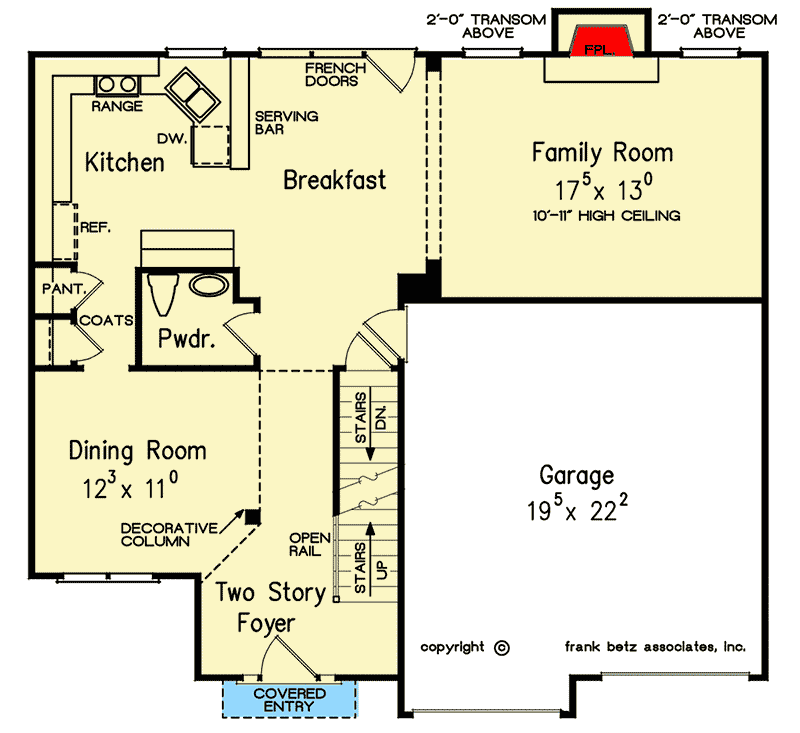

Main Level

Plan 710028BTZ: 3-Bed Traditional House Plan with Upstairs Rec Room - Floor Plan - Main Level - Southern, Traditional

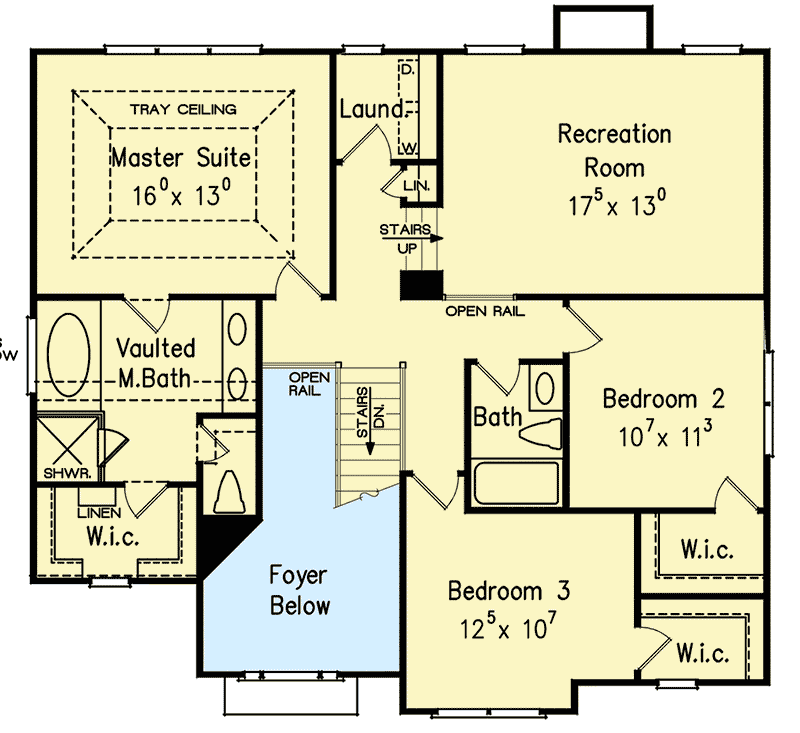

2nd Floor

Plan 710028BTZ: 3-Bed Traditional House Plan with Upstairs Rec Room - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • This 3-bed traditional house plan gives has a great floor plan that gives you usable space without taking away volume and openness.
  • The family room has the higher ceiling and transom windows. Rather than taking up the entire second story, it is designed with a step-up family recreation area above resulting in an open and roomy main floor with functional space on the second floor.
  • All bedrooms are located upstairs as is the laundry, making that chore as easy as possible.

What's Included

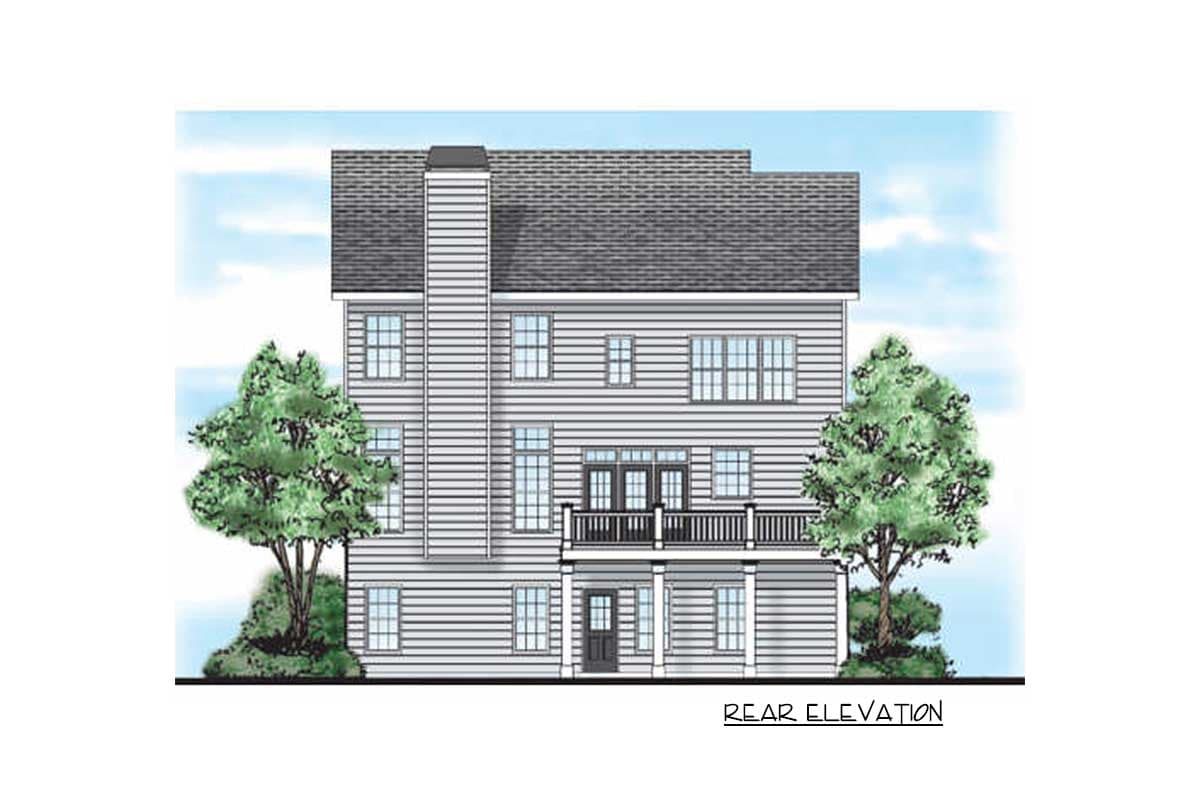

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,095 sq. ft.

1st Floor

908 sq. ft.

2nd Floor

1,187 sq. ft.

Basement Unfinished

908 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

38' 4"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

422 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Game/Rec Room

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,095 sq. ft.

1st Floor

908 sq. ft.

2nd Floor

1,187 sq. ft.

Basement Unfinished

908 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

38' 4"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

422 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Game/Rec Room

Laundry - Upstairs

Master Suite - Upstairs
