Plan 57157HA

Apartment Garage Plus RV Storage

Heated S.F.
713
Beds
1
Baths
1.5
Stories
2
Cars
3

Floor Plan

Plan 57157HA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 57157HA

M-F 9am-5pm EST |

1-203-761-8500

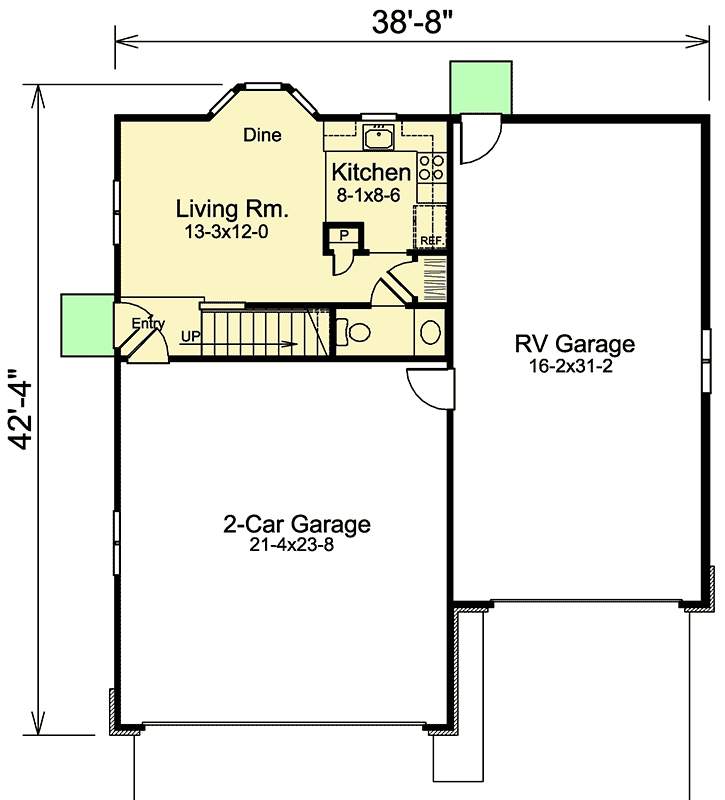

Main Level

Plan 57157HA: Apartment Garage Plus RV Storage - Floor Plan - Main Level - Carriage

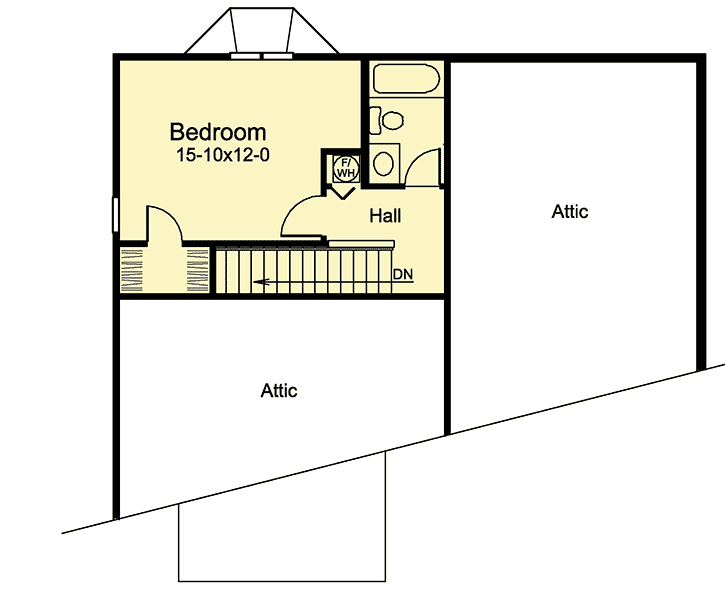

2nd Floor

Plan 57157HA: Apartment Garage Plus RV Storage - Floor Plan - 2nd Floor - Carriage

Plan Details

  • An attractive exterior has been created with the use of arches, stonework and a roof dormer.
  • The living room features a dining area with bay window and a separate entry with access to garage and stair to second floor.
  • A very efficient and well-equipped L-shaped kitchen has view to the rear yard and a built-in pantry.
  • The second floor offers a large bedroom with alcove for a desk, walk-in closet and a private bath off the hall.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

713 sq. ft.

1st Floor

362 sq. ft.

2nd Floor

351 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 8"

Depth

40' 4"

Max Ridge Height

25' 0"

Garage

Type

Detached, RV Garage

Area

497 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Carriage

Special Features

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

713 sq. ft.

1st Floor

362 sq. ft.

2nd Floor

351 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 8"

Depth

40' 4"

Max Ridge Height

25' 0"

Garage

Type

Detached, RV Garage

Area

497 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Carriage

Special Features

Master Suite - Upstairs
