Plan 51887HZ Craftsman Farmhouse with Attractive Decorative Shed Dormer and a Home Office

2,045 3 2.5 1 2

Floor Plan

Main Level

Reverse Floor Plan

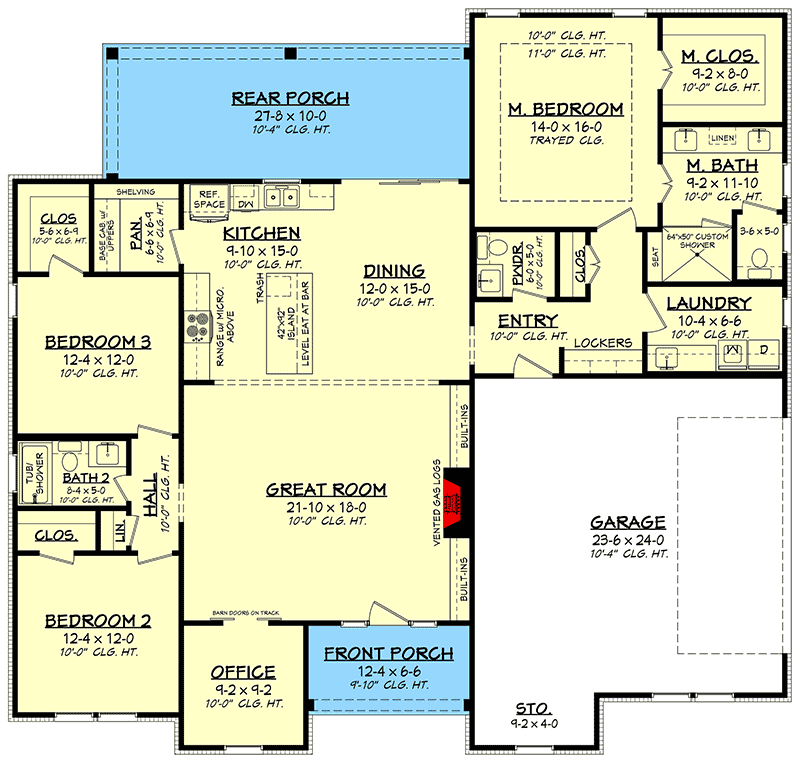

Craftsman Farmhouse with Attractive Decorative Shed Dormer and a Home Office - 51887HZ floor plan - Main Level

Basement stair location

Reverse Floor Plan

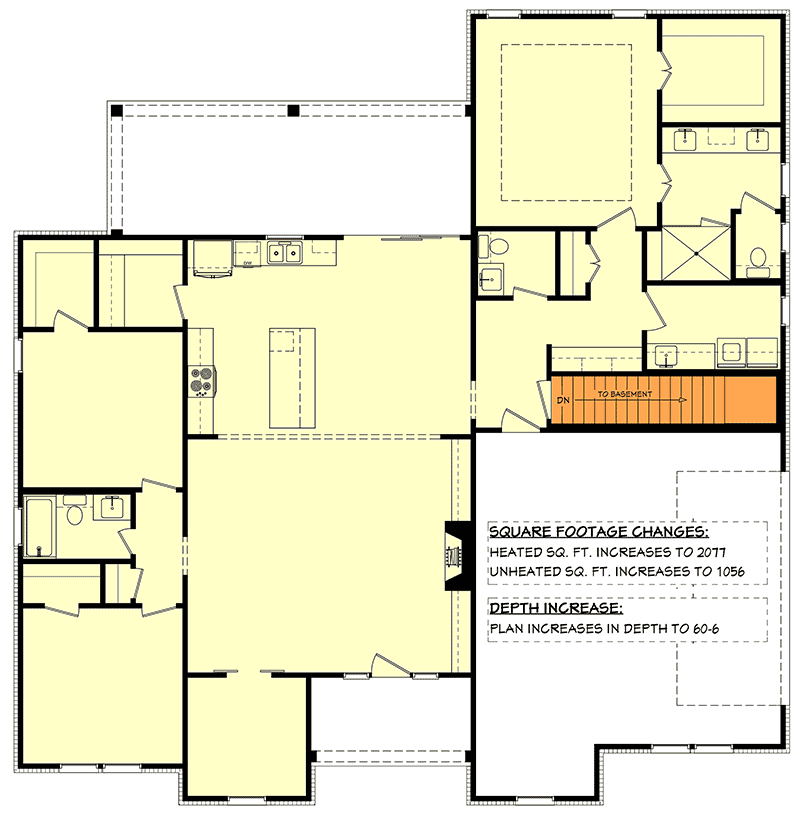

Craftsman Farmhouse with Attractive Decorative Shed Dormer and a Home Office - 51887HZ floor plan - Basement stair location

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,045 sq. ft.
  • 1st Floor: 2,045 sq. ft.
  • Porch, Rear: 277 sq. ft.
  • Porch, Front: 80 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 56' 2"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 621 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Room Details Ceiling Type Width Depth Height
Master Bedroom 11' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick
