Plan 39180ST

Double Gables

Heated S.F.
1,487
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 39180ST

Main Level
Main Level
2nd Floor
2nd Floor
Basement
Basement

Plan 39180ST

M-F 9am-5pm EST |

1-203-761-8500

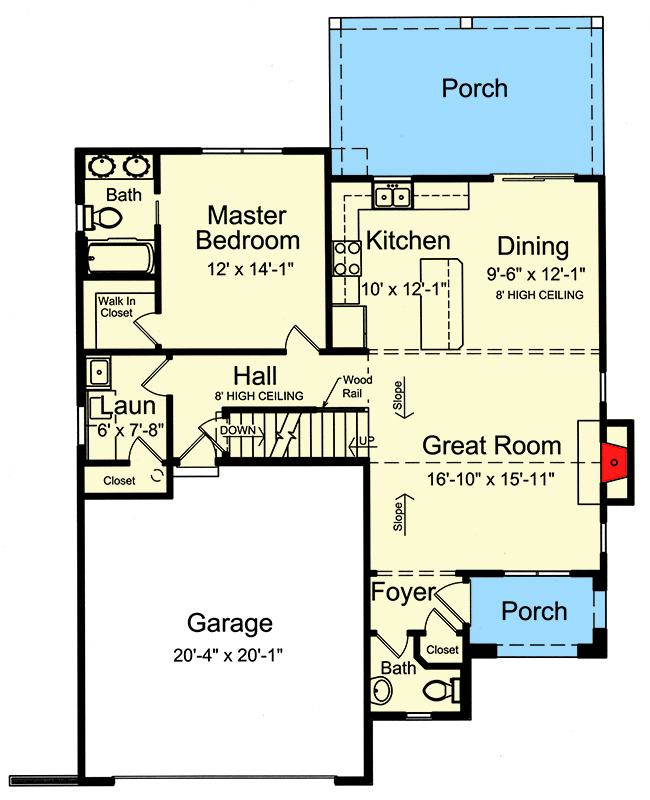

Main Level

Plan 39180ST: Double Gables - Floor Plan - Main Level - Cottage, Craftsman, Traditional

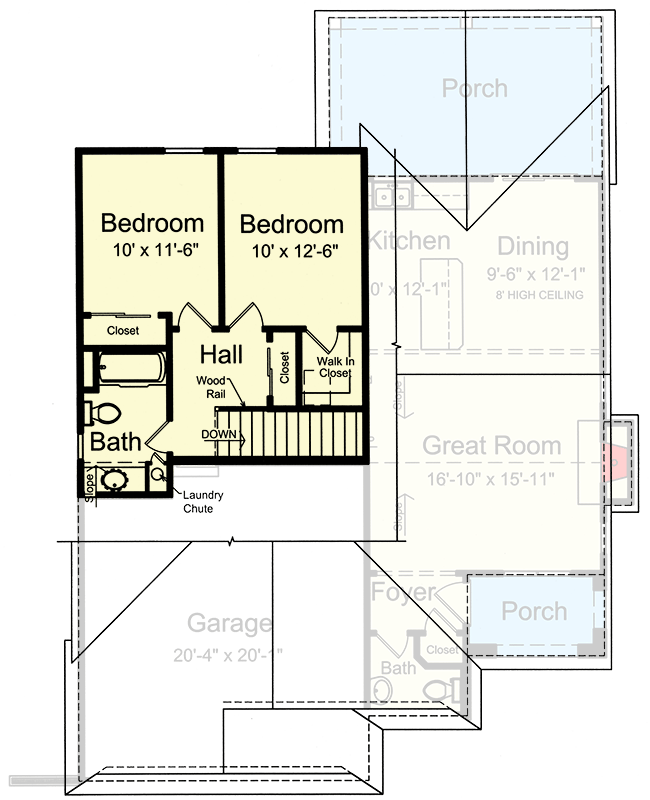

2nd Floor

Plan 39180ST: Double Gables - Floor Plan - 2nd Floor - Cottage, Craftsman, Traditional

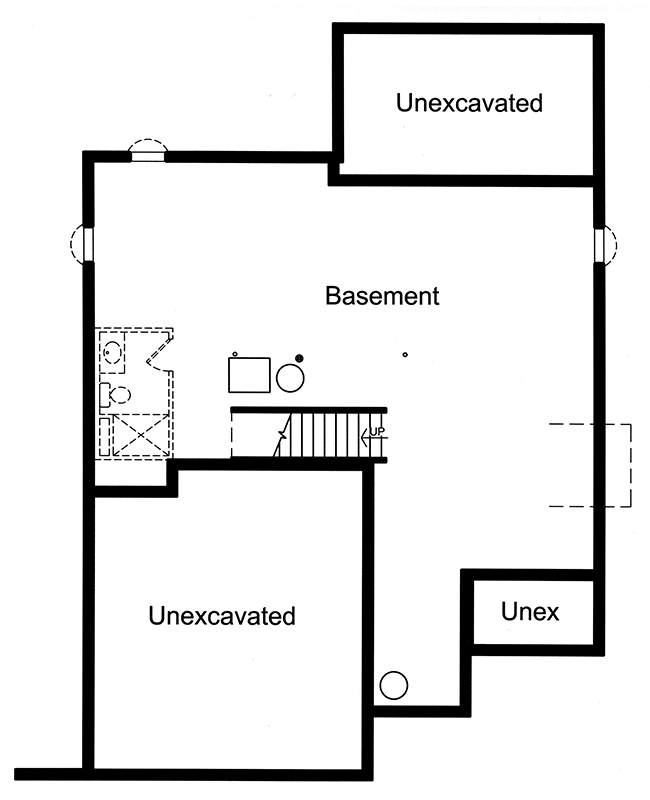

Basement

Plan 39180ST: Double Gables - Floor Plan - Basement - Cottage, Craftsman, Traditional

Plan Details

  • Double gables, a stone and siding facade and a covered entry decorate the exterior of this charming 1 1/2 story home plan.
  • A great room with fireplace, kitchen with island, and dining area combine to create a large, open gathering space.
  • Added charm comes from a sloped ceiling that tops the great room.
  • The first floor master suite features a view to the rear yard and a private bath and walk-in closet.
  • The laundry room helps to create an orderly entry from the garage to the house.
  • Two additional bedrooms top this lovely home plan.

What's Included

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,487 sq. ft.

1st Floor

1,040 sq. ft.

2nd Floor

447 sq. ft.

Porch, Combined

227 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 2"

Depth

55' 0"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Traditional

Special Features

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,487 sq. ft.

1st Floor

1,040 sq. ft.

2nd Floor

447 sq. ft.

Porch, Combined

227 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 2"

Depth

55' 0"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Traditional

Special Features

Master Suite - 1st Floor

Mudroom
