Plan 83646CRW Expanded 3 Bed Traditional Split Bedroom Ranch House Plan

1,316 3 2 1

Floor Plan

Main Level

Reverse Floor Plan

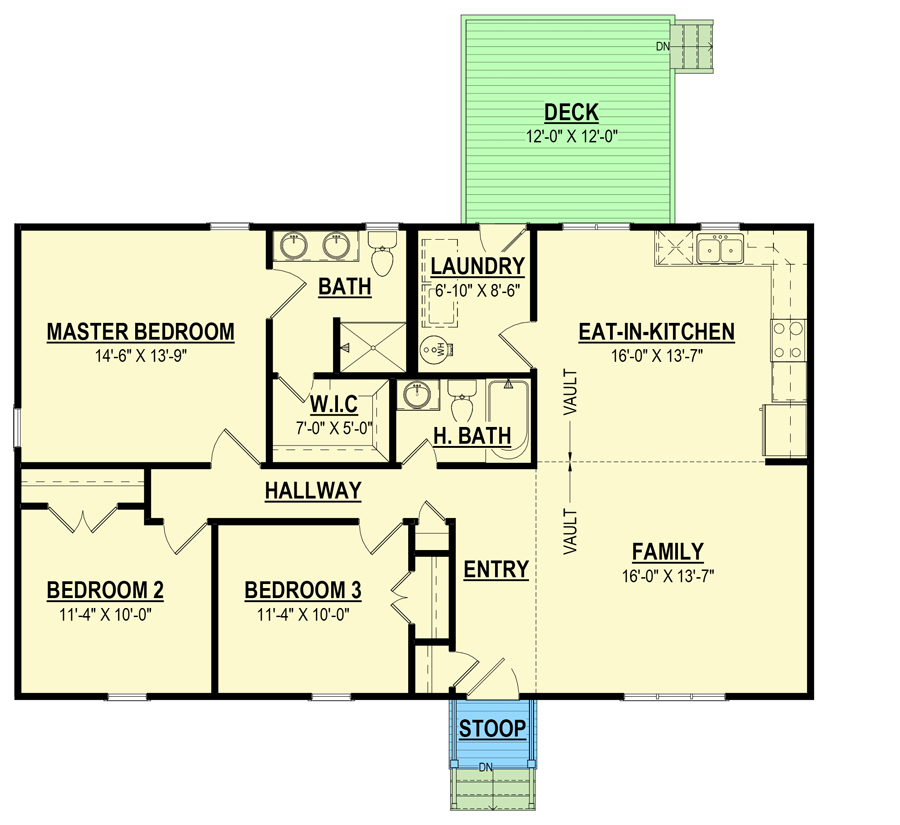

Expanded 3 Bed Traditional Split Bedroom Ranch House Plan - 83646CRW floor plan - Main Level

Main Level - Basement Stairs

Reverse Floor Plan
Expanded 3 Bed Traditional Split Bedroom Ranch House Plan - 83646CRW floor plan - Main Level - Basement Stairs

Lower Level - Basement

Reverse Floor Plan
Expanded 3 Bed Traditional Split Bedroom Ranch House Plan - 83646CRW floor plan - Lower Level - Basement

Lower Level - Walkout Basement

Reverse Floor Plan
Expanded 3 Bed Traditional Split Bedroom Ranch House Plan - 83646CRW floor plan - Lower Level - Walkout Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,316 sq. ft.
  • 1st Floor: 1,316 sq. ft.
  • Deck: 144 sq. ft.
  • Porch, Front: 20 sq. ft.
  • Basement Unfinished: 1,428 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Walkout, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 47' 0"
  • Depth: 28' 0"
  • Max ridge height: 18' 0"

Garage

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
