Plan 710245BTZ

New American House Plan with Main Floor Master and Bonus Over Garage

Name: Plan 710245BTZ: New American House Plan with Main Floor Master and Bonus Over Garage
Brand: Architectural Designs
SKU: 710245BTZ
Price: 1817.09 USD
Availability: InStock

Heated S.F.

2,469

Beds

3 - 4

Baths

Stories

Cars

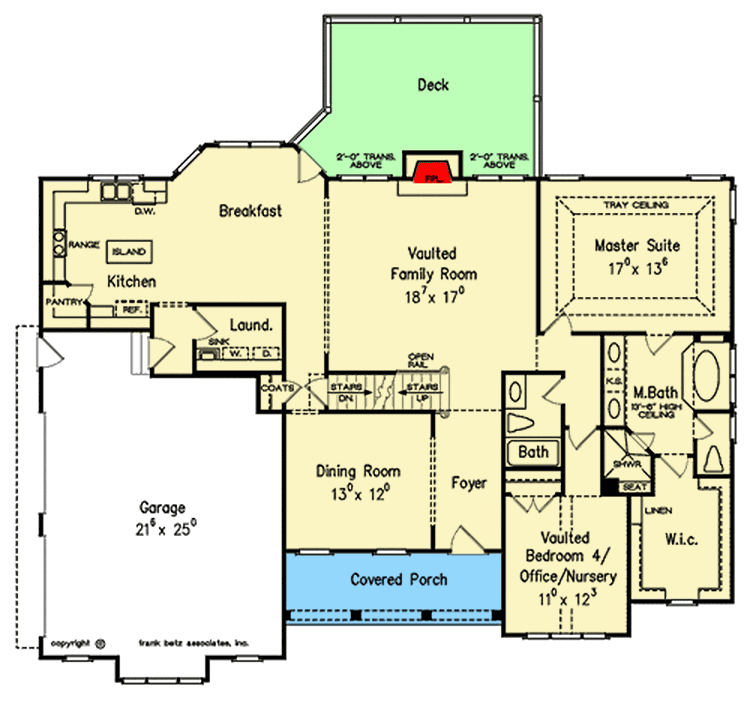

Floor Plan

Main Level

2nd Floor

Plan Details

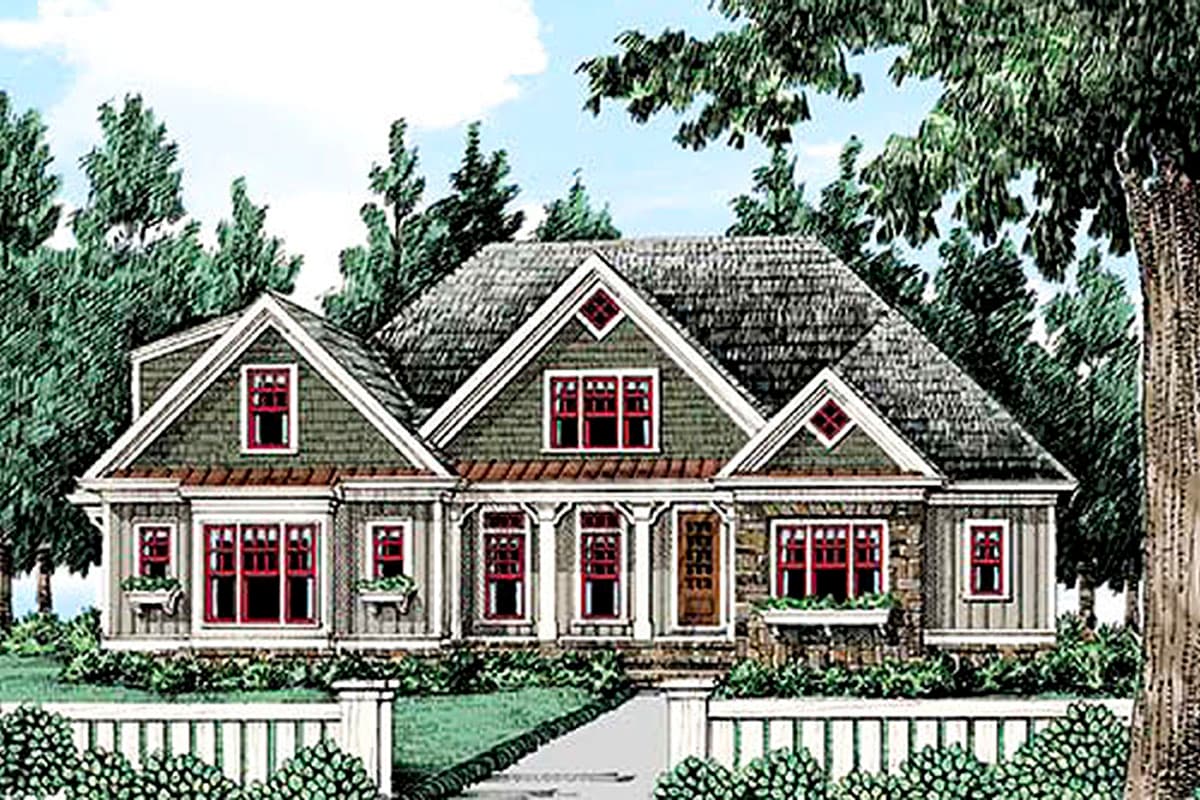

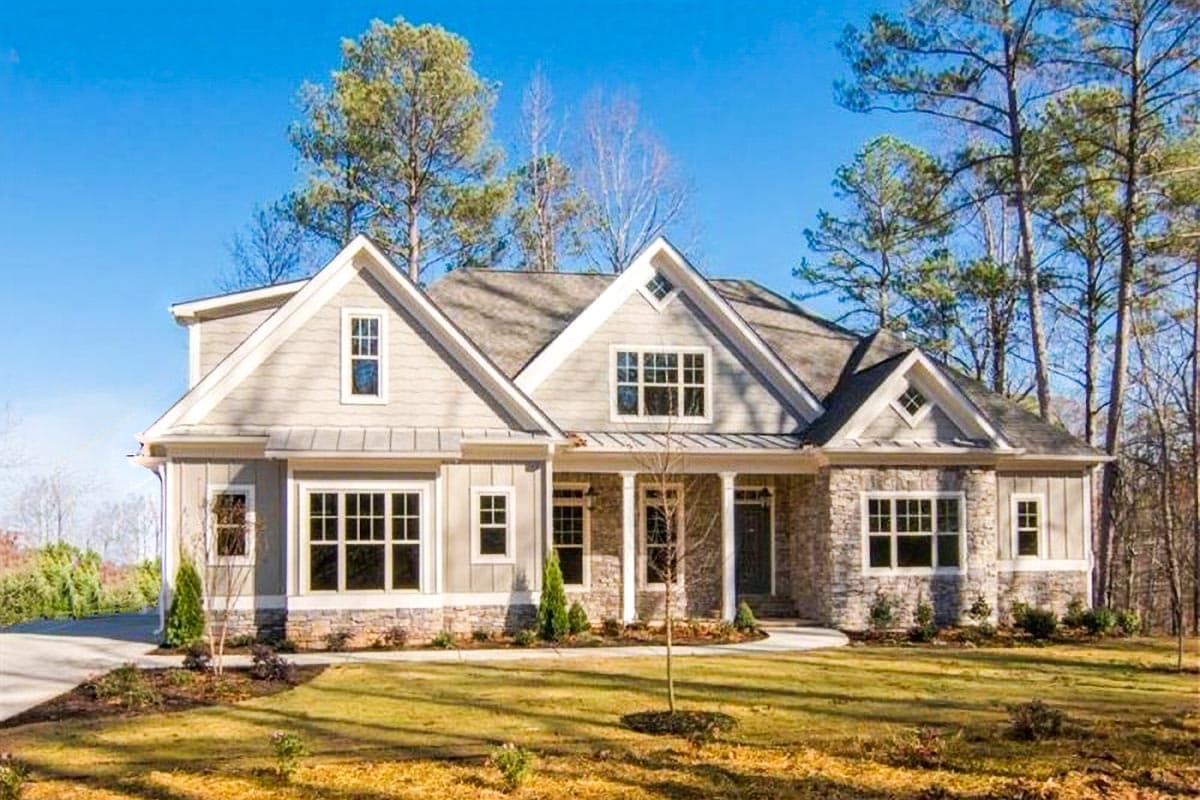

This New American house plan has a beautiful exterior with stone and board and batten siding on the main level and shingles in the gables and dormer over the garage. A welcoming front porch adds to the charm.

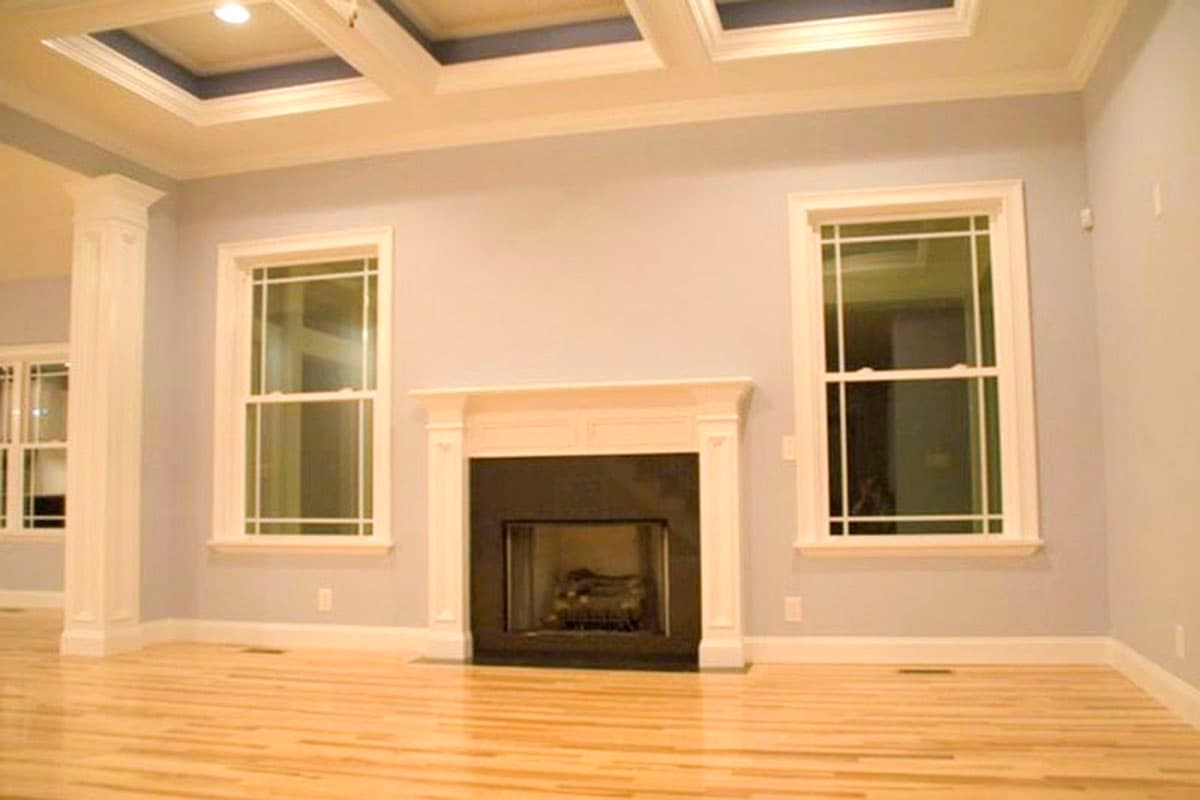

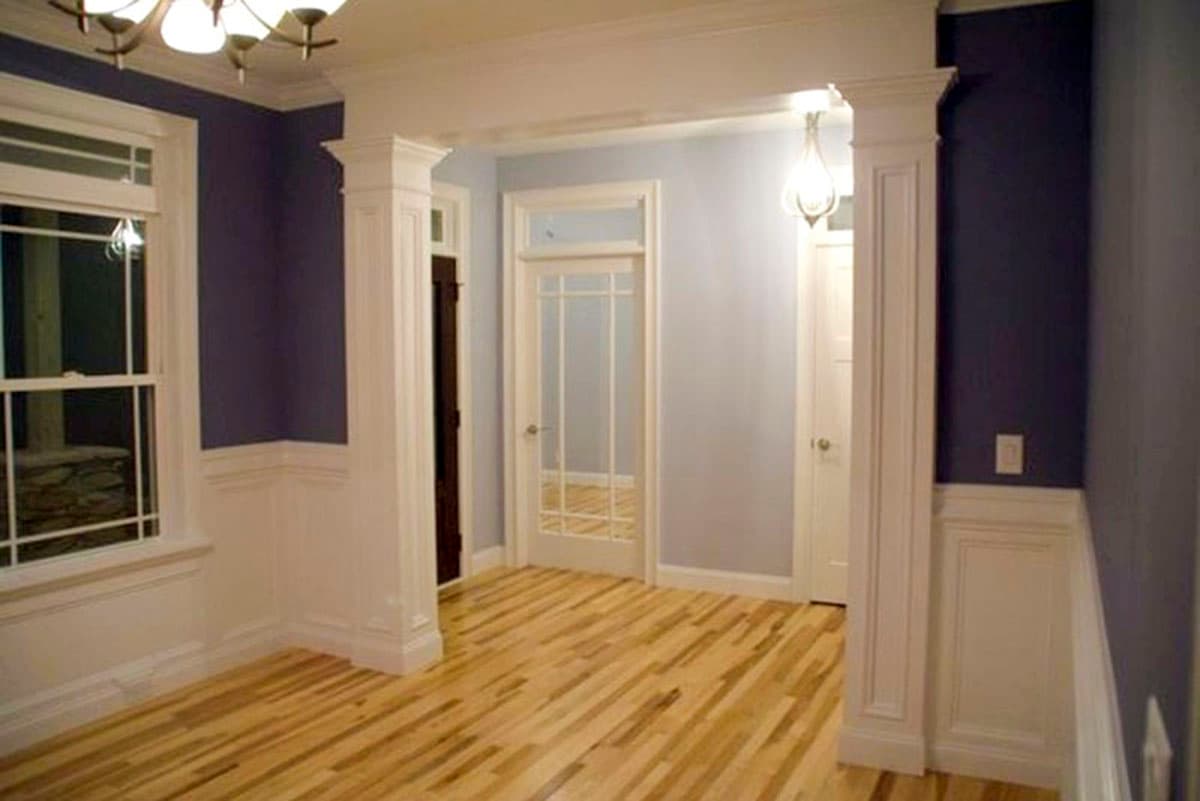

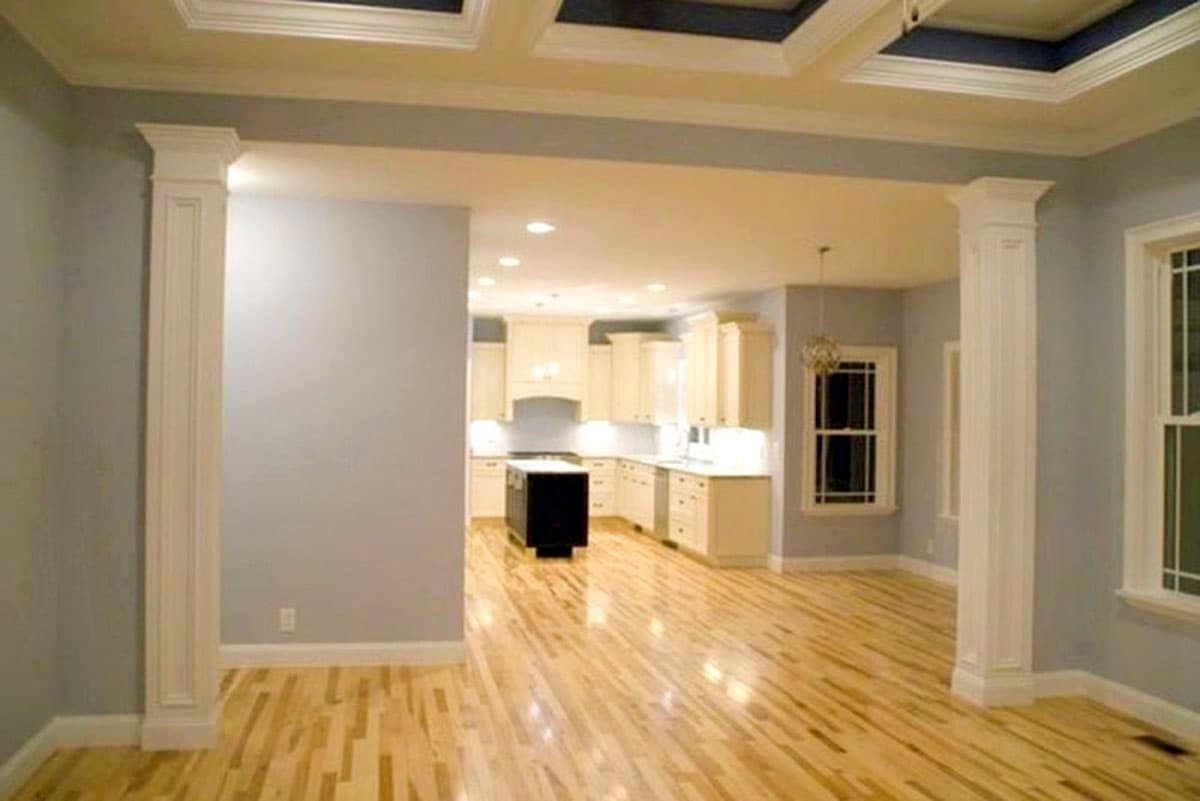

The foyer has views straight back to the vaulted family room and the dining room opens to your left. A passage there leads you to the kitchen and open floor plan.

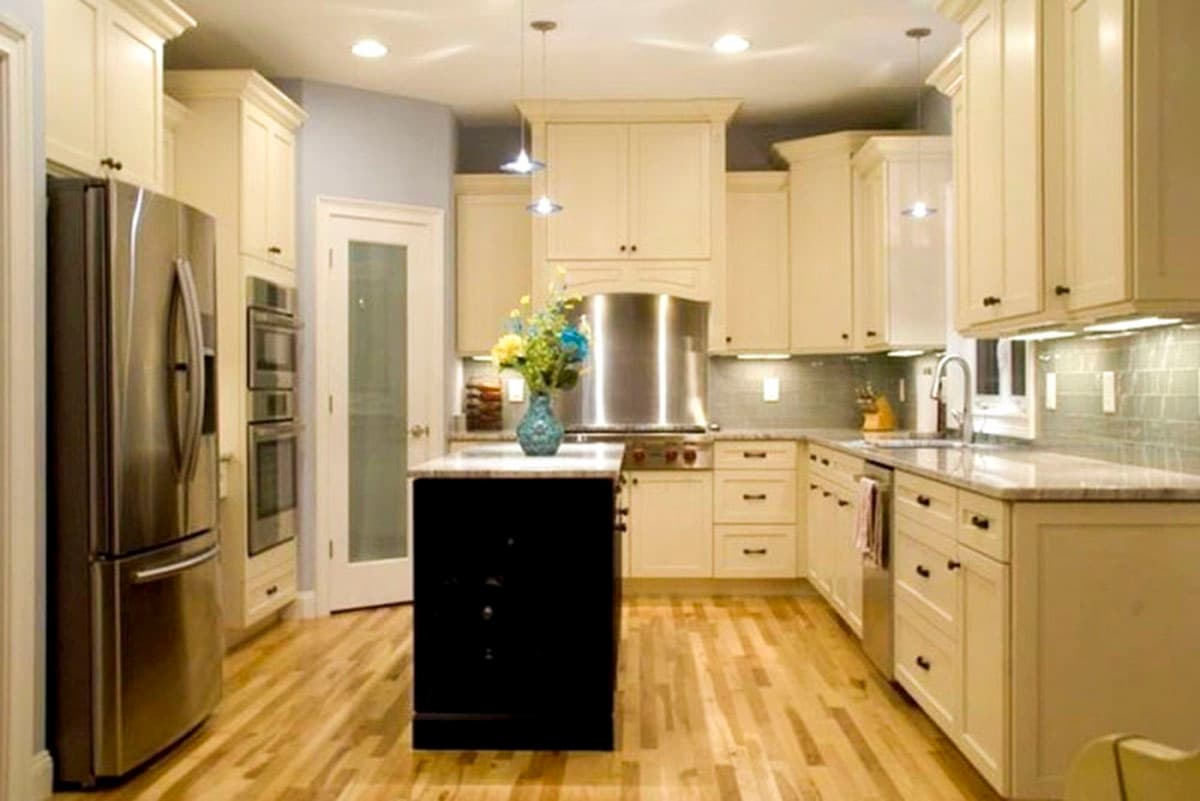

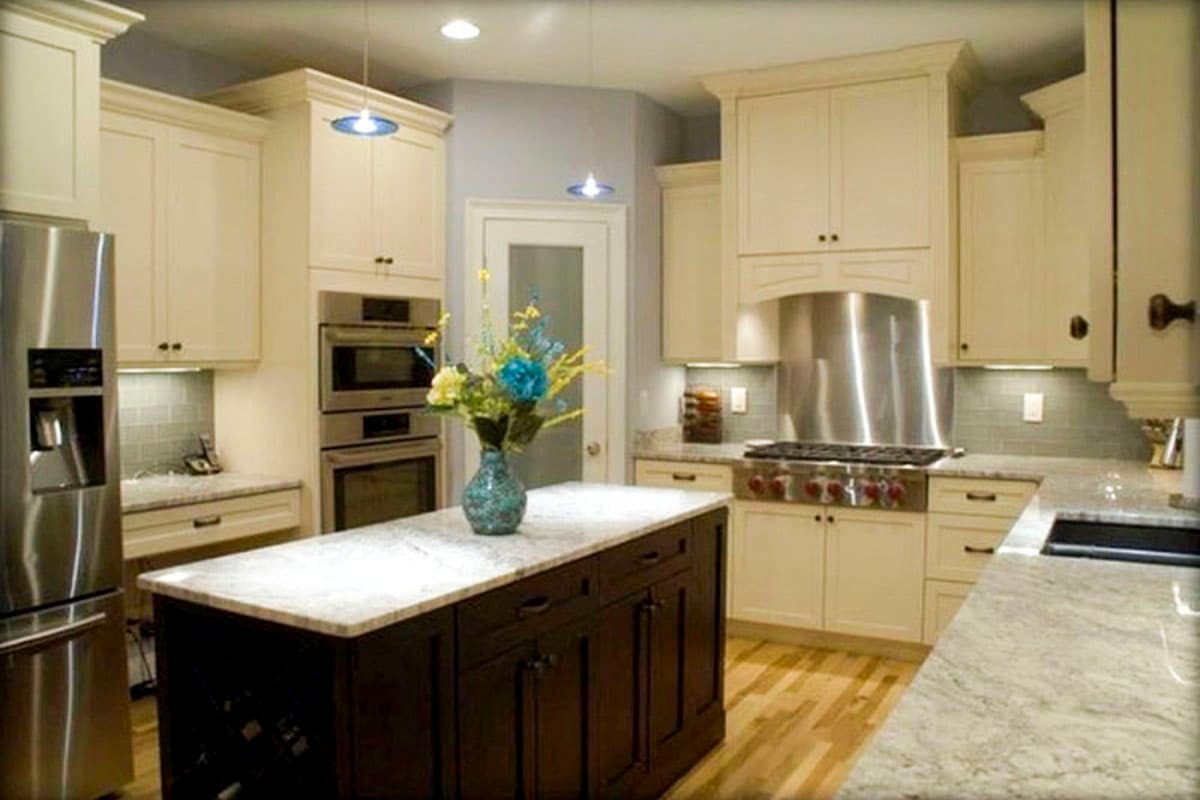

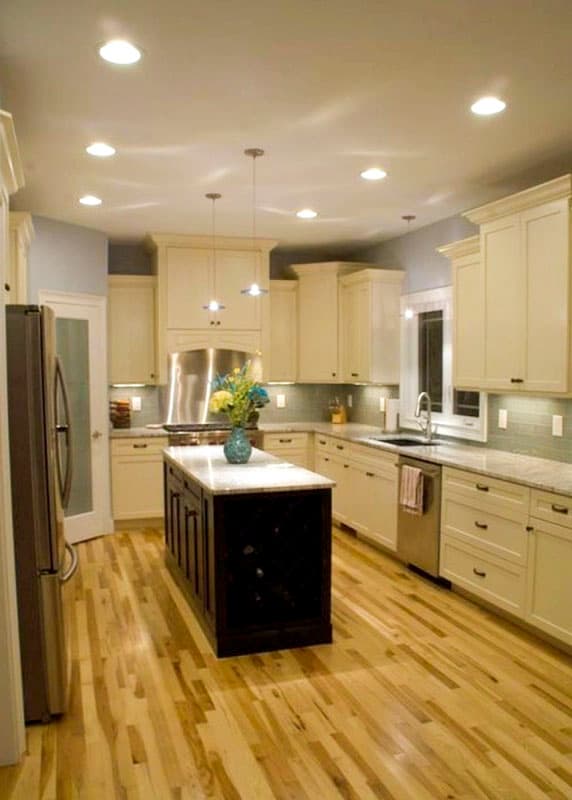

Your C-shaped kitchen has a corner pantry and easy access to the garage making unloading groceries a breeze.
The bayed breakfast area has access to the deck in back.

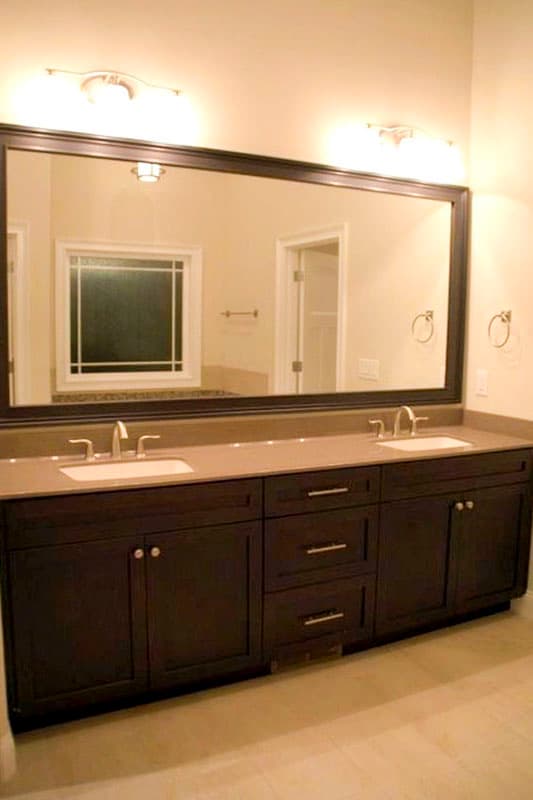

The master suite is located on the main-level and has a beautiful tray ceiling. The room nearby can be used as a nursery, guest room or home office.

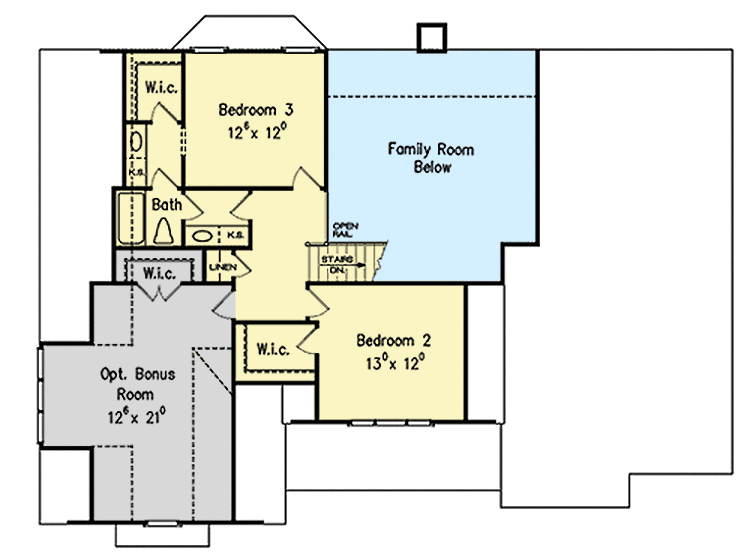

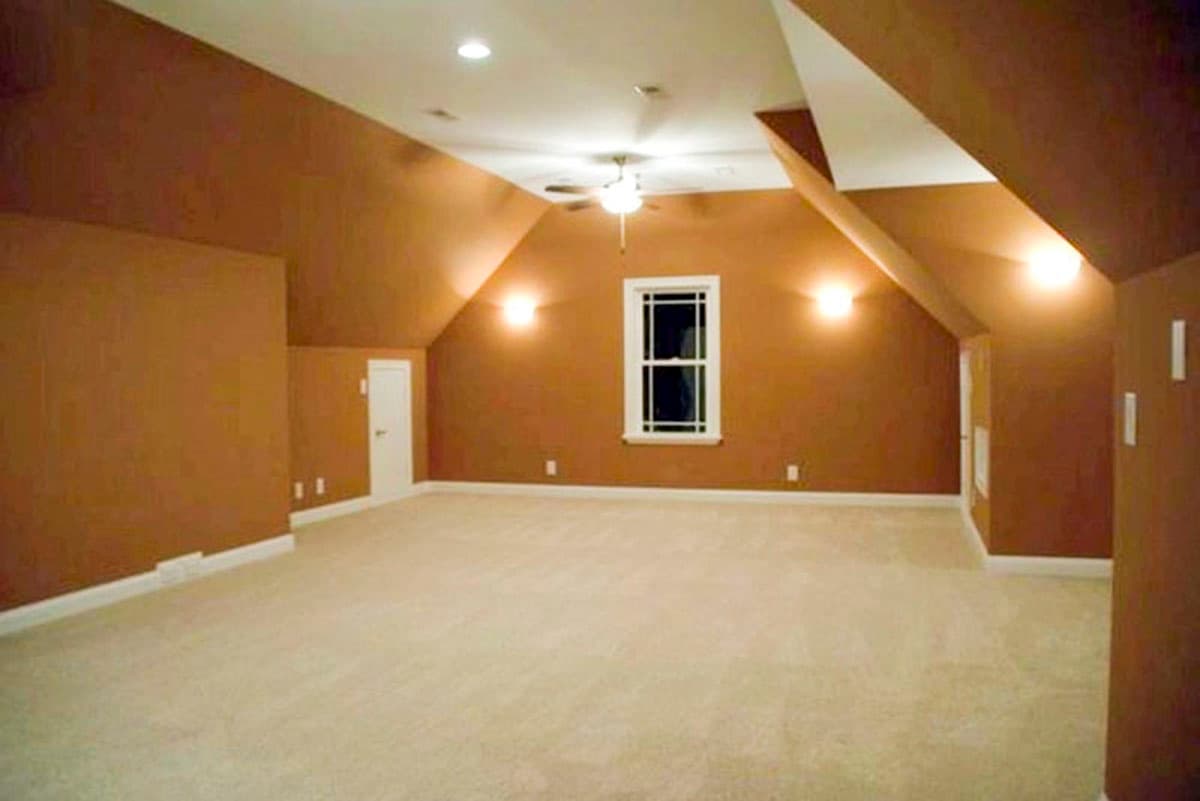

Upstairs, two bedrooms share a bath and there is a large bonus room over the garage which can be put to many uses.

What's Included

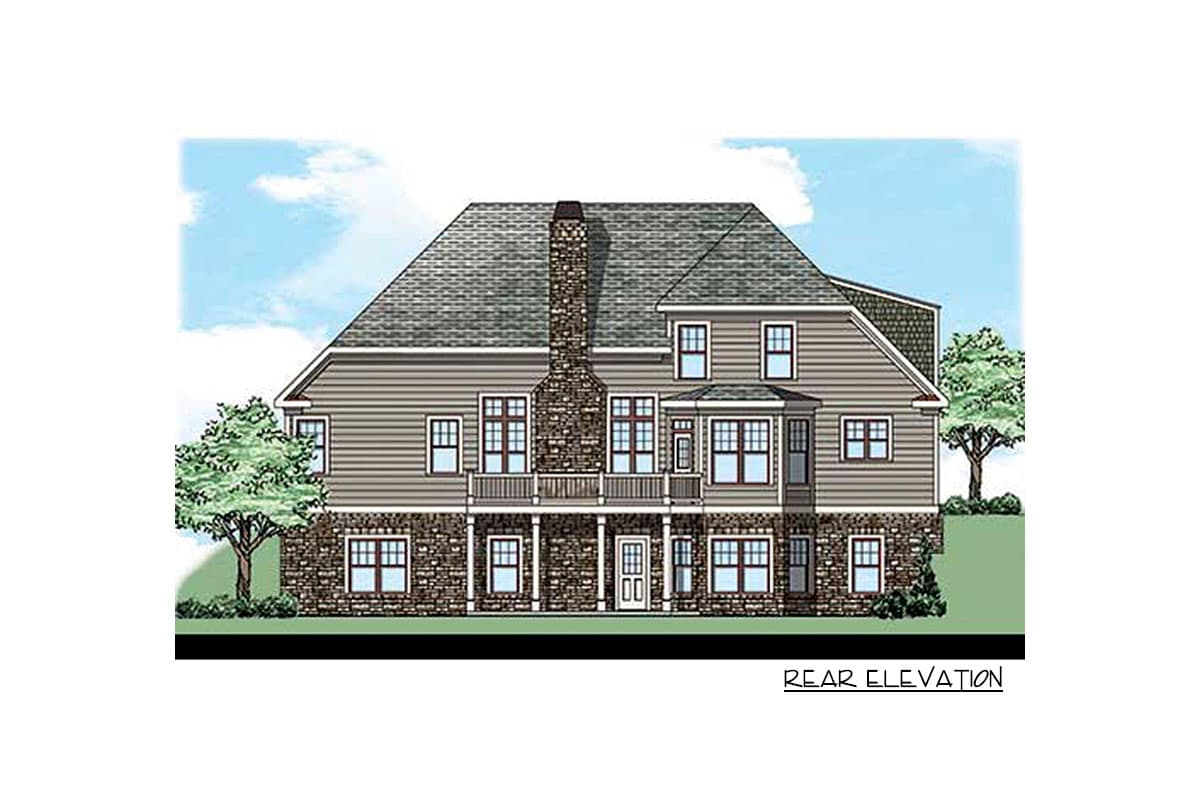

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.
Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
