Plan 890103AH Split Bedroom New American Ranch Home Plan - 1837 Sq Ft

1,837 3 2 1 3

Floor Plan

Main Level

Reverse Floor Plan

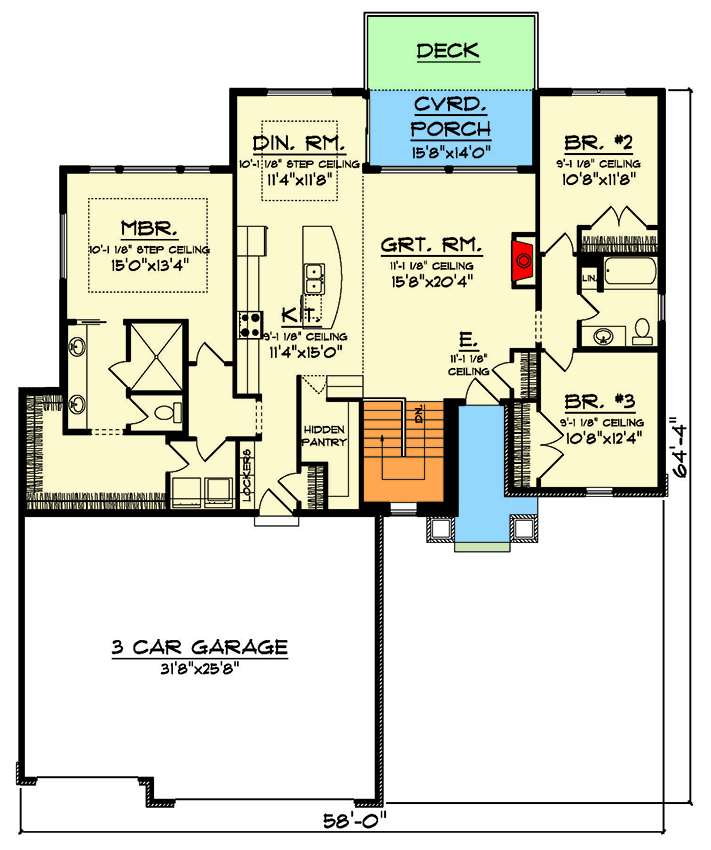

Split Bedroom New American Ranch Home Plan - 1837 Sq Ft - 890103AH floor plan - Main Level

Optional Lower Level ($ Paid Option)

Reverse Floor Plan

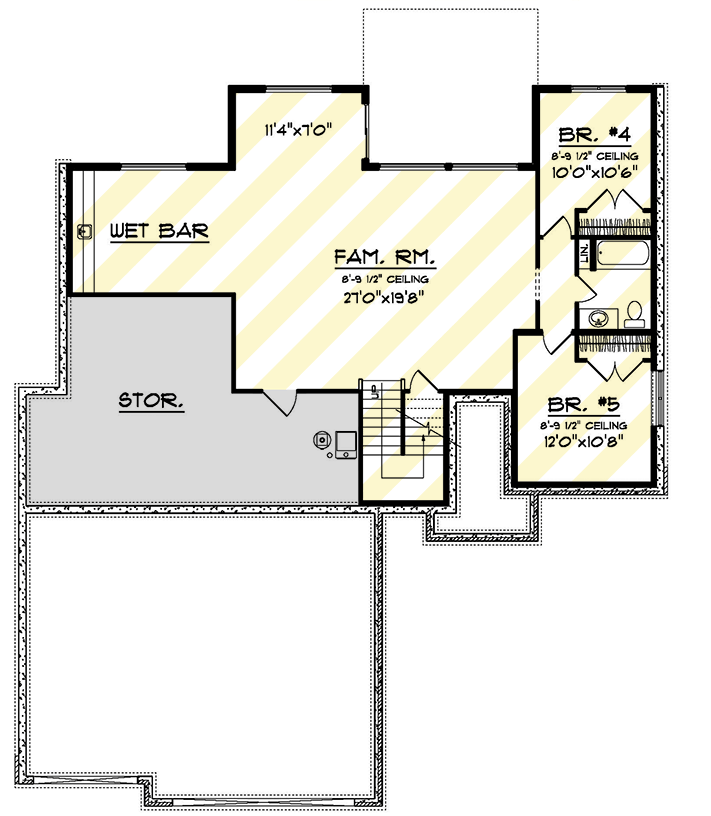

Split Bedroom New American Ranch Home Plan - 1837 Sq Ft - 890103AH floor plan - Optional Lower Level ($ Paid Option)

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,837 sq. ft.
  • 1st Floor: 1,837 sq. ft.
  • Optional Lower Level: 1,229 sq. ft.
  • Porch, Combined: 195 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 64' 4"
  • Max ridge height: 21' 0"

Garage

  • Type: Attached
  • Area: 817 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
