Plan 54200HU
Stunning Mountain Home with Four Master Suites
Heated S.F.
4,208
Beds
4
Baths
4.5
Stories
2
Cars
3
Photos
What's Included
Plan Details
  • This stunning Mountain home plan has four master suites to choose from, two of which are on the main floor.

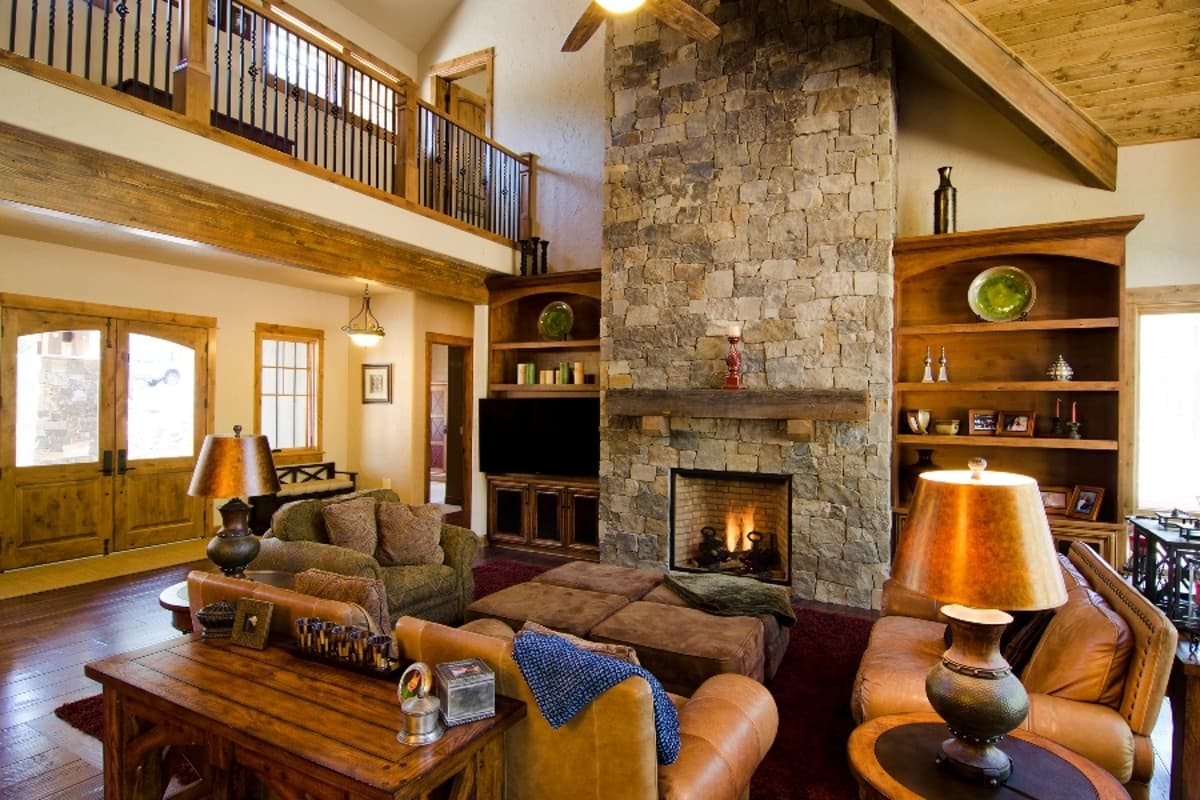

  • The huge foyer opens right up to the open concept main living area where you have sweeping views from room to room.

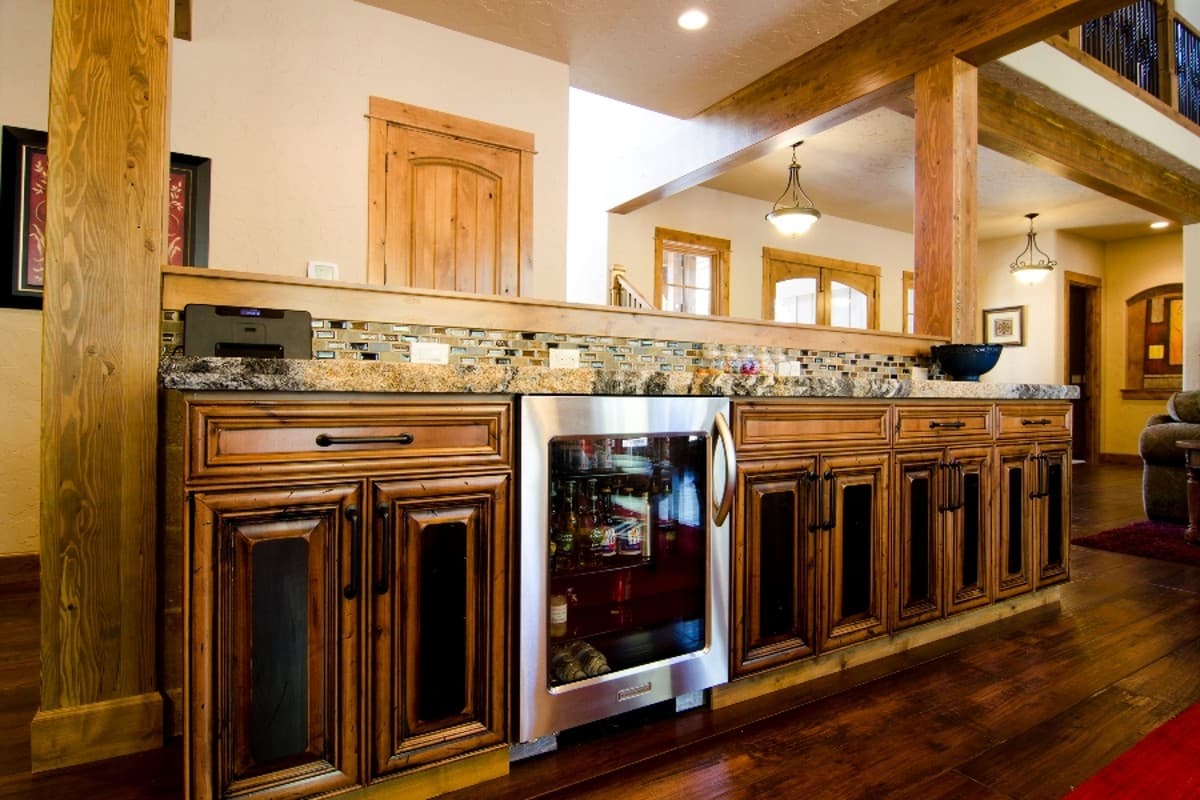

  • A built-in buffet bar makes it easy to entertain.
  • The den faces the front of the home and gives you a quiet place to escape to.

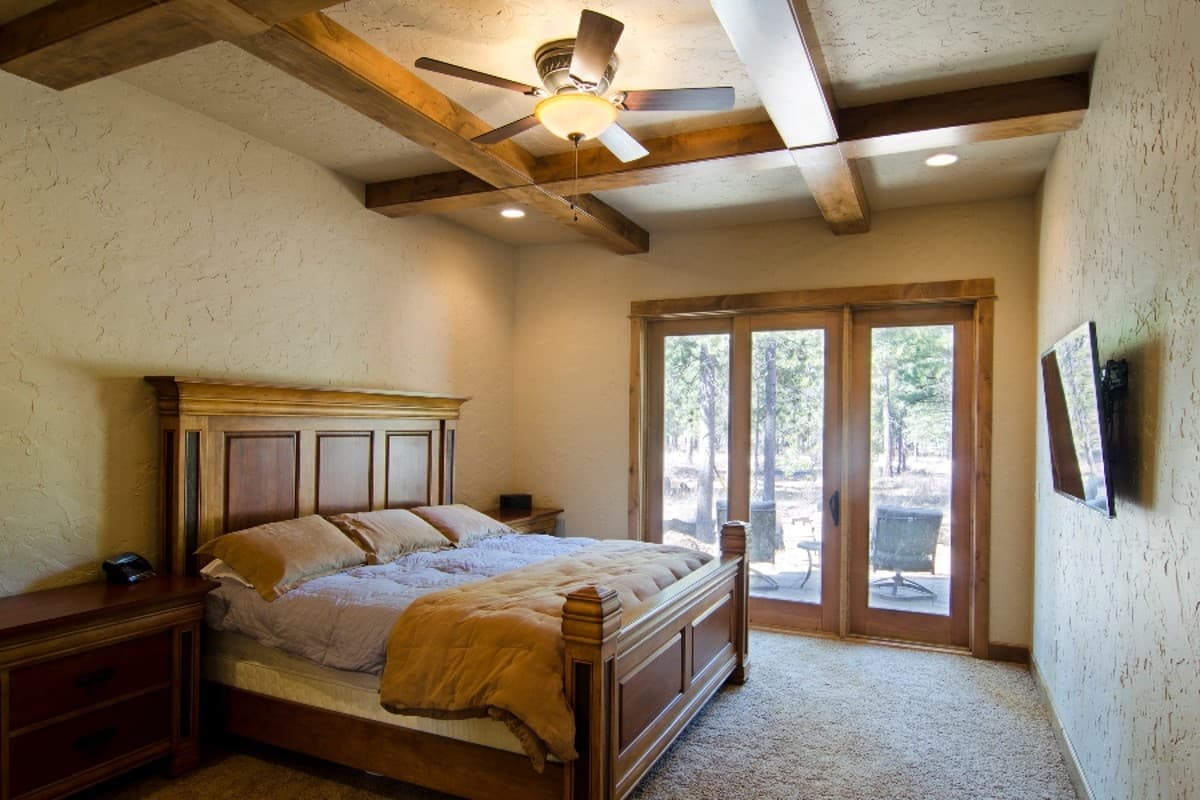

  • Sliding glass doors in master suite 1 lead to the rear terrace.
  • A balcony bridge on the second floor overlooks the main living space below and separates the two upstairs master suites.
  • The enormous bonus room gives your family even more space to live, work or play in.
  • The roof has an 8:12 pitch.
What's Included
Each plan set includes the following:
  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

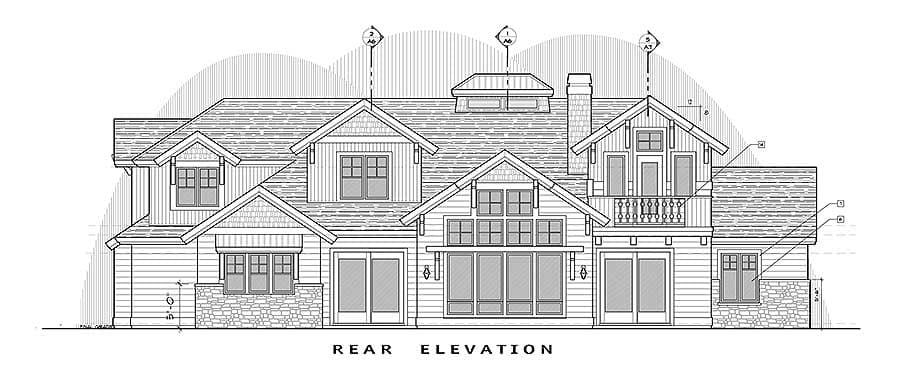

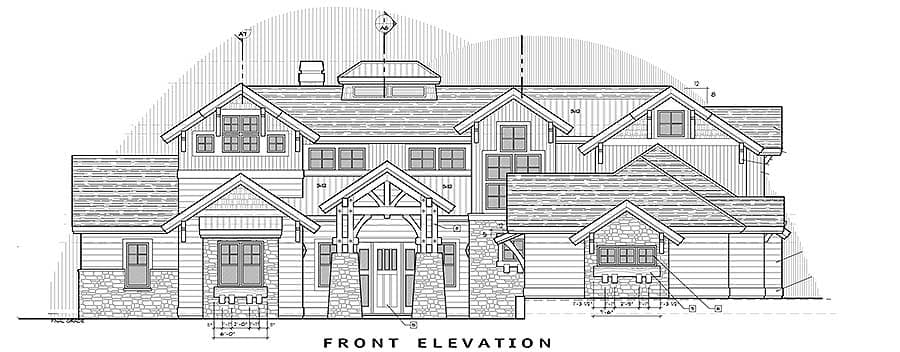

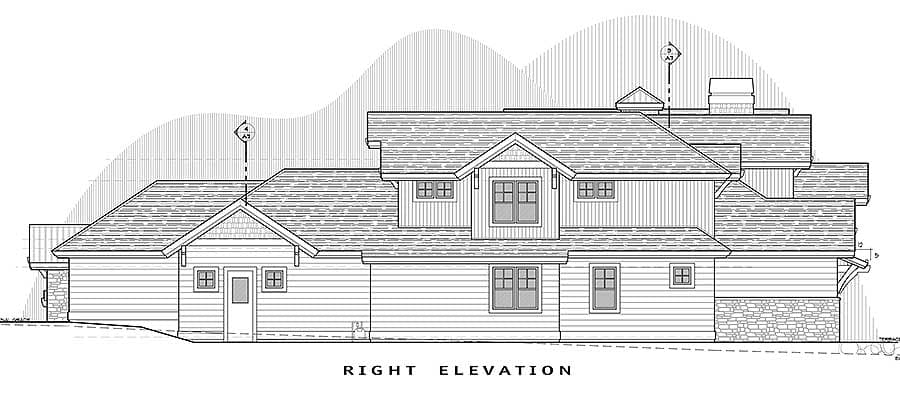

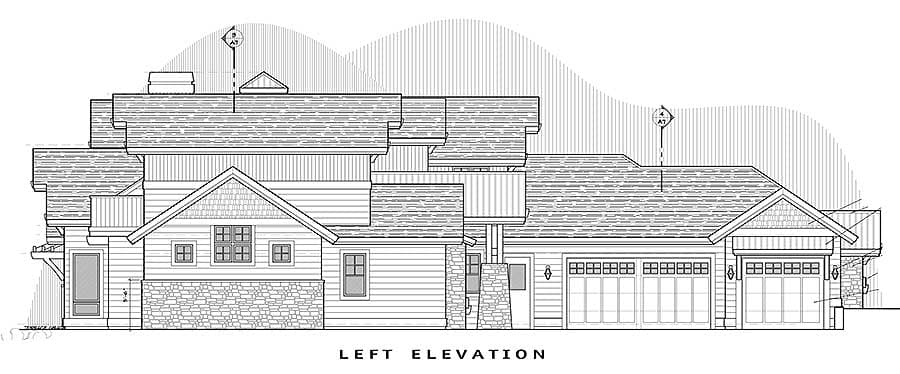

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stunning Mountain Home with Four Master Suites

  • 4,208

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

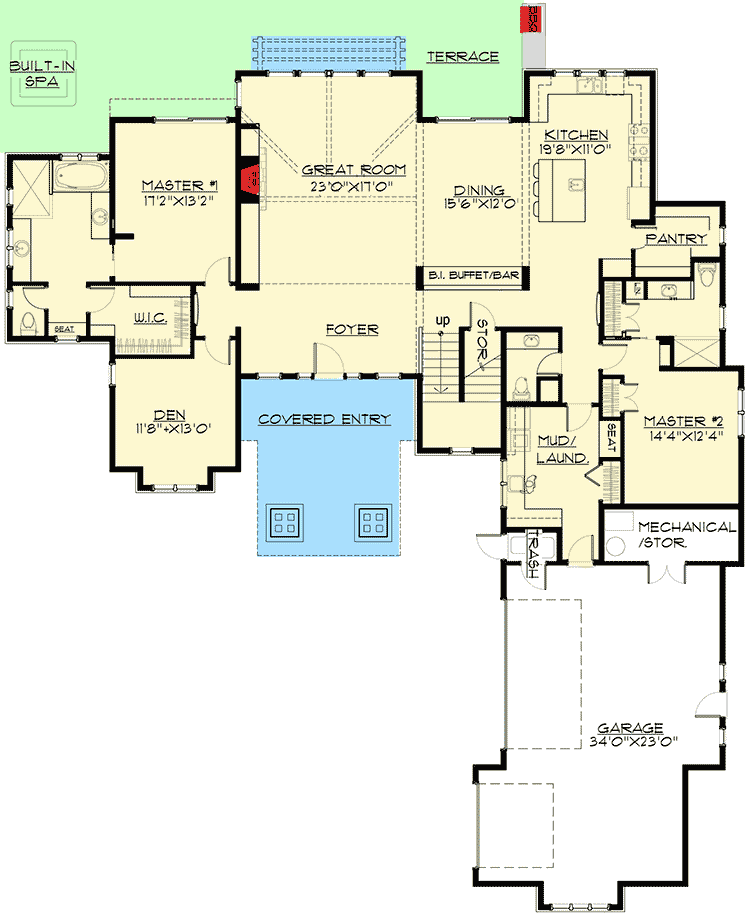

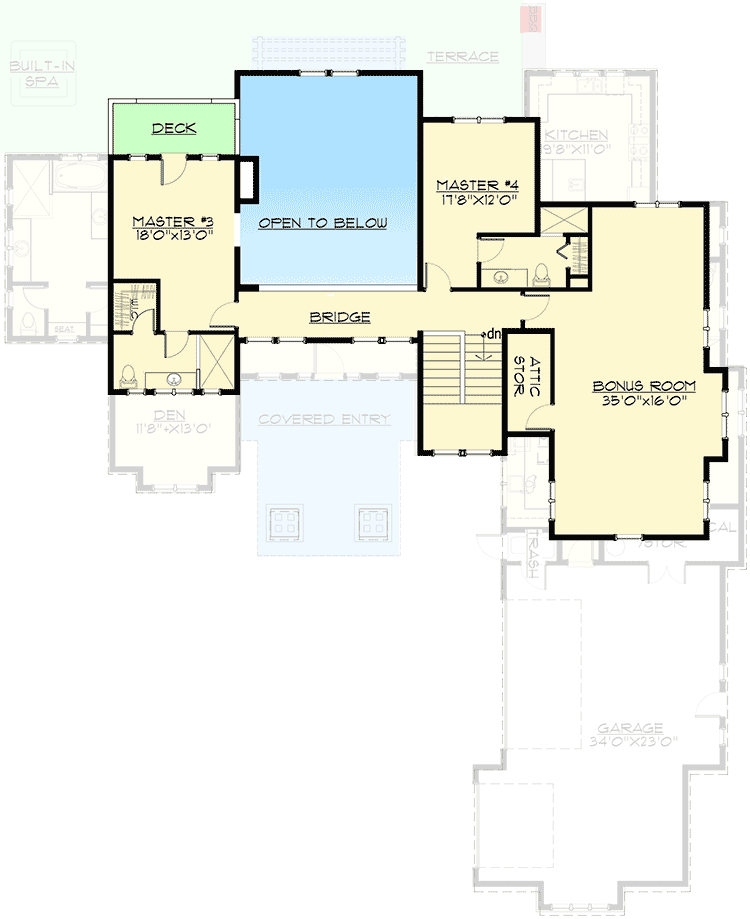

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,208 sq. ft.
  • 1st Floor: 2,810 sq. ft.
  • 2nd Floor: 1,398 sq. ft.

Dimensions

  • Width: 79' 0"
  • Depth: 90' 0"
  • Max ridge height: 28' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 935 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
