Plan 9520RW
Wrap-Around Rear Decks
Heated S.F.
6,963
Beds
5
Baths
5.5+
Stories
2
Cars
4
What's Included
Plan Details
  • Four decks on the rear of this spectacular luxury home plan encourage plenty of outdoor activities.
  • Designed for entertaining on a grand scale, a large wet bar lies close to the formal dining room with tray ceiling.

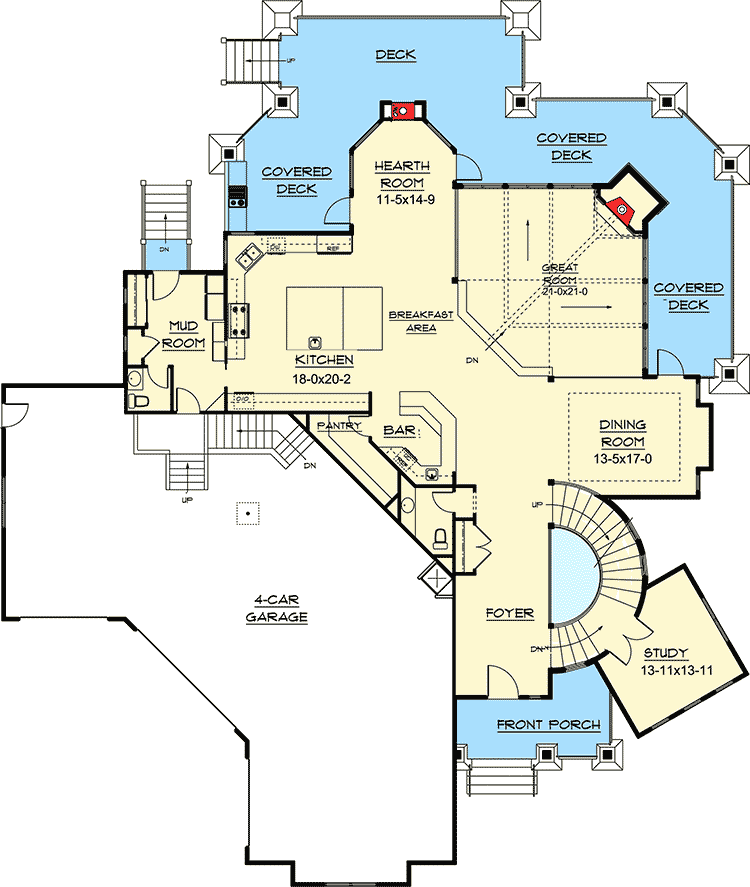

  • Step down into the two-story great room with a magnificent fireplace as the focal point.
  • Enjoy your informal meals in the hearth room.
  • The gourmet kitchen is enormous with a huge island that gives you plenty of room to spread out while you cook.
  • For a quiet spot to read or work, the study lies on a landing to the side of the foyer.
  • On the second floor, an open rail overlooks the great room below.
  • Each bedroom has its own bath and a laundry room on this level adds convenience.
  • Boasting its own deck and a bayed sitting area, the master suite will make a welcome retreat at the end of the day.

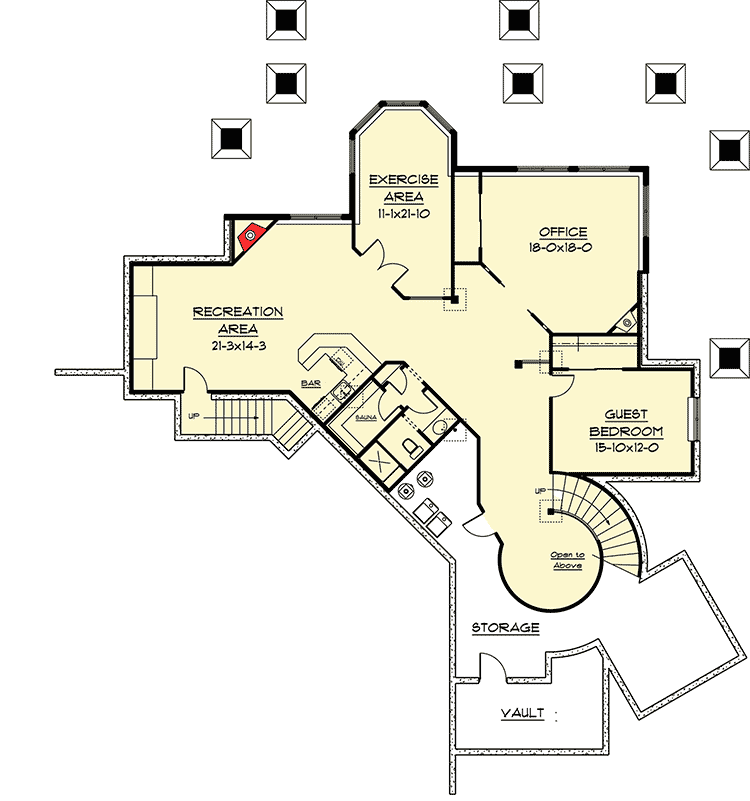

  • A spacious lower level adds a rec room, an office and an exercise area as well as guest quarters.
  • Related Plan: Save money and eliminate the lower level with house plan 9537RW (3,979 sq. ft.).
What's Included

  • Cover Page
  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
