Plan 510028WDY
EXCLUSIVE
Country House Plan with Courtyard Garage and Bonus Above
Heated S.F.
2,685
Beds
4-5
Baths
3 - 4
Stories
1-2
Cars
3
What's Included
Plan Details
  • Three dormers are centered over the shed roof front porch on this country house plan with a courtyard garage with bonus and bath above.
  • French doors open to the foyer. Inside, an open concept floor plan is great for entertaining friends and family.
  • The kitchen has a large island and has views to the keeping room. A walk-in pantry is steps away from the family entry by the garage making unloading groceries a breeze.
  • The living room is open to both the keeping room and the dining room and has a fireplace. A door leads to the covered porch in back.
  • The bedrooms are in a split layout maximizing your privacy. And there is expansion space above the garage with a full bath giving the possibility of having 5 bedrooms.
  • Related Plans: Get an alternate exterior with house plan 510027WDY.
What's Included
This plan has 9 pages as follows:
  1. Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor Dimensions & Electrical Plans, Notes, Door and Window Sizes, Beam Sizing, Siding and Trim Detail, Cornice Detail, Stair Detail, Building Section
  4. All Four Exterior Elevation, Roof Plan
  5. Building Section, Cornice Detail, Strong Back Detail, Flashing Detail, Rafter Span Schedule
  6. Siding Details, Brick Details, Column Details
  7. First Floor Electrical Plan & Schedules
  8. Slab Foundation
  9. Footing Details
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Country House Plan with Courtyard Garage and Bonus Above

  • 2,685

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 1-2

    Floors

  • 3

    Car garage

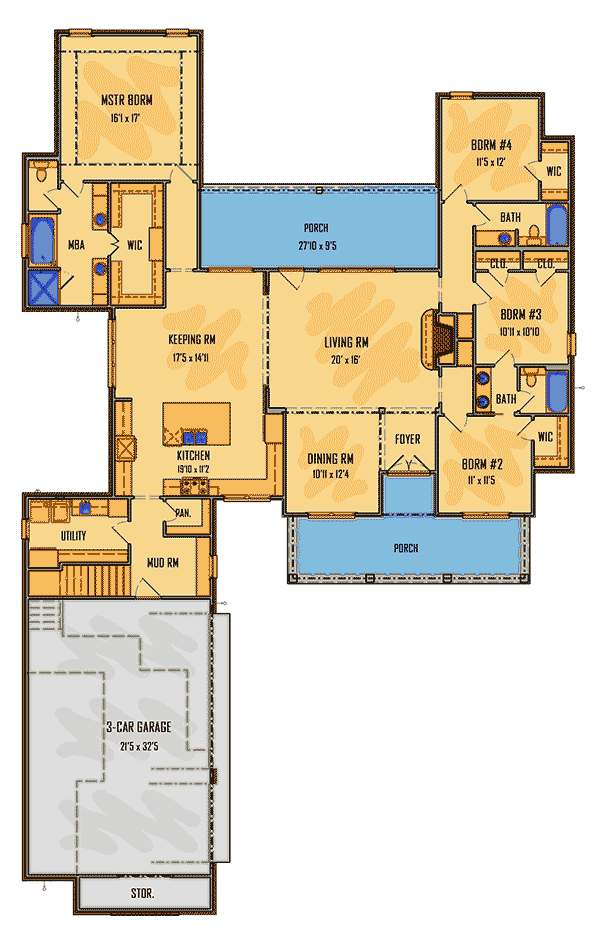

Floor Plan
