Plan 420127WNT
EXCLUSIVE
1-Bed Cottage with 14-Foot Vaulted Ceiling - 570 Sq Ft
Heated S.F.
570
Beds
1
Baths
1
Stories
1
What's Included
Plan Details
  • This 1-bed cottage house plan gives you 570 square feet of heated living and has a steep 16:12 roof. Matching windows to either side of the front door and windows above let in light and views to the inside.
  • Entering the home, you are greeted with a 14'-high vaulted ceiling with a living room in front open to the kitchen with peninsula seating.
  • The bedroom is in back and has a 14' vaulted ceiling. The bathroom separates the bedroom from the open living space.
  • A stacked washer/dryer is located at the end of the hall.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Mechanicals Plan - Suggested HVAC equipment placement
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

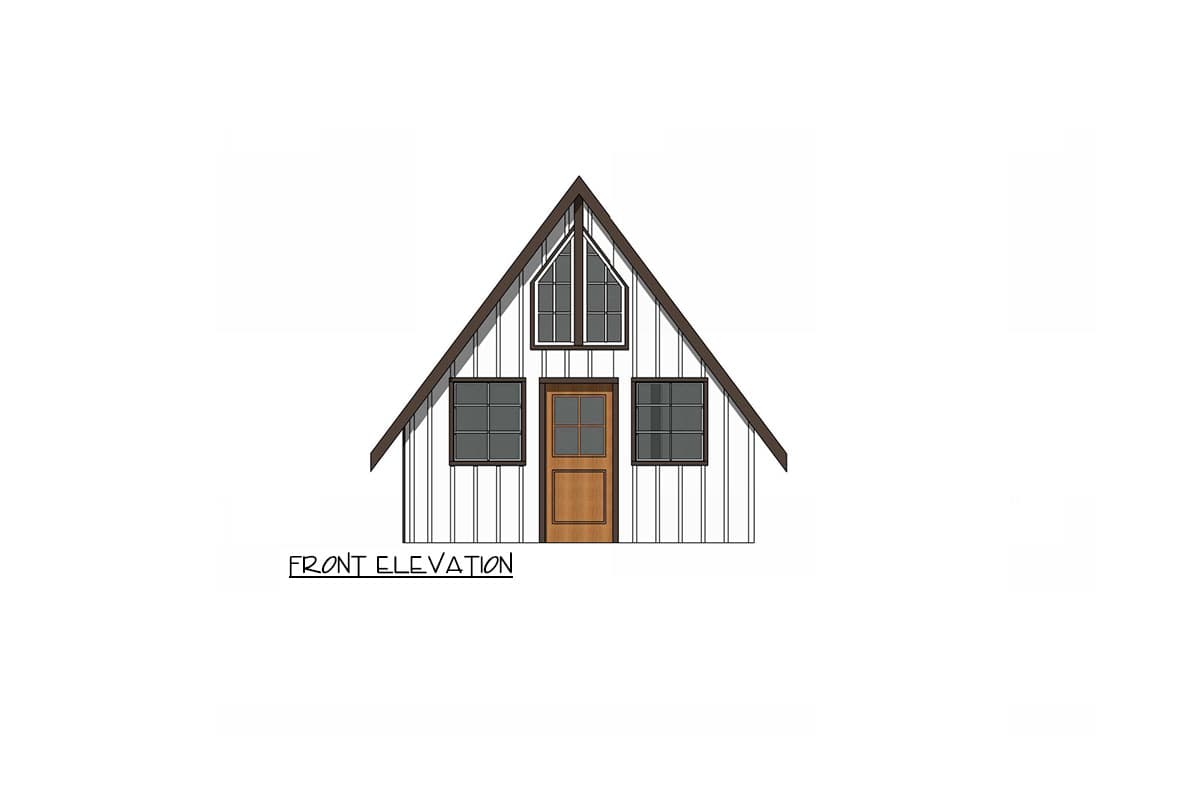

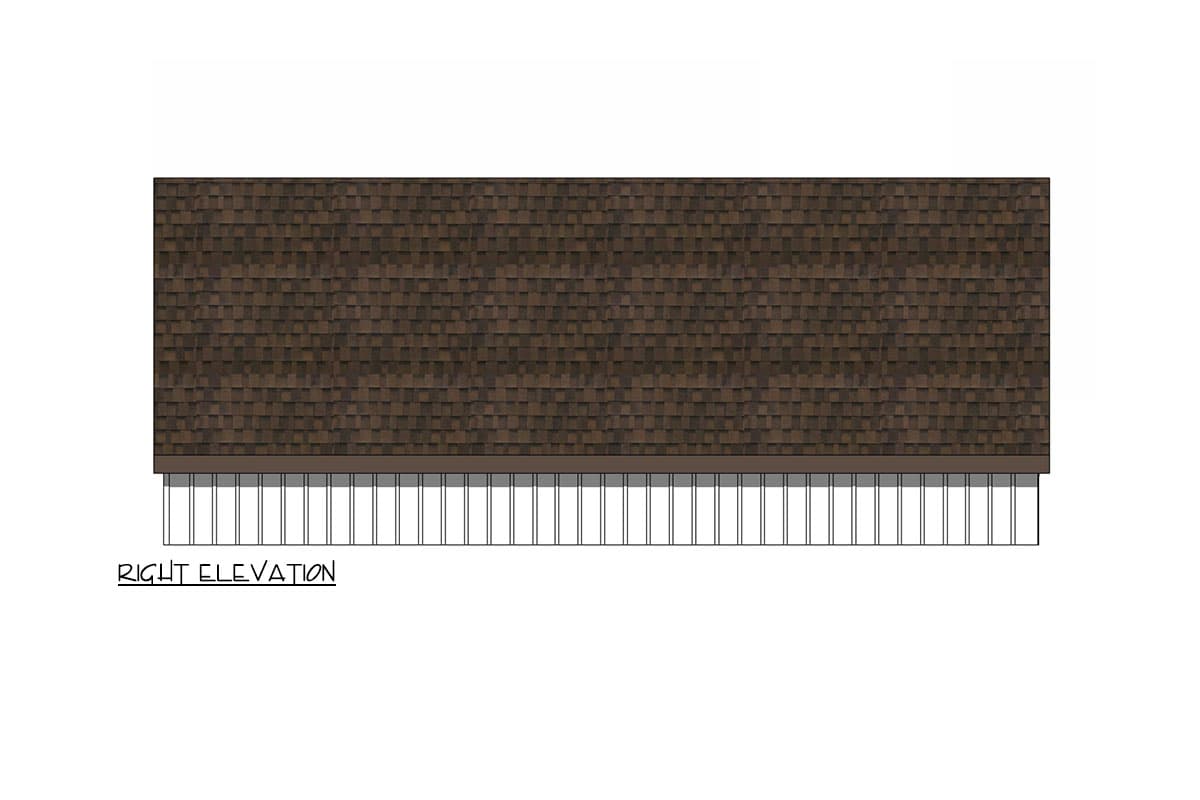

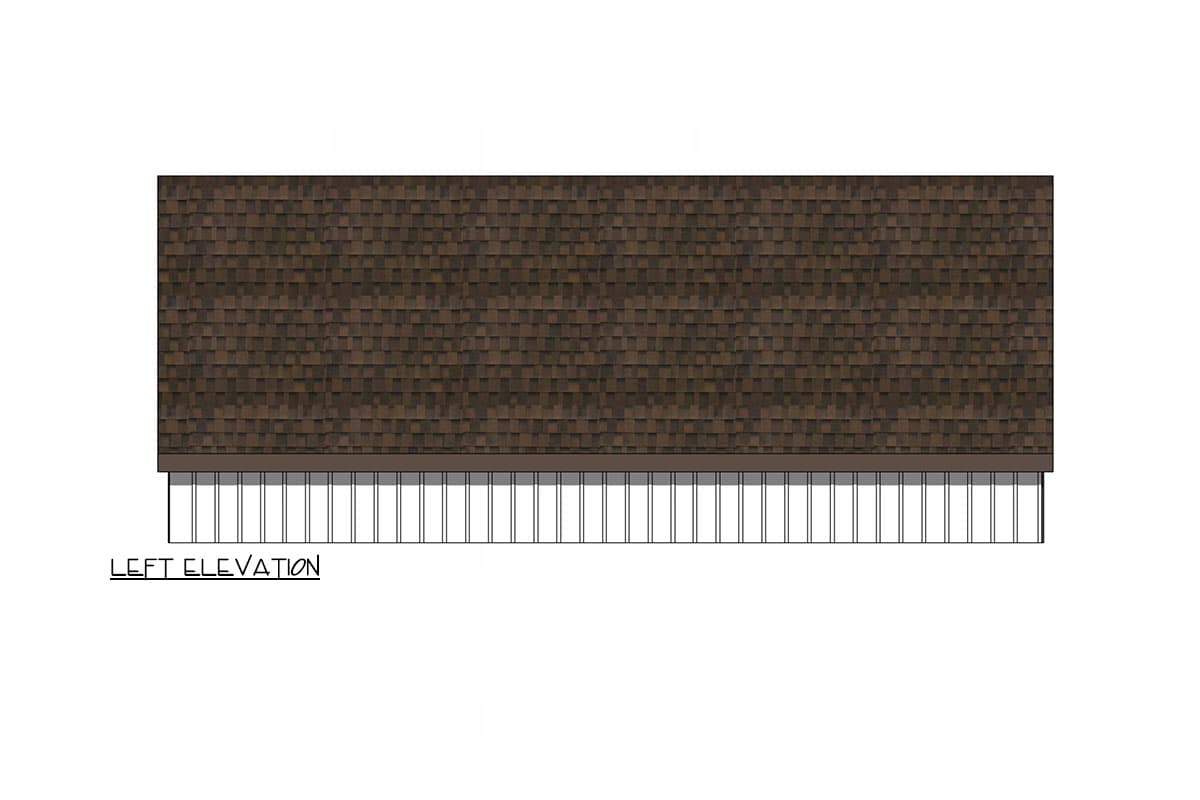

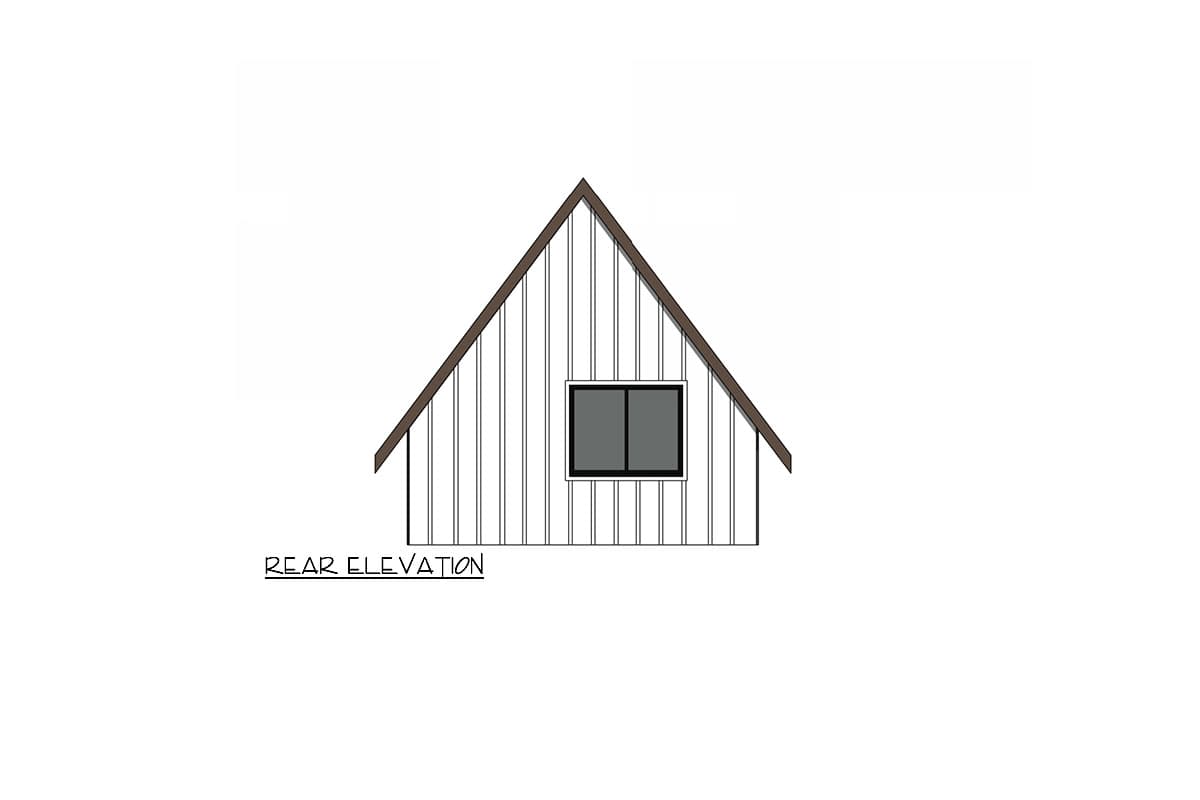

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details and notes - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1-Bed Cottage with 14-Foot Vaulted Ceiling - 570 Sq Ft

  • 570

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

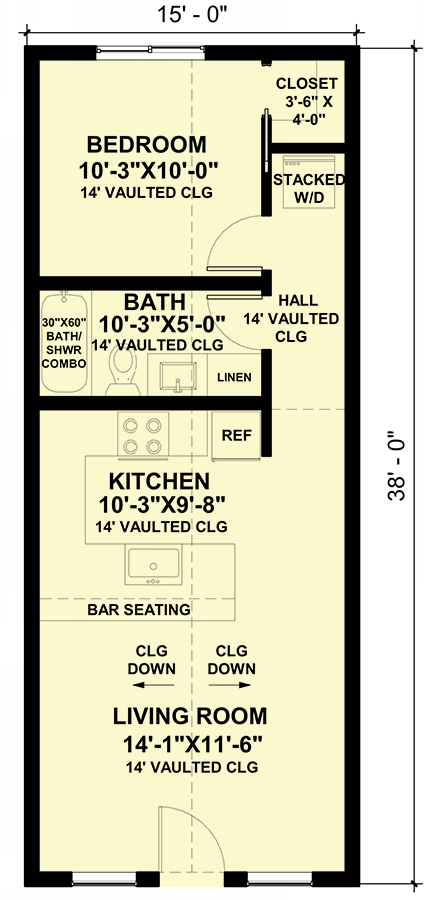

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 570 sq. ft.
  • 1st Floor: 570 sq. ft.

Dimensions

  • Width: 15' 0"
  • Depth: 38' 0"
  • Max ridge height: 16' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 14' 0"

Roof

  • Primary Pitch: 16 on 12
  • Framing Type: Stick Or Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

1-Bed Cottage with 14-Foot Vaulted Ceiling - 570 Sq Ft

  • 570

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

1-Bed Cottage with 14-Foot Vaulted Ceiling - 570 Sq Ft

  • 570

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Plan Details

Square Footage Breakdown

  • Total: 570 sq. ft.
  • 1st Floor: 570 sq. ft.

Dimensions

  • Width: 15' 0"
  • Depth: 38' 0"
  • Max ridge height: 16' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 14' 0"

Roof

  • Primary Pitch: 16 on 12
  • Framing Type: Stick Or Truss

    Main Level
