Plan 420002WNT 1-Bed Craftsman-inspired Home Plan with Open Living Space

1-Bed Craftsman-inspired Home Plan with Open Living Space

Plan 420002WNT

  • 710

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

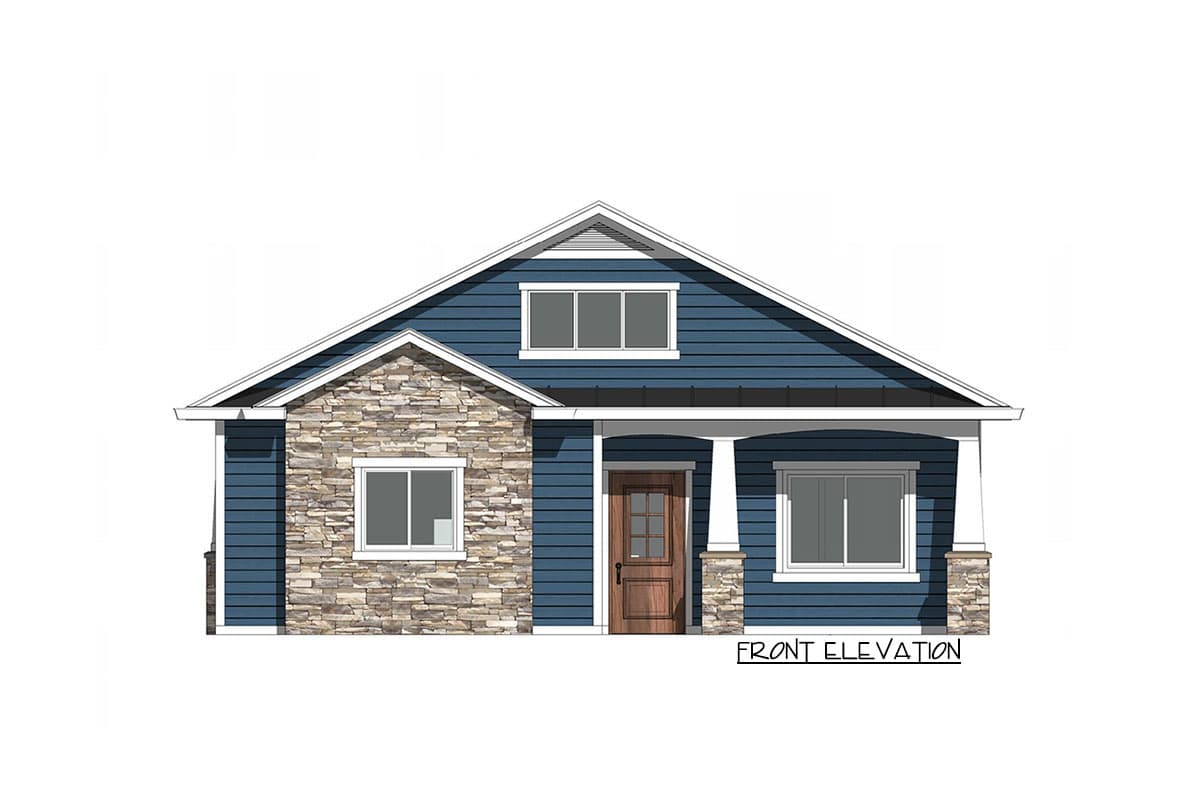

  • Tapered columns and a touch of texture-rich stone grace the front elevation of this 1-bedroom home plan.
  • The majority of the 710 square feet of living space is open to one another, which provides an intimate environment for daily living.
  • A vaulted ceiling rises above the combined kitchen, dining area, and living room, making the space feel larger.
  • The 11' by 11' master bedroom features a tray ceiling and walk-in closet, and neighbors the full bath. The laundry closet is located directly across from the master bedroom for convenience.
  • A rear, covered porch gives the BBQ extraordinaire a space to grill, while enjoying the surrounding landscape.

What is Included in Our Plans?

Each plan is designed to meet nationally recognized building codes for the year they were created. Following is a listing of sheets included in our plans:

Foundation Plan

outlines details of the slab, crawl space, or basement specifically associated with the house that this plan has been designed for. These details may include; Footing sizes and locations, Floor framing information, Slab information etc.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

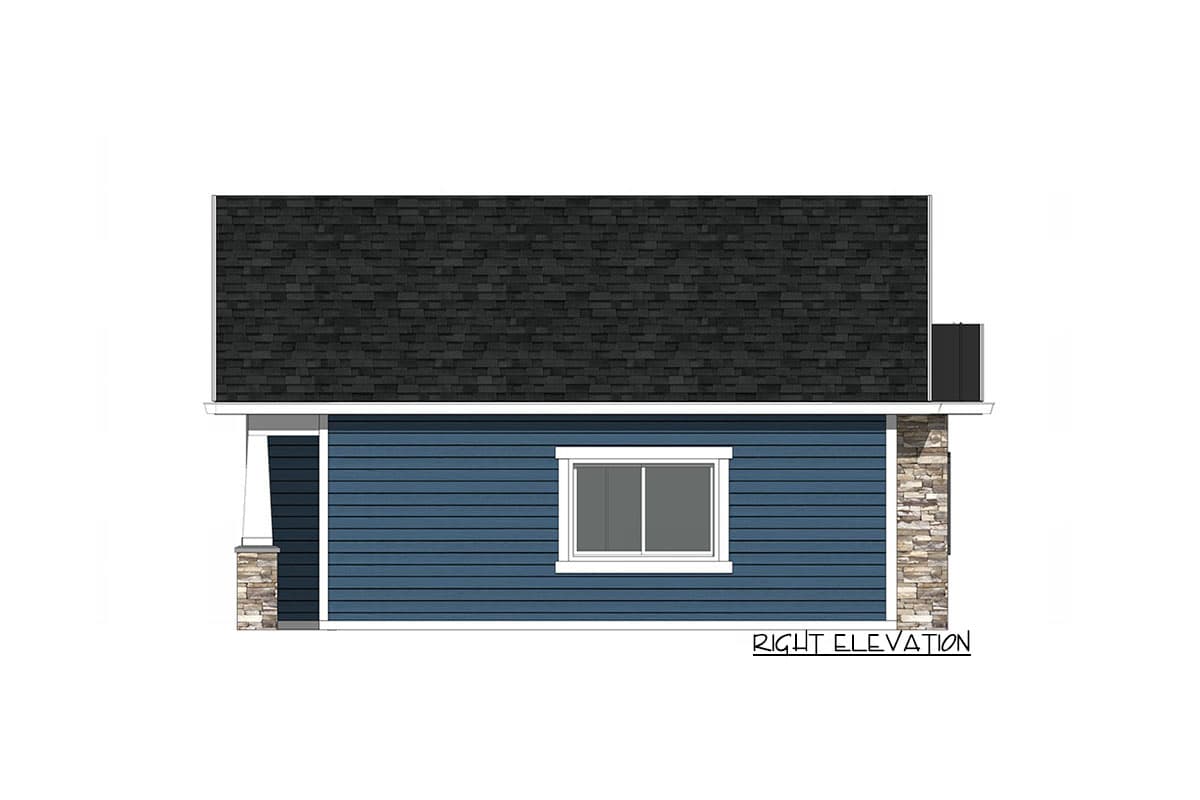

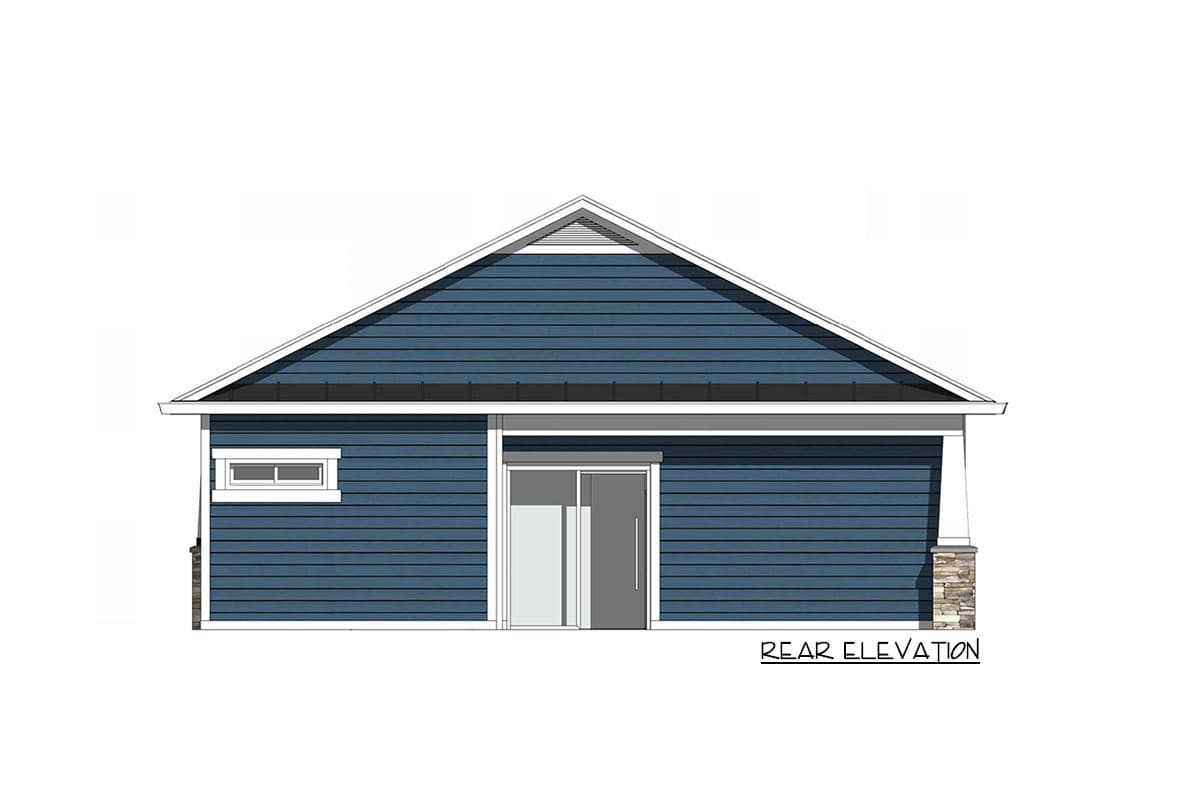

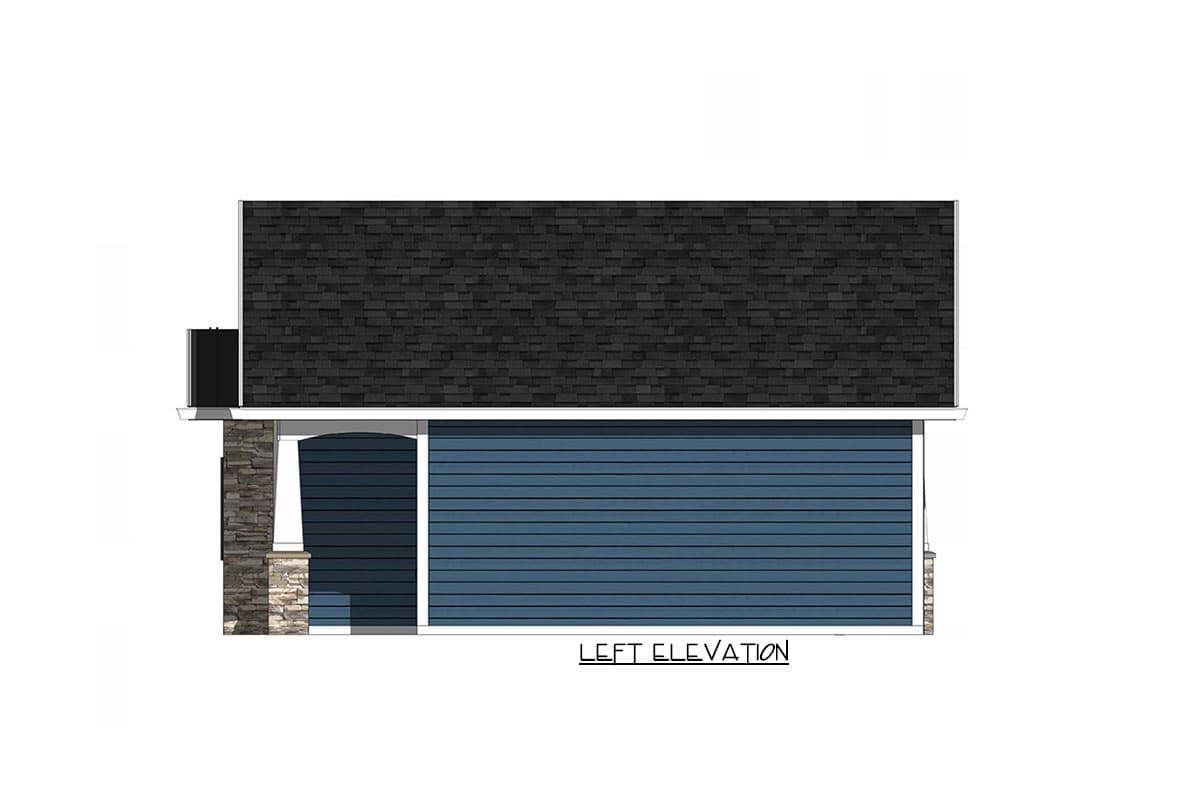

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.


Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan (available as an upgrade option)
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Floor Plan

Plan details



1-Bed Craftsman-inspired Home Plan with Open Living Space

  • 710

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $895
  • 5 Sets $1,045
  • 5 Sets + PDF $1,145
  • CAD - Unlimited Build $1,795
  • View all purchase option online

About This Plan

  • Tapered columns and a touch of texture-rich stone grace the front elevation of this 1-bedroom home plan.
  • The majority of the 710 square feet of living space is open to one another, which provides an intimate environment for daily living.
  • A vaulted ceiling rises above the combined kitchen, dining area, and living room, making the space feel larger.
  • The 11' by 11' master bedroom features a tray ceiling and walk-in closet, and neighbors the full bath. The laundry closet is located directly across from the master bedroom for convenience.
  • A rear, covered porch gives the BBQ extraordinaire a space to grill, while enjoying the surrounding landscape.

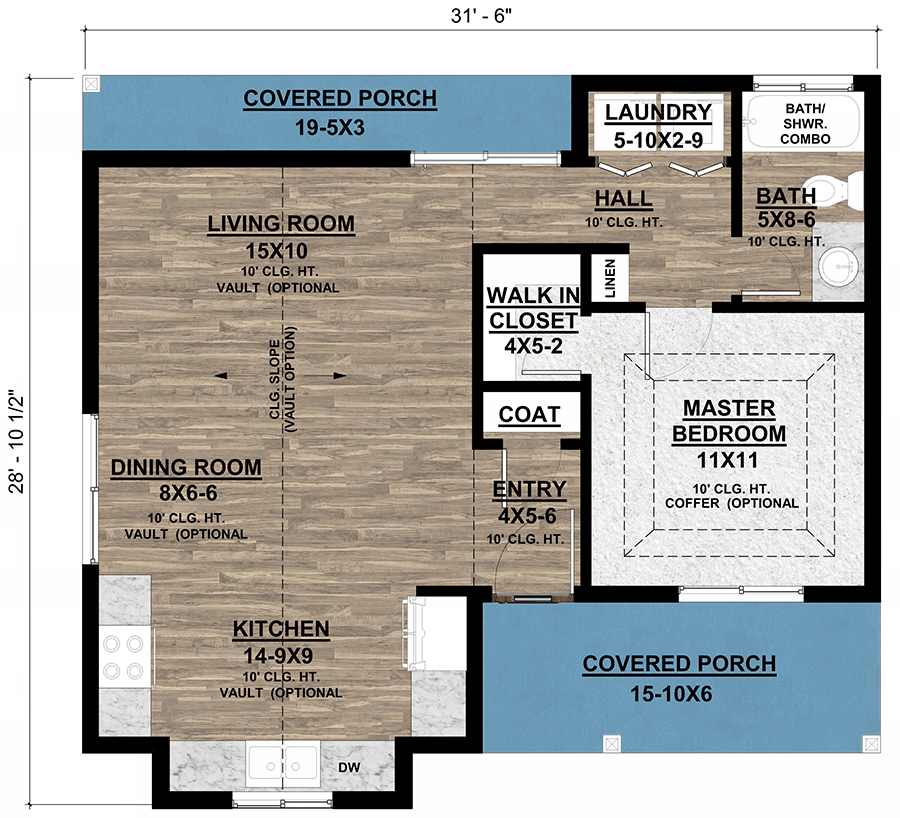

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 710 sq. ft.
  • 1st Floor: 710 sq. ft.
  • Porch, Rear: 58 sq. ft.
  • Porch, Front: 95 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 31' 0"
  • Depth: 28' 0"
  • Max ridge height: 18' 0"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
