Plan 55078BR
1-Bed Guest House or Year-round Home Plan
Heated S.F.
960
Beds
1
Baths
1
Stories
1
What's Included
Plan Details
  • Intended as a guest house or as a year-round home for 1 to 2 people, this adorable cottage is designed for those that appreciate home that are historical in appearance that have modern features inside.
  • The main floor is open, spacious and airy. The spaces have subtle divisions that definitely define each space and work together for open entertainment.  The 9’ ceilings accommodate the window and door transoms opening to the front porch providing maximum light for the interior.
  • The homeowner will delight in the kitchen with exposed beams. The island has a 42”-high raised eating bar and a downdraft cook top. Volume ceilings in the living room have exposed beams and clipped ceilings which create grandness for such a compact home.
  • Double doors in the living room take you to the rear porch which can be screened if desired.
  • The master suite is conveniently located on the main level, and includes a full bath with a walk-in closet, comparable to much larger homes.
  • The half bath and equipment closet are located for convenience and maximum efficiency.
  • Related Plan: Get 2 upstairs bedrooms with house plan 55210BR.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details

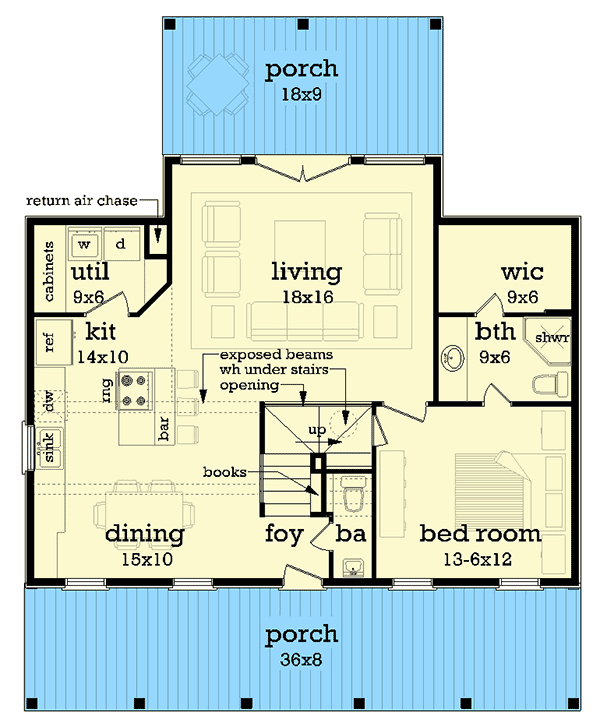

  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required
