1-Bedroom Cabin House Plan with Vaulted Interior
Heated S.F.
582
Beds
1
Baths
1
Stories
1
Flyer
Videos
What's Included
Plan Details
  • Be a part of the tiny house movement with this 582 square foot cabin plan, complete with exterior craftsman detailing.
  • An inviting, front porch welcomes you home. Once inside, the vaulted ceiling contributes to the light and airy feeling and exposed beams add a rustic touch.
  • A coat closet resides near the front entry, across from a 4-person dining table.
  • The living space and combined kitchen features a wood stove and all of your kitchen necessities.
  • A full bath resides in the hallway, across from a storage closet and washer / dryer.
  • The bedroom offers a built-in desk, closet, and french doors to the back porch.
What's Included
  • Cover Sheet

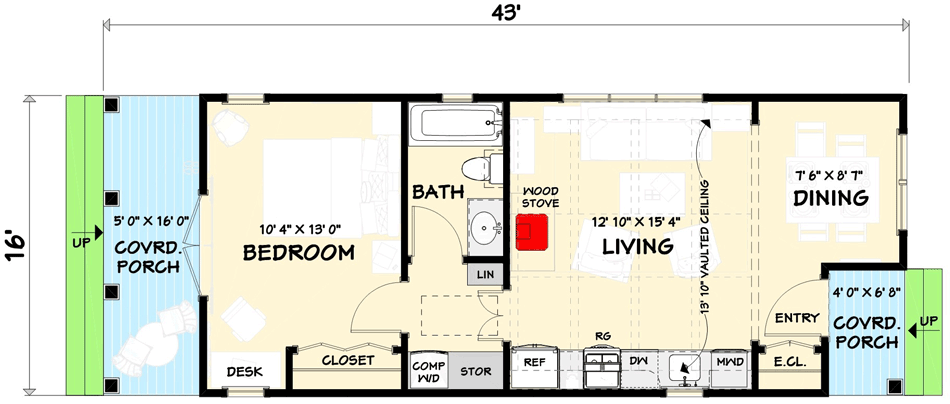

  • Fully dimensioned floor plan

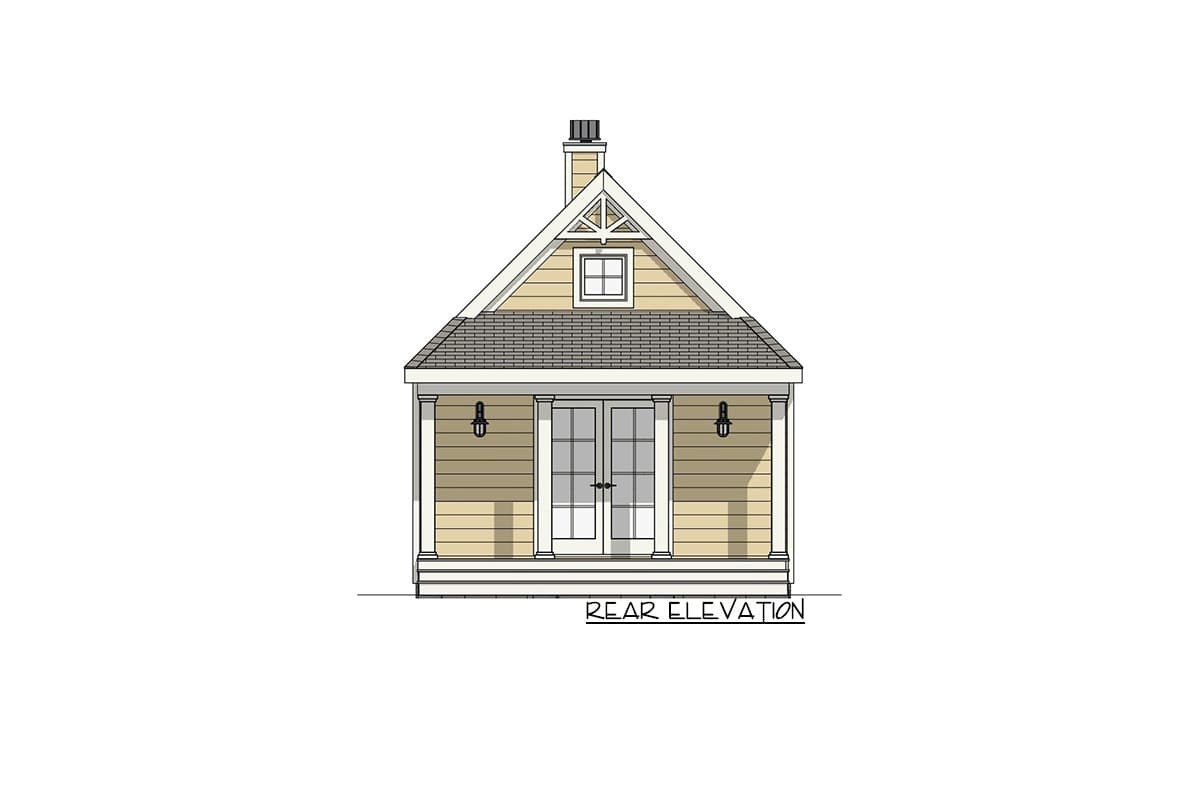

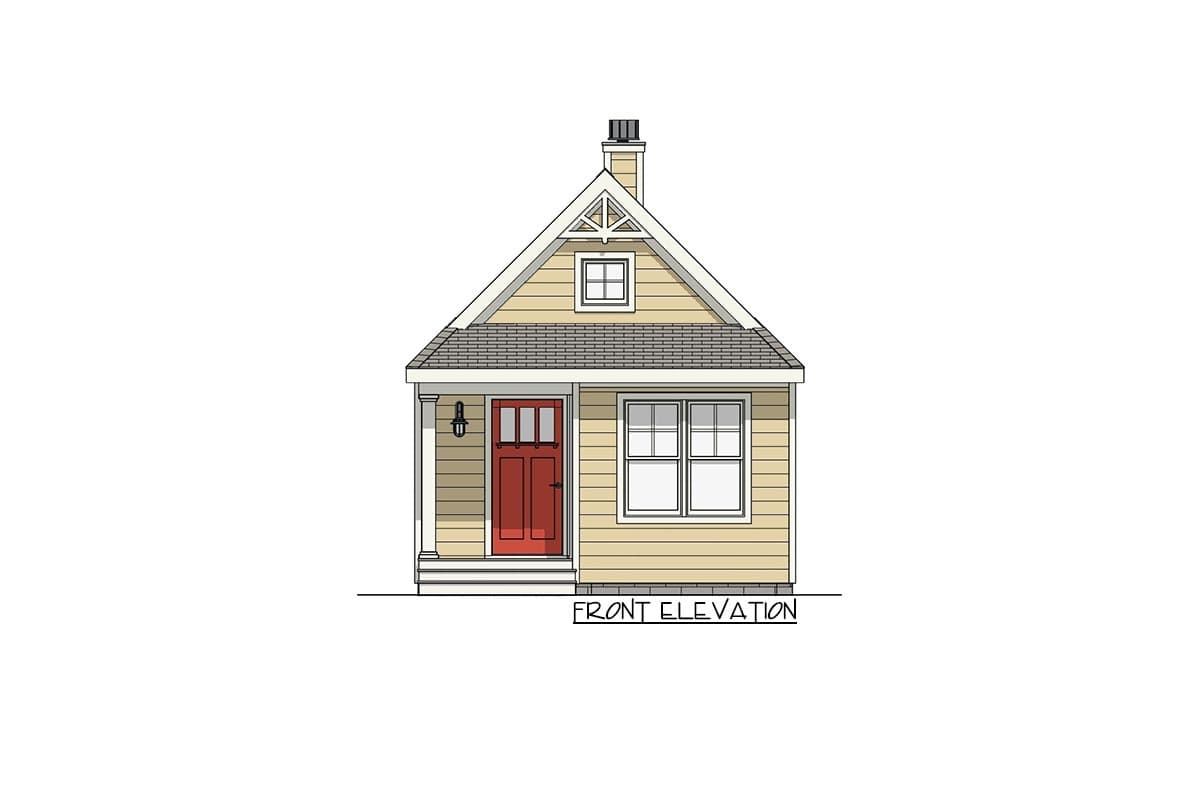

  • Elevations
  • Cross Sections/ Garage elevations when available
  • Foundation Plan
  • Roof Plan
  • Lighting layout
  • 3D Interior Drawings
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1-Bedroom Cabin House Plan with Vaulted Interior

  • 582

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 582 sq. ft.
  • 1st Floor: 582 sq. ft.

Dimensions

  • Width: 16' 0"
  • Depth: 43' 0"
  • Max ridge height: 16' 7"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
