Plan 680224VR
1-Car Detached Garage with Storage Above - 550 Sq Ft
Heated S.F.
550
Stories
2
Cars
1
What's Included
Plan Details
  • This 1-car detached garage plan gives you 560 square feet of parking on the ground floor and 550 square feet of storage above.
  • A decorative cupola adds to the country charm.
  • Stairs run along the back, maximizing the vehicle and storage space in the garage.
  • A single 9' by 7' overhead door gains entry for your vehicle and a man door located in the back-right corner opens to the stairs.
  • Related Plan: Get an alternate version with plan 68952VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

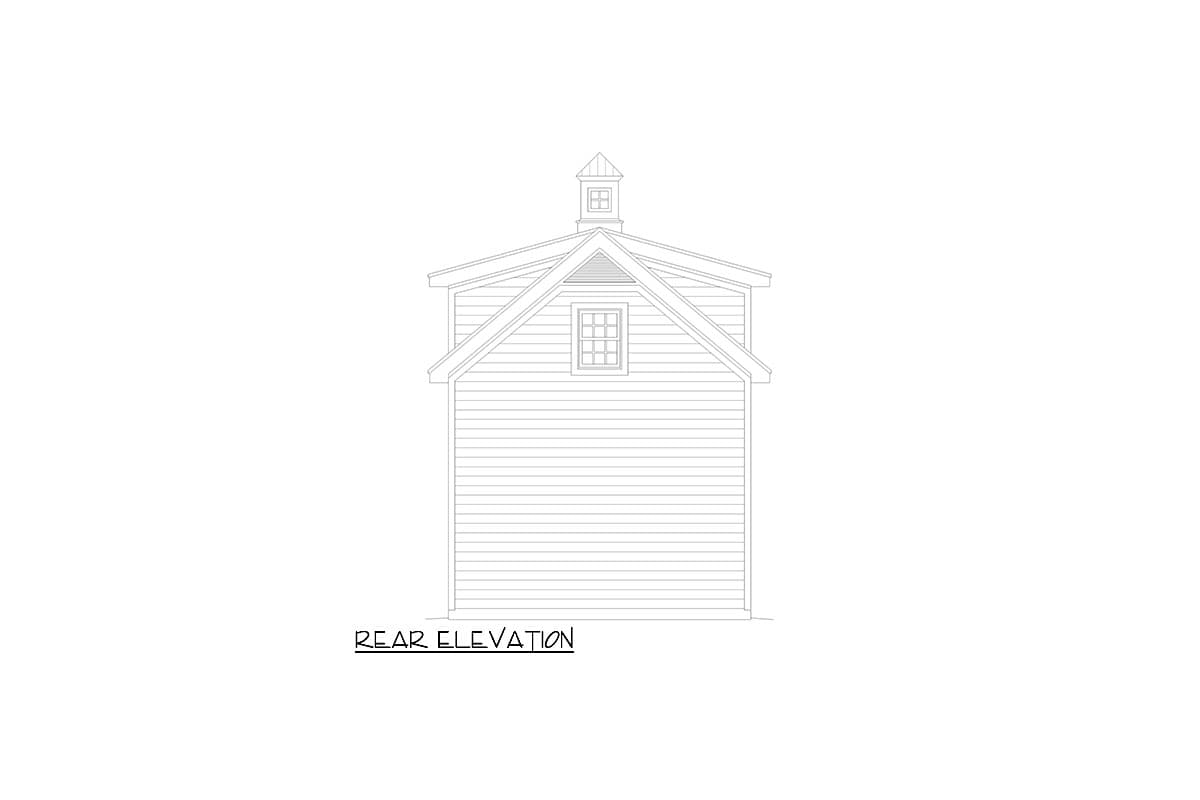

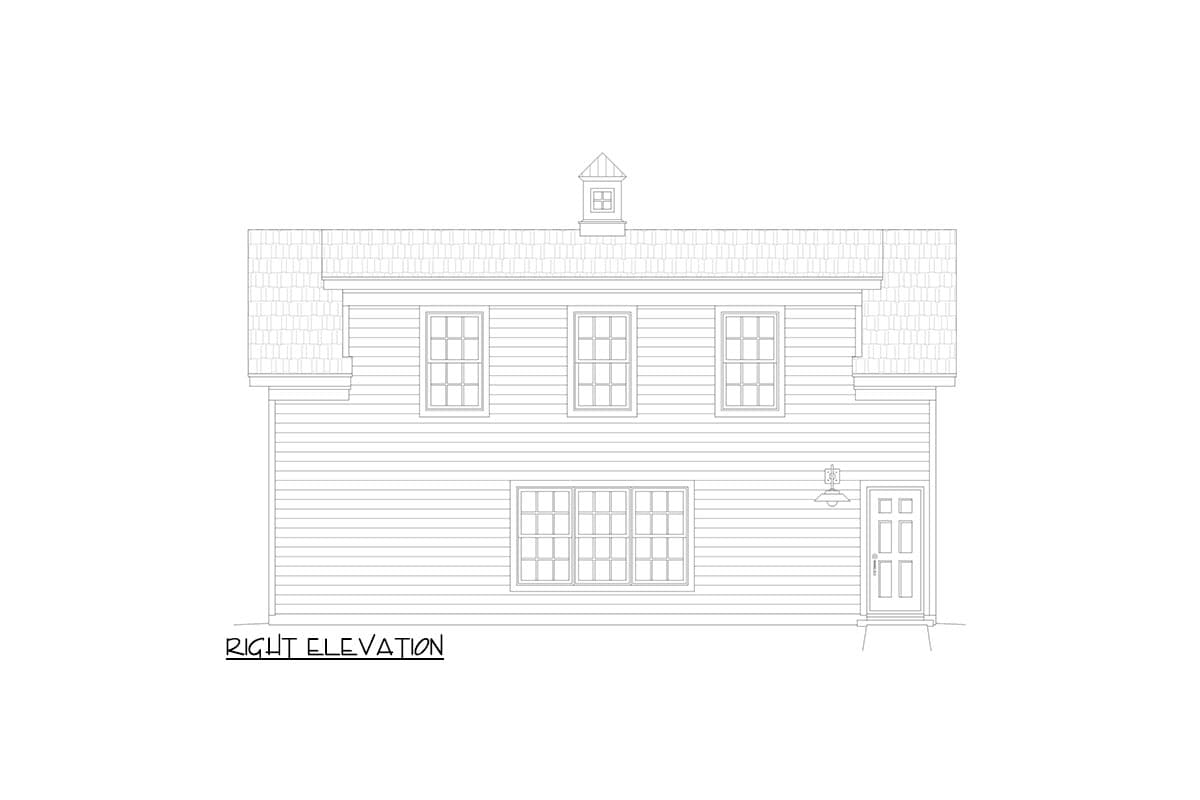

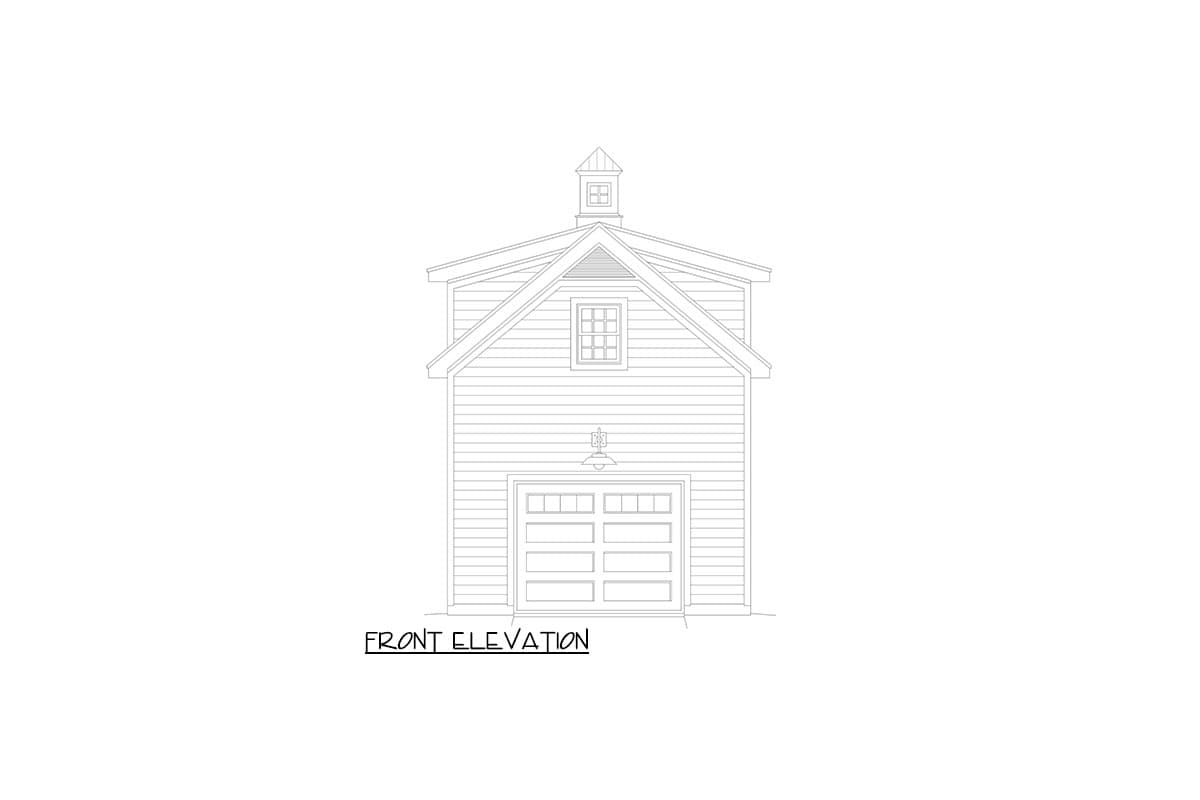

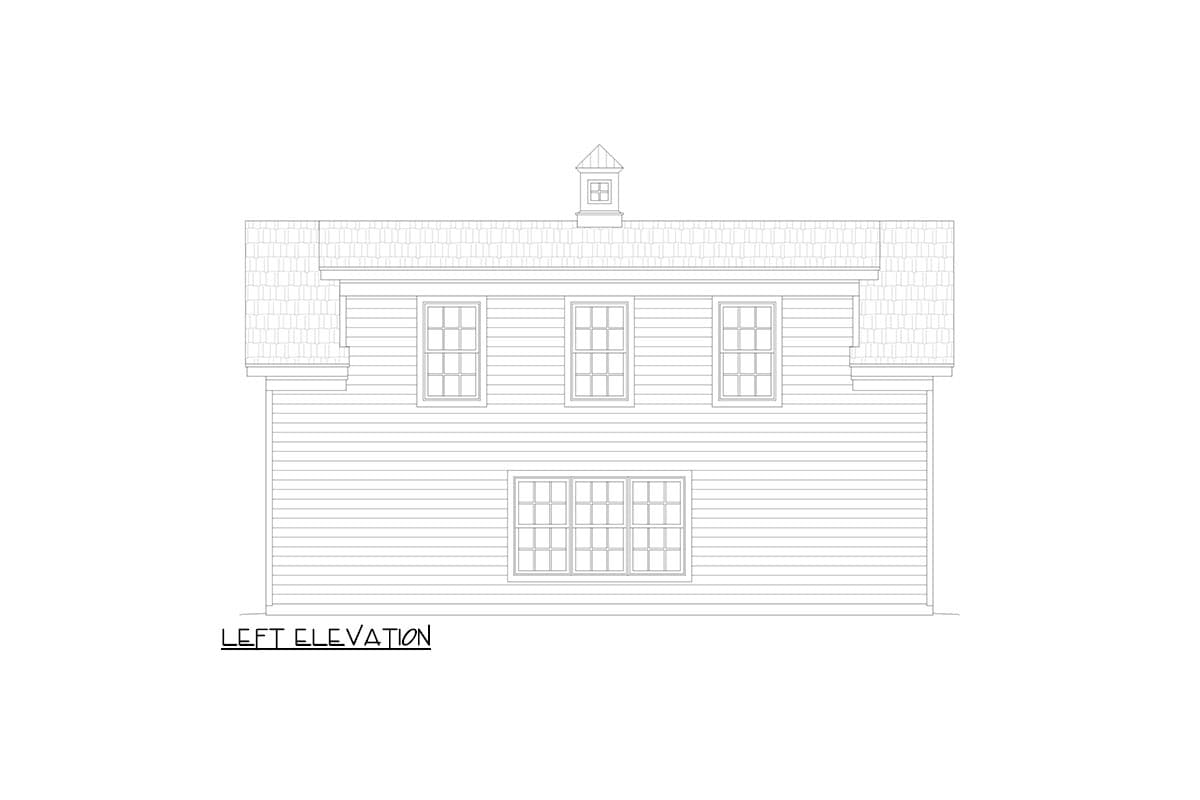

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1-Car Detached Garage with Storage Above - 550 Sq Ft

  • 550

    Heated s.f.

  • Beds

  • 0

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

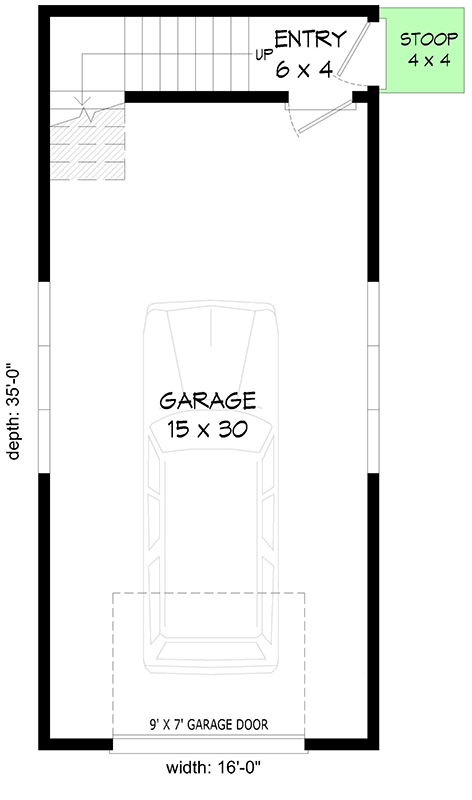

  • Main Level

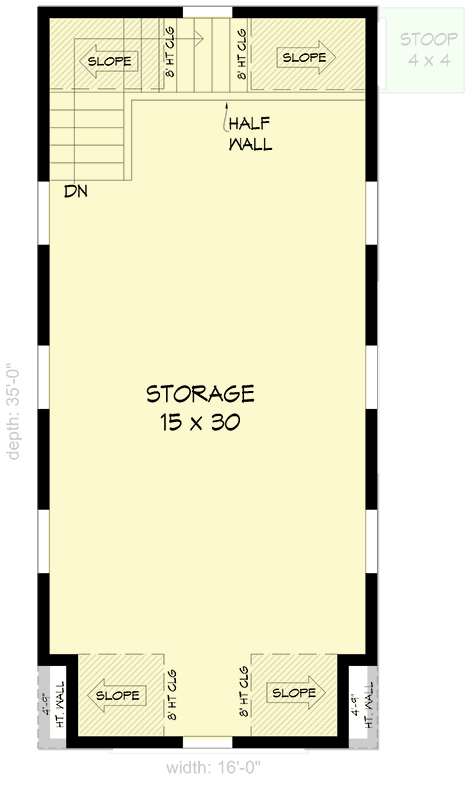

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 550 sq. ft.
  • 2nd Floor: 550 sq. ft.

Dimensions

  • Width: 16' 0"
  • Depth: 35' 0"
  • Max ridge height: 19' 11"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: Detached
  • Area: 560 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
