Plan 68495VR 1-Car Garage with a Workshop

0 1 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

1-Car Garage with a Workshop

Plan 68495VR

  • 0

    Heated s.f.

  • 1

    Baths

  • 1

    Stories

  • 2

    Cars

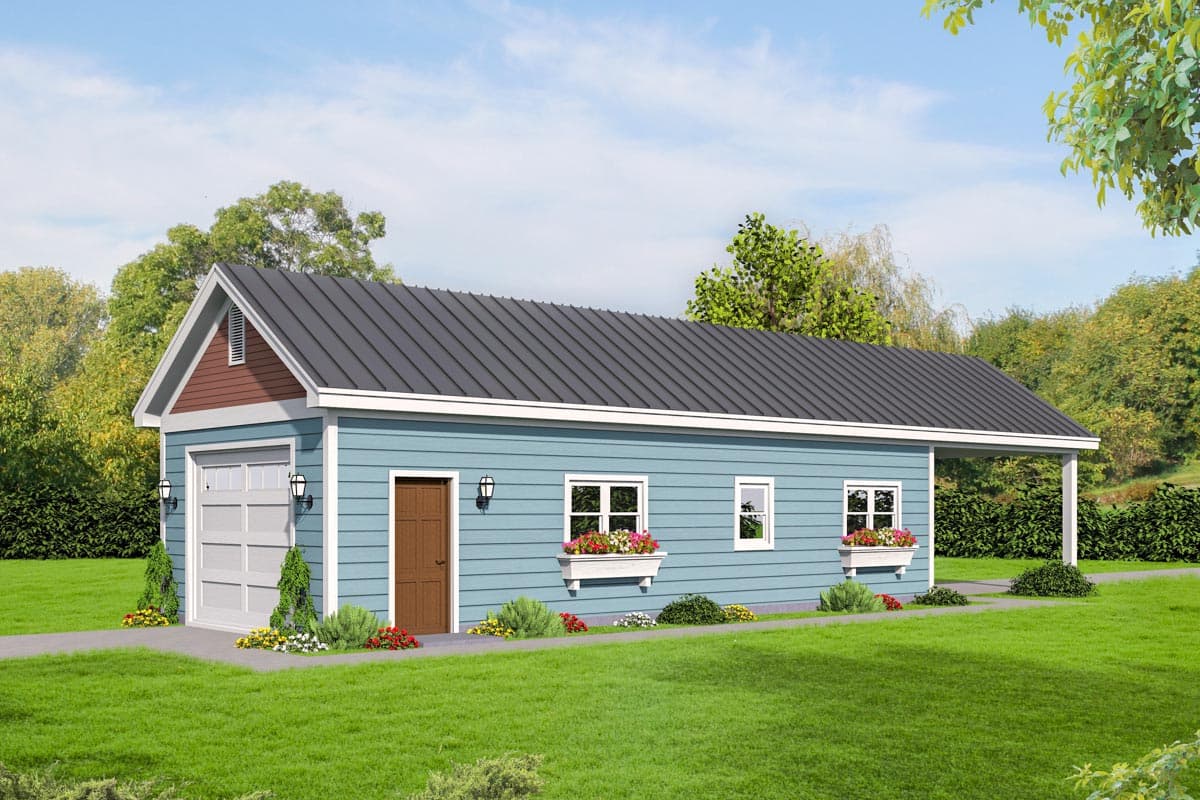

  • With its rectangular foundation shape and simple gable roof, this one car garage is easy to build.
  • An added bonus is the large workshop and the attached carport.
  • You can enter the workshop through the garage or through double doors on the side.
  • Coming in at 16', the garage fits well in a narrow footprint.
  • Related Plans: Remove the bath with plan 68446VR and the carport with plan 68445VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

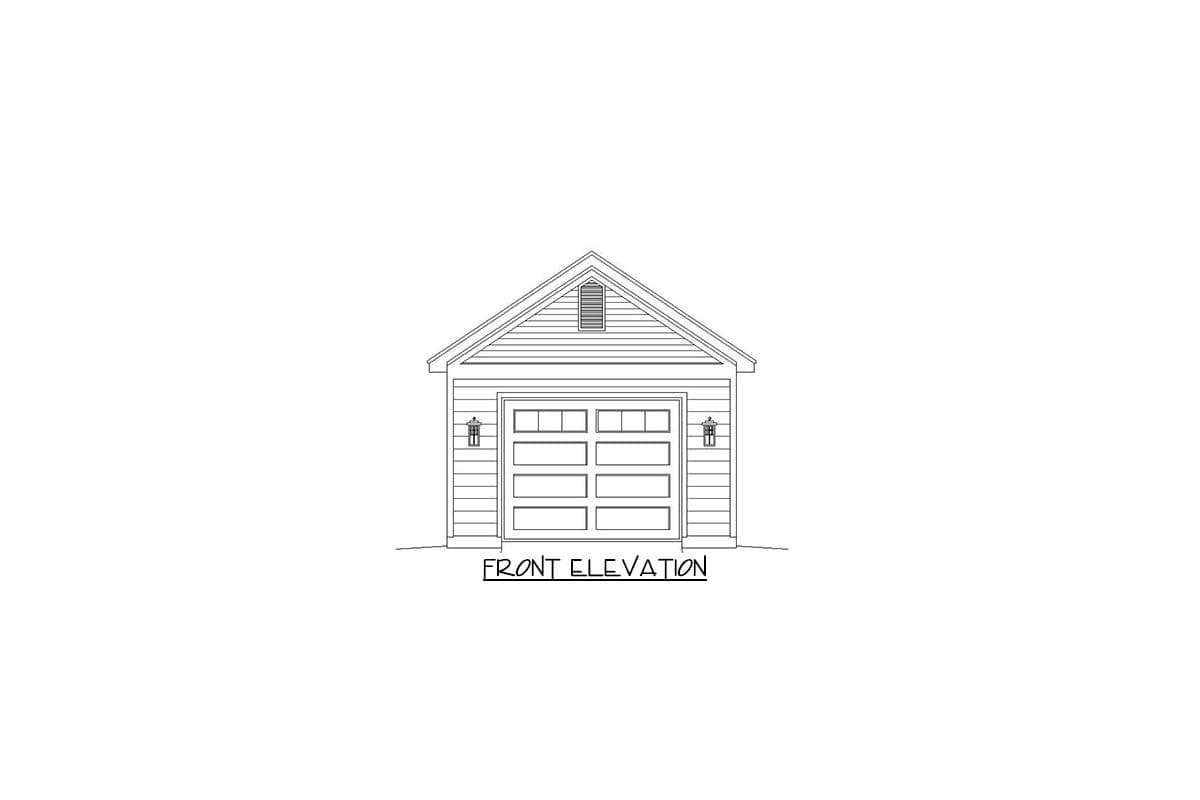

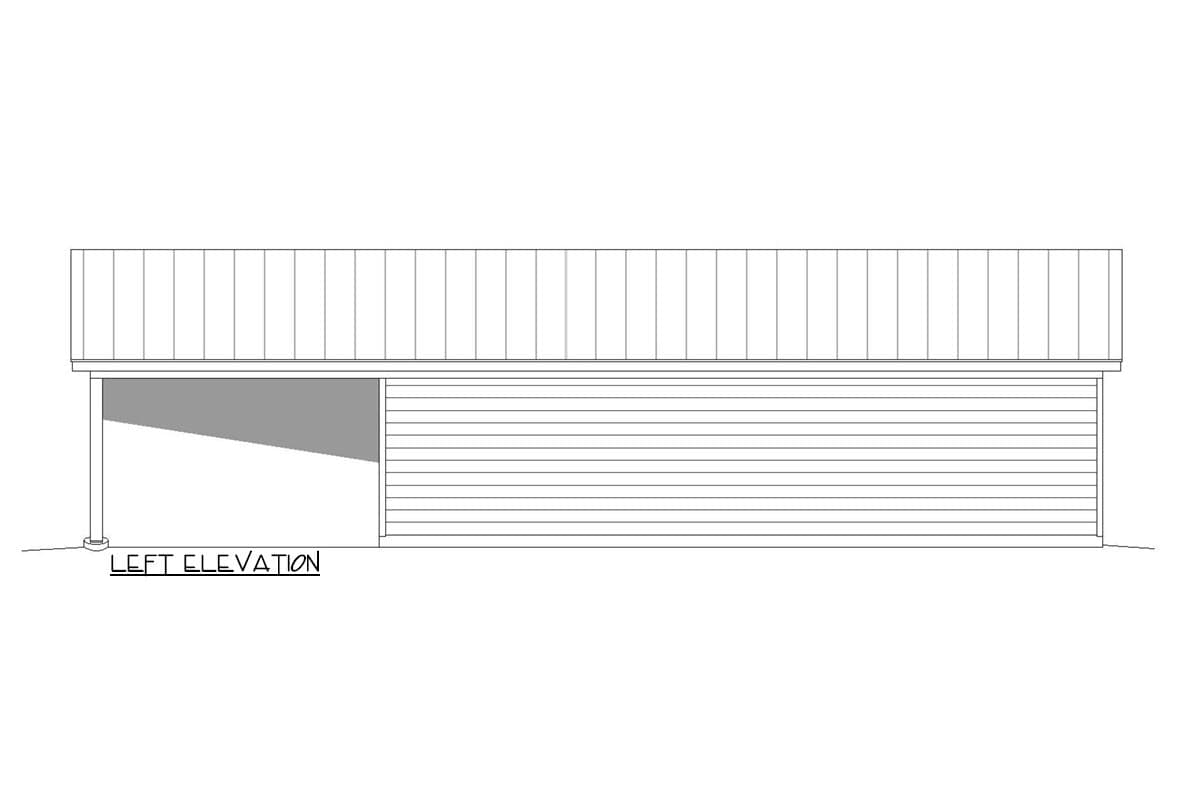

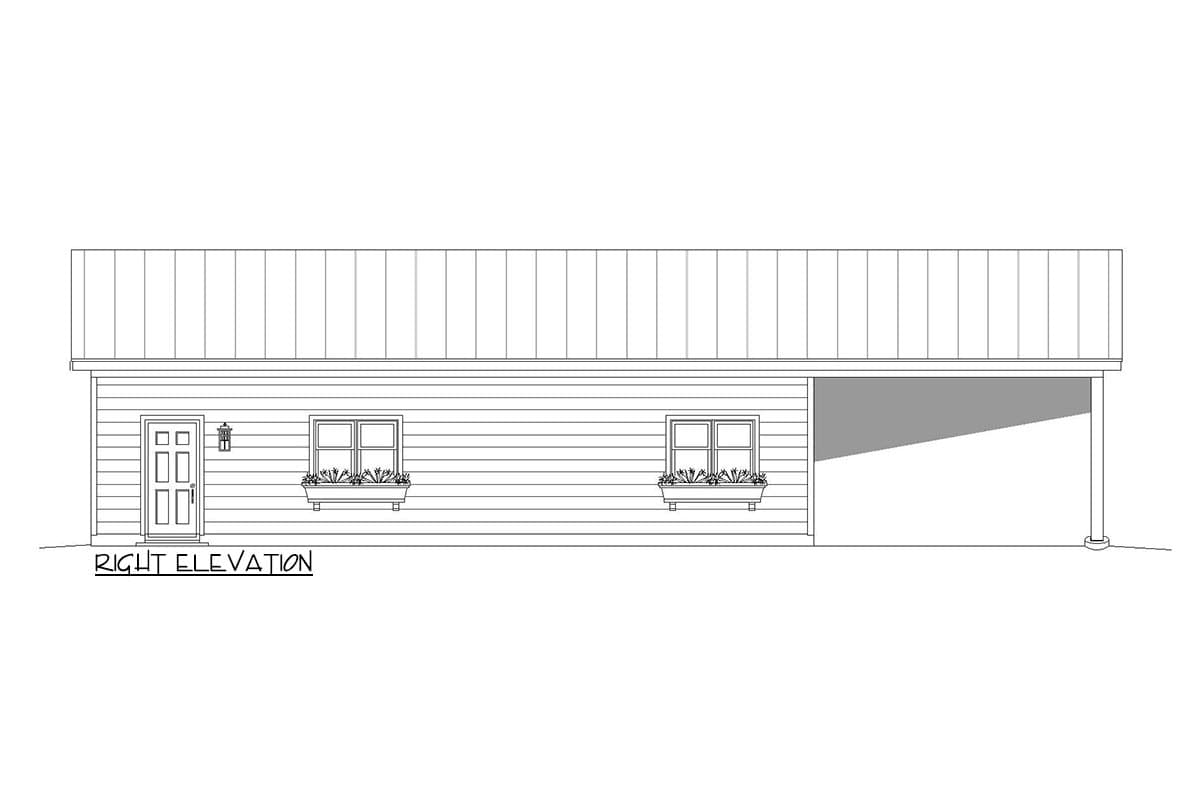

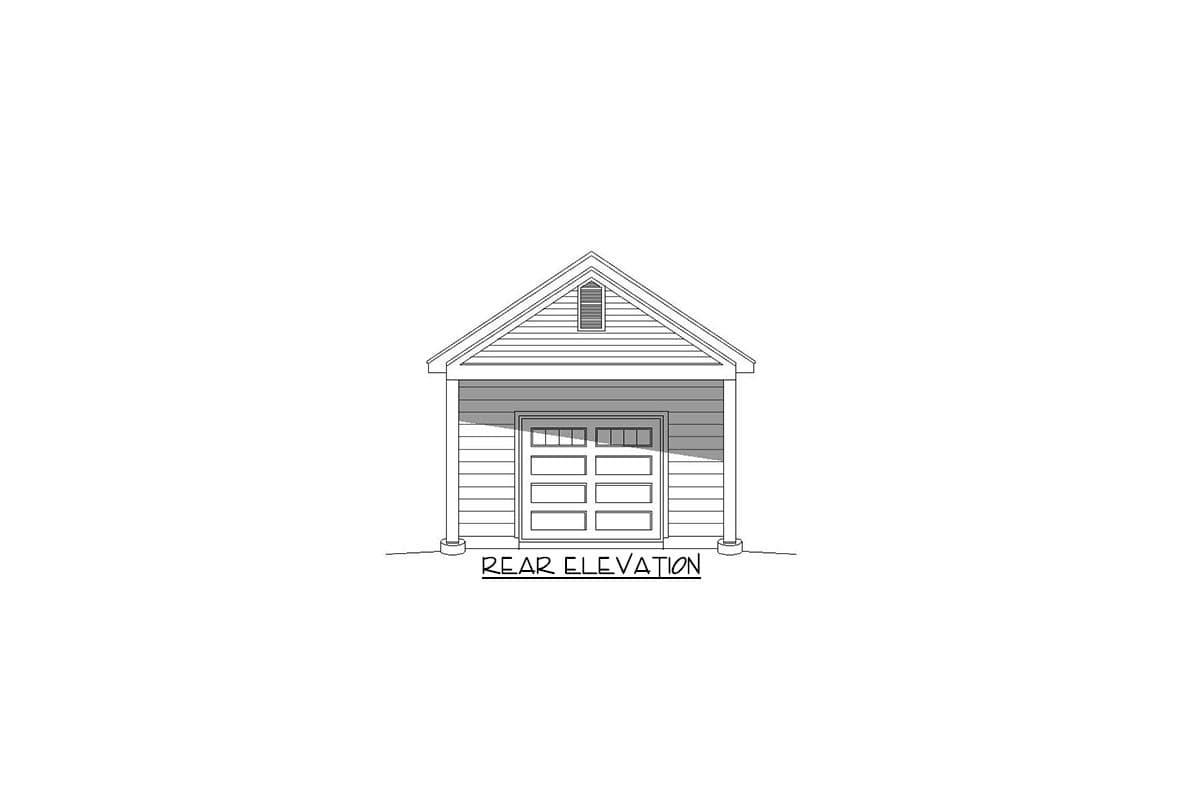

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

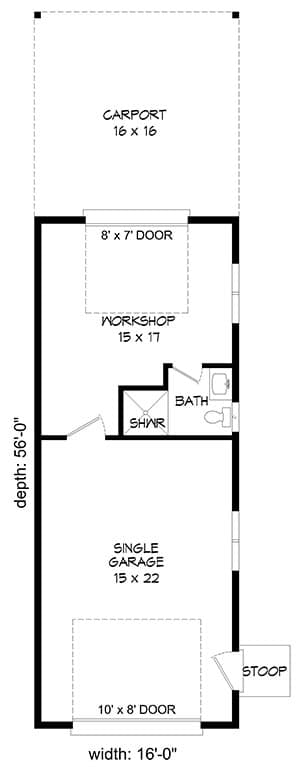

1-Car Garage with a Workshop - 68495VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Workshop: 255 sq. ft.
  • Carport: 256 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 16' 0"
  • Depth: 56' 0"
  • Max ridge height: 16' 1"

Garage

  • Type: Carport, Detached
  • Area: 330 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

1-Car Garage with a Workshop

  • 0

    Heated s.f.

  • Beds

  • 1

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $675
  • 5 Sets $750
  • 5 Sets + PDF $800
  • CAD + PDF - Single-Build $975
  • View all purchase option online

About This Plan

  • With its rectangular foundation shape and simple gable roof, this one car garage is easy to build.
  • An added bonus is the large workshop and the attached carport.
  • You can enter the workshop through the garage or through double doors on the side.
  • Coming in at 16', the garage fits well in a narrow footprint.
  • Related Plans: Remove the bath with plan 68446VR and the carport with plan 68445VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Workshop: 255 sq. ft.
  • Carport: 256 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 16' 0"
  • Depth: 56' 0"
  • Max ridge height: 16' 1"

Garage

  • Type: Carport, Detached
  • Area: 330 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
Plan 68495VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68495VR
|
