Plan 623431DJ

1-Car Rustic Carport Garage - 294 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
1

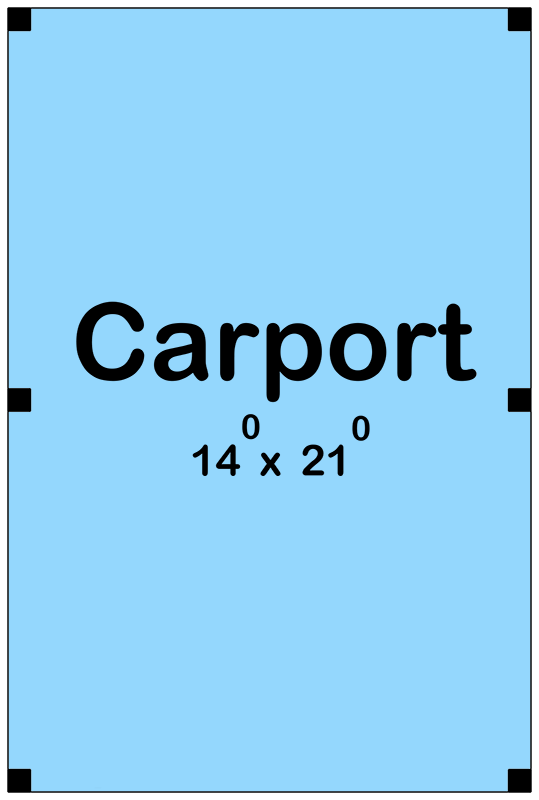

Floor Plan

Plan 623431DJ

Main Level
Main Level

Plan 623431DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 623431DJ: 1-Car Rustic Carport Garage - 294 Sq Ft - Floor Plan - Main Level - Rustic, Traditional

Plan Details

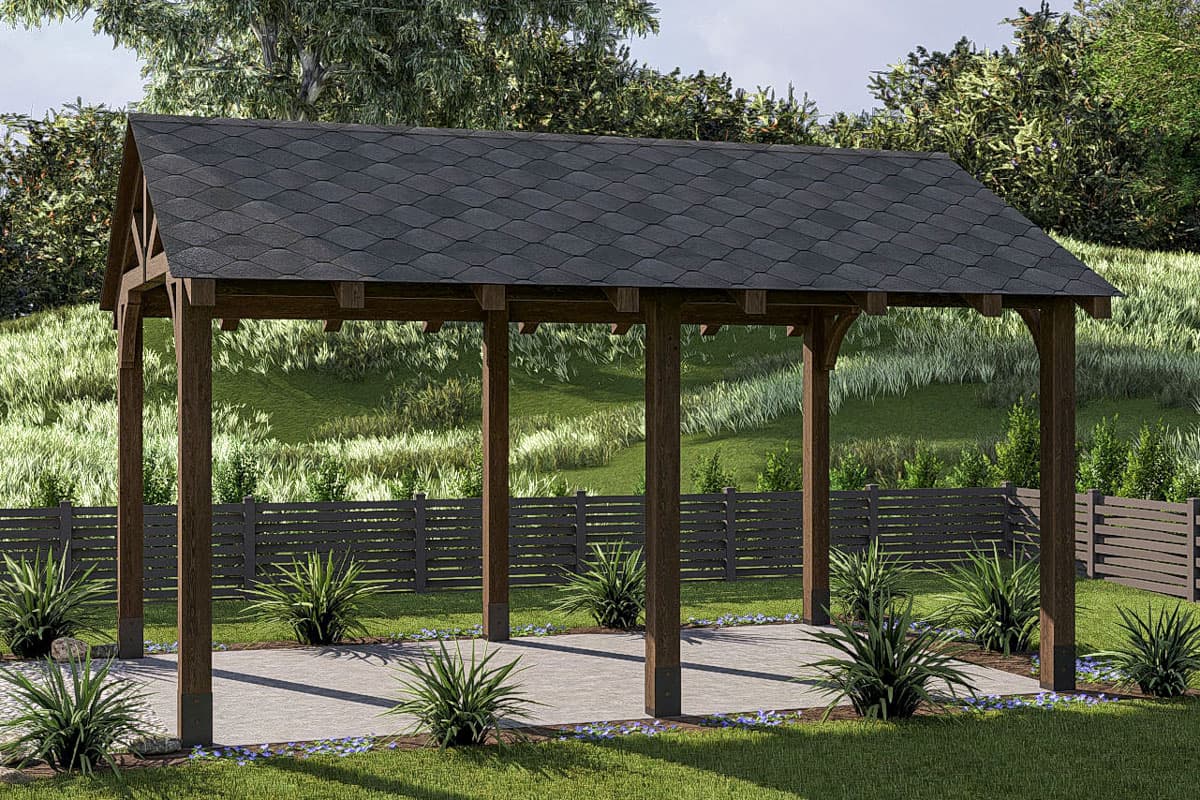

  • This 1-car carport design gives you 294 square feet of covered space.

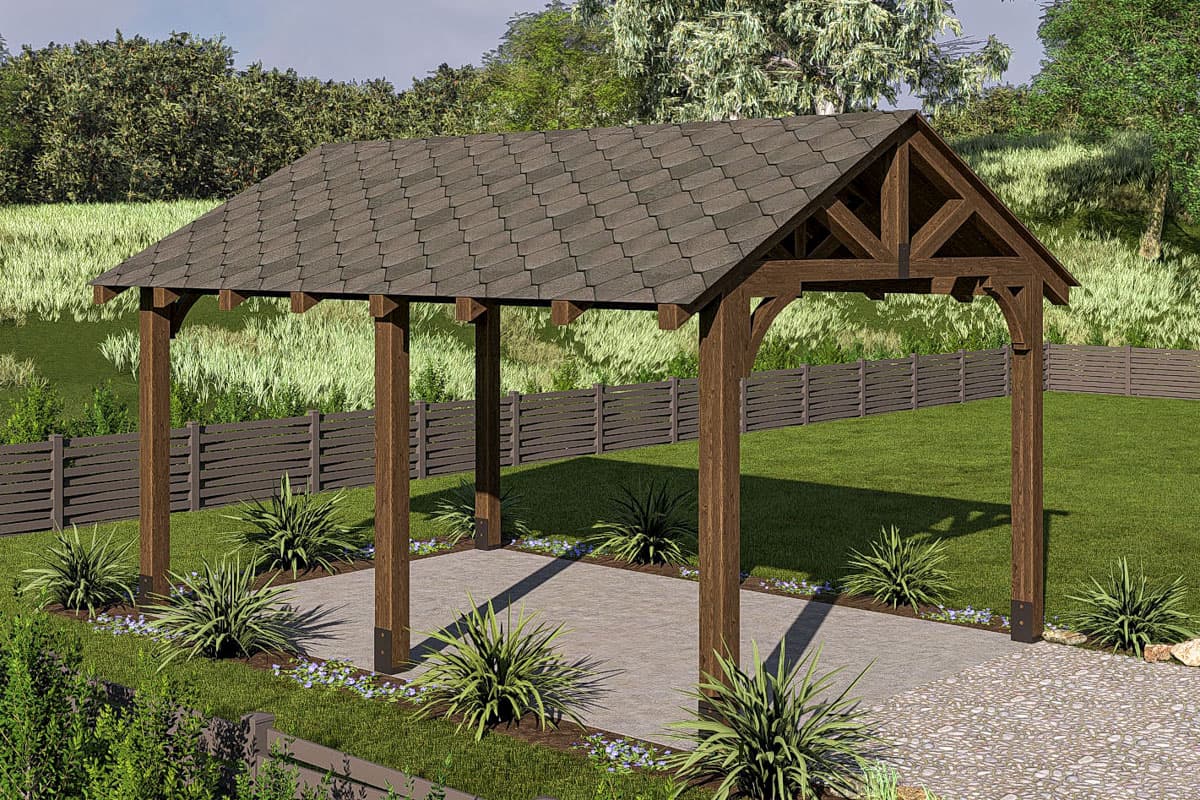

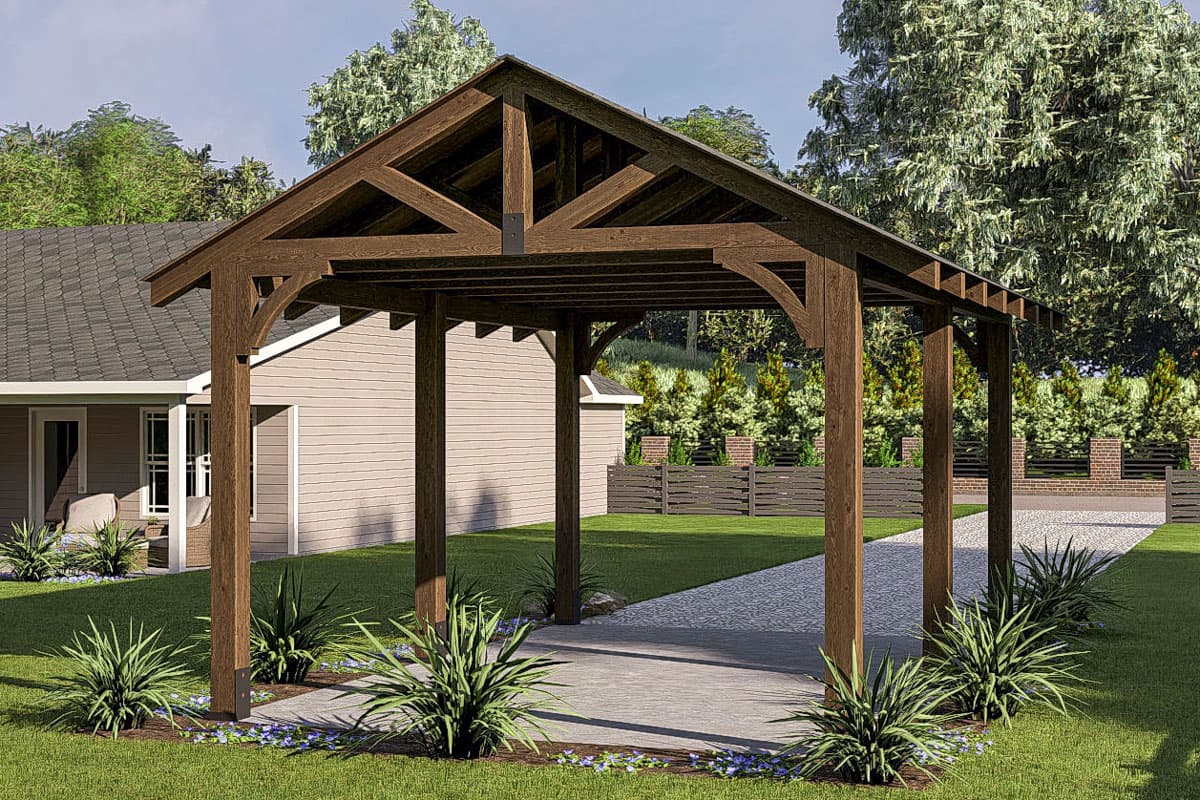

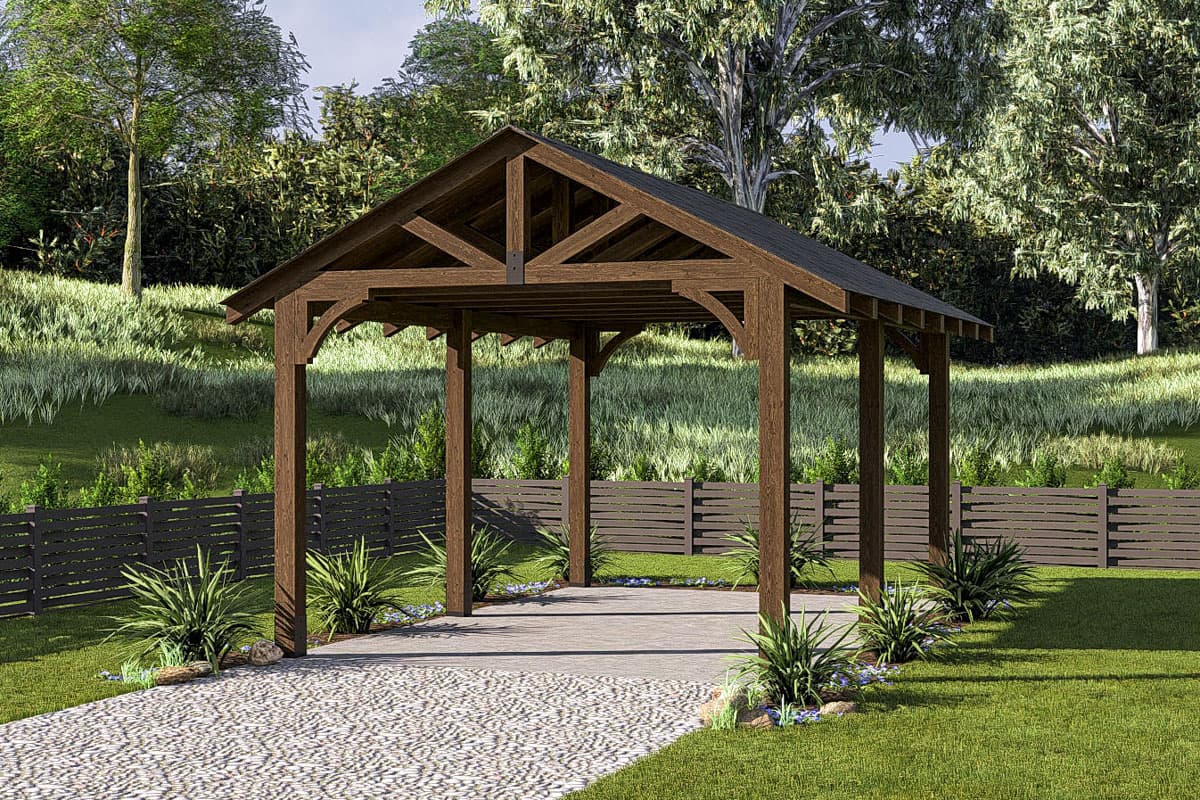

  • A 6:12 sloping metal roof - supported by sturdy posts and beams - gives it a contemporary vibe.
  • The designs allows for unobstructed entry and exit and can be used to protect a car or smaller vehicles or yard equipment.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Post Frame

Optional Type(s)

2x6

Dimensions

Width

14' 0"

Depth

21' 0"

Max Ridge Height

13' 8"

Garage

Type

Carport

Area

294 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Architectural Style

Rustic

Traditional

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Post Frame

Optional Type(s)

2x6

Dimensions

Width

14' 0"

Depth

21' 0"

Max Ridge Height

13' 8"

Garage

Type

Carport

Area

294 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Architectural Style

Rustic

Traditional
