1-Story Craftsman Mountain House Plan with Angled Family Room - 2648 Sq Ft
Heated S.F.
2,648
Beds
3
Baths
2.5
Stories
1
Cars
2-3
What's Included
Plan Details
  • This Craftsman Mountain House Plan has a rustic exterior and gives you 3 beds, 2.5 baths and 2,648 square feet of heated living space.
  • Columns separate the dining room from the foyer and the grand room with fireplace, preserving wonderful sightlines. The kitchen boasts plenty of counter space and a walk-in pantry and the angled family room has a vaulted ceiling with fireplace and views out the back.
  • A thoughtfully placed laundry room lies close to the master suite with tray ceiling and double doors that lead to the rear screened porch. Across the home, two beds share a bath.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1-Story Craftsman Mountain House Plan with Angled Family Room - 2648 Sq Ft

  • 2,648

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2 - 3

    Car garage

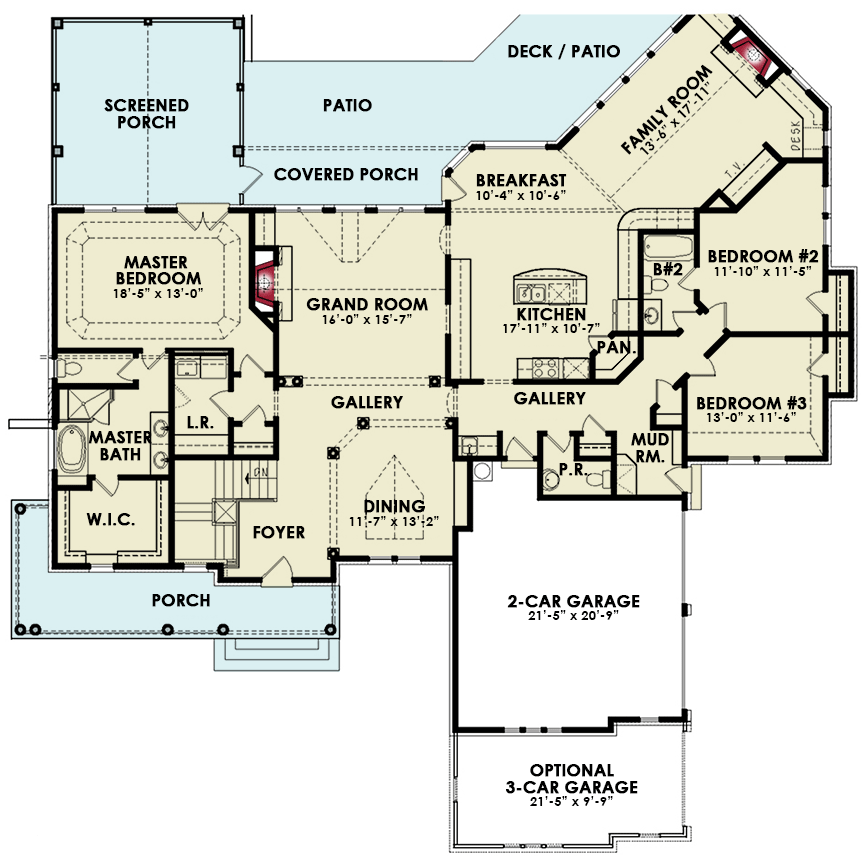

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,648 sq. ft.
  • 1st Floor: 2,648 sq. ft.

Dimensions

  • Width: 80' 1"
  • Depth: 71' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 495 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6
