Plan 444414GDN
1-Story Modern Farmhouse Under 1700 Square Feet with 2 or 3 Beds
Heated S.F.
1,621
Beds
2-3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details

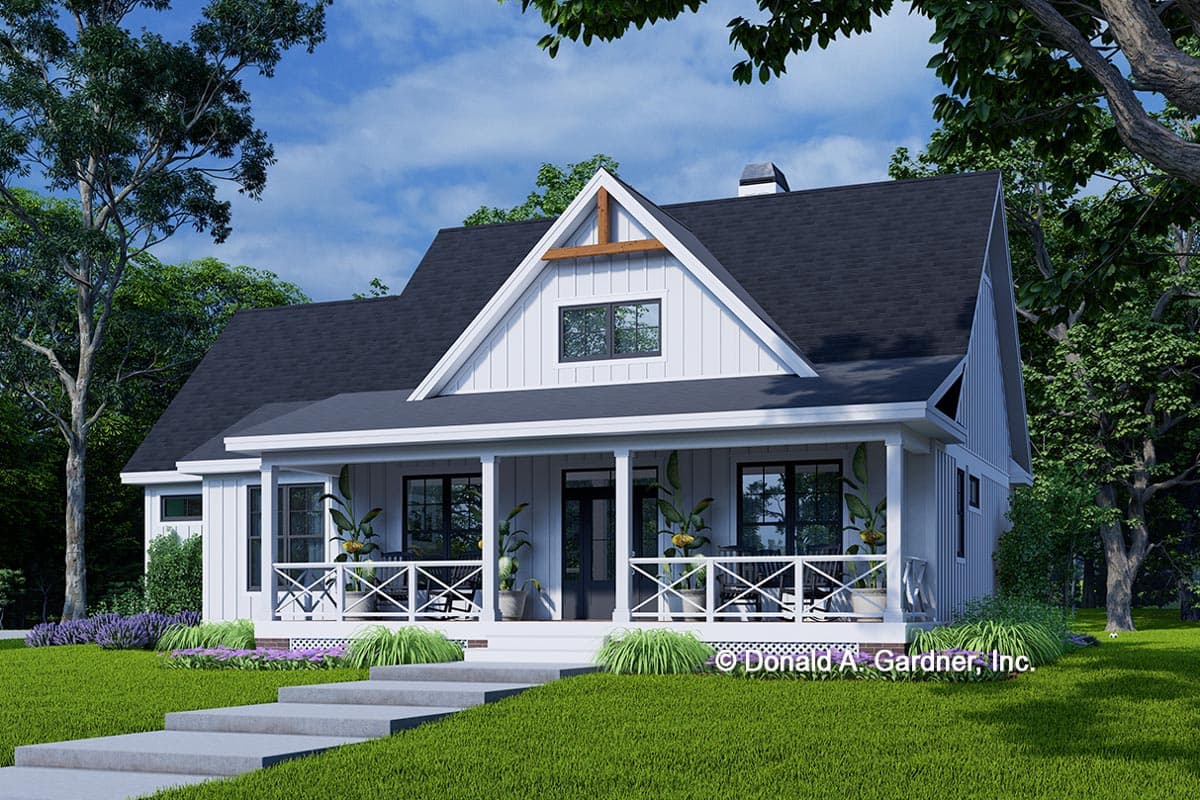

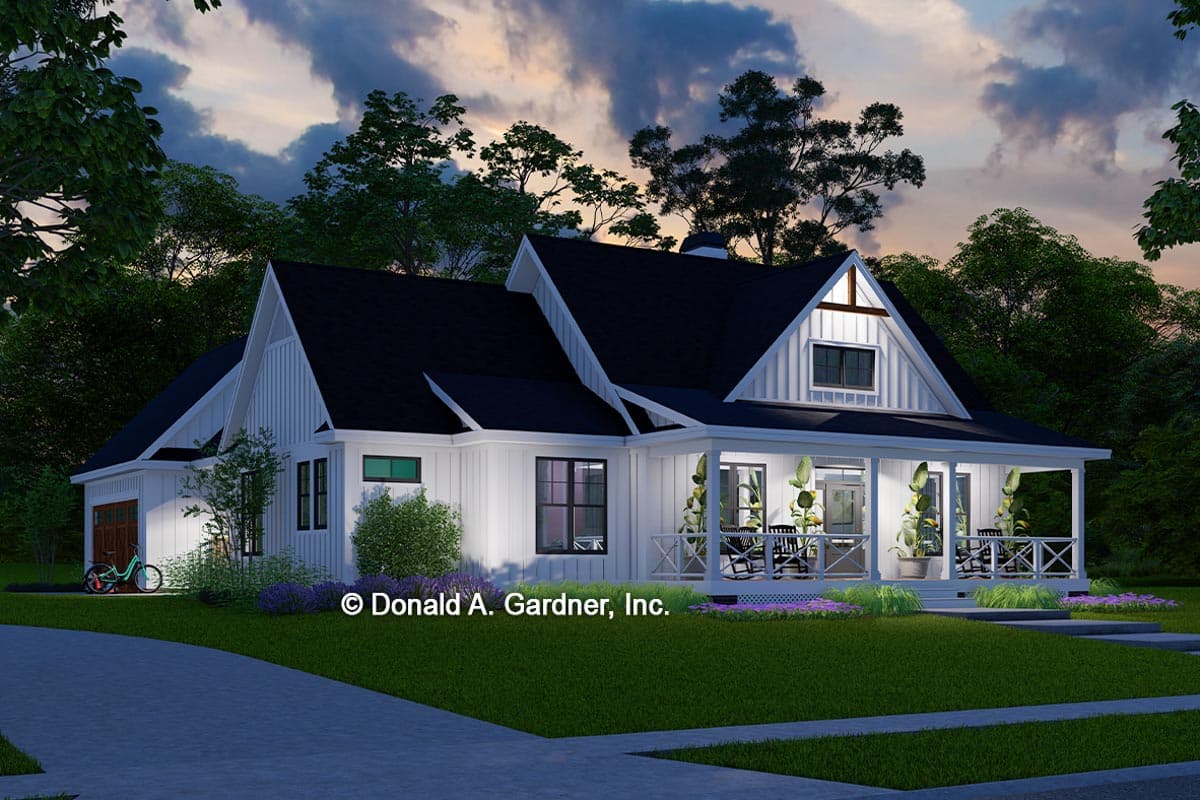

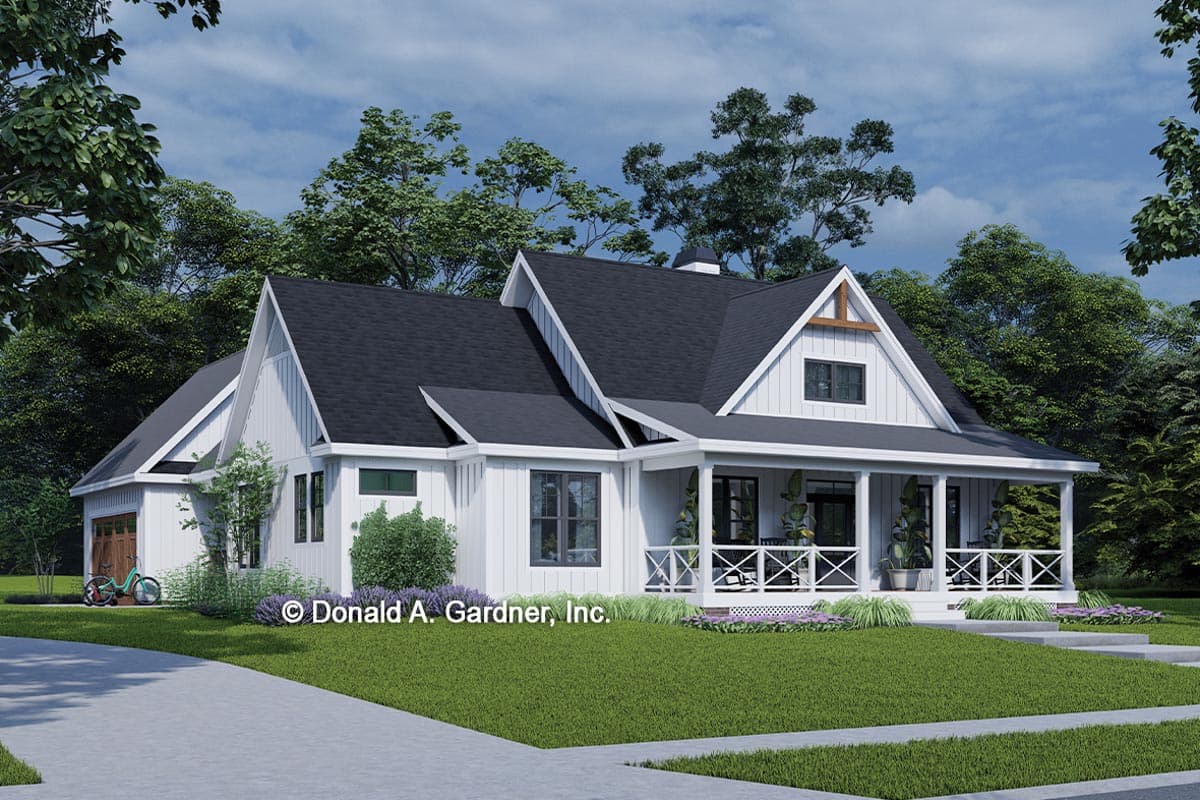

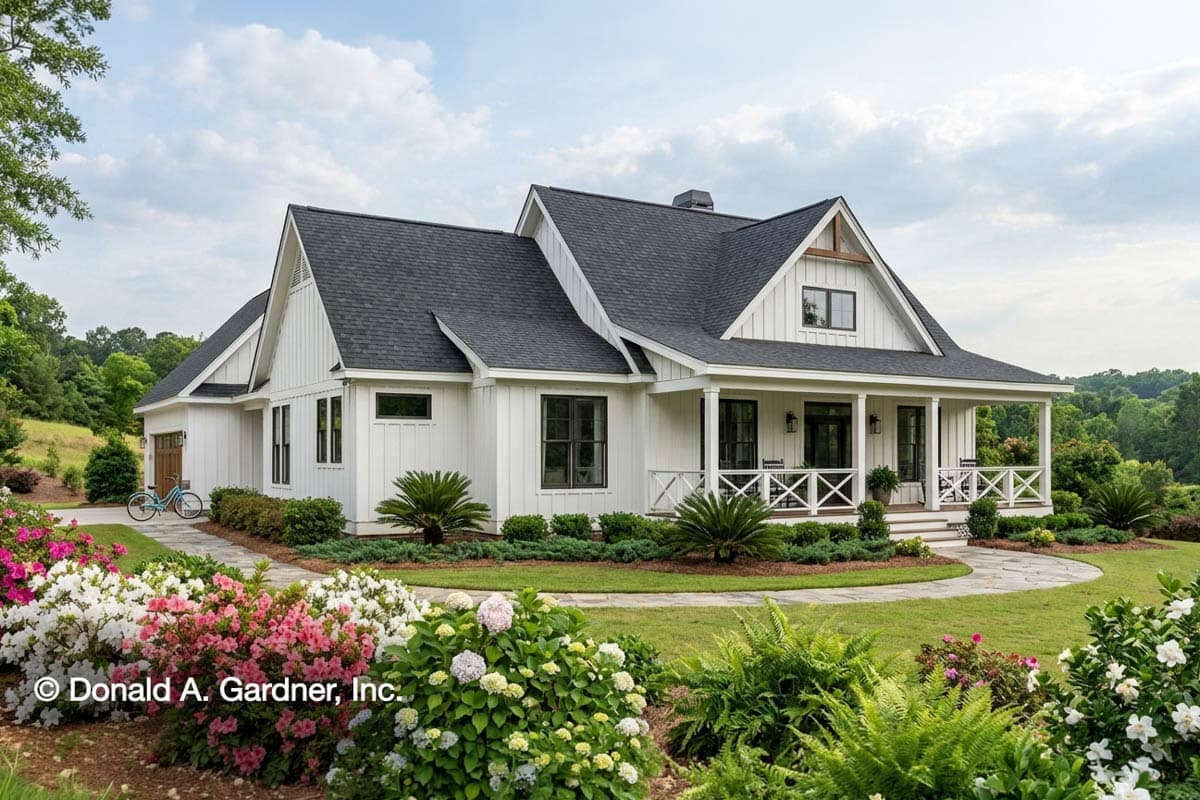

  • Experience the epitome of modern farmhouse living with this inviting design. Adorned with a timeless board-and-batten facade and an inviting front porch, this home exudes charm from the first glance.
  • Step inside to a welcoming foyer that seamlessly opens up to an expansive open floor plan. The great room and island kitchen share a vaulted ceiling adorned with three skylights, creating a bright and airy ambiance.

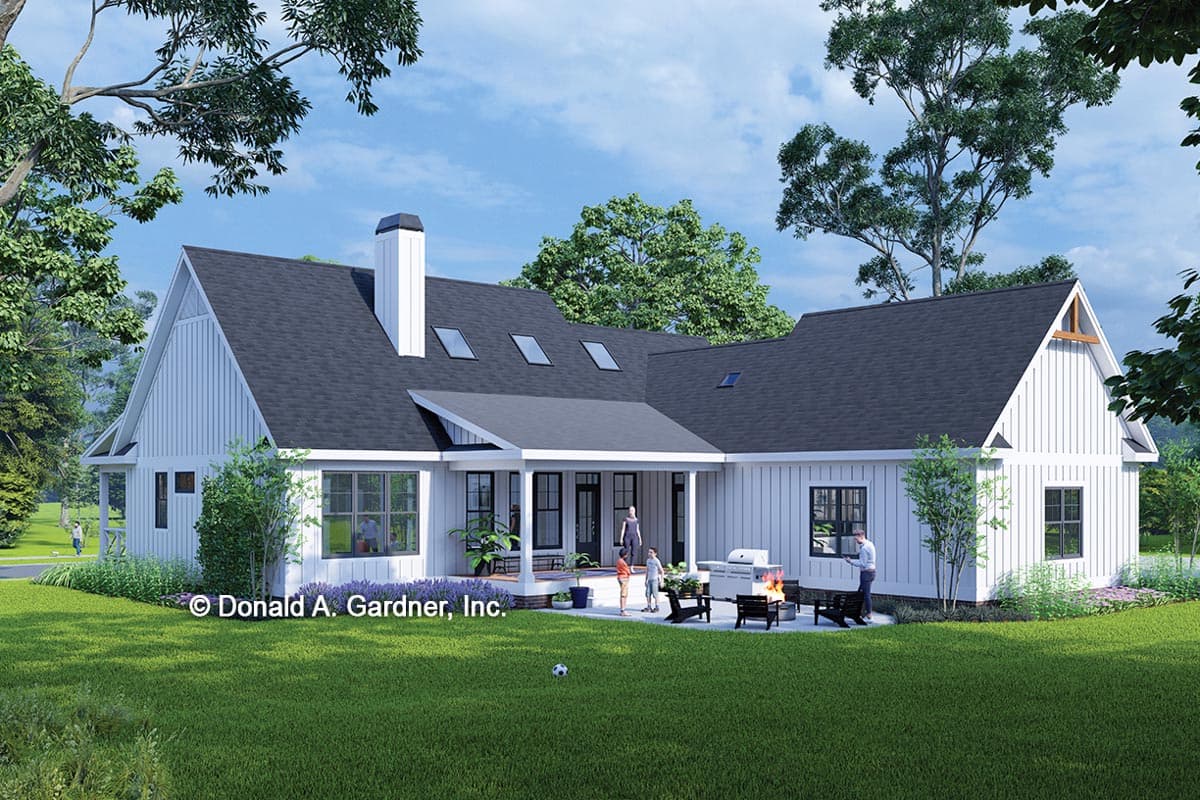

  • The dining area is elegantly appointed with a tray ceiling and a front-facing window, offering a delightful dining experience. When it's time to enjoy the outdoors, simply step onto the rear porch and patio, extending your living space.
  • At the rear of the home, you'll find a convenient two-car garage that leads into a mudroom and an adjacent pantry, ensuring a clutter-free and organized home. The utility room is highly functional, featuring side porch access, a laundry sink, and a sun tunnel that bathes the space in natural light.
  • The master suite is both efficient and cozy, with a tray ceiling adding a touch of elegance. The cleverly designed bathroom includes a walk-in shower and a dual vanity, while a spacious walk-in closet provides ample storage.
  • On the opposite side of the floor plan, two additional bedrooms share a full bathroom, completing this thoughtfully designed home.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1-Story Modern Farmhouse Under 1700 Square Feet with 2 or 3 Beds

  • 1,621

    Heated s.f.

  • 2-3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

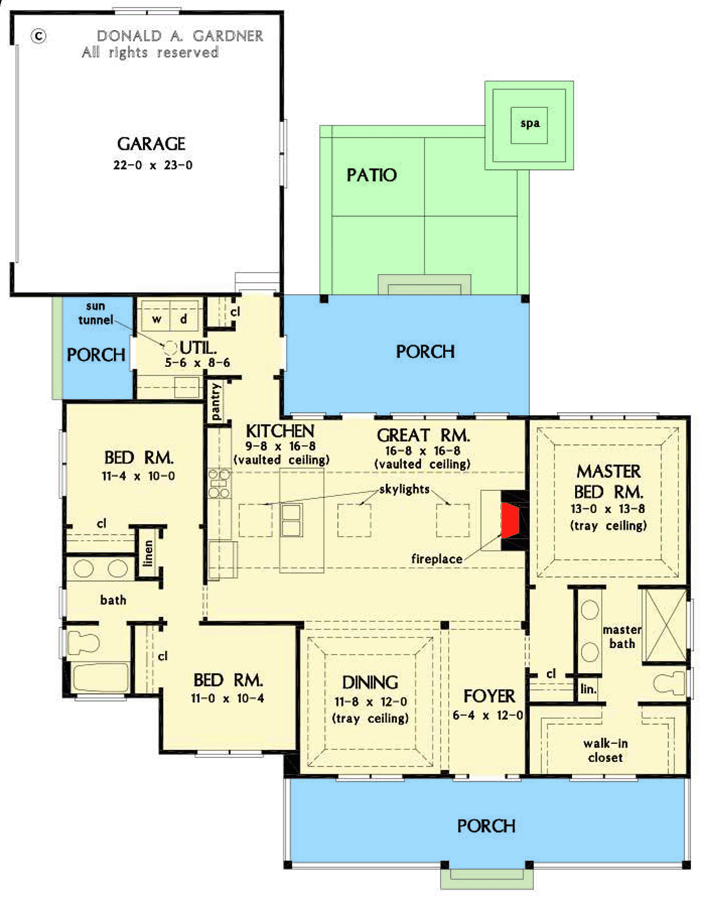

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,621 sq. ft.
  • 1st Floor: 1,621 sq. ft.

Dimensions

  • Width: 56' 4"
  • Depth: 71' 0"
  • Max ridge height: 26' 4"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 532 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
