Plan 56511SM 1-Story New American House Plan with a Private Home Office

1-Story New American House Plan with a Private Home Office

Plan 56511SM

  • 1,941

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

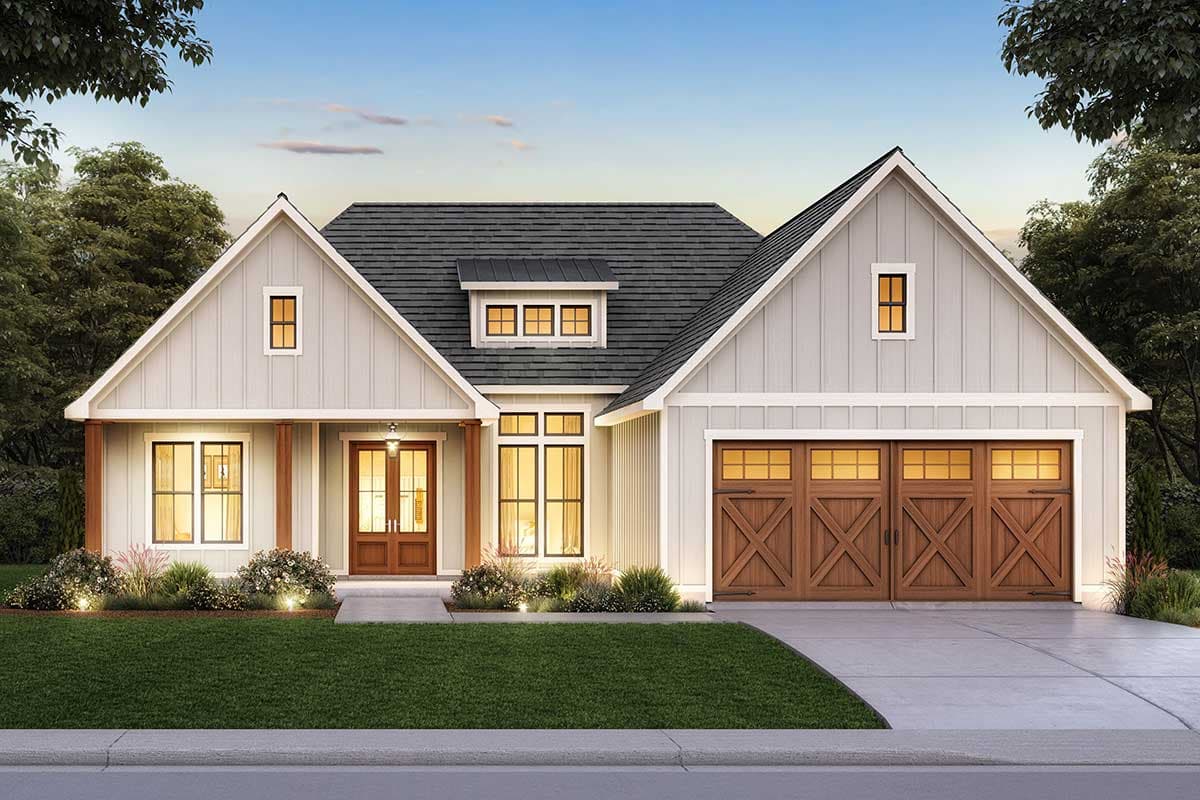

  • Board and batten siding, timber supports for the entry porch and a shed dormer centered on the home (for aesthetic purposes only) give this 3-bed New American house plan great curb appeal.
  • French doors welcome you into the foyer where a door to your left opens to a home office. You can conduct business from home and have someone over for a meeting and never have to have them walk through the home to conduct business.
  • The living room is in the center of the home and has 12' ceilings and a pair of French doors on the back wall that take you to the back porch. A beam signals separation between the living room and the kitchen with 10' ceilings.
  • A large island has two sinks on the work side and room for up to 4 seats on the "fun" side. A barn door opens to reveal the walk-in pantry complete with a coffee bar. The mudroom is steps away making unloading groceries a breeze.
  • The master suite occupies the left side of the home and has a large walk-in closet accessed through the vaulted master bath. Across the home, two bedrooms share a bath.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

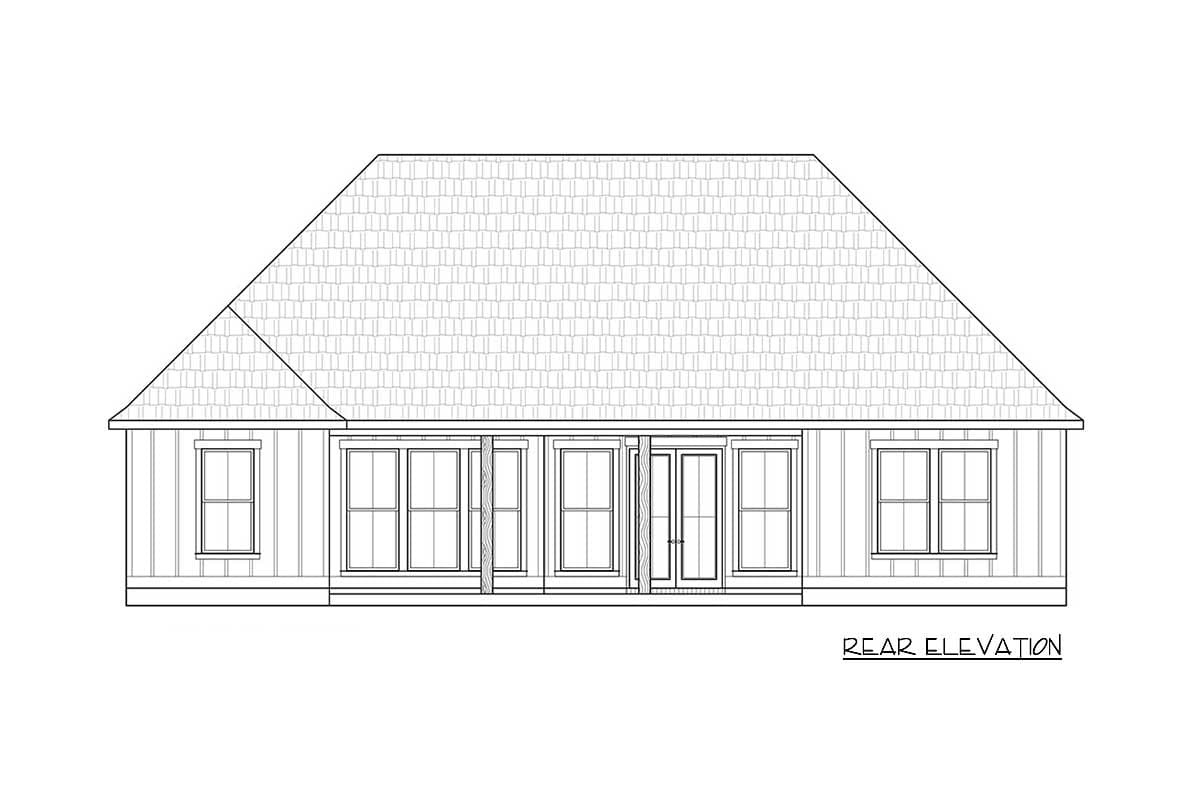

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

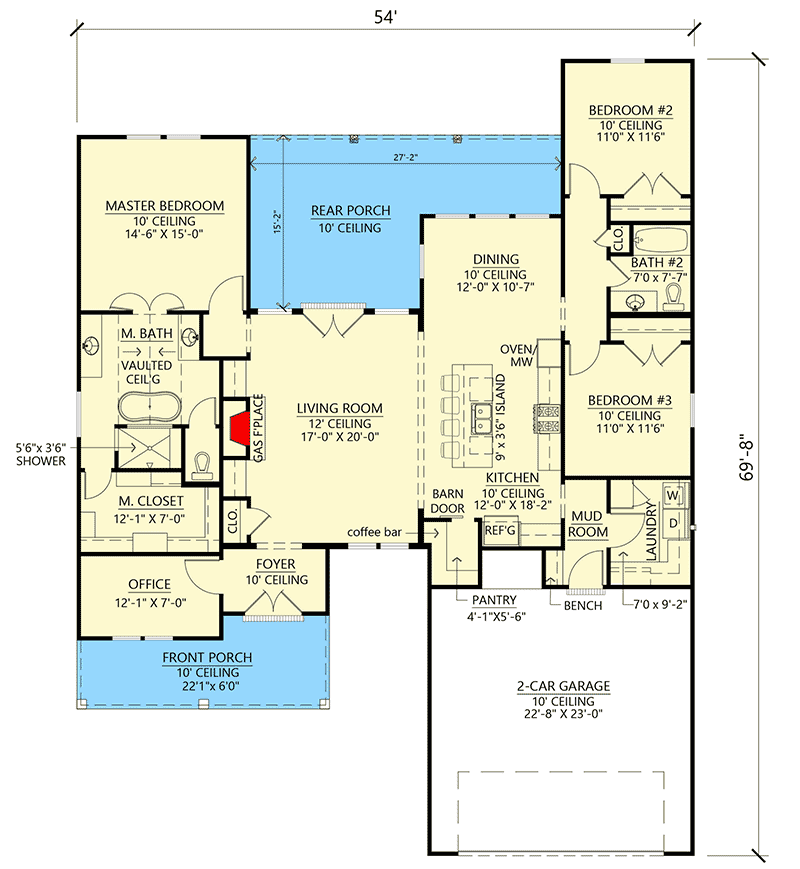

1-Story New American House Plan with a Private Home Office  - 56511SM floor plan - Main Level

Plan details

1-Story New American House Plan with a Private Home Office

  • 1,941

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,095
  • 5 Sets $1,195
  • 5 Sets + PDF $1,395
  • PDF - Unlimited Build $1,795
  • CAD + PDF - Single-Build $2,095
  • CAD Unlimited + PDF $2,295
  • View all purchase option online

About This Plan

  • Board and batten siding, timber supports for the entry porch and a shed dormer centered on the home (for aesthetic purposes only) give this 3-bed New American house plan great curb appeal.
  • French doors welcome you into the foyer where a door to your left opens to a home office. You can conduct business from home and have someone over for a meeting and never have to have them walk through the home to conduct business.
  • The living room is in the center of the home and has 12' ceilings and a pair of French doors on the back wall that take you to the back porch. A beam signals separation between the living room and the kitchen with 10' ceilings.
  • A large island has two sinks on the work side and room for up to 4 seats on the "fun" side. A barn door opens to reveal the walk-in pantry complete with a coffee bar. The mudroom is steps away making unloading groceries a breeze.
  • The master suite occupies the left side of the home and has a large walk-in closet accessed through the vaulted master bath. Across the home, two bedrooms share a bath.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,941 sq. ft.
  • 1st Floor: 1,941 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 69' 8"
  • Max ridge height: 24' 10"

Garage

  • Type: Attached
  • Area: 562 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
