Plan 3470VL
1013 Square Feet 2-Bed Cottage Escape
Heated S.F.
1,013
Beds
2
Baths
2
Stories
1
Floor Plan

Plan 3470VL

Main Level
slide image 0

Plan 3470VL

1-800-854-7852

1-262-521-4596

Main Level

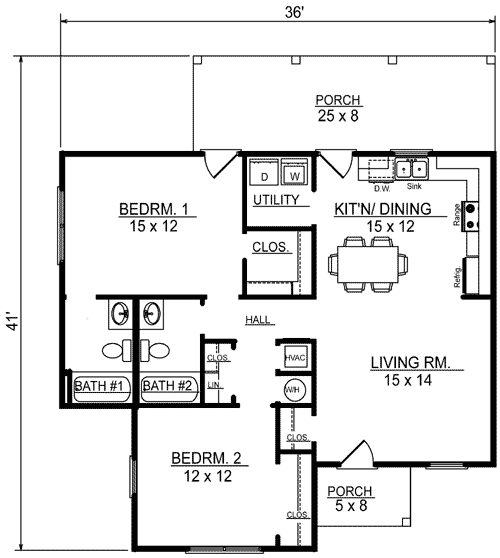

floor plan image Main Level
Plan Details
  • An open floor plan greets you as you enter this great cottage house plan. No walls separate the kitchen from the living room creating a great space to relax or entertain in.
  • Two bedrooms each have their own bath and laundry is steps away from the source.
  • Related Plans: Get a version on a post and pier foundation with house plan 3471VL.Go smaller with house plans 3475VL(736 sq. ft.) and 3473VL(856 sq. ft.).
What's Included

  • Front and Right Side Elevations

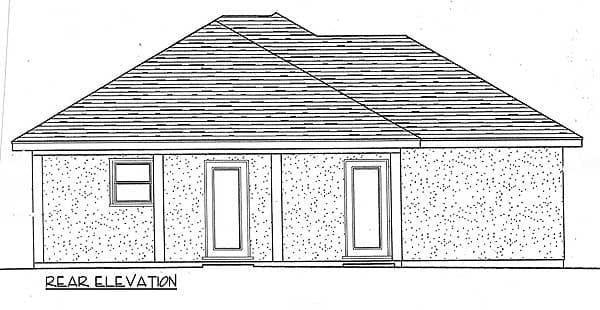

  • Rear and Left Side Elevations
  • Floor Plan
  • Cabinet Elevations/Cross Sections
  • Foundation Page
  • Foundation Details
  • Electrical Layout
  • Duct Layout

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,013 sq. ft.

1st Floor

1,013 sq. ft.

Porch, Front

39 sq. ft.

Porch, Rear

200 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

36' 0"

Depth

41' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Cottage

Square Footage Breakdown

Total Heated Area

1,013 sq. ft.

1st Floor

1,013 sq. ft.

Porch, Front

39 sq. ft.

Porch, Rear

200 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

36' 0"

Depth

41' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style
