Plan 911037JVD
1080 Square Foot Detached Garage with Half Bath and Storage Above
Heated S.F.
0
Baths
0.5
Stories
2
Cars
2
What's Included
Plan Details
  • This detached garage plan gives you 1080 square feet of parking space set behind two bays, one with a 10' by 10' overhead door perfect for larger vehicles and the other with a 9' by 8' overhead door.
  • A half bath in the back-right corner gives you a place to do light clean up after working on your vehicles.
  • Storage space can be found under the stairs, and a 480 square foot storage loft is found upstairs.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

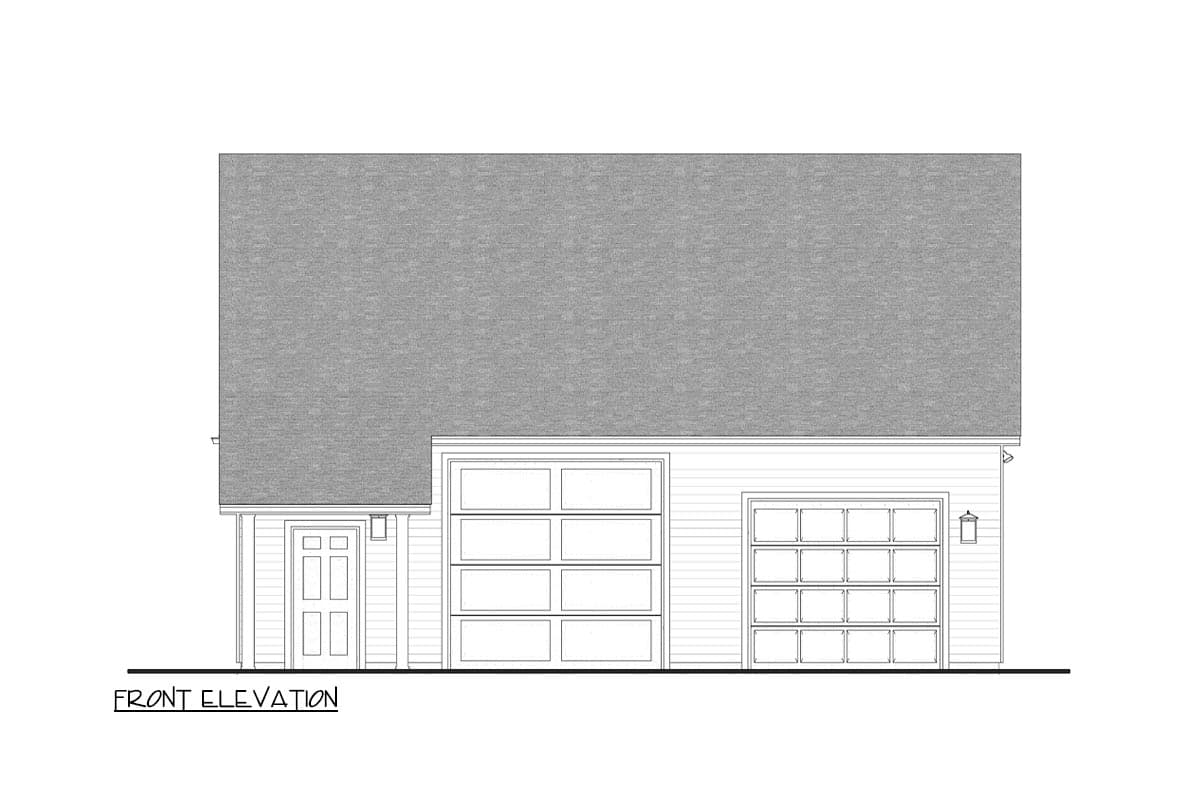

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1080 Square Foot Detached Garage with Half Bath and Storage Above

  • 0

    Heated s.f.

  • Beds

  • 0.5

    Baths

  • 2

    Floors

  • 2

    Car garage

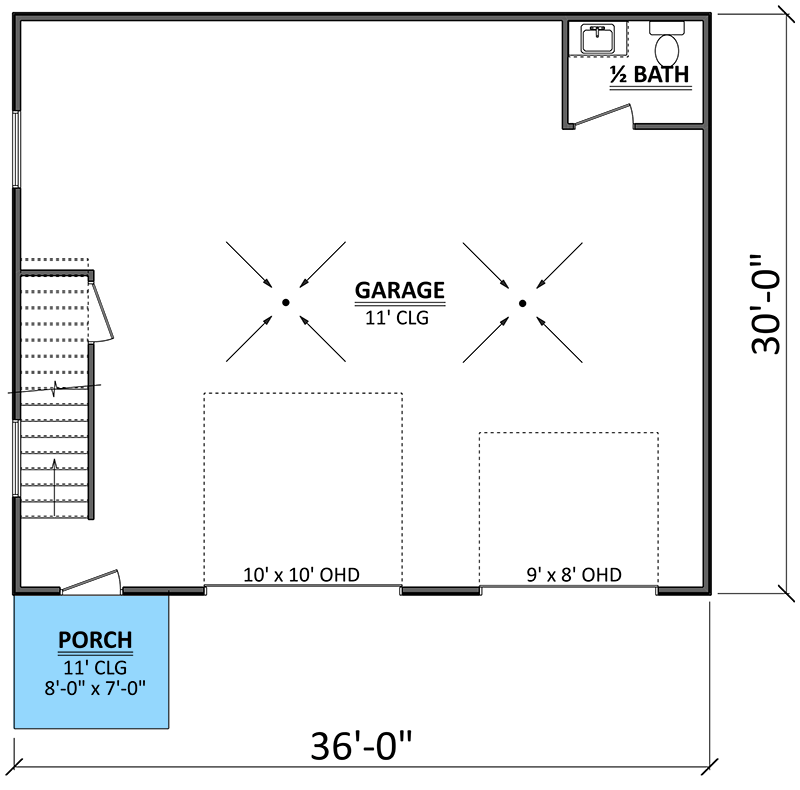

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.
  • Powder : 28 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 37' 0"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 1080 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
