Plan 72359DA

1200 Square Foot Detached Garage with Shop and Storage

Heated S.F.
0
Beds
0
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 72359DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72359DA

M-F 9am-5pm EST |

1-203-761-8500

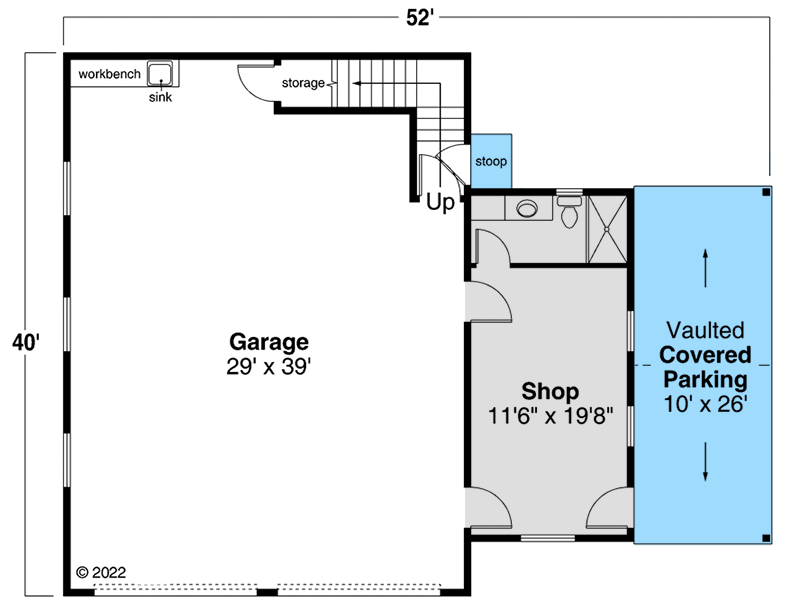

Main Level

Plan 72359DA: 1200 Square Foot Detached Garage with Shop and Storage - Floor Plan - Main Level - Traditional

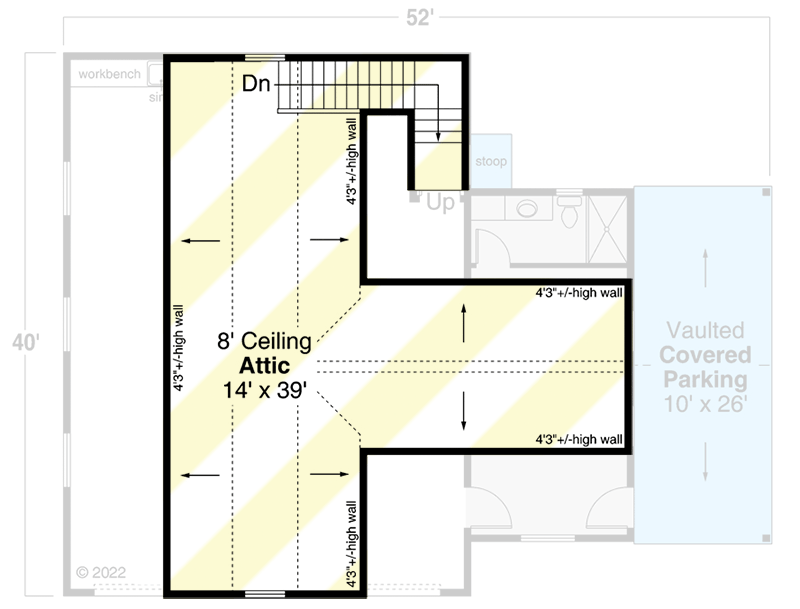

2nd Floor

Plan 72359DA: 1200 Square Foot Detached Garage with Shop and Storage - Floor Plan - 2nd Floor - Traditional

Plan Details

  • At first glance it would be hard to tell that this Traditional garage has so much to offer. The inside of the garage features a large shop with a full bathroom.
  • The right of the structure is additional parking or storage space.
  • Upstairs there is an 8' ceiling attic for all your storage needs.
  • Both the garage doors are 12' x 8'.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

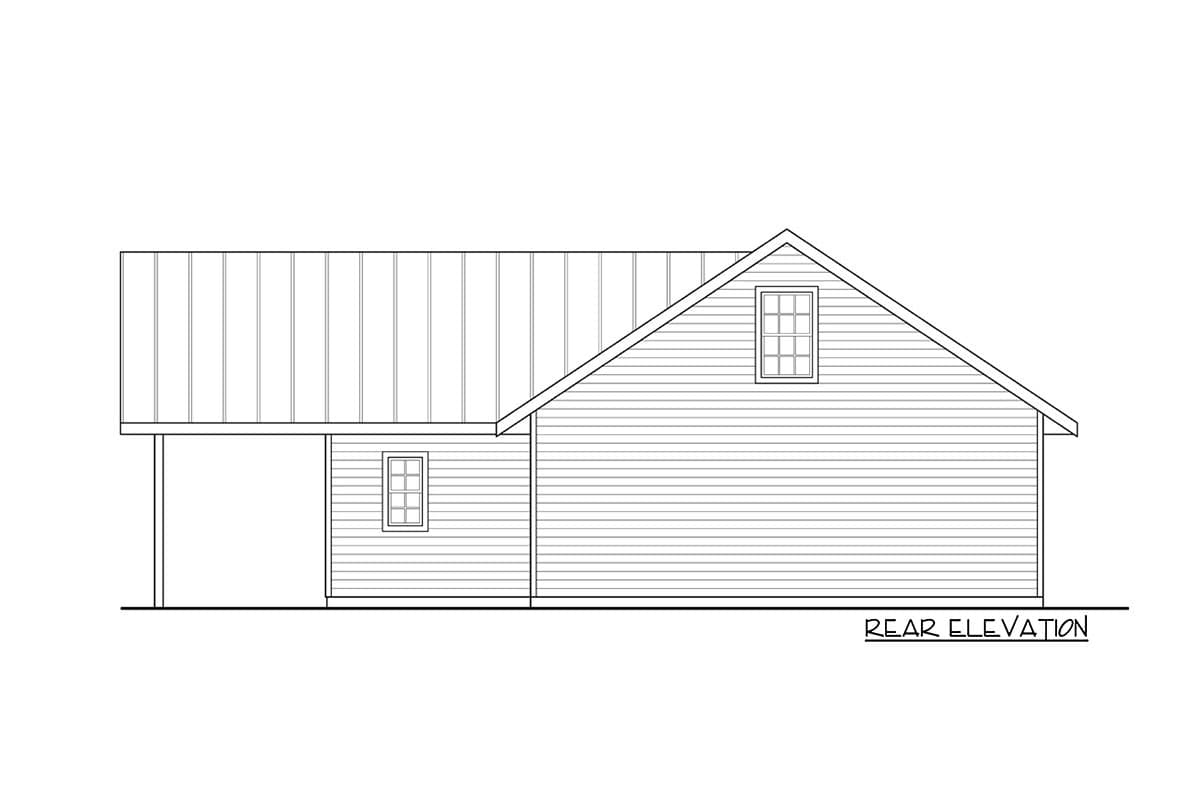

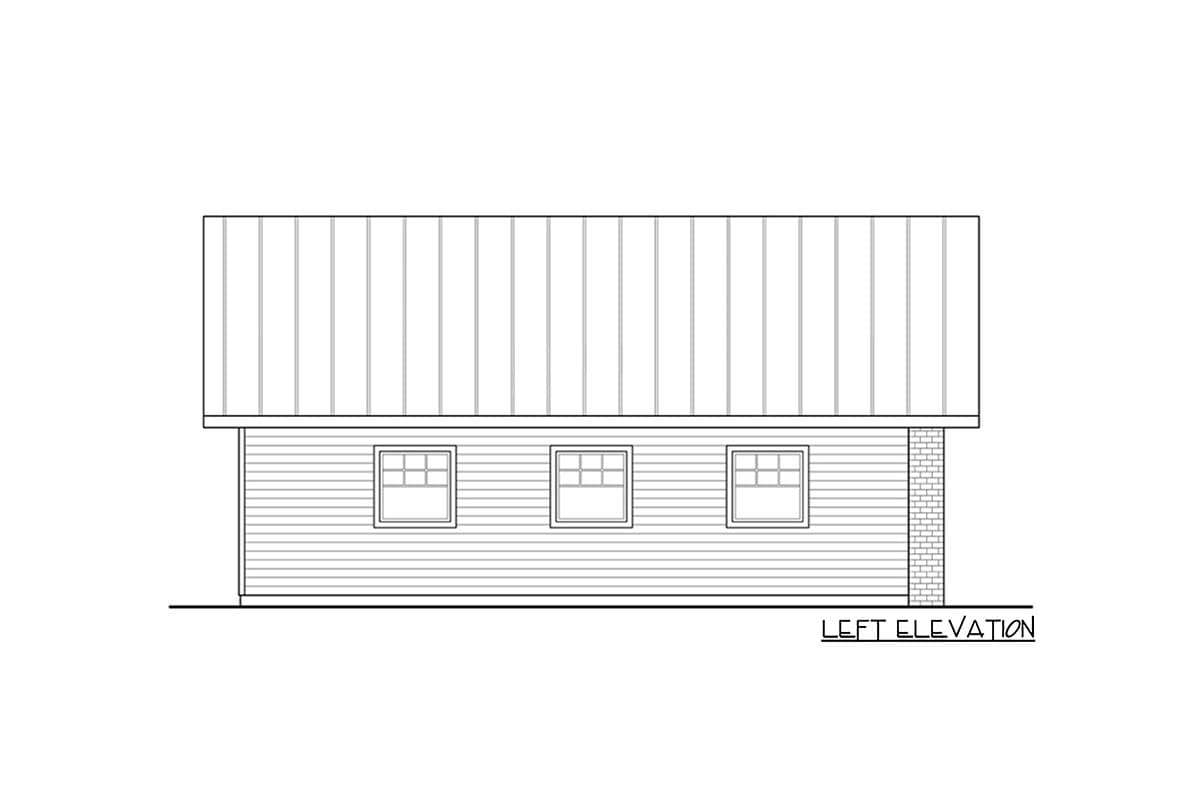

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
