Plan 59501ND
1520 Square Foot Two Family House Plan with 3 Bed, 2 Bath Units
Heated S.F.
3,040
Units
2
Width
81'
Depth
63' 2"
Cars
4
What's Included
Plan Details
  • Each 1520 square unit in this two-family house plan gives you 3 beds, 2 baths and a 469 square foot 2-car garage.
  • The front bedroom can be used as either a bedroom or a study or home office.
  • An angled fireplace provides subtle separation between the great room and the breakfast/hearth room.
Unit A
1,520 Sq. Ft.
1520 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
2 Vehicle
Attached
469 Sq. Ft.
40' 6" w 63' 2" d 25' h
Unit B
1,520 Sq. Ft.
1520 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
2 Vehicle
Attached
469 Sq. Ft.
40' 6" w 63' 2" d 25' h
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1520 Square Foot Two Family House Plan with 3 Bed, 2 Bath Units

  • 3,040

    Heated s.f.

  • 2

    Units

  • 81'

    Width

  • 63' 2"

    Depth

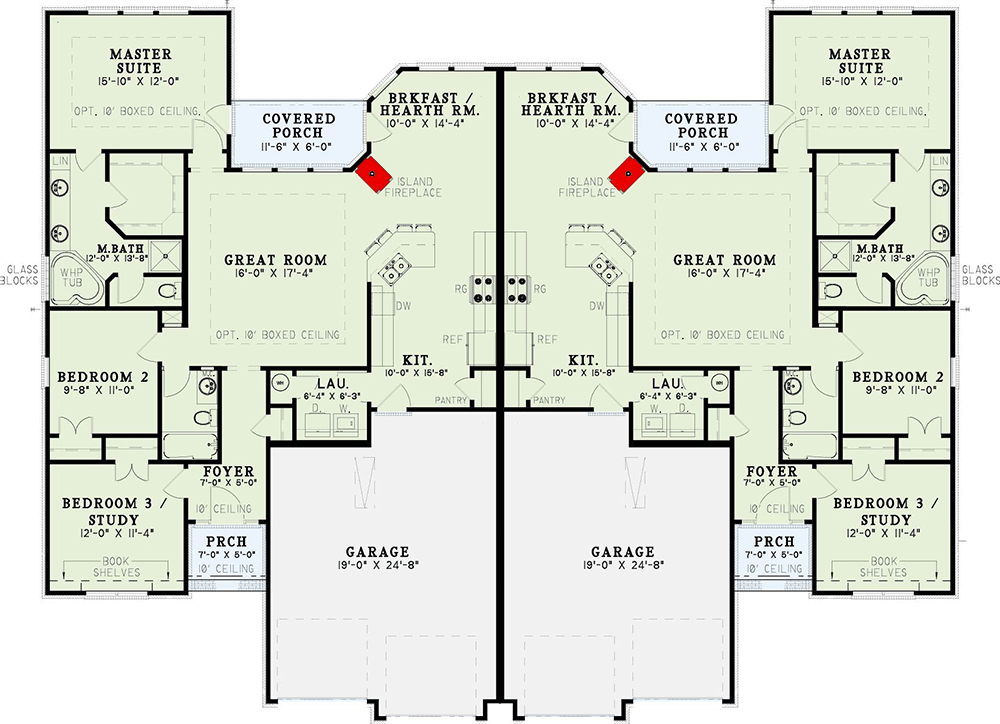

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,040 sq. ft.
  • 1st Floor: 3,040 sq. ft.

Dimensions

  • Width: 81' 0"
  • Depth: 63' 2"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 938 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
