Plan 61443UT
1600 Square Foot 3-Car Garage with Center RV Bay
Heated S.F.
0
Beds
0
Baths
0.5
Stories
1
Cars
3-6
What's Included
Plan Details
  • This 3-car detached garage plan gives you 1600 square feet of parking with two bays with 10' by 9' overhead doors flanking a center RV bay with a 12' by 12' bay.
  • The garage is 39'8" deep giving you space for parking and equipment.
  • A half bath in the back-left corner is a nice convenience.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

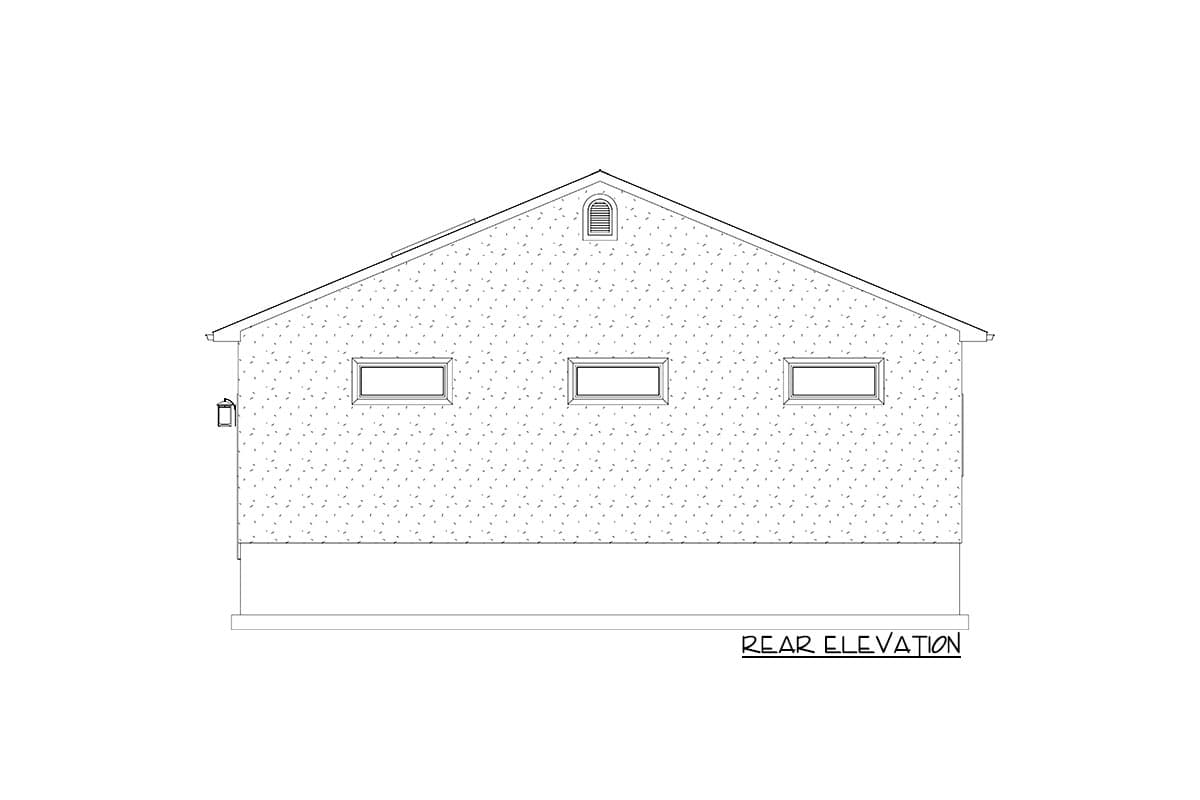

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1600 Square Foot 3-Car Garage with Center RV Bay

  • 0

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1

    Floors

  • 3 - 6

    Car garage

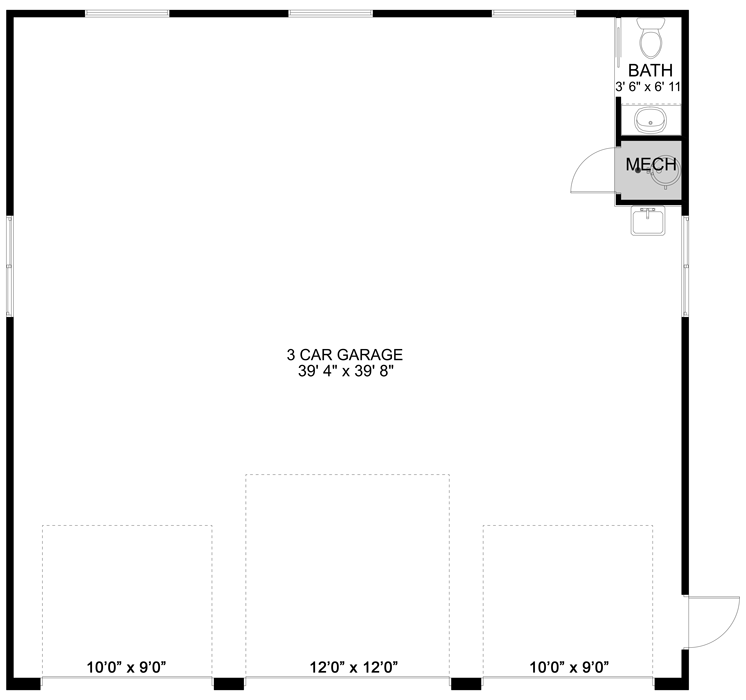

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 40' 0"
  • Max ridge height: 20' 9"

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Garage

  • Type: RV Garage, Detached
  • Area: 1600 sq. ft.
  • Count: 3, 4, 5, or 6 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
