Plan 777042MTL
1600 Square Foot Rustic Barndominium with Wraparound Porch
Heated S.F.
1,600
Beds
3
Baths
2.5
Stories
1
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

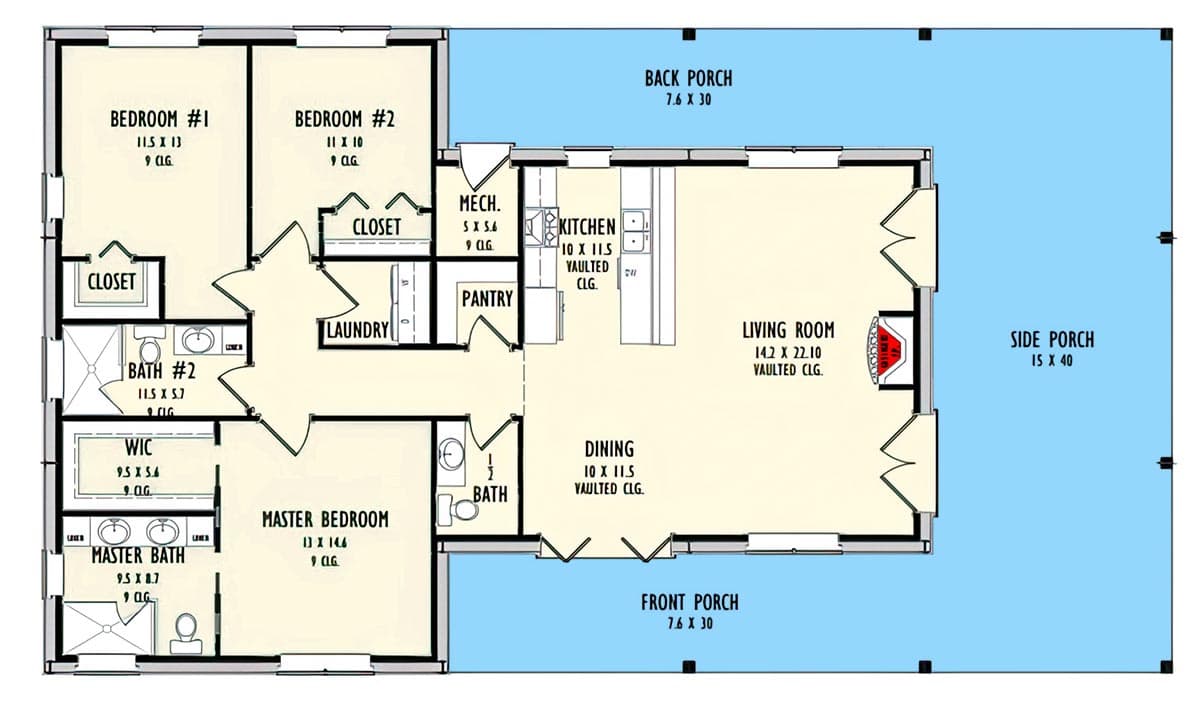

1600 Square Foot Rustic Barndominium with Wraparound Porch - 777042MTL floor plan - Main Level
Wall Framing Section
Reverse Floor Plan
1600 Square Foot Rustic Barndominium with Wraparound Porch - 777042MTL floor plan - Wall Framing Section
Plan Details
  • This rustic barndominium-style house plan has a covered porch that wraps around three sides of the 2-story vaulted-and-open living space giving you great fresh-air space to enjoy.
  • French doors to either side of the fireplace give you access to the 15'-deep side porch and ones by the dining room open from 7'6"-deep front porch.
  • The right side of the home is open concept and under a vaulted ceiling with views to three sides.
  • All the bedrooms occupy the left side of the home with laundry strategically positioned to all of them.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it from the Options menu.
What's Included
  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1600 Square Foot Rustic Barndominium with Wraparound Porch

  • 1,600

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

  • Wall Framing Section

Plan Details

Square Footage Breakdown

  • Total: 1,600 sq. ft.
  • 1st Floor: 1,600 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 40' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Metal
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: PEMB & Stick
