1900 Square Foot 3-Bed Modern House Plan with Upstairs Flex Room

Heated S.F.
1,920
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 580053DFT

Main Level
Main Level
2nd Floor
2nd Floor

Plan 580053DFT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

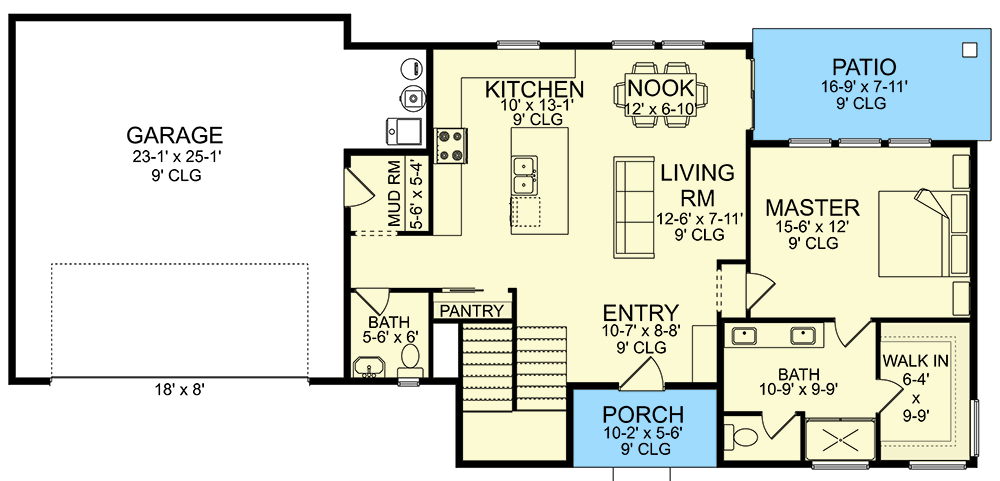

Plan 580053DFT: 1900 Square Foot 3-Bed Modern House Plan with Upstairs Flex Room - Floor Plan - Main Level

2nd Floor

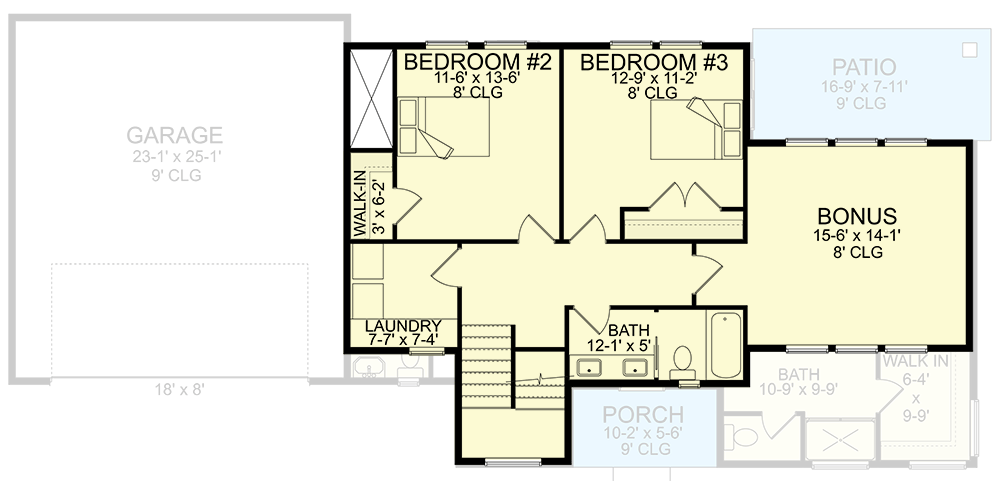

Plan 580053DFT: 1900 Square Foot 3-Bed Modern House Plan with Upstairs Flex Room - Floor Plan - 2nd Floor

Plan Details

  • This 3 bed, 2.5 bath modern home plan gives you 1,920 square feet of expansion space including the bonus - or flex room - on the second floor.
  • Your private master suite is the sole bedroom on the main floor and has views looking across the back. Upstairs, two bedrooms share a bath and the bonus room can be put to any use you see fit.
  • The kitchen, nook and living room are designed in an open layout. The nook has access to the back patio.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details
  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,920 sq. ft.

1st Floor

1,060 sq. ft.

2nd Floor

860 sq. ft.

Covered Patio

164 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

31' 10"

Garage

Type

Attached

Area

670 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Special Features

Flex Room

Laundry - Upstairs

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room
