Plan 818004JSS 2,047 Square Foot Rustic Mountain Home Plan with 4 Beds and a Vaulted Interior

2,047 4 3 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2,047 Square Foot Rustic Mountain Home Plan with 4 Beds and a Vaulted Interior

Plan 818004JSS

  • 2,047

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This rustic mountain home plan gives you 3 4 bedrooms and 3 baths with a 2-car front-facing garage. Decorative shed dormers flank the windows in the center gable which brings light into the home.
  • A vaulted family room greets you inside, as do front-to-back views with the island being the only thing interrupting you as you exit to the back vaulted porch.
  • The primary bedroom with walk-in closet is located on the left while three bedrooms - the two towards the front sharing a Jack and Jill bath and the one in the back having its own bathroom - complete the home.

  • Foundation plan
  • Detailed floorplans
  • Roof plan

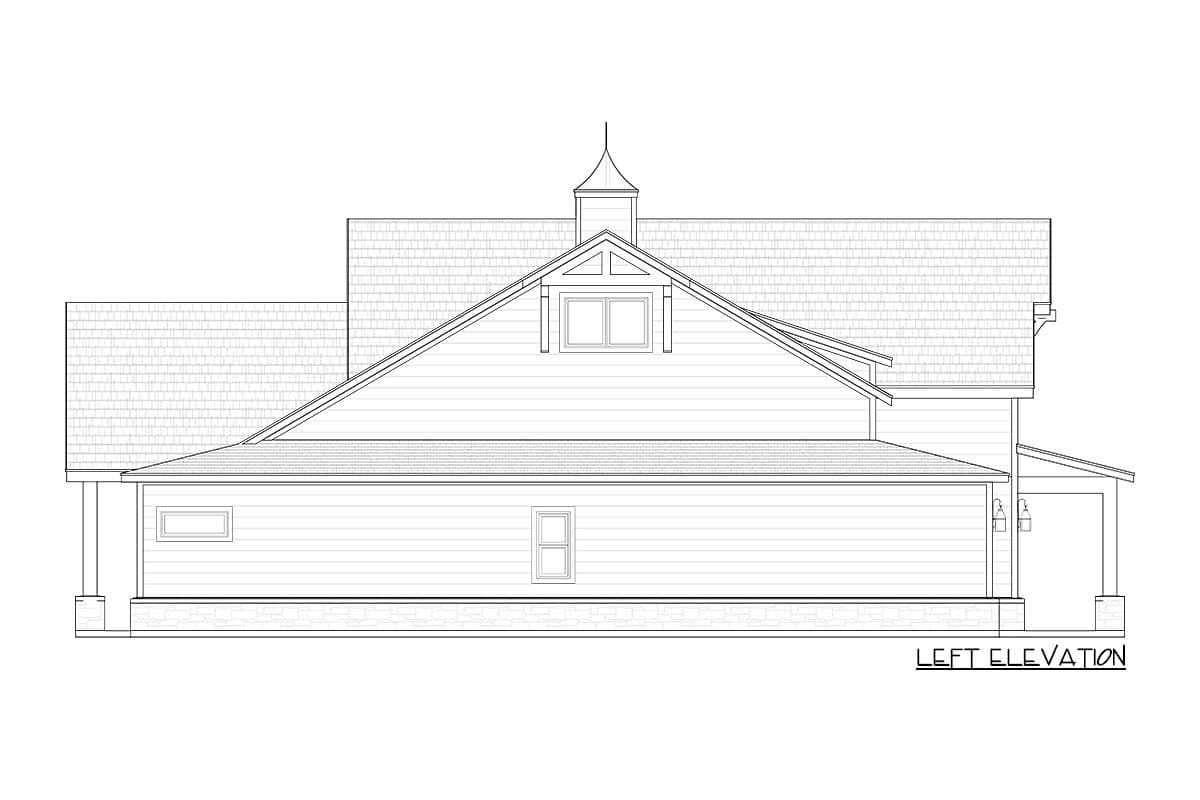

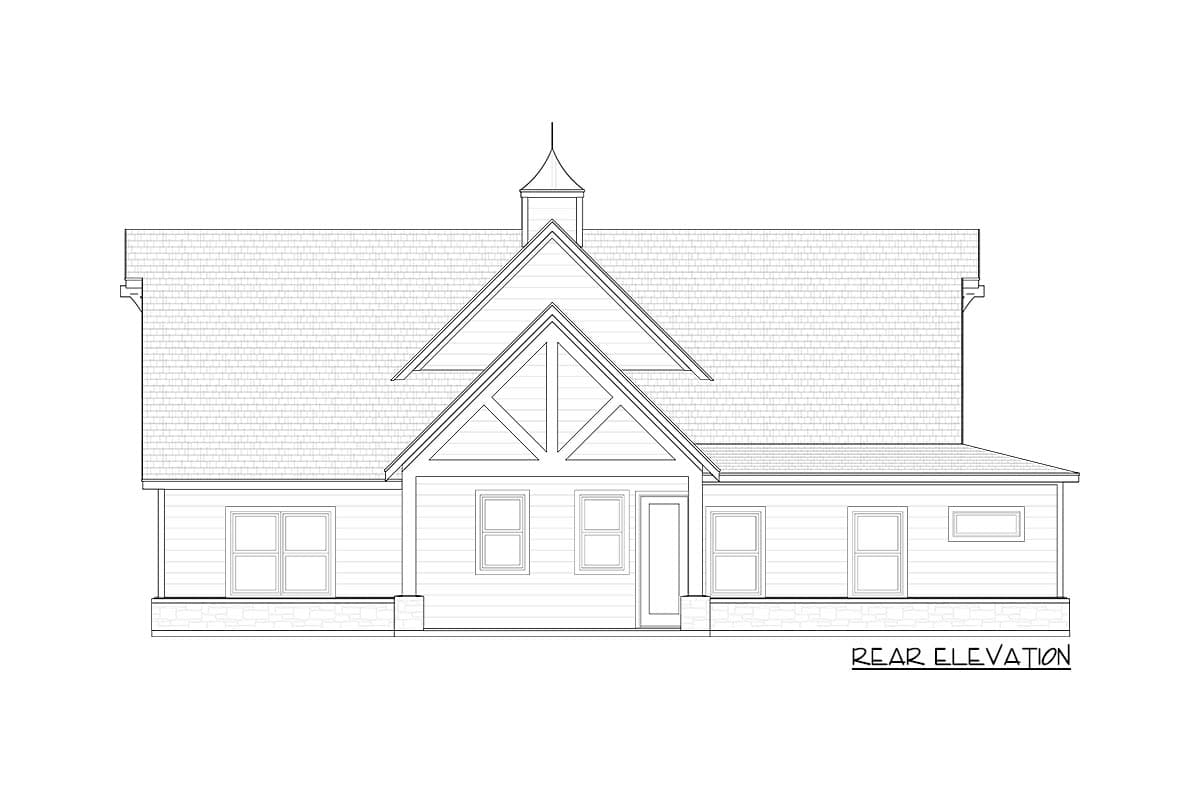

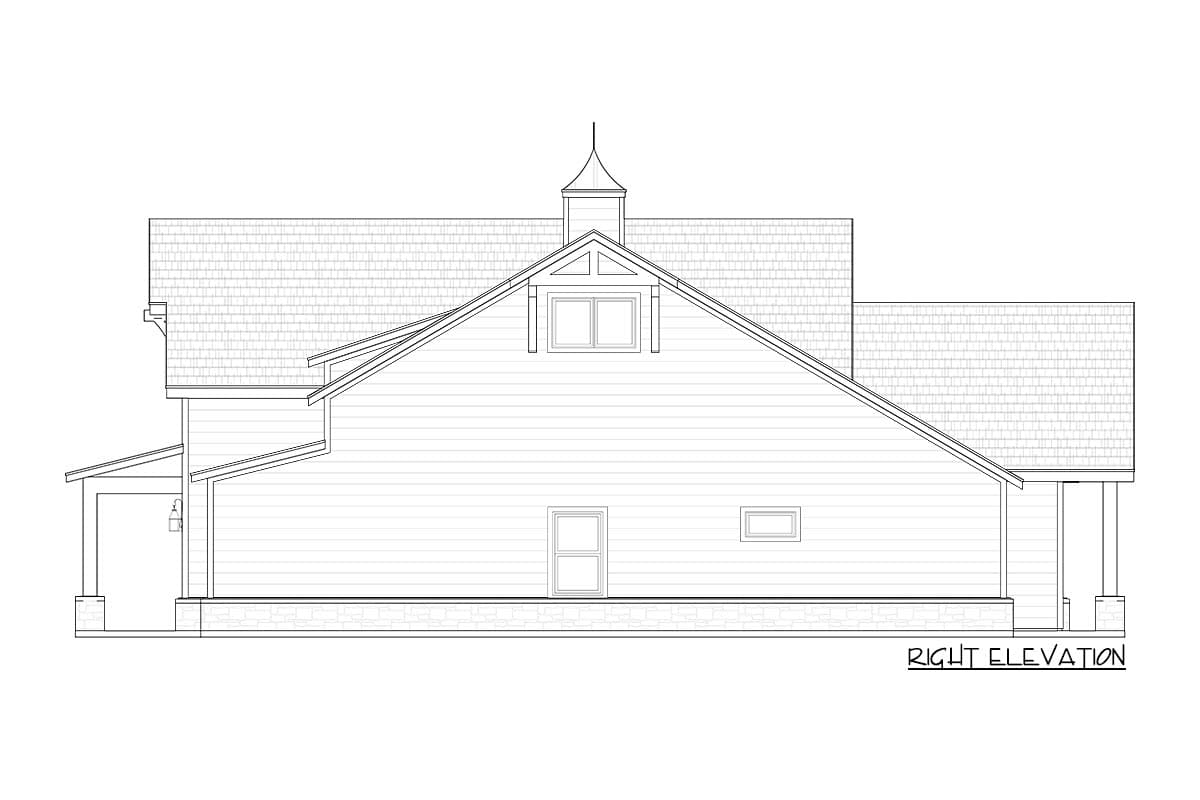

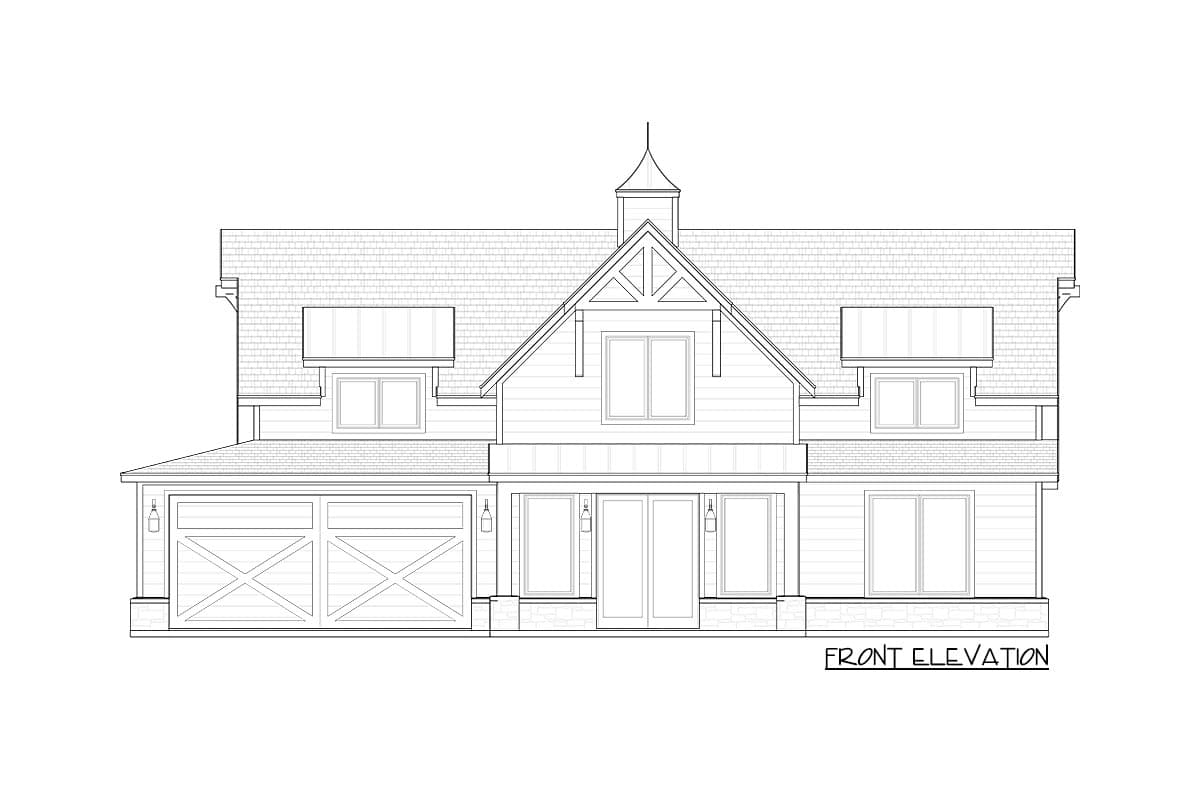

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans
The following details are NOT included in the plans:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

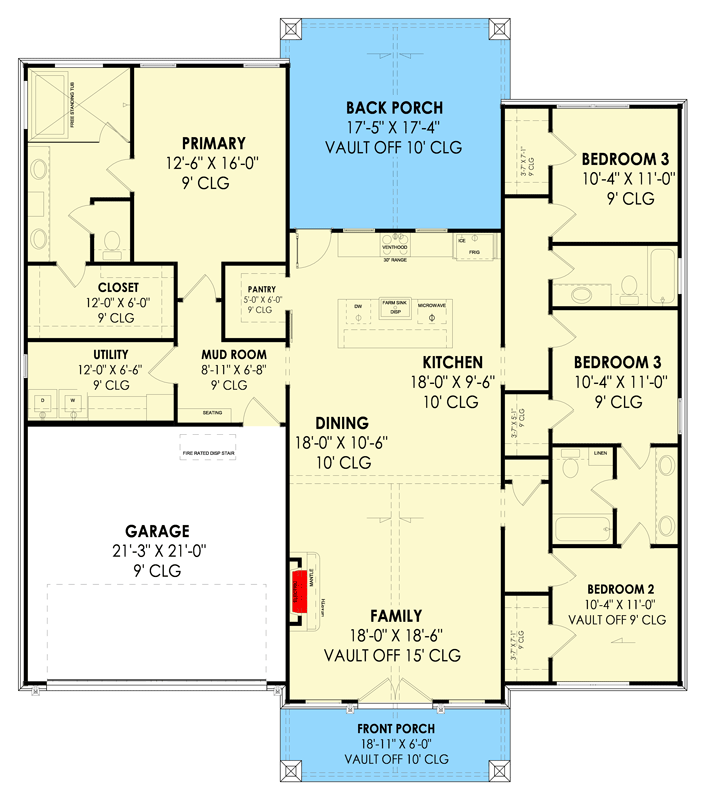

2,047 Square Foot Rustic Mountain Home Plan with 4 Beds and a Vaulted Interior - 818004JSS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,047 sq. ft.
  • 1st Floor: 2,047 sq. ft.
  • Porch, Combined: 423 sq. ft.
  • Porch, Rear: 309 sq. ft.
  • Porch, Front: 114 sq. ft.
  • BRICK POCKET: 81 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 62' 10"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 467 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

2,047 Square Foot Rustic Mountain Home Plan with 4 Beds and a Vaulted Interior

  • 2,047

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • PDF - Unlimited Build $2,095
  • CAD Unlimited + PDF $2,395
  • View all purchase option online

About This Plan

  • This rustic mountain home plan gives you 3 4 bedrooms and 3 baths with a 2-car front-facing garage. Decorative shed dormers flank the windows in the center gable which brings light into the home.
  • A vaulted family room greets you inside, as do front-to-back views with the island being the only thing interrupting you as you exit to the back vaulted porch.
  • The primary bedroom with walk-in closet is located on the left while three bedrooms - the two towards the front sharing a Jack and Jill bath and the one in the back having its own bathroom - complete the home.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,047 sq. ft.
  • 1st Floor: 2,047 sq. ft.
  • Porch, Combined: 423 sq. ft.
  • Porch, Rear: 309 sq. ft.
  • Porch, Front: 114 sq. ft.
  • BRICK POCKET: 81 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 62' 10"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 467 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
