Plan 623102DJ 2-bay Garage Plan on a Square Footprint

0 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-bay Garage Plan on a Square Footprint

Plan 623102DJ

  • 0

    Heated s.f.

  • 1

    Stories

  • 2

    Cars

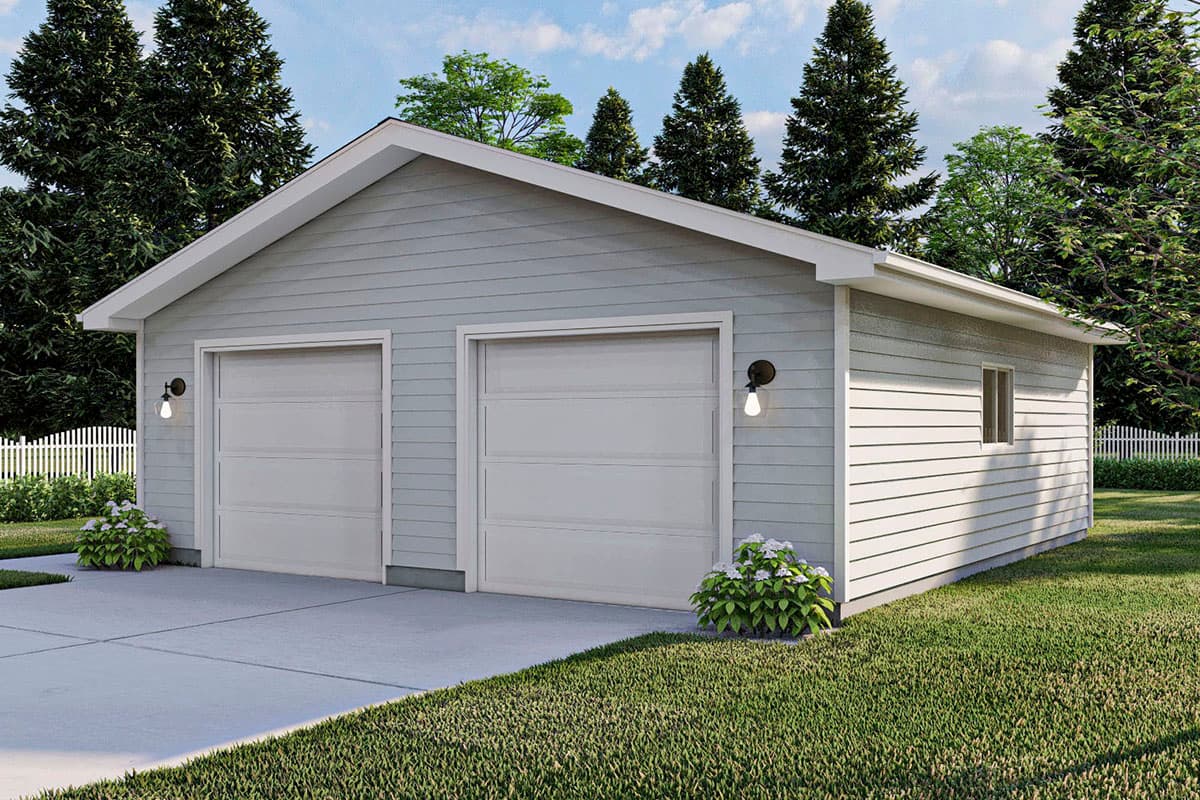

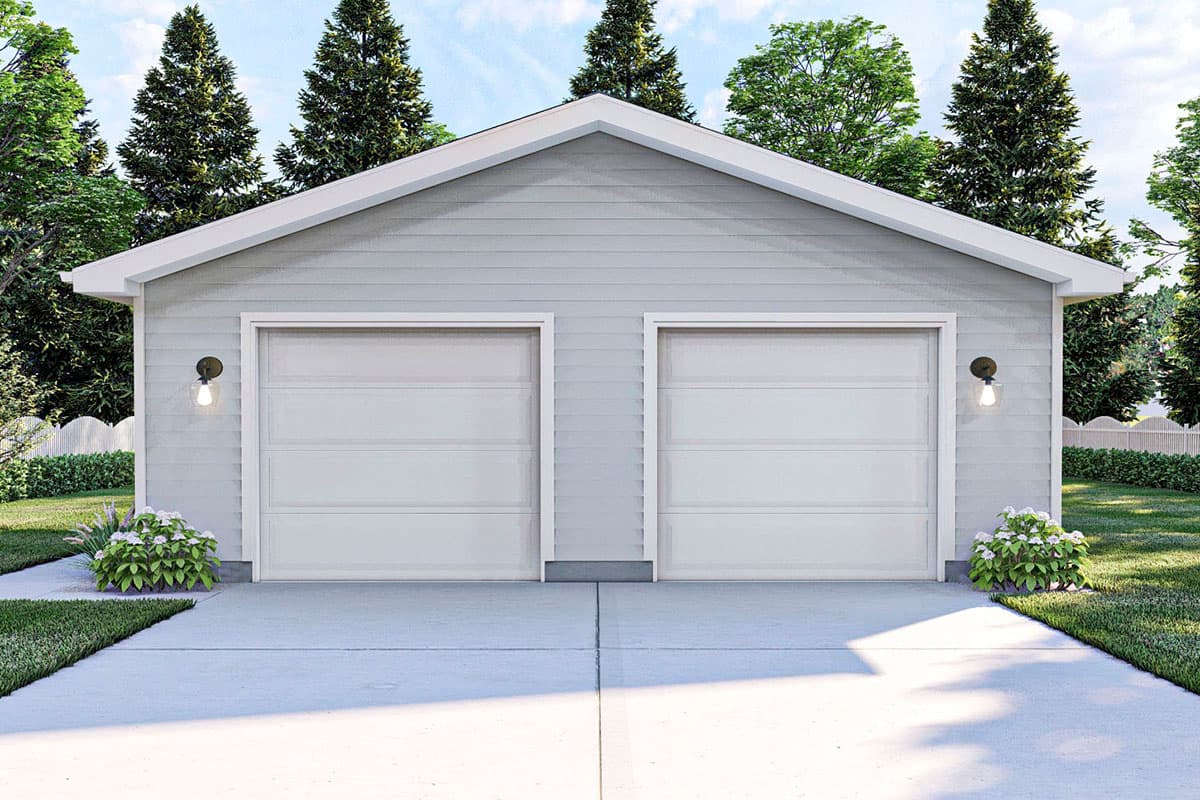

  • This 2-car garage is designed on a square slab (27'4" wide and deep) and has matching 9' wide and 8' deep garage doors in front.

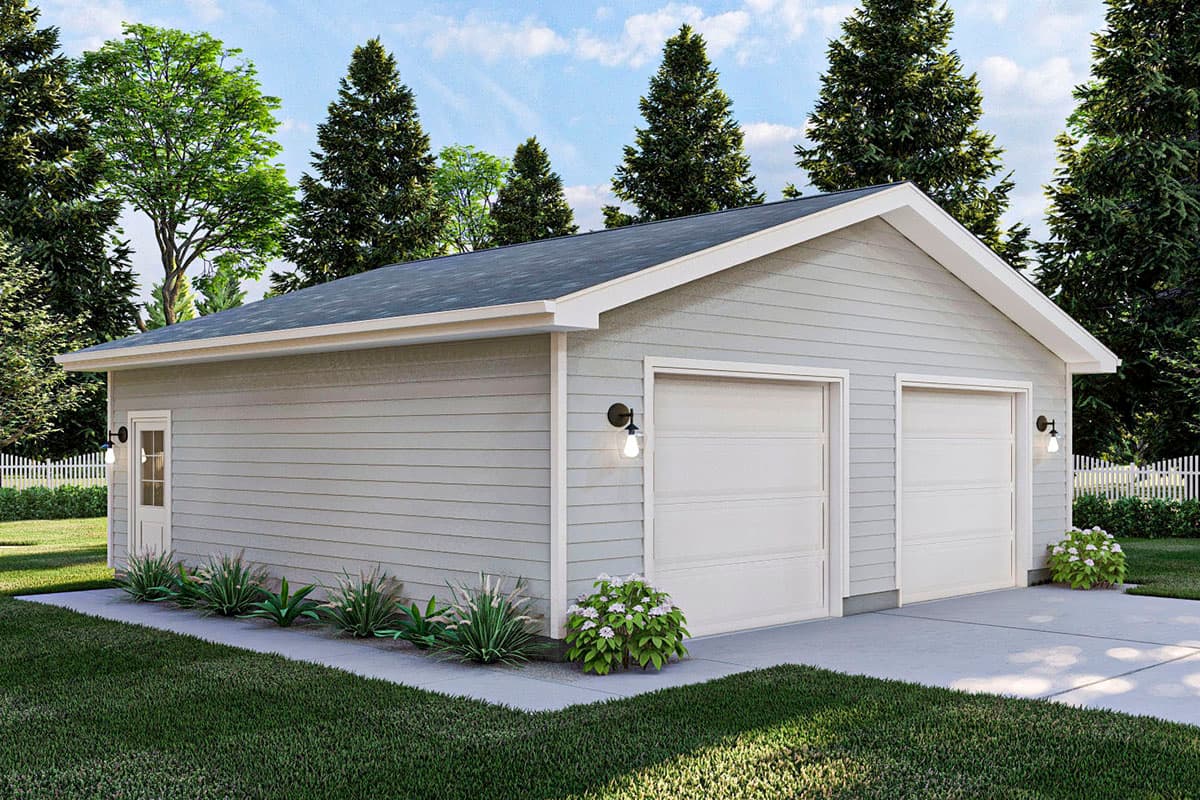

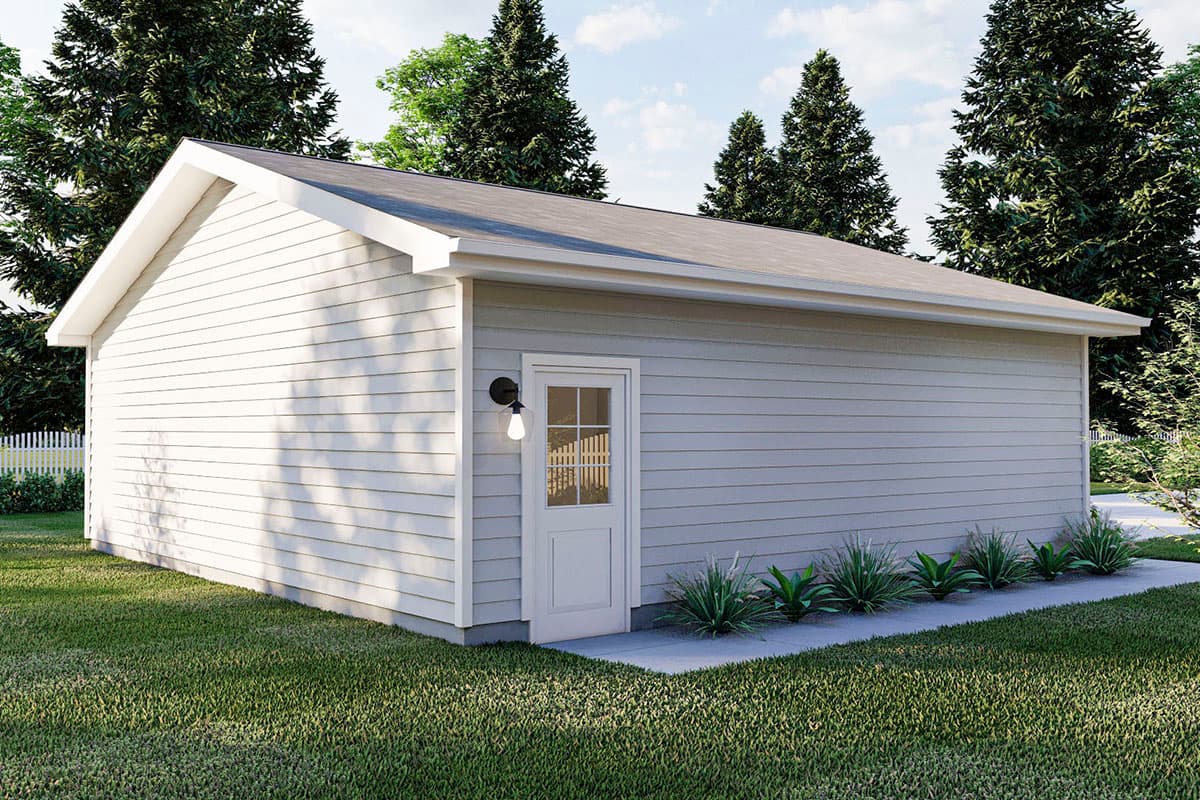

  • A person door is located on the side for easy access and there is a window on the other side for natural light.
  • This garage will work great for storing your vehicles or working on projects.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

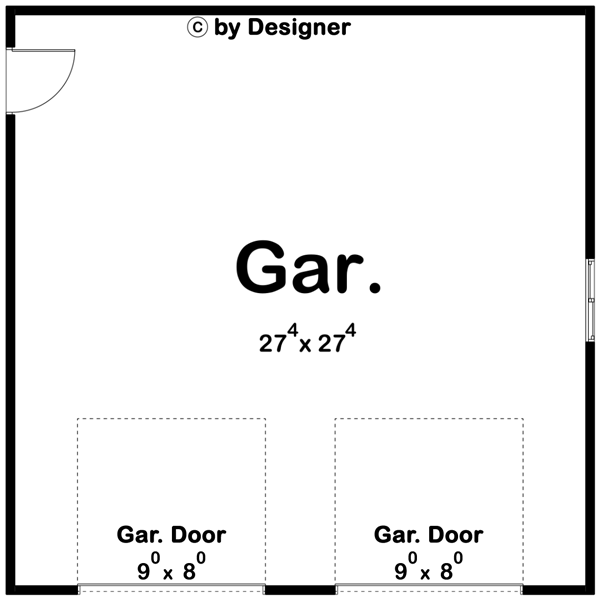

2-bay Garage Plan on a Square Footprint - 623102DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 28' 0"
  • Max ridge height: 15' 0"

Garage

  • Type: Detached
  • Area: 784 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12

Architectural Style

2-bay Garage Plan on a Square Footprint

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $500
  • 5 Sets + PDF $750
  • CAD + PDF - Single-Build $750
  • PDF - Unlimited Build $1,000
  • CAD - Unlimited Build $1,250
  • View all purchase option online

About This Plan

  • This 2-car garage is designed on a square slab (27'4" wide and deep) and has matching 9' wide and 8' deep garage doors in front.
  • A person door is located on the side for easy access and there is a window on the other side for natural light.
  • This garage will work great for storing your vehicles or working on projects.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 28' 0"
  • Max ridge height: 15' 0"

Garage

  • Type: Detached
  • Area: 784 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
Plan 623102DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/623102DJ
|
