Plan 623367DJ
2-Bed ADU Home Plan with Fireplace - 866 Sq Ft
Heated S.F.
866
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 623367DJ

Main Level
slide image 0

Plan 623367DJ

1-800-854-7852

1-262-521-4596

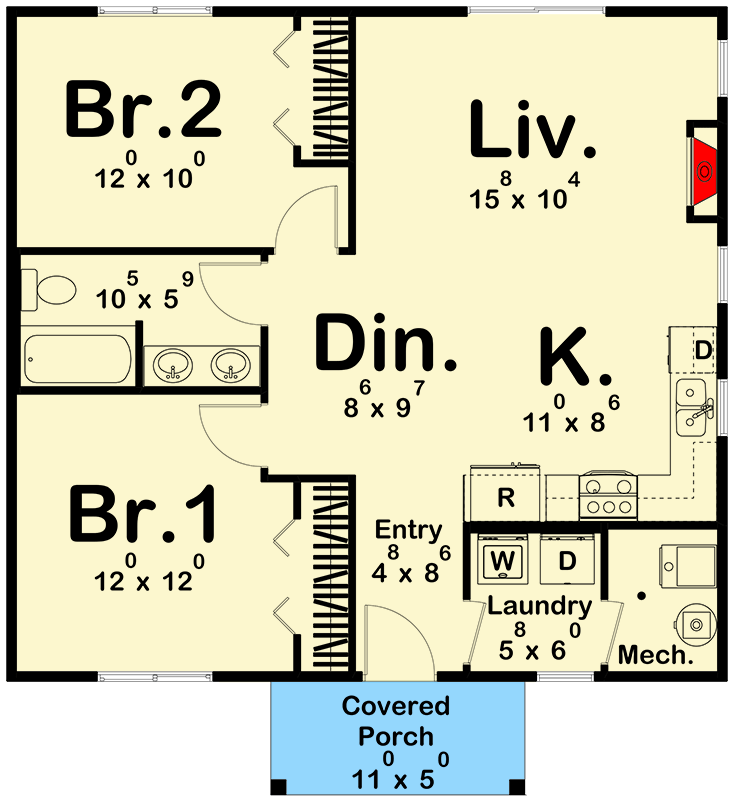

Main Level
floor plan image Main Level
Plan Details
  • Enjoy a charming traditional ADU nestled in nature, offering two bedrooms and one bathroom.
  • A small covered porch provides a quaint outdoor space to relax and enjoy the surroundings.
  • Inside, a warm living room centers around a fireplace for cozy evenings while two bedrooms are on the opposite side of them home.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

866 sq. ft.

1st Floor

866 sq. ft.

Porch, Front

55 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

31' 0"

Depth

34' 0"

Max Ridge Height

19' 4"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Architectural Style

Cottage

Country

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

866 sq. ft.

1st Floor

866 sq. ft.

Porch, Front

55 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

31' 0"

Depth

34' 0"

Max Ridge Height

19' 4"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Architectural Style

Cottage

Country

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
