2-Bed Barndominium Under 2000 Square Feet with Vaulted Drive Through Workshop

Heated S.F.
1,915
Beds
2
Baths
2.5
Stories
1

Floor Plan

Plan 510247WDY

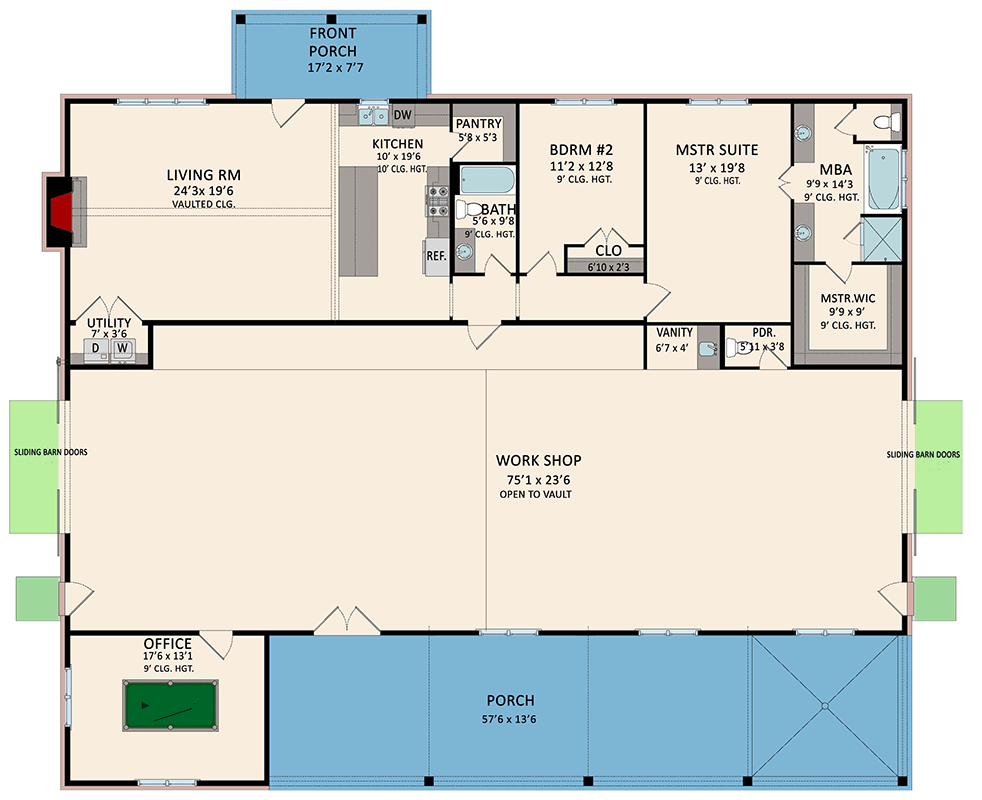

Main Level
Main Level

Plan 510247WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 510247WDY: 2-Bed Barndominium Under 2000 Square Feet with Vaulted Drive Through Workshop - Floor Plan - Main Level - Barndominium, Country, Rustic

Plan Details

  • This 2-bed barndominium-style house plan (i.e. it is designed with 2x6 construction) gives you 1,915 square feet of living space and a massive drive-through workshop with barn doors that open on either end.
  • On either side of the workshop there is a home office and a vaulted living room with fireplace that is open to the island kitchen.
  • Bedrooms are adjacent to each other . The master bed has a walk-i closet and ensuite bathroom and the other bedroom accesses the hall bath.
