Plan 52366WM

2-Bed Cottage with Wrap-Around Porch - 1195 Sq Ft

Heated S.F.
1,195
Beds
2
Baths
2
Stories
1

Floor Plan

Plan 52366WM

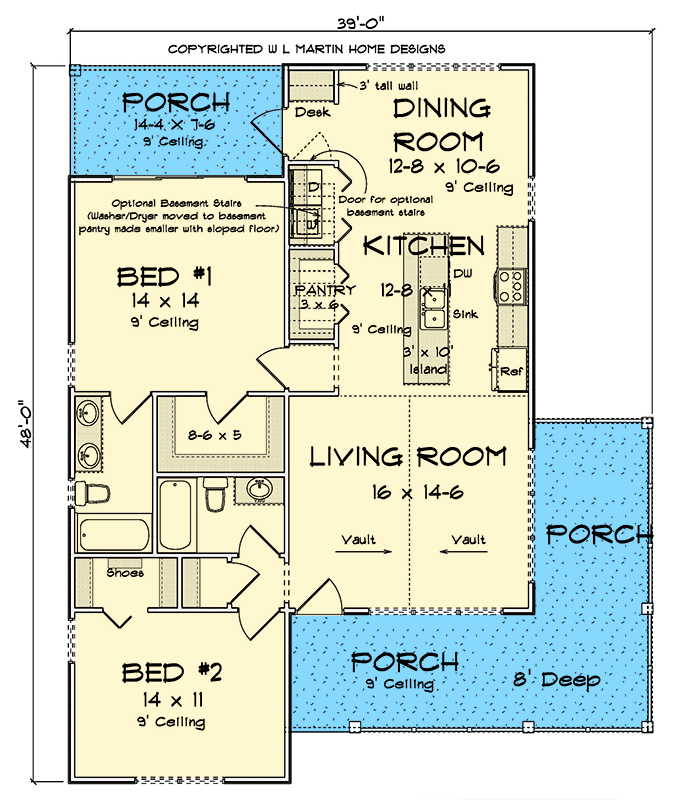

Main Level
Main Level

Plan 52366WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52366WM: 2-Bed Cottage with Wrap-Around Porch - 1195 Sq Ft - Floor Plan - Main Level - Cottage, Traditional

Plan Details

  • This cottage house plan gives you 1,195 square feet of heated living space with 2 bedrooms and 2 bathrooms.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Add a 1-car garage eliminate the front gable with house plan 52368WM (1,210 sq. ft.).

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,195 sq. ft.

1st Floor

1,195 sq. ft.

Porch, Front

299 sq. ft.

Porch, Rear

108 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

48' 0"

Max Ridge Height

19' 10"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Wraparound Porch

Square Footage Breakdown

Total Heated Area

1,195 sq. ft.

1st Floor

1,195 sq. ft.

Porch, Front

299 sq. ft.

Porch, Rear

108 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

48' 0"

Max Ridge Height

19' 10"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Wraparound Porch
