Plan 370013SEN 2-Bed Craftsman Beauty with 2-Car Garage

2-Bed Craftsman Beauty with 2-Car Garage

Plan 370013SEN

  • 1,419

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Craftsman beauty of a house plan presents 1,419 sq. ft. of living space, which includes 2 bedrooms and an open floor plan for the shared living spaces.
  • The covered porch welcomes guests with plenty of space for the porch swing of your dreams. Inside, the heart of the home is located towards the rear, and overlooks a covered patio ideal for grilling or dining outdoors.
  • The kitchen's L-shaped counters surround a prep island with a double-bowl sink, and a corner pantry offers quick and easy access when cooking.
  • The bedrooms occupy the left side of the home, with the larger of the two reserved for the homeowner. The master bath includes a 2-person shower, double vanities, and a walk-in closet.
  • The 2-car garage is forward facing, and opens into a mud / laundry room.

This house plan was drawn to meet the 2015 IRC and has 9 pages as follows:

  1. Cover sheet
  2. General notes

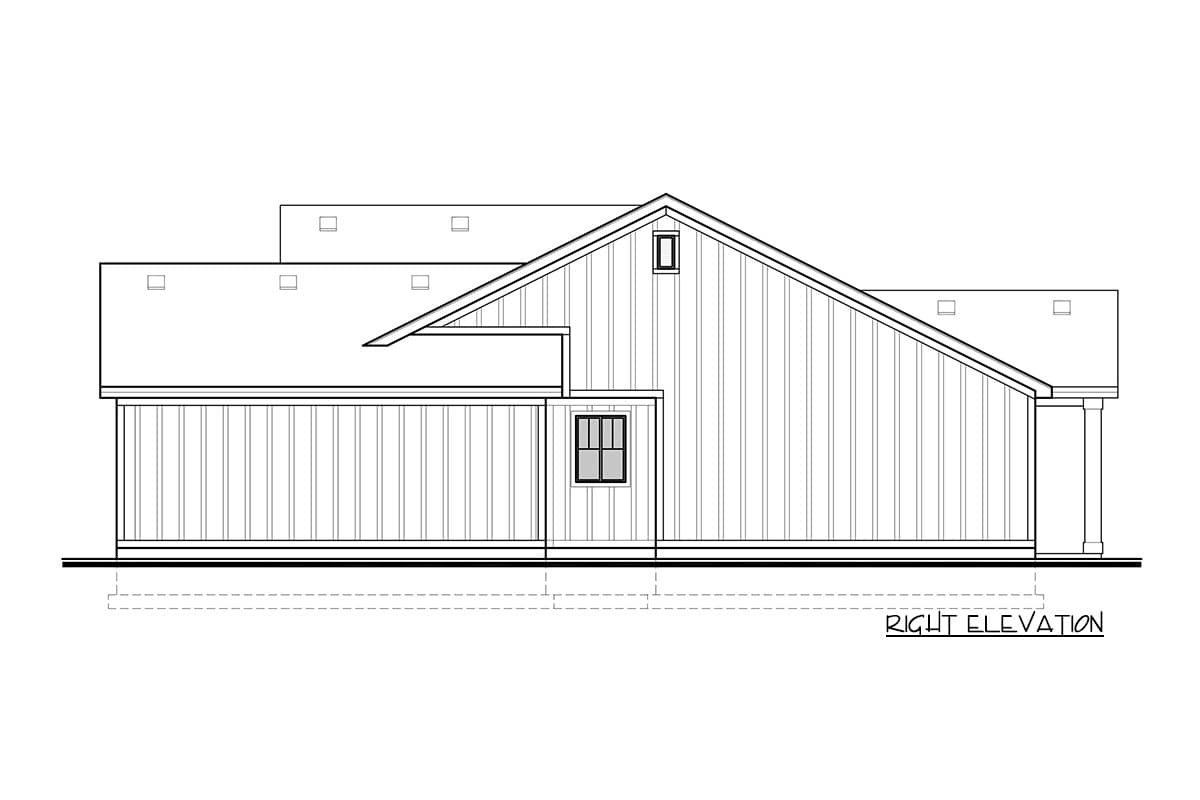

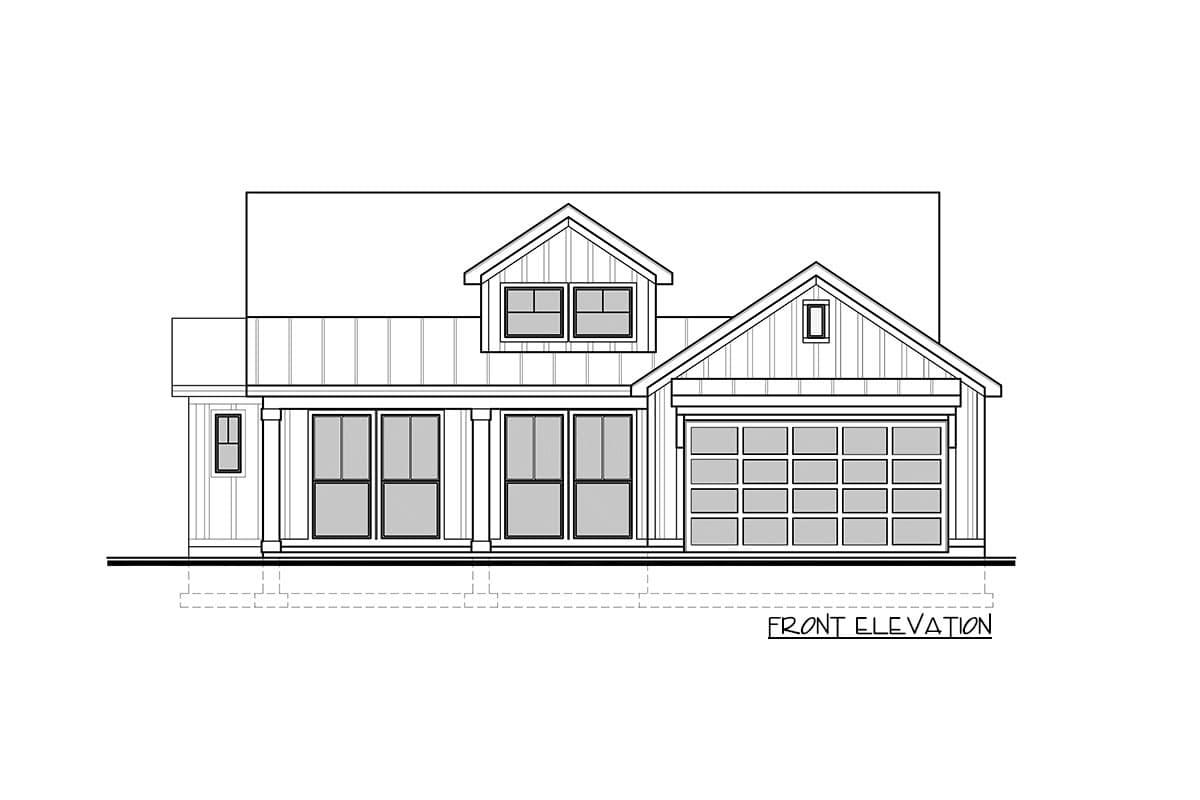

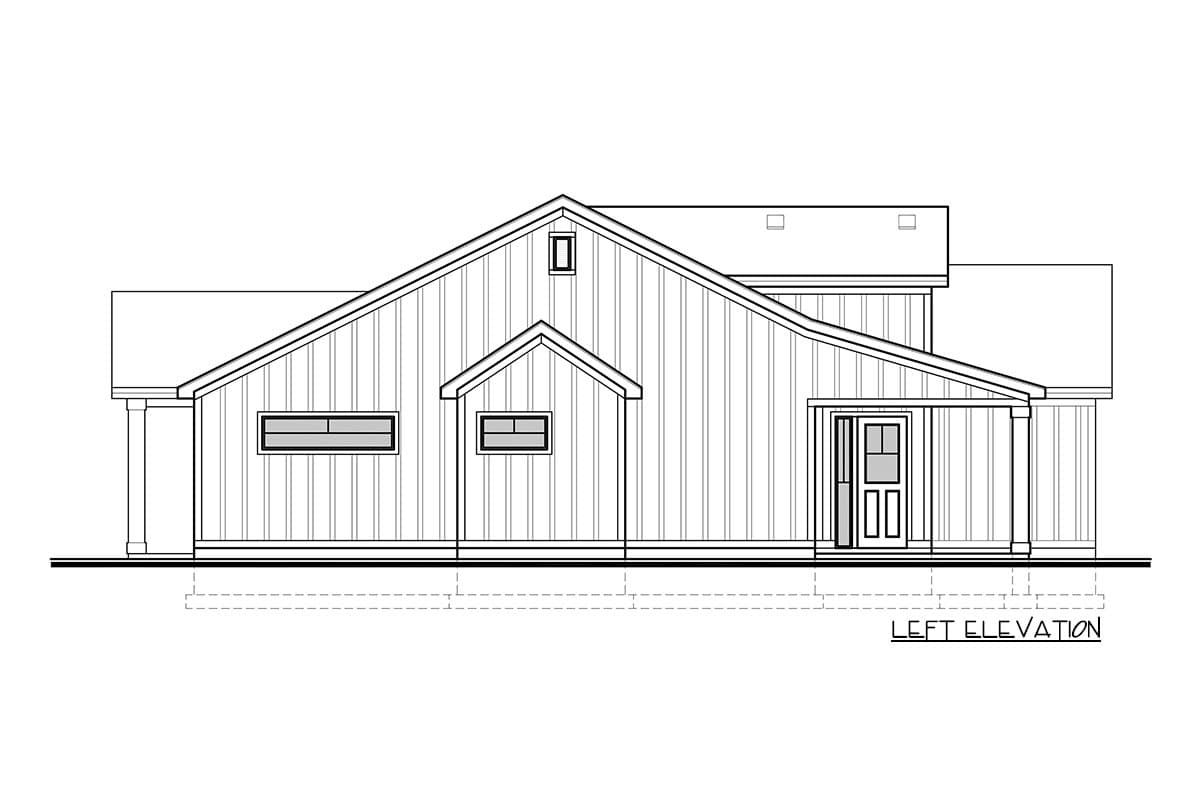

  3. Front and left elevations

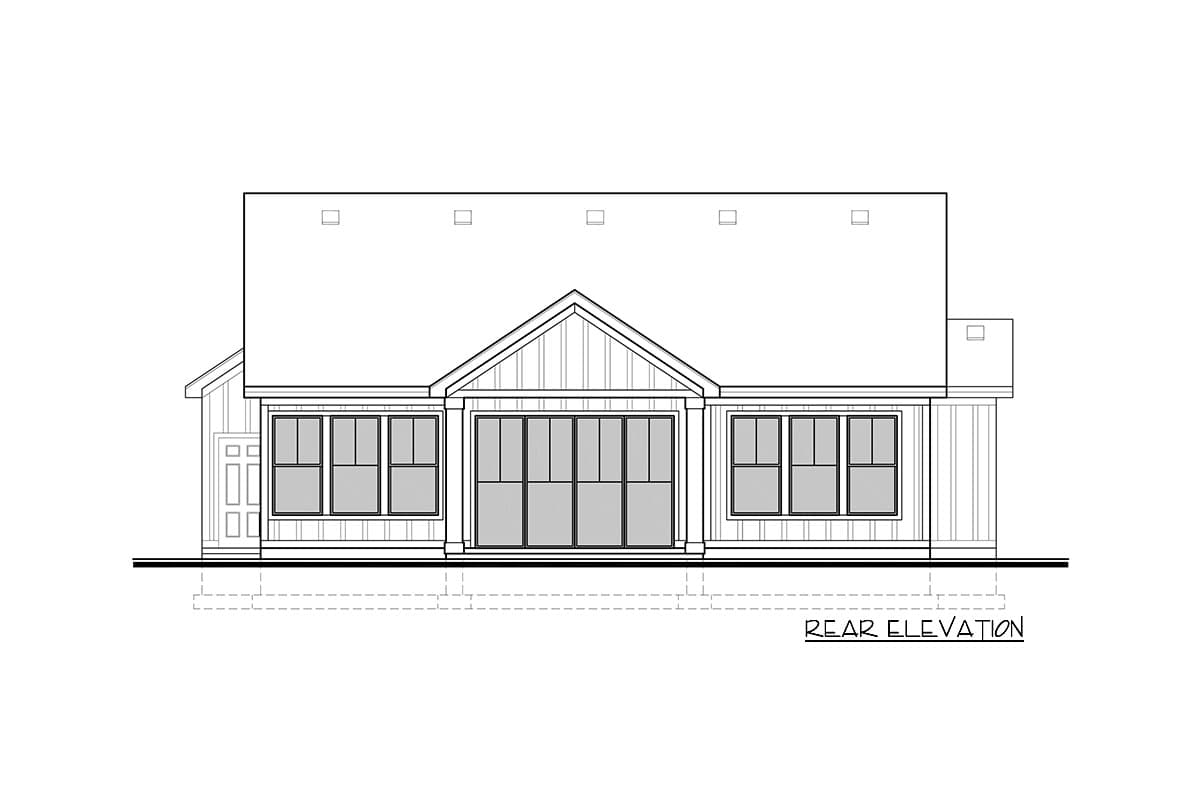

  4. Rear and right elevations

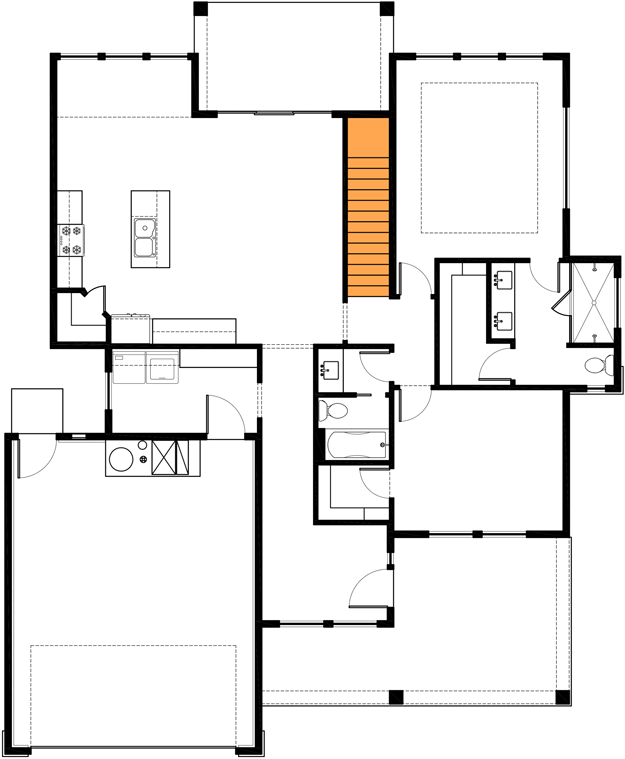

  5. Foundation plan
  6. Main floor plan
  7. Roof framing plan
  8. Building section
  9. Electrical plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

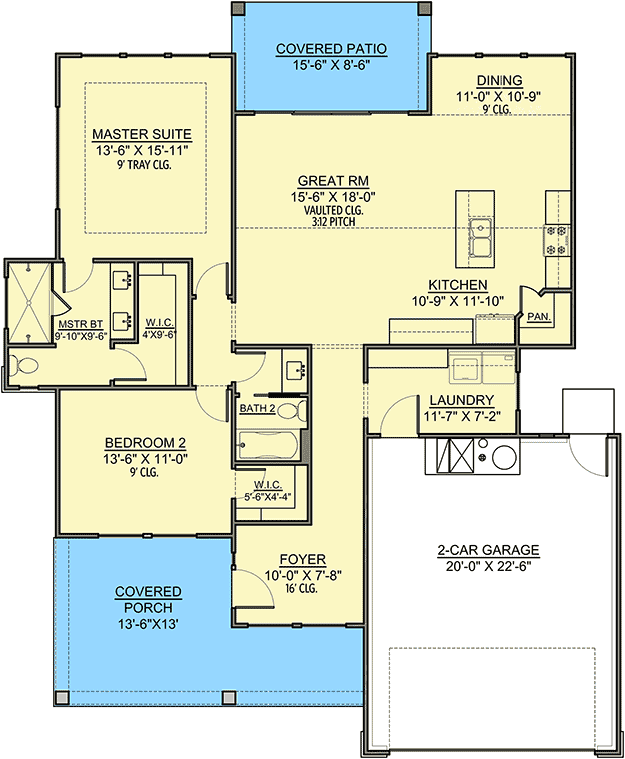

2-Bed Craftsman Beauty with 2-Car Garage - 370013SEN floor plan - Main Level

Plan details

Architectural Style



2-Bed Craftsman Beauty with 2-Car Garage

  • 1,419

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $795
  • 5 Sets + PDF $950
  • 8 Sets + PDF $1,250
  • CAD - Single-Build $1,250
  • View all purchase option online

About This Plan

  • This Craftsman beauty of a house plan presents 1,419 sq. ft. of living space, which includes 2 bedrooms and an open floor plan for the shared living spaces.
  • The covered porch welcomes guests with plenty of space for the porch swing of your dreams. Inside, the heart of the home is located towards the rear, and overlooks a covered patio ideal for grilling or dining outdoors.
  • The kitchen's L-shaped counters surround a prep island with a double-bowl sink, and a corner pantry offers quick and easy access when cooking.
  • The bedrooms occupy the left side of the home, with the larger of the two reserved for the homeowner. The master bath includes a 2-person shower, double vanities, and a walk-in closet.
  • The 2-car garage is forward facing, and opens into a mud / laundry room.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,419 sq. ft.
  • 1st Floor: 1,419 sq. ft.
  • Deck: 130 sq. ft.
  • Porch, Combined: 240 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 58' 8"
  • Max ridge height: 22' 1"

Garage

  • Type: Attached
  • Area: 493 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 1"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
