Plan: 890005AH

2 Bed Craftsman Bungalow with Open Concept Floor Plan

1,334 2 2 1 2
Pageloader

2 Bed Craftsman Bungalow with Open Concept Floor Plan

Plan 890005AH

  • 1,334

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  •  This 2-bedroom Craftsman design  has great curb appeal in a small home design.
  • Open-concept floor plan where the kitchen, dining and great room areas blend together to create a spacious living area.
  • Split bedrooms with the master behind the garage and the 2nd bedroom to the front and left of the entry.
  • 10’ step ceilings in the main living area create volume in the space.
  • A 10’ step ceiling is also located in the master bedroom. A private master bath and walk-in closet makes the master suite highly desirable.
  • A 2-stall garage completes the design.

Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.

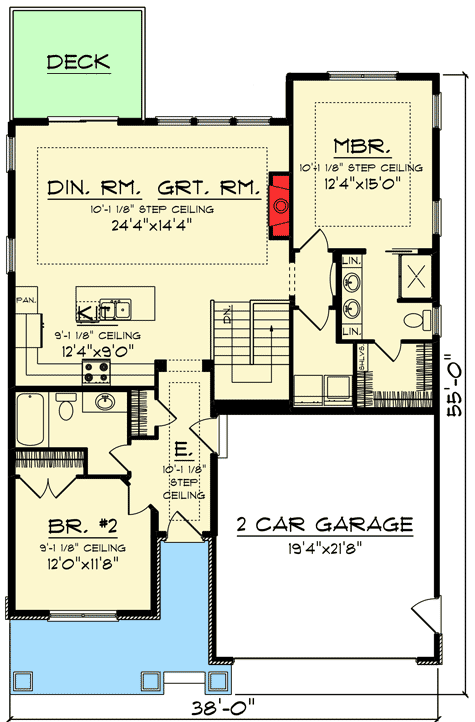

Floor Plan

Plan details



2 Bed Craftsman Bungalow with Open Concept Floor Plan

  • 1,334

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $865
  • 8 Sets $910
  • Reproducible Set $1,085
  • PDF - single-use $1,085
  • CAD $1,710
  • View all purchase option online

About This Plan

  •  This 2-bedroom Craftsman design  has great curb appeal in a small home design.
  • Open-concept floor plan where the kitchen, dining and great room areas blend together to create a spacious living area.
  • Split bedrooms with the master behind the garage and the 2nd bedroom to the front and left of the entry.
  • 10’ step ceilings in the main living area create volume in the space.
  • A 10’ step ceiling is also located in the master bedroom. A private master bath and walk-in closet makes the master suite highly desirable.
  • A 2-stall garage completes the design.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,334 sq. ft.
  • 1st Floor: 1,334 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 52' 0"
  • Max ridge height: 22' 8"

Garage

  • Type: Attached
  • Area: 418 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF
  • Split Bedrooms
