2 Bed Craftsman Charmer with Vaulted Ceilings

Plan 890006AH

  • 1,364

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • Vaulted ceilings greet you at the entry of this 2 bed Craftsman charmer.
  • The vaulted ceilings carry throughout the living space creating a volume that makes the area feel comfortable.
  • Enjoy a cozy fire in the great room that opens to a covered porch off the back of the home.
  • Bedrooms are located to the back of the home tucked behind the kitchen.
  • The master suite includes a 9’ ceiling, dual sinks and a walk-in closet.
  • The three-stall garage has extra storage for all of dad’s tools.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

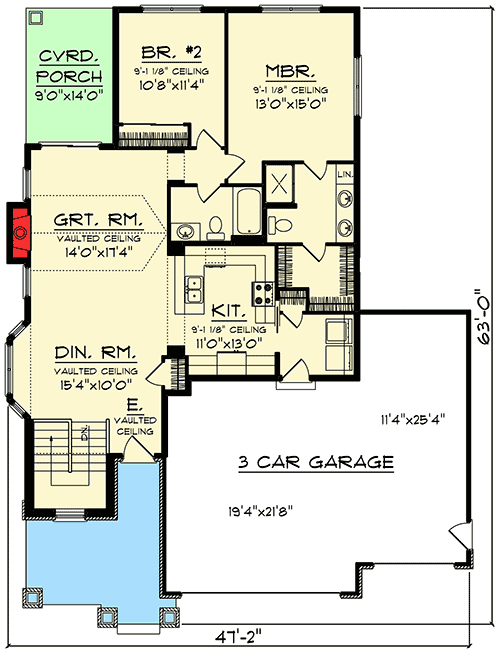

2 Bed Craftsman Charmer with Vaulted Ceilings - 890006AH floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,364 sq. ft.
  • 1st Floor: 1,364 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 47' 2"
  • Depth: 63' 0"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 728 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Entry Vaulted
Great Room Vaulted
Dining Room Vaulted

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

2 Bed Craftsman Charmer with Vaulted Ceilings

  • 1,364

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $882
  • 8 Sets $928
  • PDF - Single-Build $1,107
  • Reproducible Set $1,107
  • CAD - Single-Build $1,744
  • View all purchase option online

About This Plan

  • Vaulted ceilings greet you at the entry of this 2 bed Craftsman charmer.
  • The vaulted ceilings carry throughout the living space creating a volume that makes the area feel comfortable.
  • Enjoy a cozy fire in the great room that opens to a covered porch off the back of the home.
  • Bedrooms are located to the back of the home tucked behind the kitchen.
  • The master suite includes a 9’ ceiling, dual sinks and a walk-in closet.
  • The three-stall garage has extra storage for all of dad’s tools.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,364 sq. ft.
  • 1st Floor: 1,364 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 47' 2"
  • Depth: 63' 0"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 728 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
Plan 890006AH
View this and more for this plan by visiting www.architechtecturaldesigns.com/890006AH
|
