Plan 890008AH

2 Bed Craftsman Cottage with Open Concept Floor Plan

2 Bed Craftsman Cottage with Open Concept Floor Plan

Plan 890008AH

  • 1,456

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Craftsman cottage packs a lot of living space in just over 1,450 square feet.
  • A 10’ ceiling greets you as you enter and leads you into the living space where they continue on through to the back of the home.
  • An open-concept floor plan seamlessly blends the kitchen, dining and great rooms together to create a comfortable living space.
  • The master suite is located behind the garage and includes a private bath with dual sinks and a walk-in closet.
  • The second bedroom is located to the front of the house for maximum privacy.
  • A two-stall garage makes this a great option for a starter home.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

Plan details



2 Bed Craftsman Cottage with Open Concept Floor Plan

  • 1,456

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $882
  • 8 Sets $928
  • PDF - single-use $1,107
  • Reproducible Set $1,107
  • CAD $1,744
  • View all purchase option online

About This Plan

  • This Craftsman cottage packs a lot of living space in just over 1,450 square feet.
  • A 10’ ceiling greets you as you enter and leads you into the living space where they continue on through to the back of the home.
  • An open-concept floor plan seamlessly blends the kitchen, dining and great rooms together to create a comfortable living space.
  • The master suite is located behind the garage and includes a private bath with dual sinks and a walk-in closet.
  • The second bedroom is located to the front of the house for maximum privacy.
  • A two-stall garage makes this a great option for a starter home.

Floor Plans

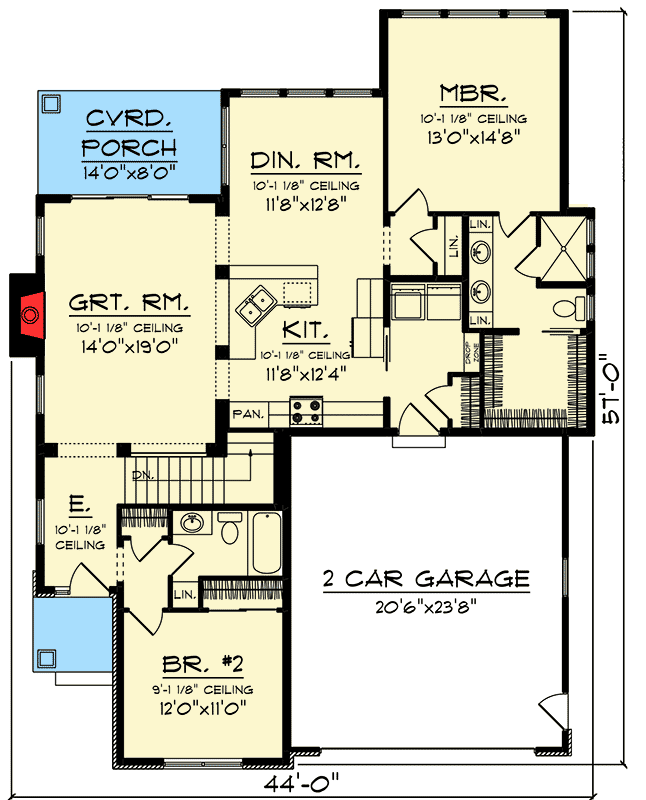

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,456 sq. ft.
  • 1st Floor: 1,456 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 57' 0"
  • Max ridge height: 21' 10"

Garage

  • Type: Attached
  • Area: 504 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
