Plan 490021NAH

2-Bed Farmhouse with Large Garage and Lower Level Expansion Potential

Heated S.F.
1,747
Beds
2 - 4
Baths
2 - 3
Stories
1
Cars
3

Floor Plan

Plan 490021NAH

Main Floor
Main Floor
Optionally Finished Lower Level - Basement Foundation
Optionally Finished Lower Level - Basement Foundation
Walkout Foundation Option (+$395)
Walkout Foundation Option (+$395)

Plan 490021NAH

M-F 9am-5pm EST |

1-203-761-8500

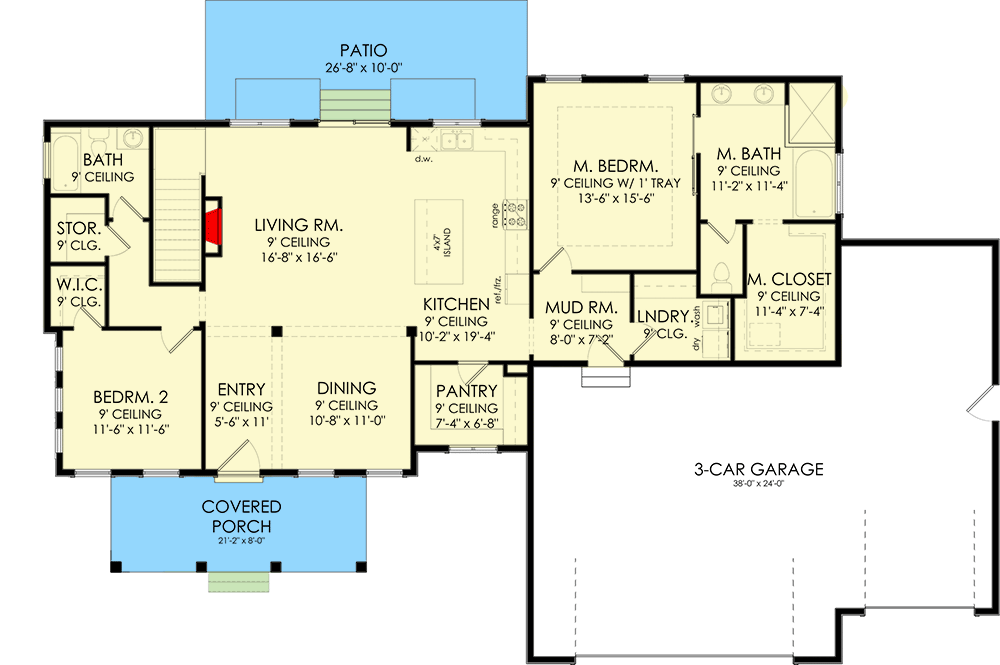

Main Floor

Plan 490021NAH: 2-Bed Farmhouse with Large Garage and Lower Level Expansion Potential - Floor Plan - Main Floor - Country, Farmhouse, Modern Farmhouse, New American

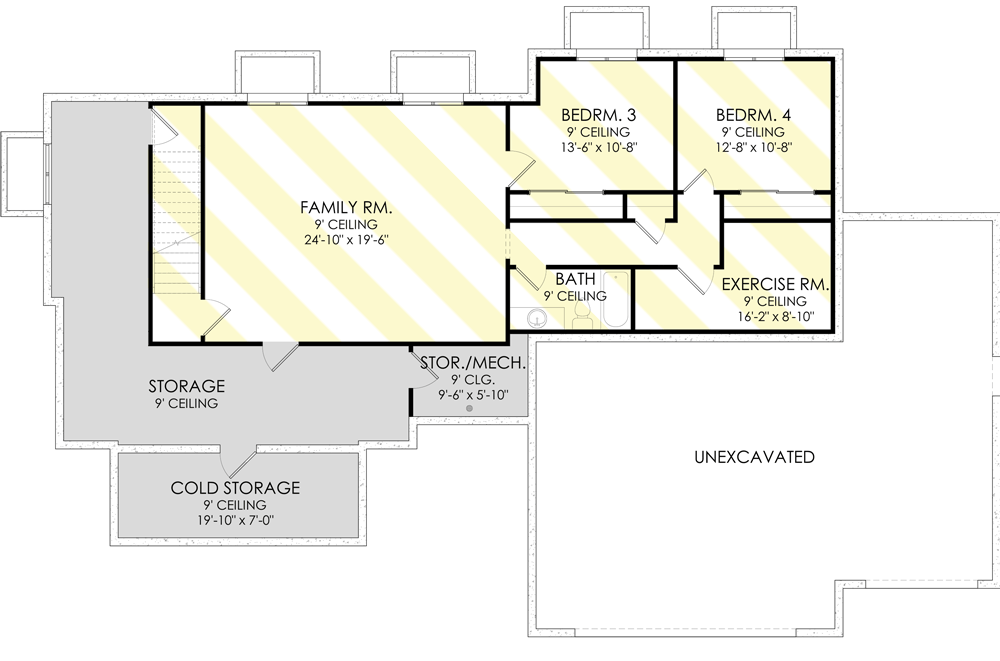

Optionally Finished Lower Level - Basement Foundation

Plan 490021NAH: 2-Bed Farmhouse with Large Garage and Lower Level Expansion Potential - Floor Plan - Optionally Finished Lower Level - Basement Foundation - Country, Farmhouse, Modern Farmhouse, New American

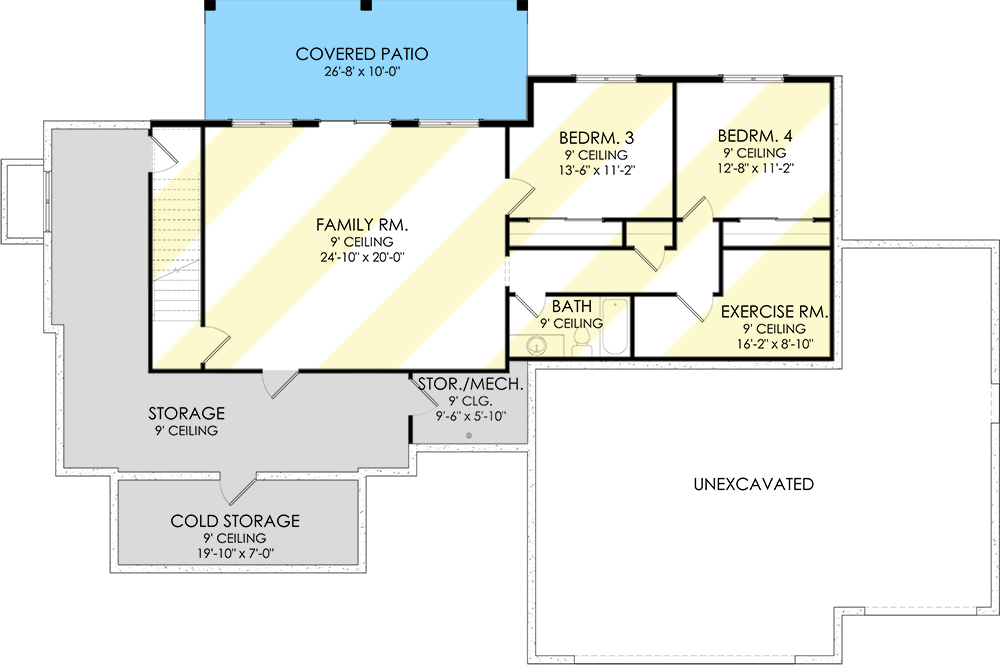

Walkout Foundation Option (+$395)

Plan 490021NAH: 2-Bed Farmhouse with Large Garage and Lower Level Expansion Potential - Floor Plan - Walkout Foundation Option (+$395) - Country, Farmhouse, Modern Farmhouse, New American

Plan Details

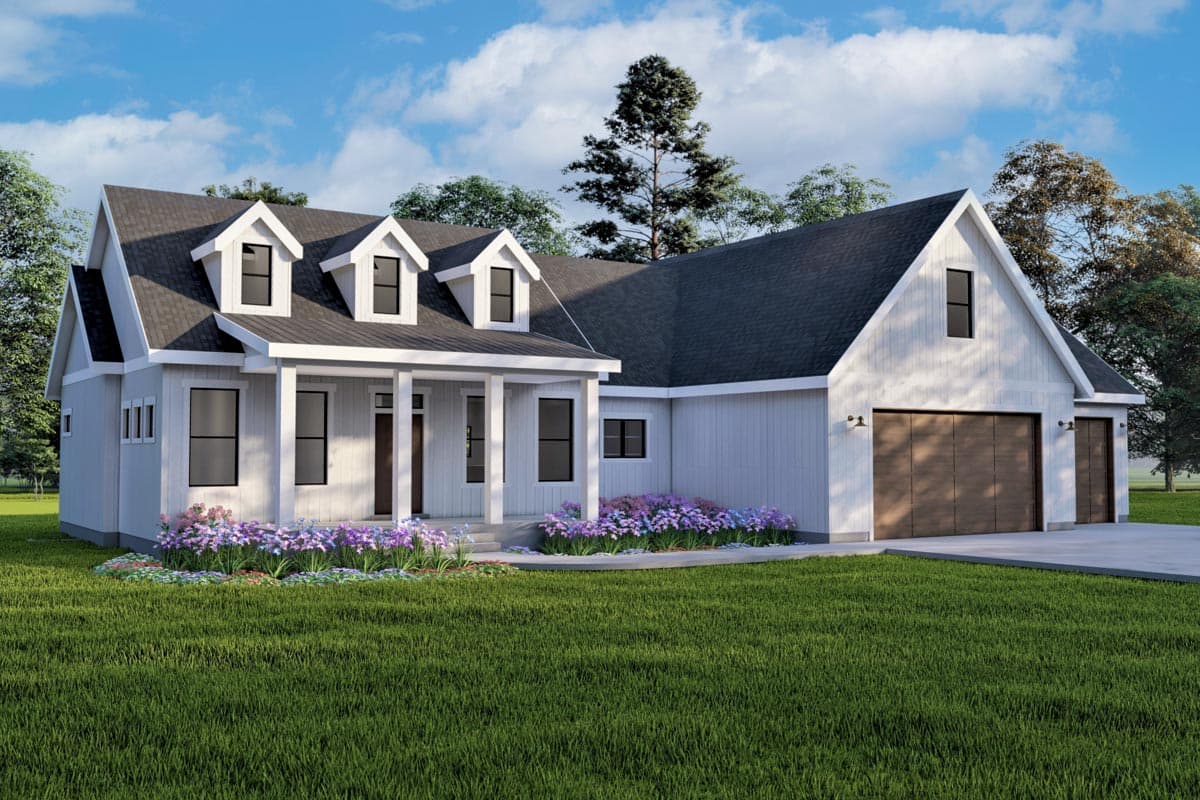

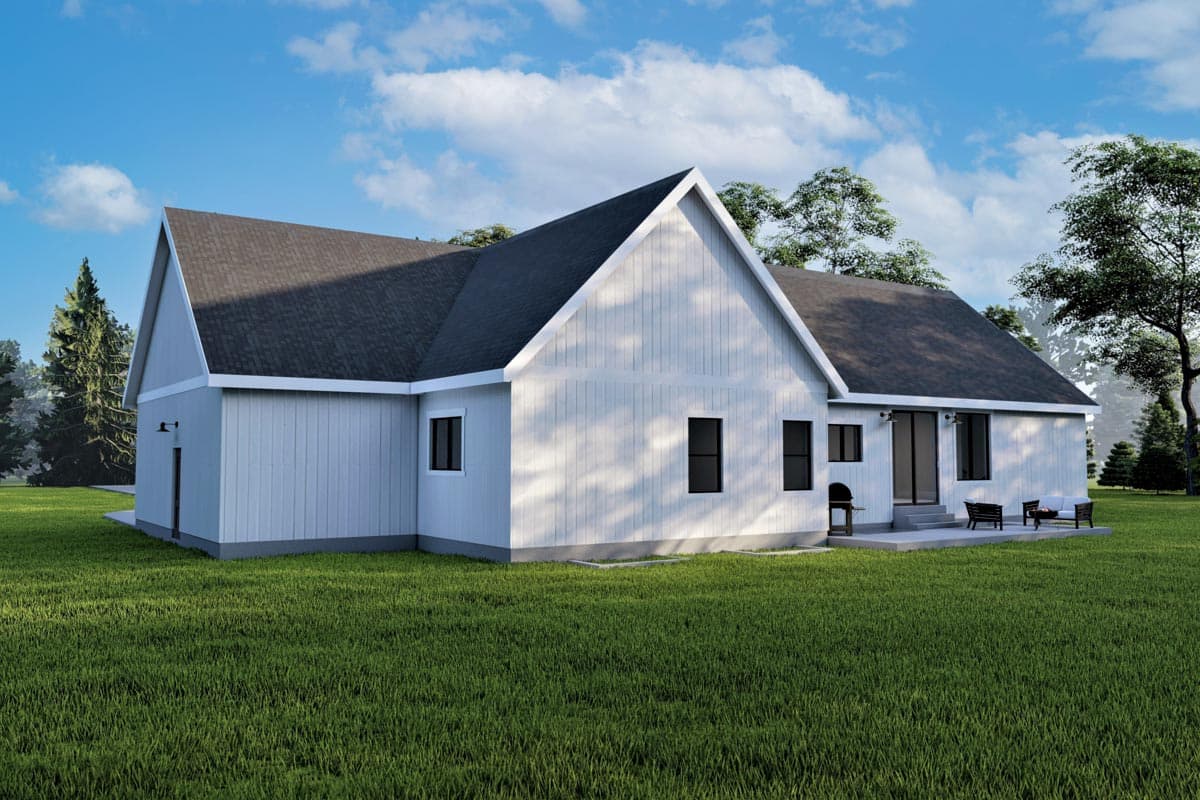

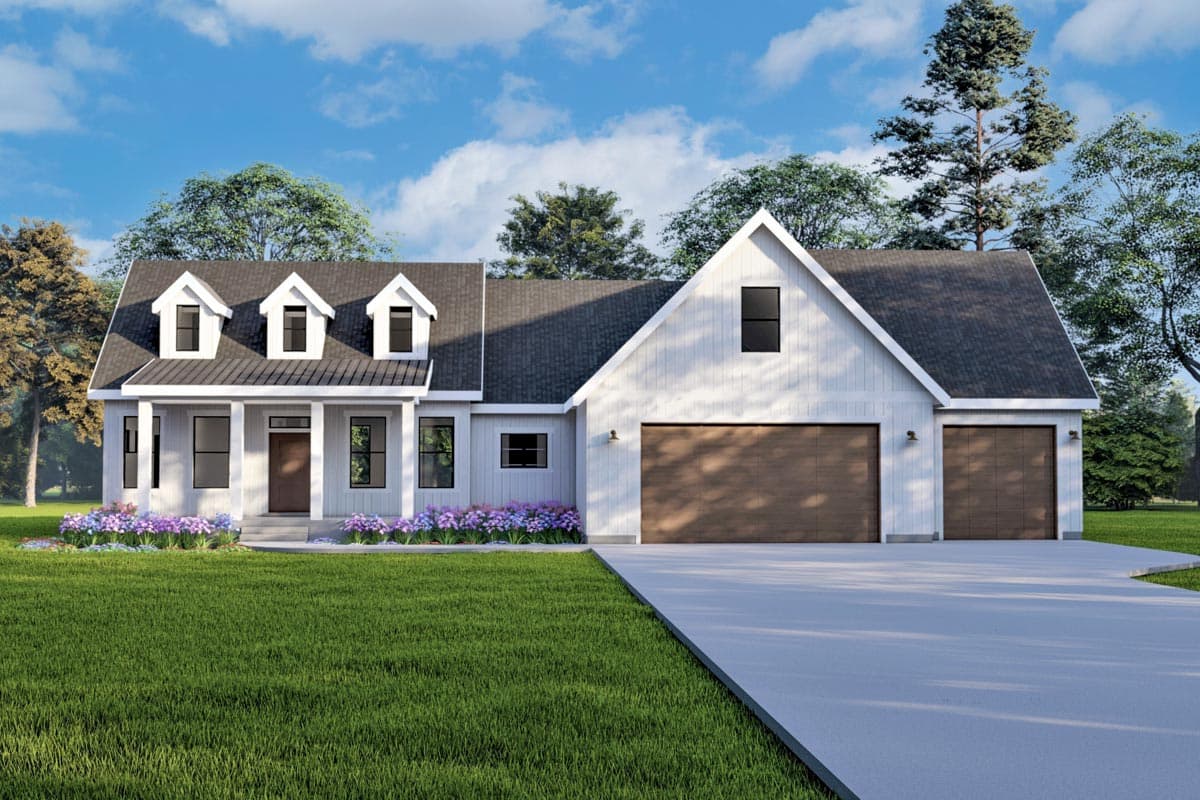

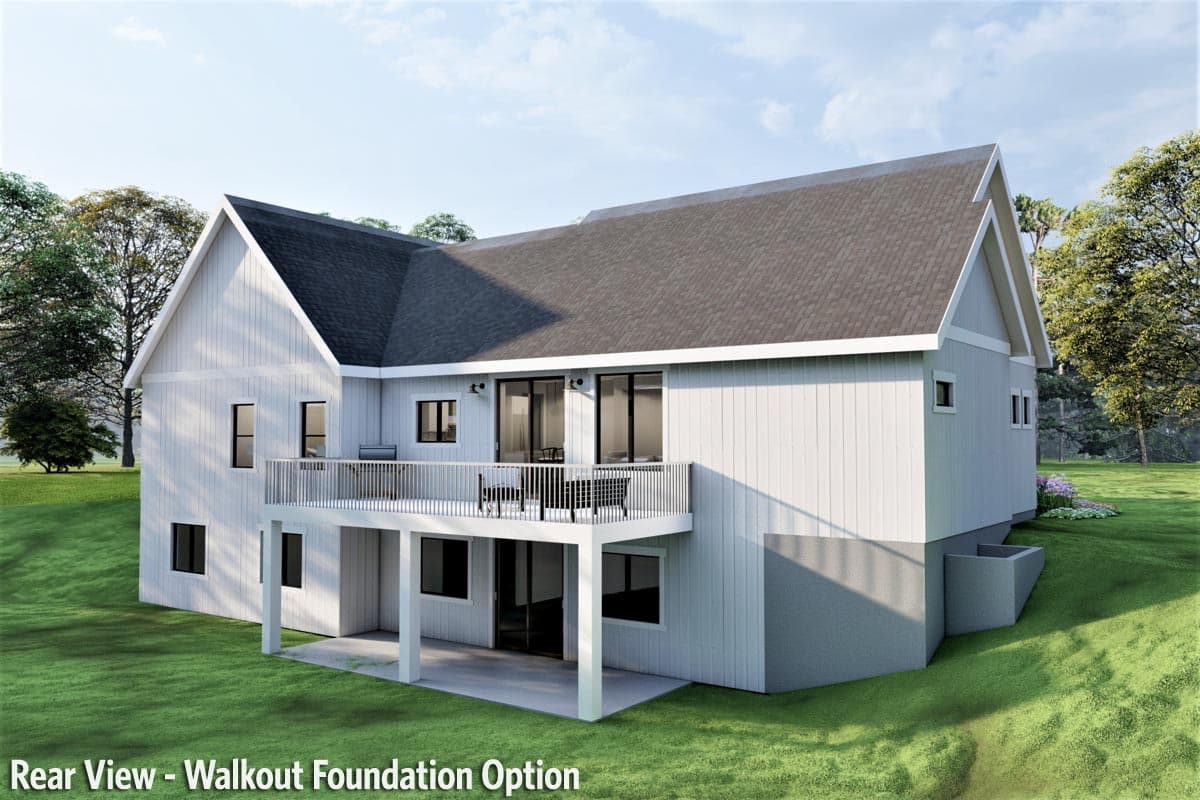

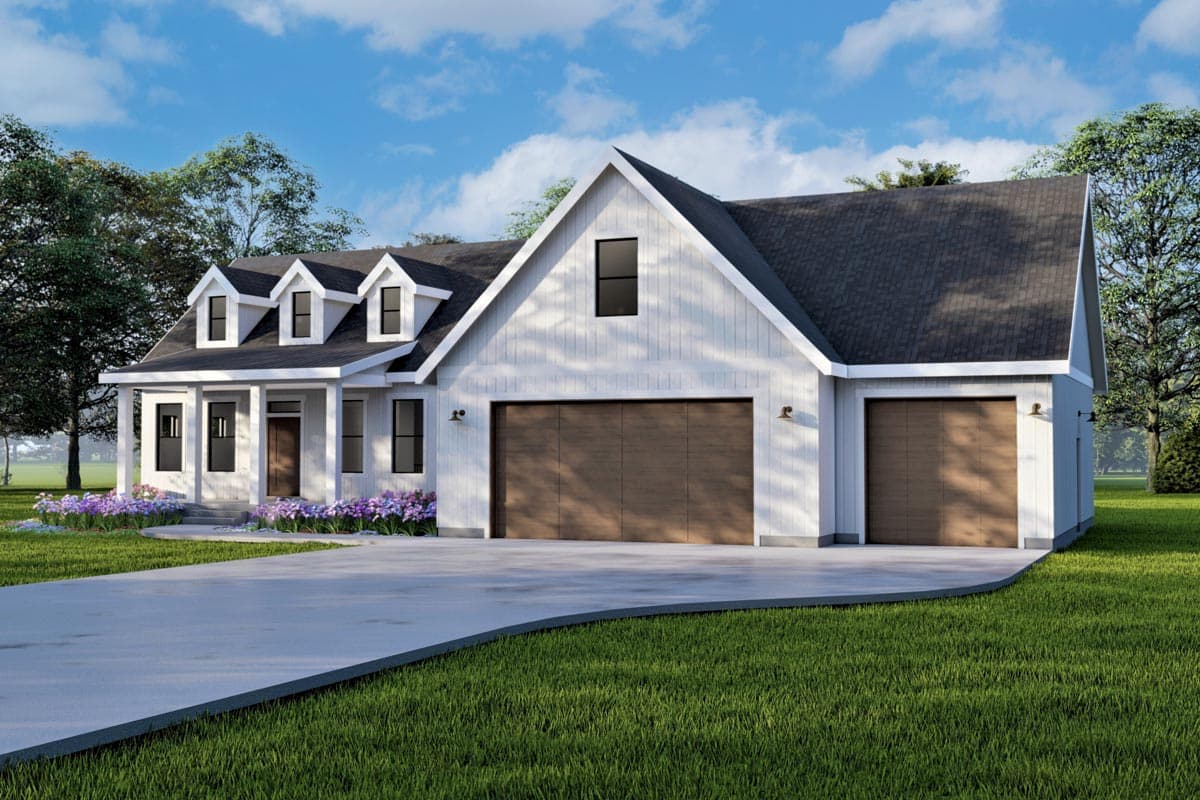

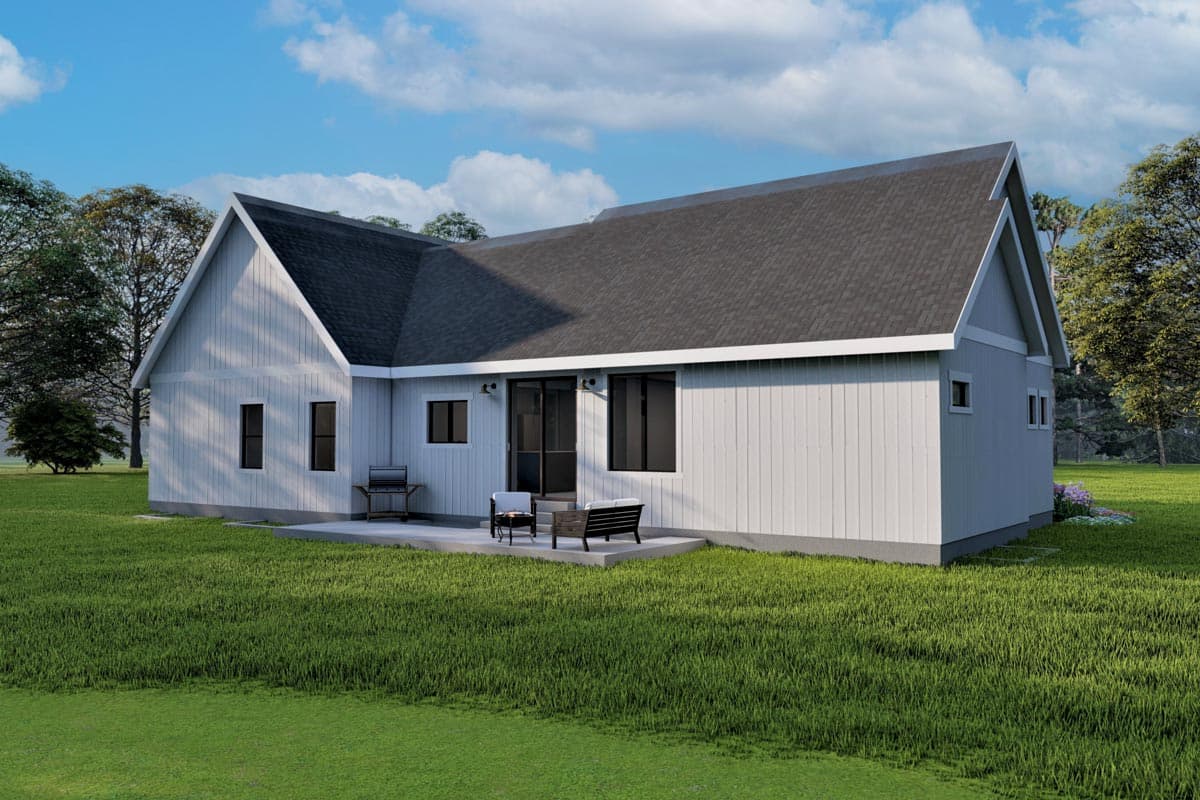

  • This farmhouse home plan offers a covered porch in the front and a patio in the back (the one in back converts to a deck when finished with a walkout basement).
  • Step off the covered porch into the entry, leading to the great room, kitchen, and dining room. An open concept design, the kitchen is centered with the fireplace of the great room, with the dining room between the entry and kitchen.
  • The kitchen has a modest island, pantry, and convenient garage access making unloading groceries a breeze.

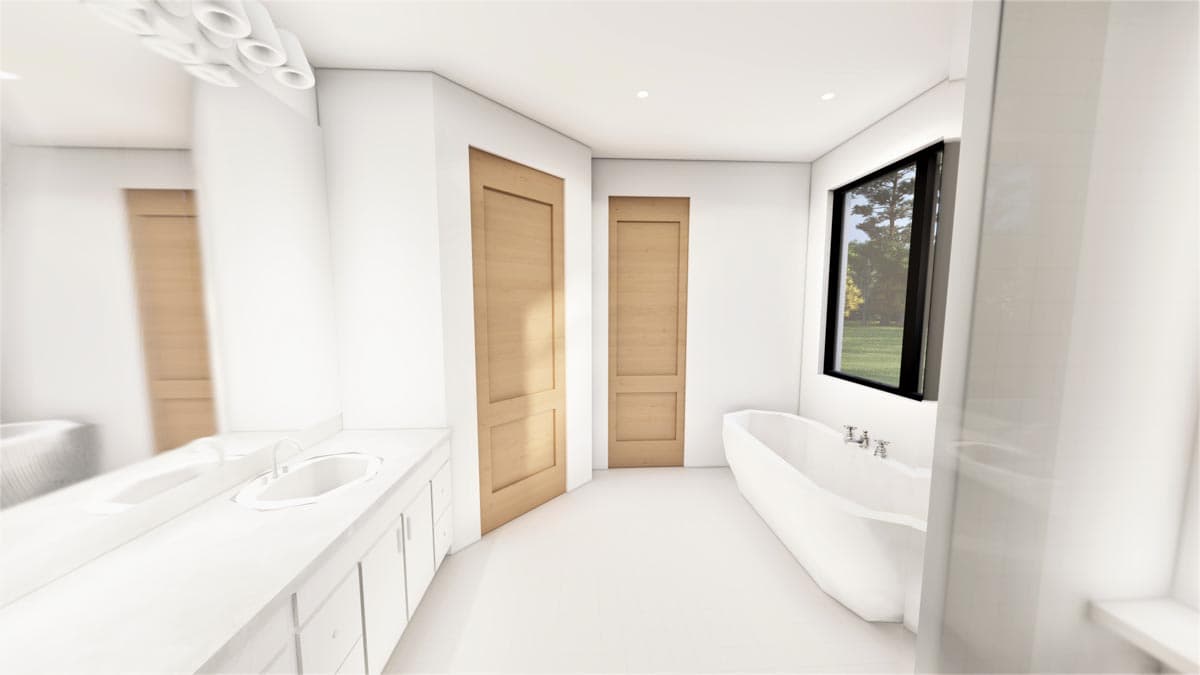

  • Further in the home, you'll find the master bedroom with a tray ceiling, and accompanying bathroom and walk-in closet. On the other side of the house, there is another bedroom with a walk-in closet and storage. More storage comes available when doing a crawlspace basement or no basement at all.
  • This home offers basement expansion (1,138 square feet when finished as shown) with a family room, two more bedrooms, exercise room, and plenty of storage.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,747 sq. ft.

1st Floor

1,747 sq. ft.

Optional Lower Level

1,138 sq. ft.

Porch, Front

169 sq. ft.

Porch, Rear

267 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 0"

Depth

48' 6"

Garage

Type

Attached

Area

1037 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Country

Farmhouse

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,747 sq. ft.

1st Floor

1,747 sq. ft.

Optional Lower Level

1,138 sq. ft.

Porch, Front

169 sq. ft.

Porch, Rear

267 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 0"

Depth

48' 6"

Garage

Type

Attached

Area

1037 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Country

Farmhouse

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
