Plan 42541DB

2-Bed Home Plan with Multiple Options Included

Pageloader

2-Bed Home Plan with Multiple Options Included

Plan 42541DB

  • 2,292

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 2-bed home plan comes with several options - bathroom layouts, storage, basement stair location - and has a sister plan giving you an alternate exterior.
  • A 2-sided fireplace separates the great room from the open living area. Arched openings to either side connect the spaces.
  • The kitchen island provides you with great work space and offers seating for casual eating.
  • The master bedroom has a tray ceiling and dual vanities separated by a spa tub. There is also a walk-in shower and a walk-in closet big enough for two people to use at the same time.
  • Related Plans: Get an alternate version with house plans 42540DB (2,292 sq. ft.)

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

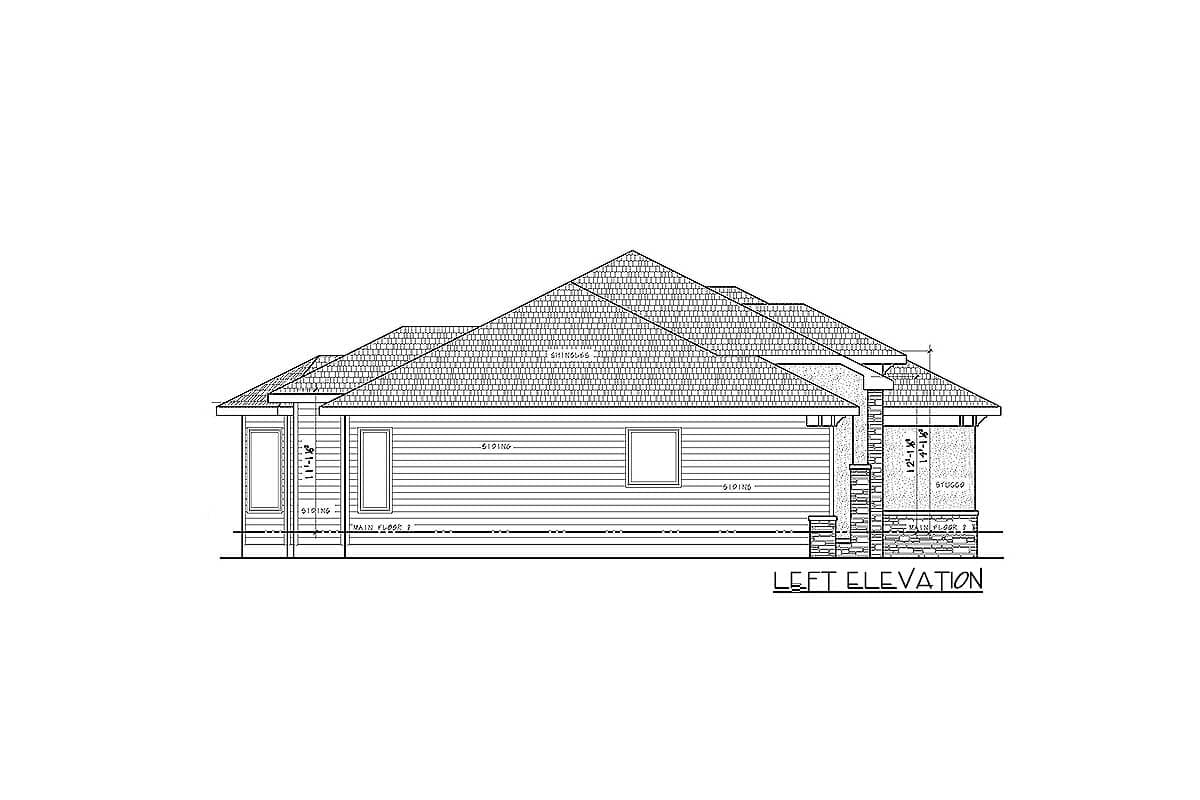

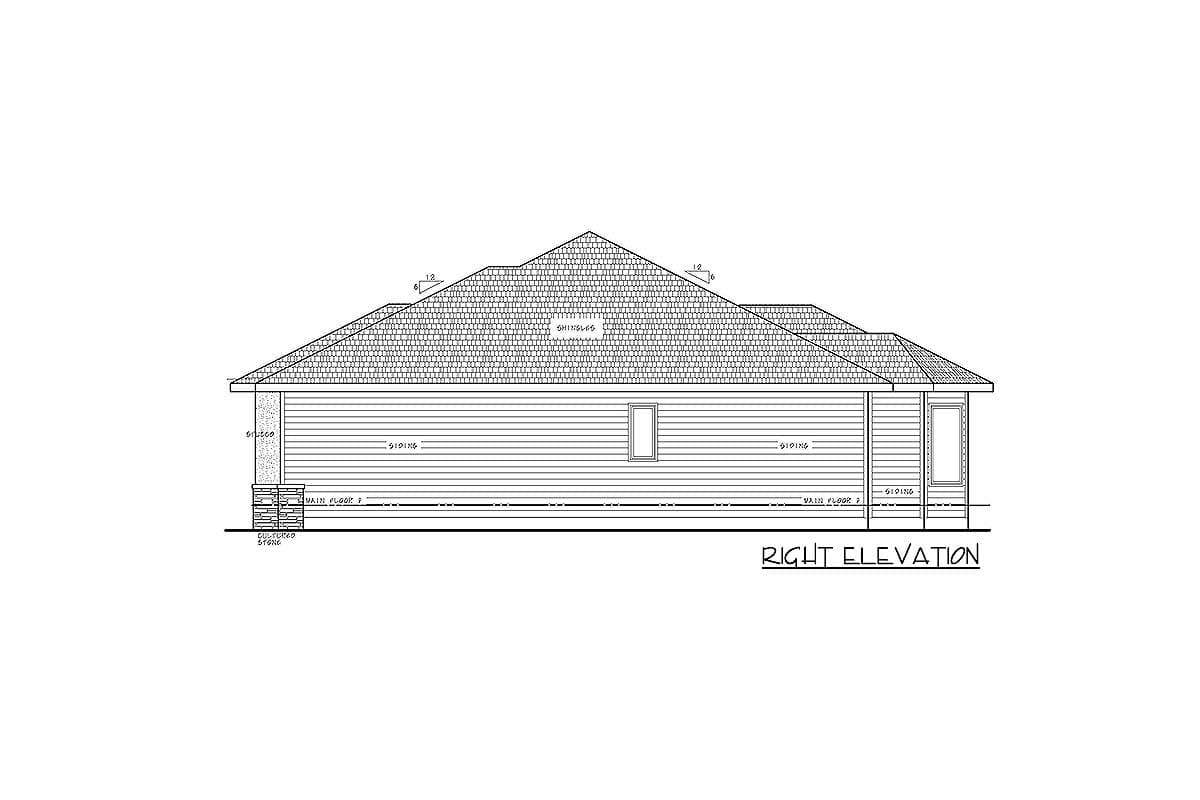

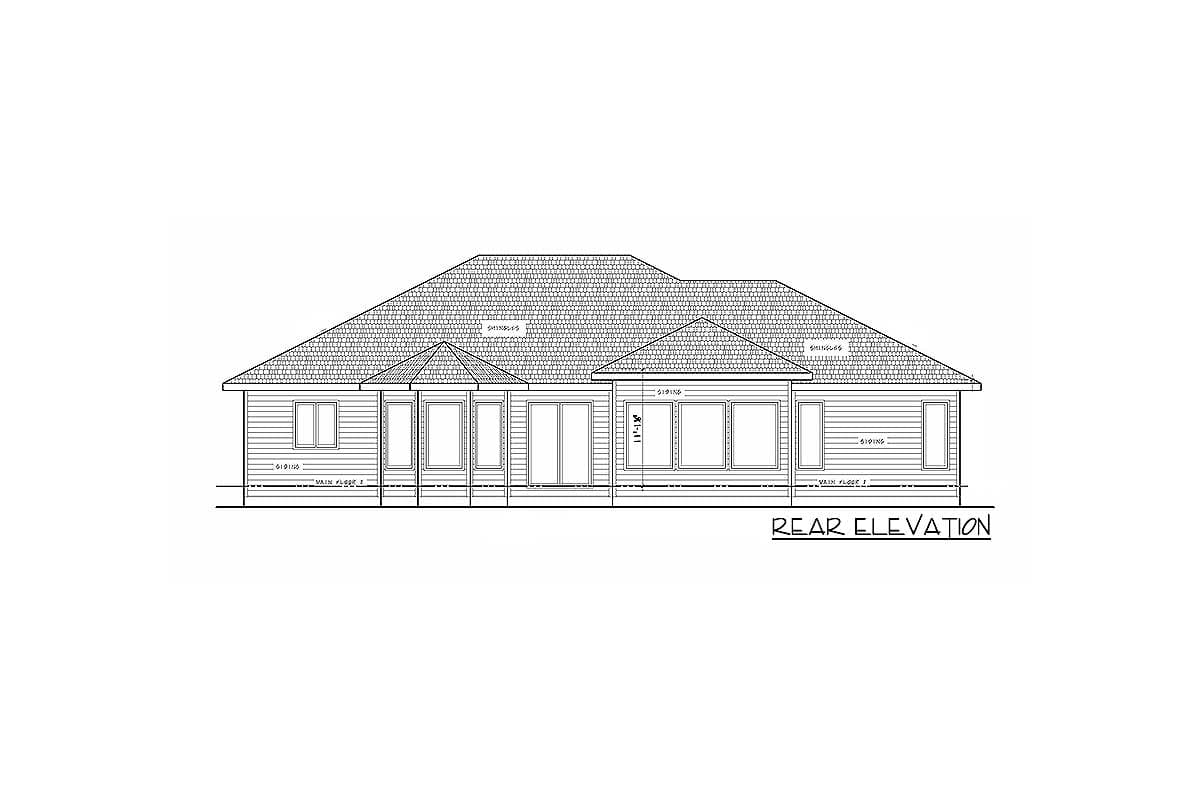

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

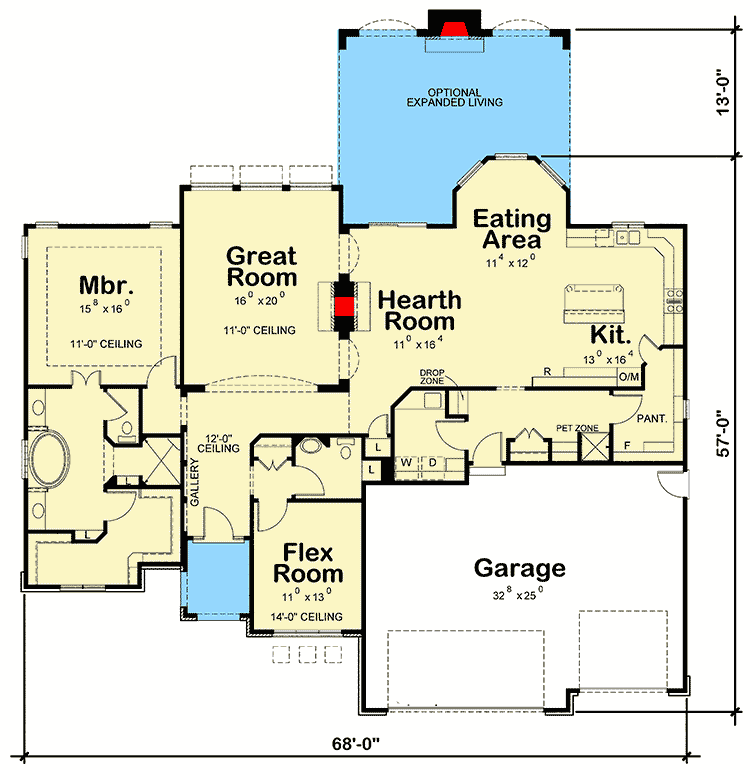

Floor Plan

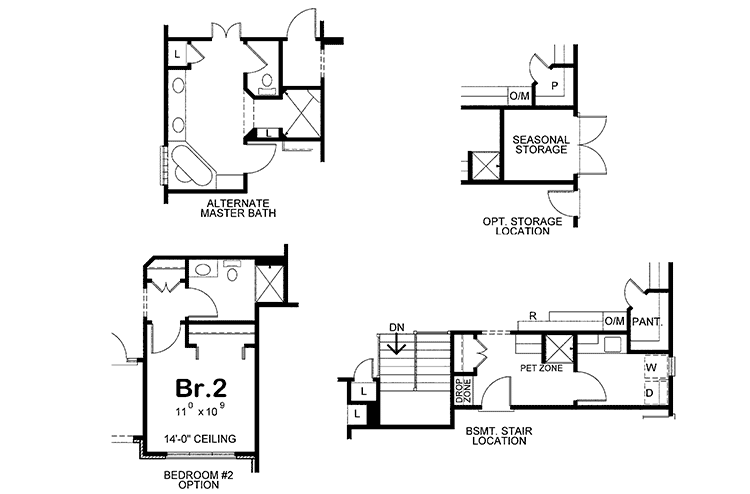

Optional Main Floor Layout

Pinit white
2-Bed Home Plan with Multiple Options Included - 42541DB floor plan - Optional Main Floor Layout

Plan details



2-Bed Home Plan with Multiple Options Included

  • 2,292

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $660
  • PDF - single-use $1,005
  • 5 Sets $1,130
  • 5 Sets PLUS $1,175
  • 8 Sets $1,200
  • PDF - multi-use $1,505
  • CAD $1,759
  • CAD - multi-use $2,259
  • View all purchase option online

About This Plan

  • This 2-bed home plan comes with several options - bathroom layouts, storage, basement stair location - and has a sister plan giving you an alternate exterior.
  • A 2-sided fireplace separates the great room from the open living area. Arched openings to either side connect the spaces.
  • The kitchen island provides you with great work space and offers seating for casual eating.
  • The master bedroom has a tray ceiling and dual vanities separated by a spa tub. There is also a walk-in shower and a walk-in closet big enough for two people to use at the same time.
  • Related Plans: Get an alternate version with house plans 42540DB (2,292 sq. ft.)

Floor Plans

  • Main Level

  • Optional Main Floor Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,292 sq. ft.
  • 1st Floor: 2,292 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 68' 0"
  • Depth: 57' 0"

Garage

  • Type: Attached
  • Area: 794 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
