2 Bed House Plan with Vaulted Gazebo

Plan 72805DA

  • 2,443

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • A cluster of front gables with shake-textured siding puts an upbeat, welcoming face on this 2 bed house plan with a vaulted gazebo. The rustic gables, along with decorative corbels and trusses, give this single-level home the look and feel of a country lodge.
  • Ceilings are lofty and vaulted all the way through the home's center, starting from the front porch, continuing down the entry hall and on through the great room. Double doors there open onto a partially covered wrap-around deck. A fireplace and home entertainment center line one wall.
  • Cooking and gathering spaces fill the home's right side. The kitchen and richly glassed nook are open to the great room. A wide opening in the entry hall leads to the dining room, which links to the kitchen via a passageway with a beverage bar on one side and a roomy pantry on the other.
  • Bedrooms and a den/office fill out the left wing. The owners' suite boasts deck access, a spacious walk-in closet, and a private bathroom with a claw-foot tub.
  • The roof has an 8:12 pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

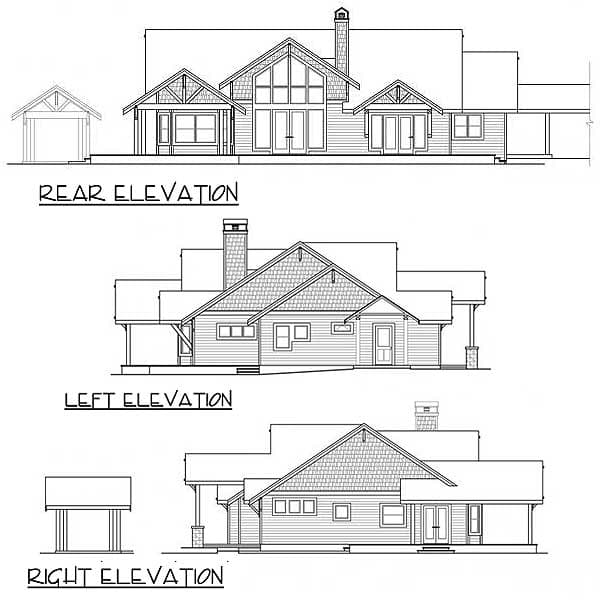

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

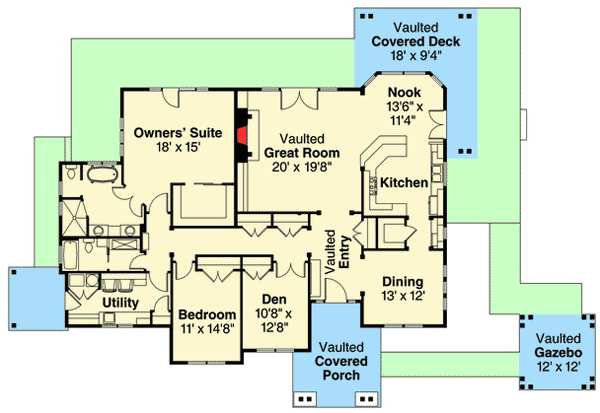

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2 Bed House Plan with Vaulted Gazebo - 72805DA floor plan - Main Level

2 Bed House Plan with Vaulted Gazebo

  • 2,443

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,443 sq. ft.
  • 1st Floor: 2,443 sq. ft.

Dimensions

  • Width: 67' 0"
  • Depth: 63' 0"
  • Max ridge height: 24' 3"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
