2-Bed New American Cottage with Vaulted Living Space and Patio Area - 1300 Sq Ft

Heated S.F.
1,300
Beds
2
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 666274RAF

Main Level
Main Level

Plan 666274RAF

M-F 9am-5pm EST |

1-203-761-8500

Main Level

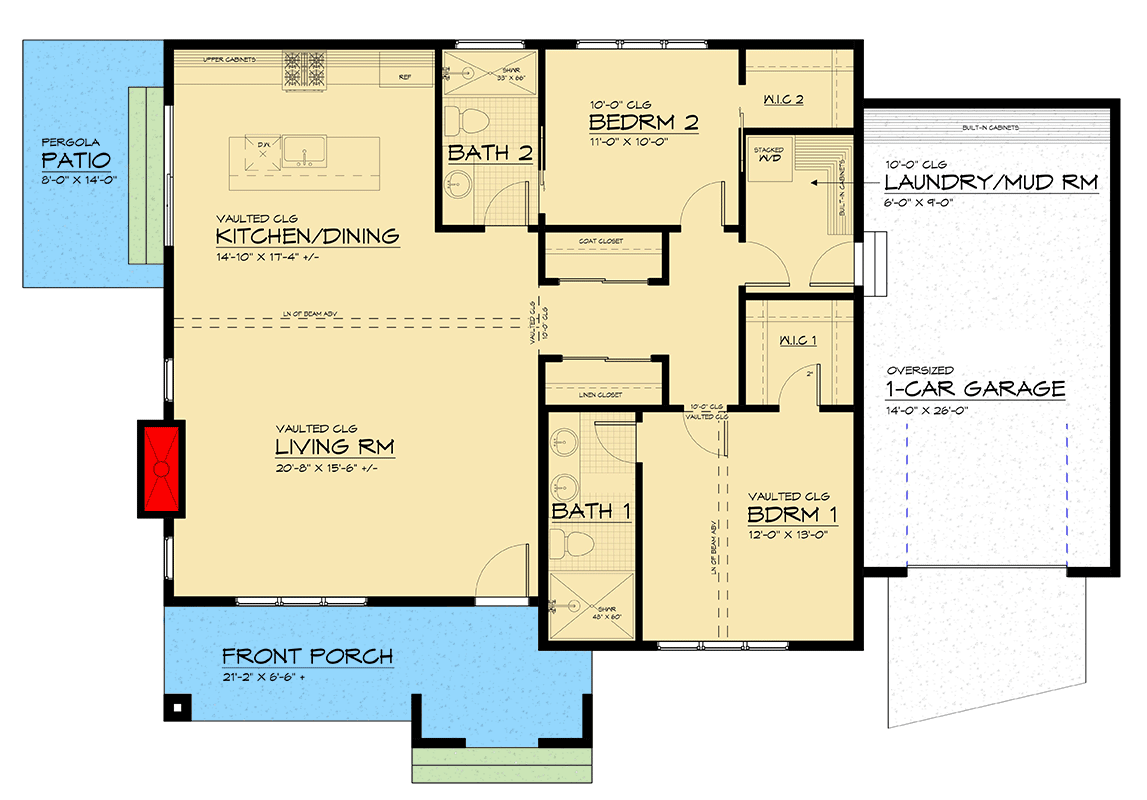

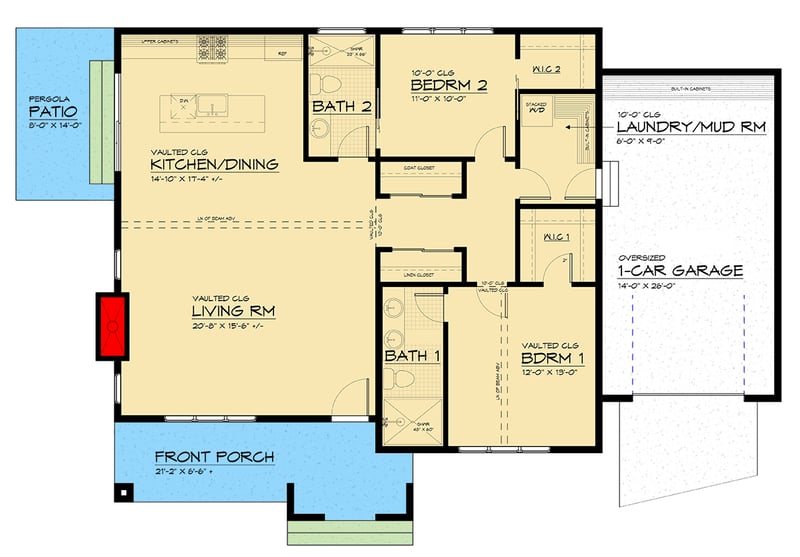

Plan 666274RAF: 2-Bed New American Cottage with Vaulted Living Space and Patio Area - 1300 Sq Ft - Floor Plan - Main Level - Cottage, New American

Plan Details

  • This 2 bed, 2 bath New American home plan gives you 1,300 square feet of heated living and 1-car front garage (392 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,300 sq. ft.

1st Floor

1,300 sq. ft.

Porch, Front

165 sq. ft.

Covered Patio

112 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

40' 0"

Max Ridge Height

22' 7"

Garage

Type

Attached

Area

392 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cottage

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,300 sq. ft.

1st Floor

1,300 sq. ft.

Porch, Front

165 sq. ft.

Covered Patio

112 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

40' 0"

Max Ridge Height

22' 7"

Garage

Type

Attached

Area

392 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cottage

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
