2-Bed Transitional Tudor with Wraparound Porch

Plan 311034RMZ

  • 1,830

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • Steeply-pitched gables with dramatic sloping lines add elegance to the exterior of this 2-bedroom Transitional Tudor home plan.
  • The wraparound patio helps to build community, while an arched entryway welcomes you inside. A powder bath, multiple coat closets, and the laundry room are conveniently accessible from the foyer.
  • The living room flows into the dining area and kitchen where a large picture window ushers in natural light.
  • The bedrooms occupy the rear with a built-in office tucked into the hallway that connects them.
  • The master bedroom boasts a roomy closet and a wet room in the master bathroom.

Each plan set includes:


General notes
Floor plans
Roof plan
Sections
Framing detail
Foundation plan

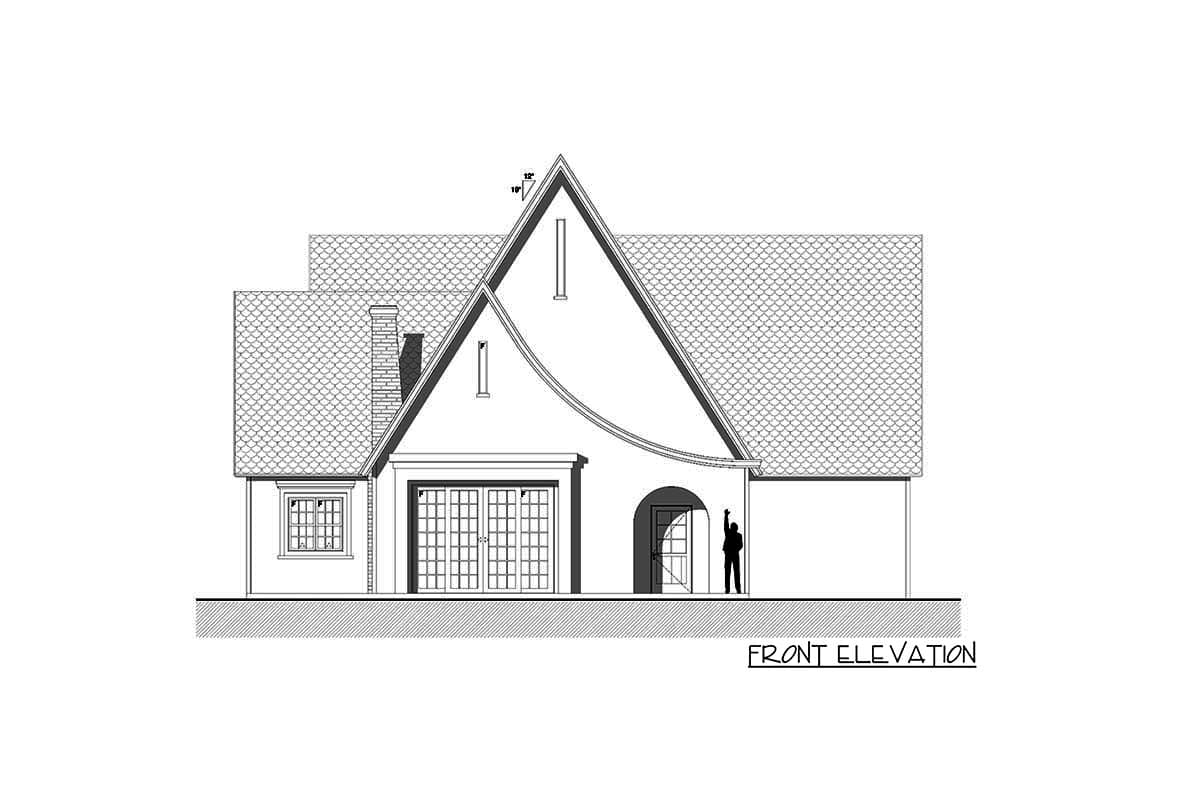

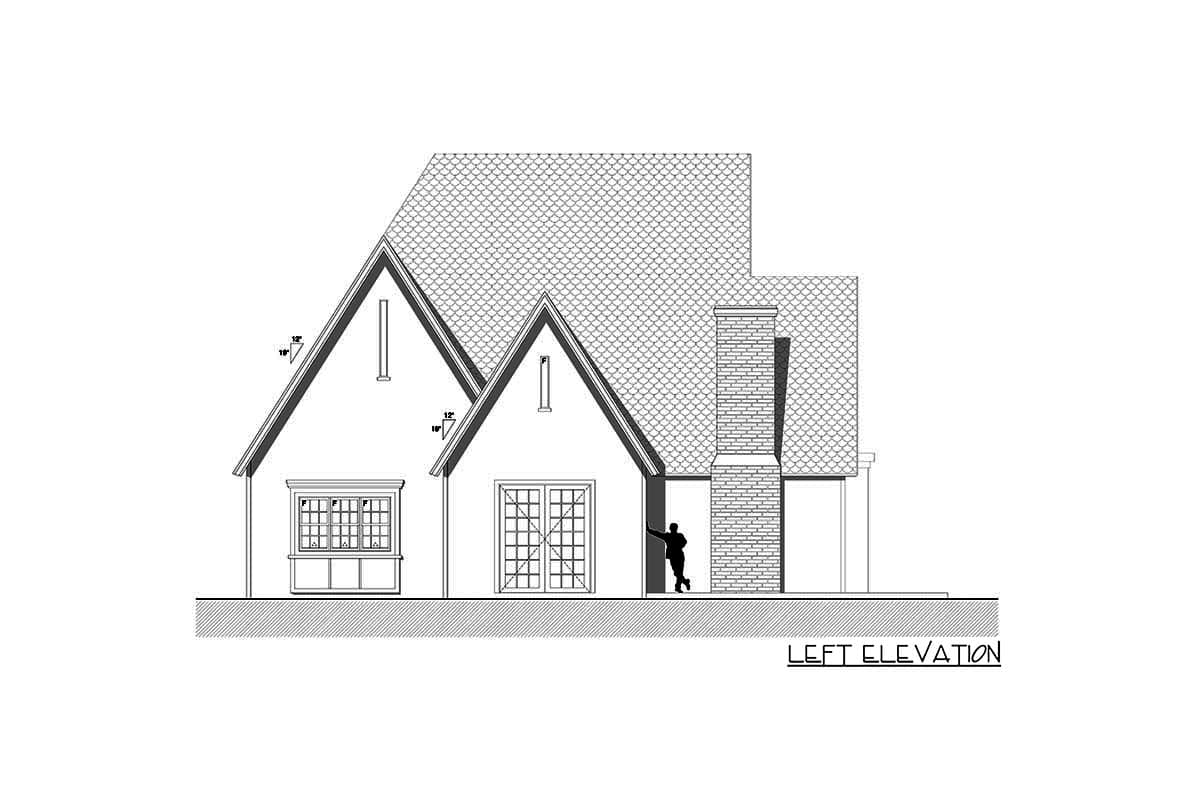

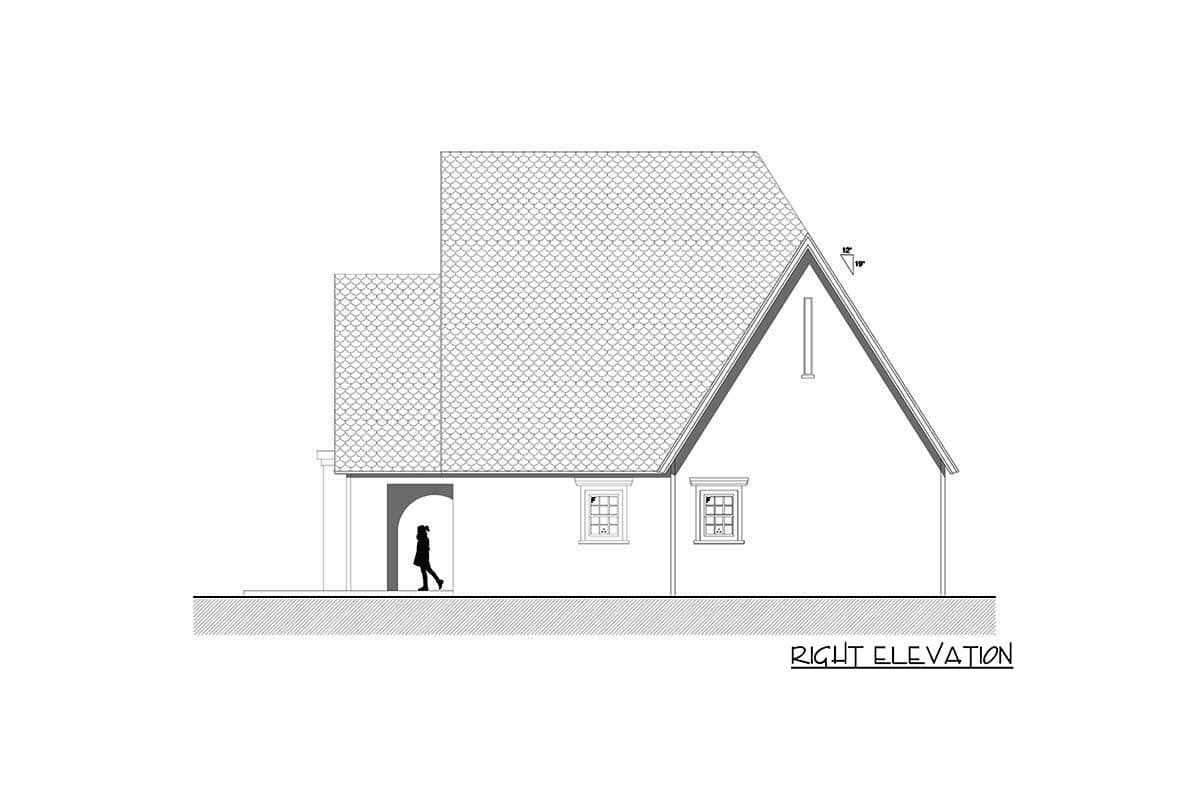

Elevations (all four sides)
Electrical plans
Window and door schedules


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

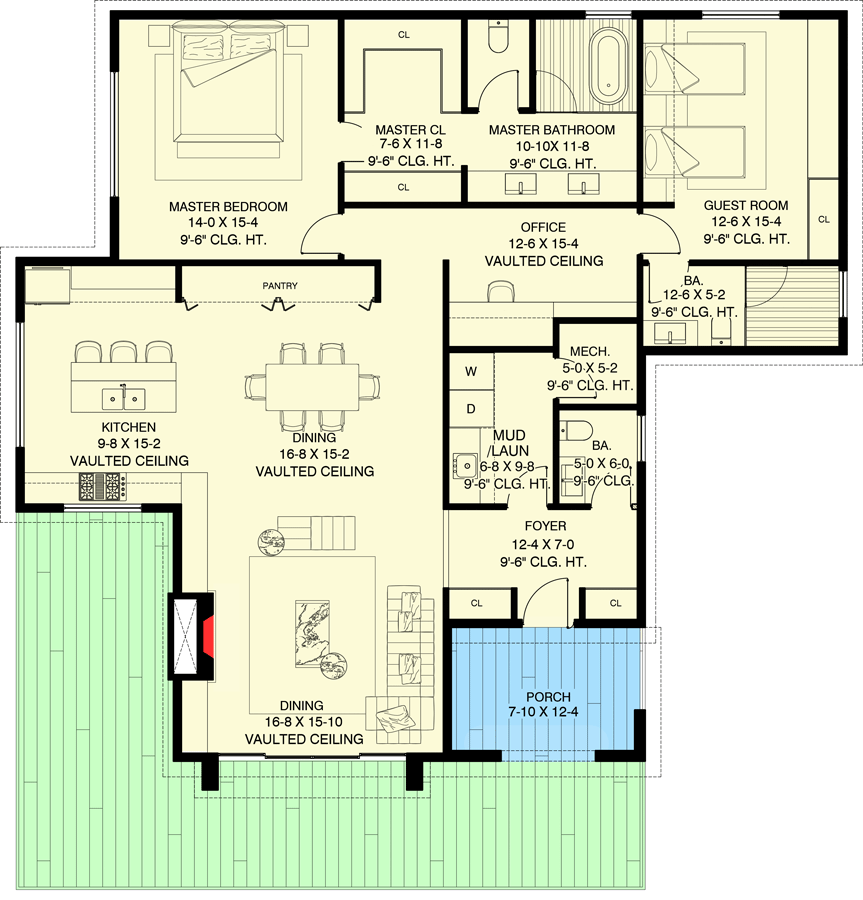

2-Bed Transitional Tudor with Wraparound Porch - 311034RMZ floor plan - Main Level
