2-Car Barn-like Garage with Great Storage Potential

Name: Plan 720047DA: 2-Car Barn-like Garage with Great Storage Potential
Brand: Architectural Designs
SKU: 720047DA
Price: 1145.0 USD
Availability: InStock

Heated S.F.

Beds

Baths

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

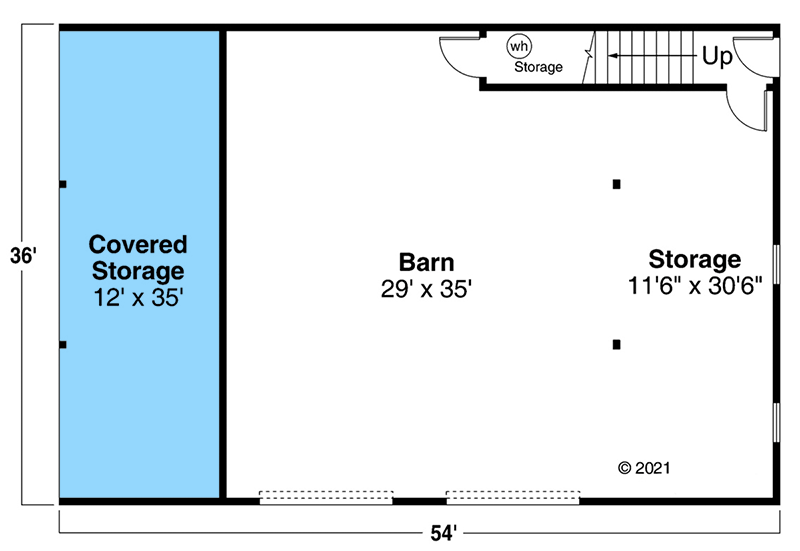

This 2-car barn-like garage features 12' ceilings on the main floor which is primarily dedicated to storage. There is room for optional parking for vehicles or equipment and is easily accessed by the two 10' by 10' doors.

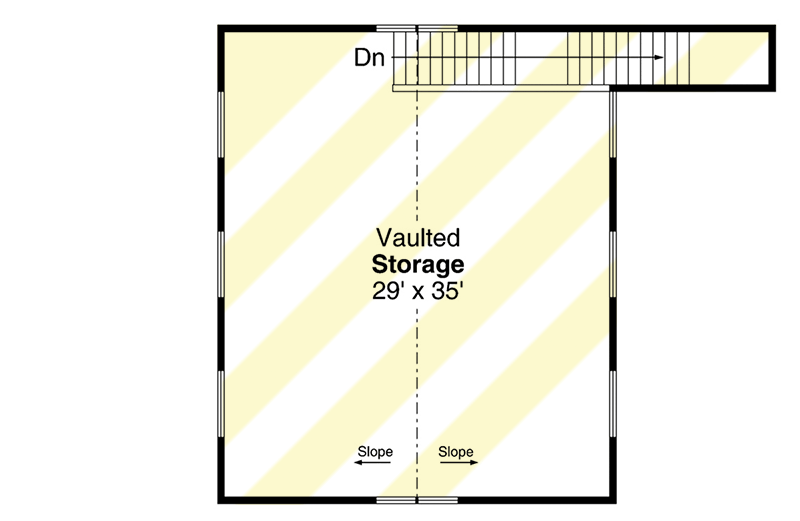

The second floor is vaulted and gives you more storage.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

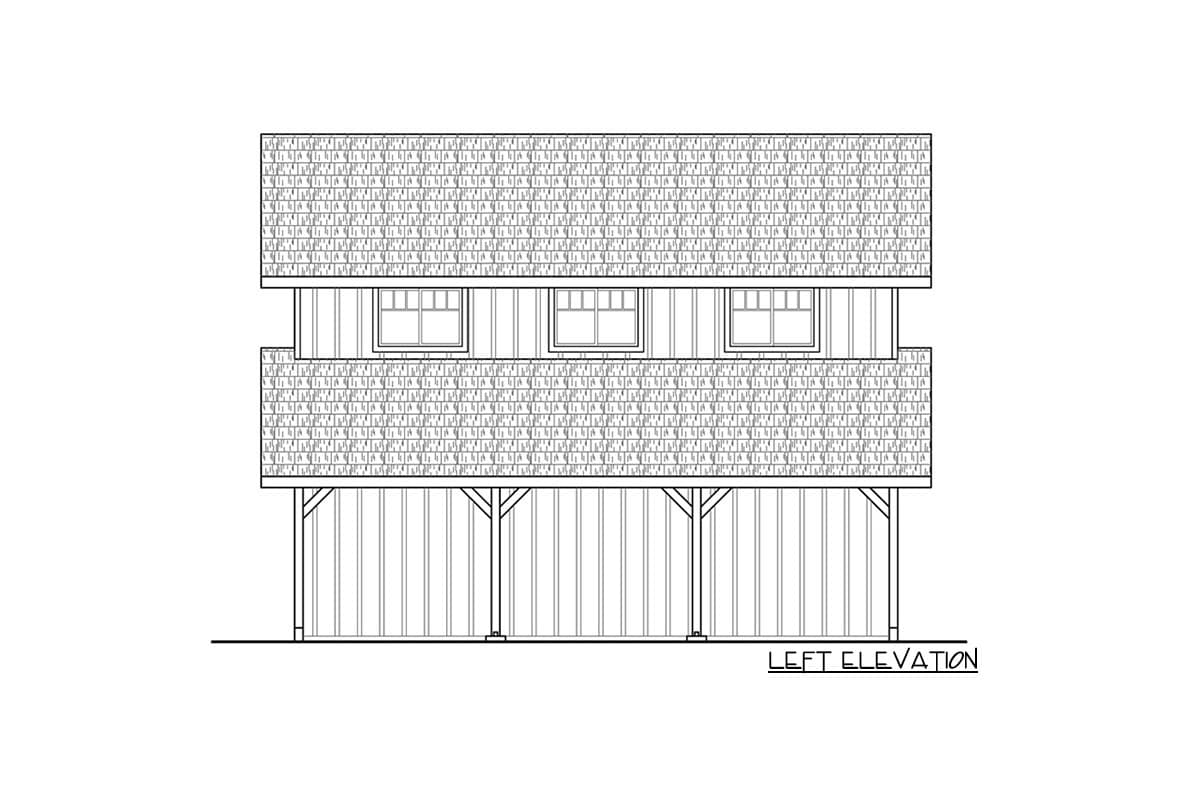

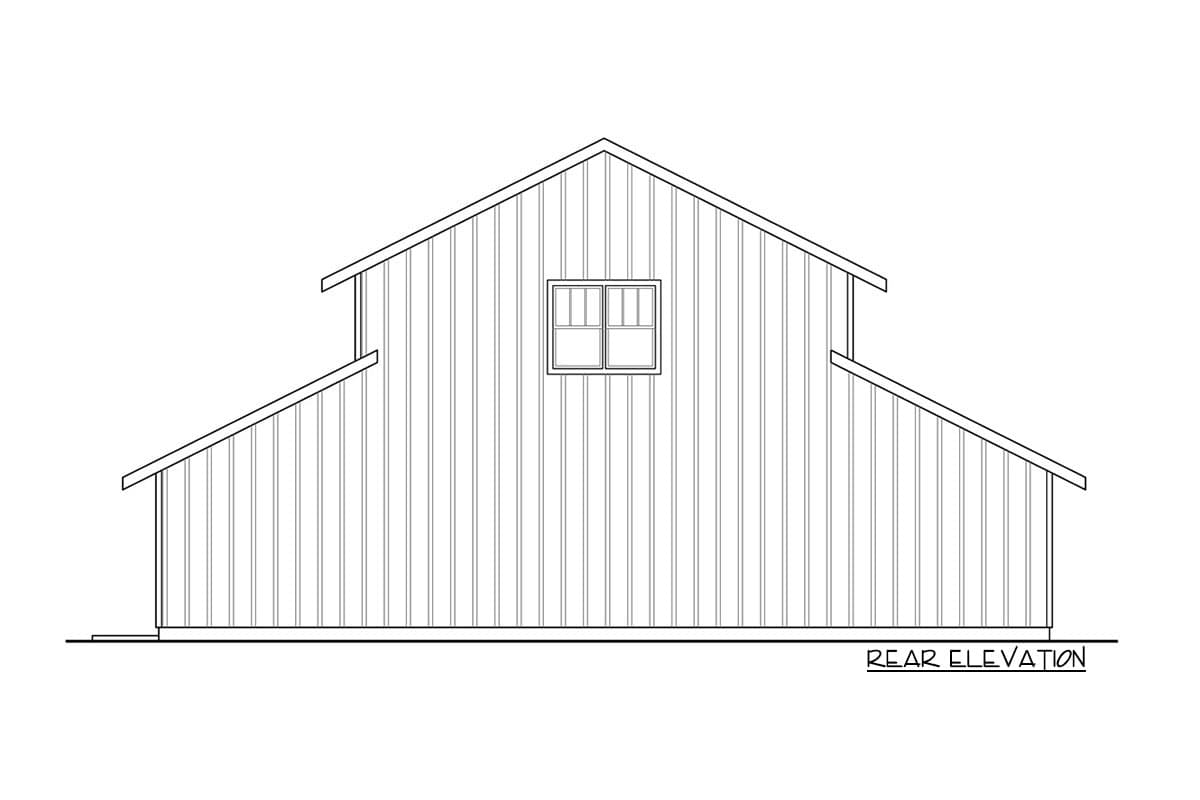

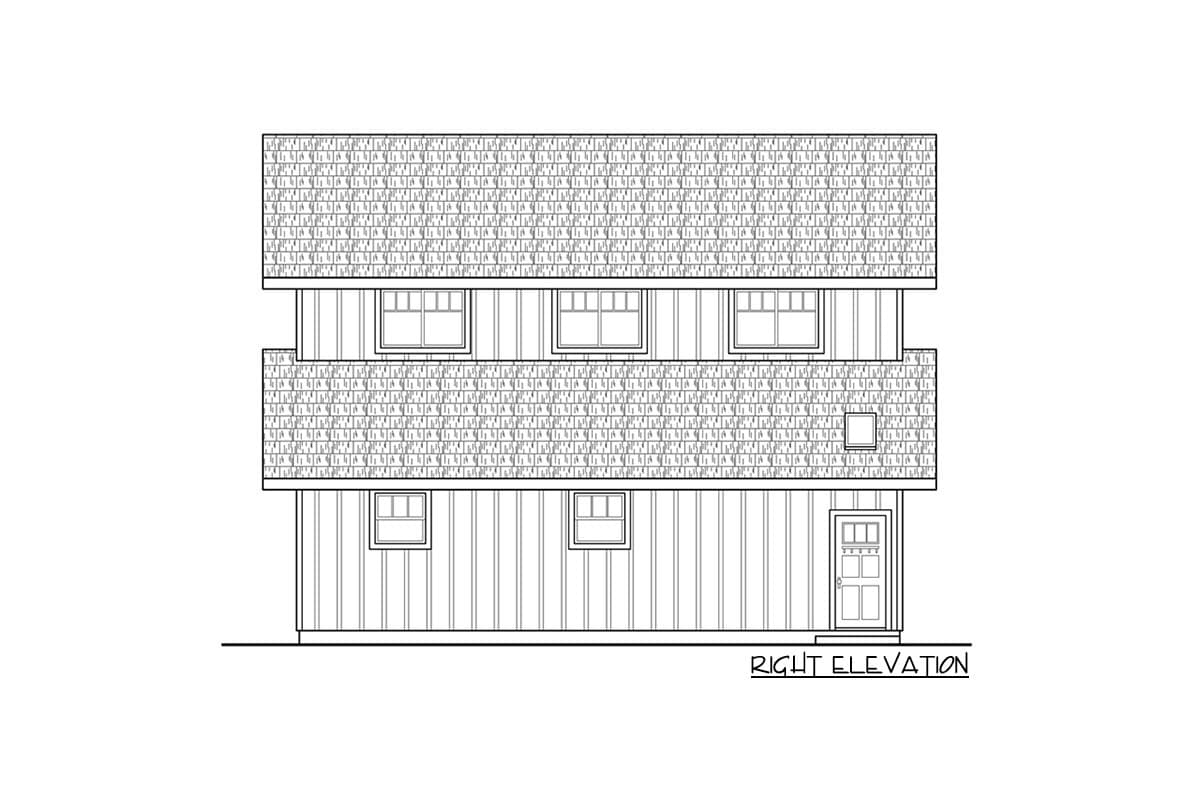

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

1,004 sq. ft.

Beds/Baths

Bedrooms

Foundation Type

Standard Foundations

Slab

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

36' 0"

Max Ridge Height

30' 4"

Garage

Type

Detached

Area

1944 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Second Floor

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Workshop
