Plan 72808DA
2 Car Craftsman Carriage House Plan
Heated S.F.
575
Beds
0
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 72808DA

Basement
slide image 0
Main Level
slide image 1

Plan 72808DA

1-800-854-7852

1-262-521-4596

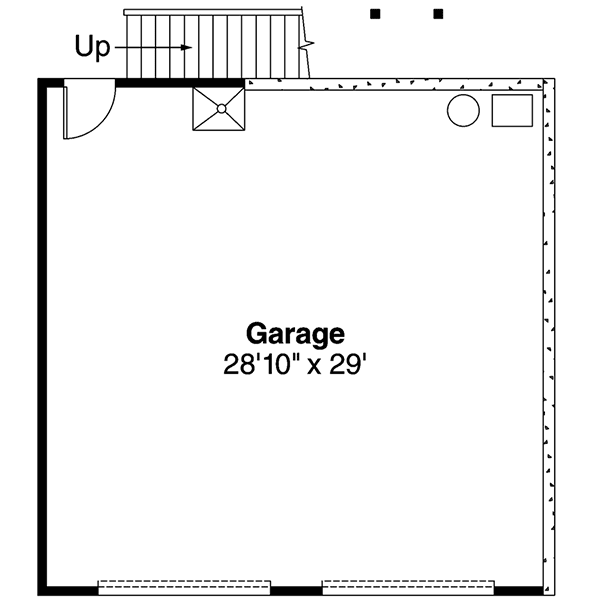

Basement
floor plan image Basement

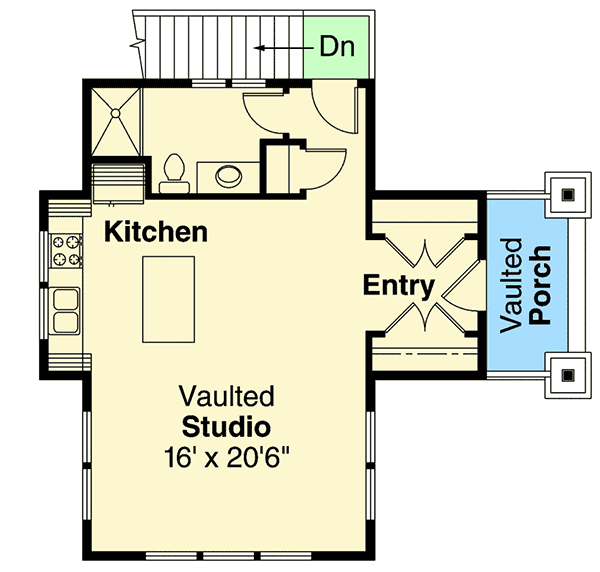

Main Level
floor plan image Main Level
Plan Details
  • This Craftsman carriage house plan is meant for a side sloping lot and has parking for two cars on the lower level.
  • A covered vaulted porch has sturdy timber supports with stone attractive stone bases.
  • The two garage doors are each 10' wide and 8' tall.
  • The stairs on the outside lead to a vaulted studio with kitchen and full bathroom.
  • The roof has a 5:12 pitch.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

575 sq. ft.

1st Floor

575 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

34' 0"

Max Ridge Height

25' 0"

Garage

Type

Detached, Drive Under

Area

880 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Carriage

Craftsman

Northwest

Shingle

Vacation

Special Features

Laundry - Main Level

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

575 sq. ft.

1st Floor

575 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

34' 0"

Max Ridge Height

25' 0"

Garage

Type

Detached, Drive Under

Area

880 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Carriage

Craftsman

Northwest

Shingle

Vacation

Special Features

Laundry - Main Level

Plan Collections

Sloping Lot
