Plan 51879HZ

2-Car Detached Garage with Oversized Doors

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2

Floor Plan

Plan 51879HZ

Main Level
Main Level

Plan 51879HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

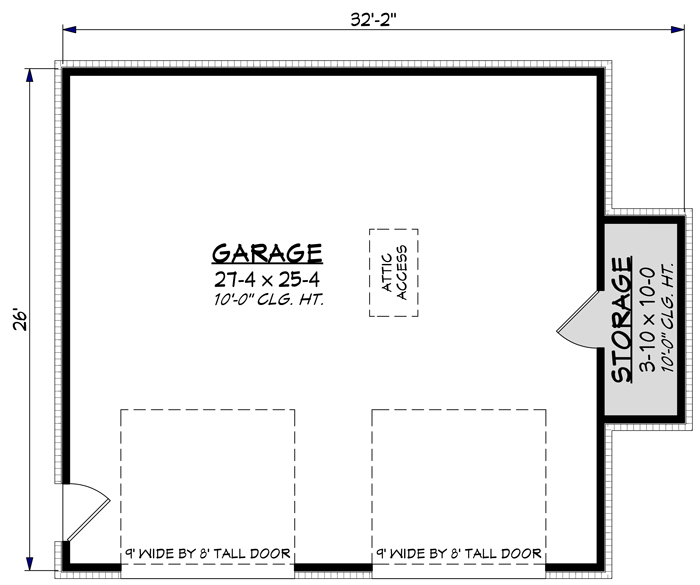

Plan 51879HZ: 2-Car Detached Garage with Oversized Doors - Floor Plan - Main Level - Cottage, Country, Craftsman, Farmhouse, Modern Farmhouse, Traditional

Plan Details

  • This attractive 2-car detached garage is the perfect compliment to any home project and gives you 772 square feet of covered parking space.
  • Oversized 9' by 8' garage doors open each bay. A separate door gives you access on foot and a door takes you a dedicated storage room.
  • Related Plan: 51876HZ

What's Included

Page 1  Cover Sheet with abbreviations, rendering, sheet index and foundation plan with details
Page 2  Detailed floor plan and electrical plan (includes window sizes, ceiling joist directions, etc.)

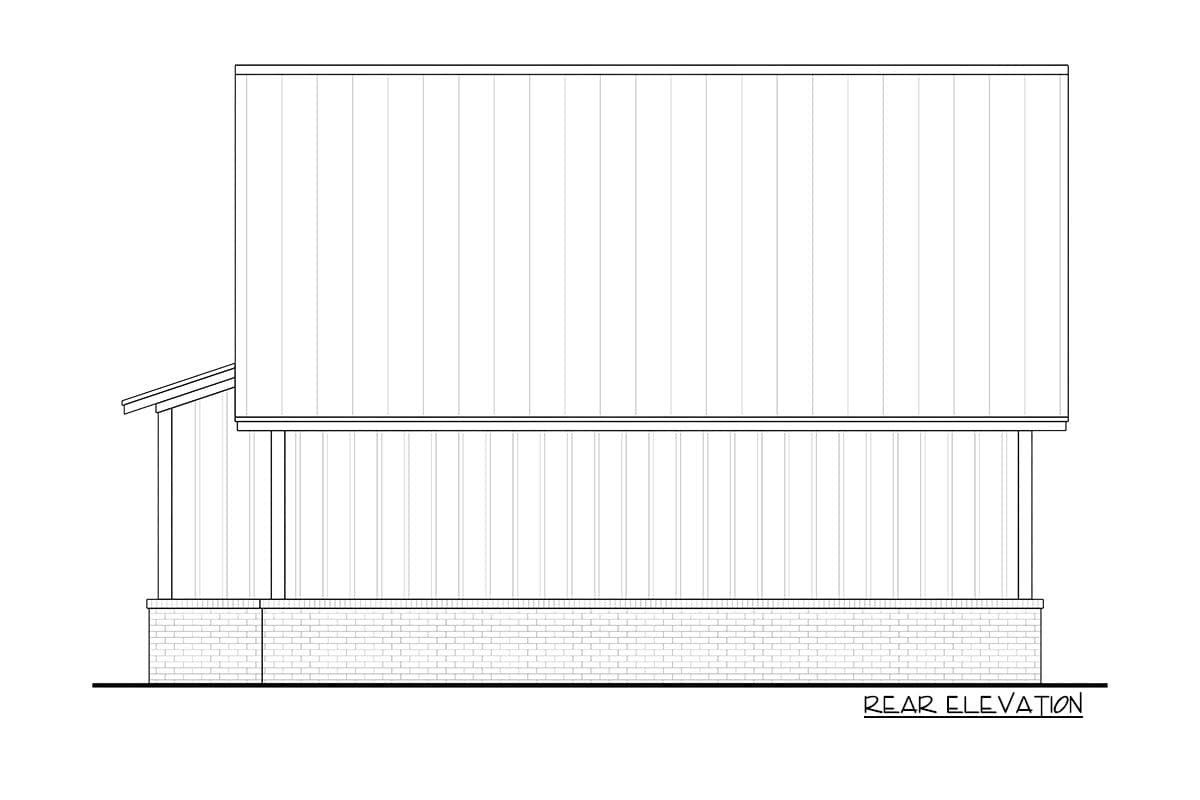

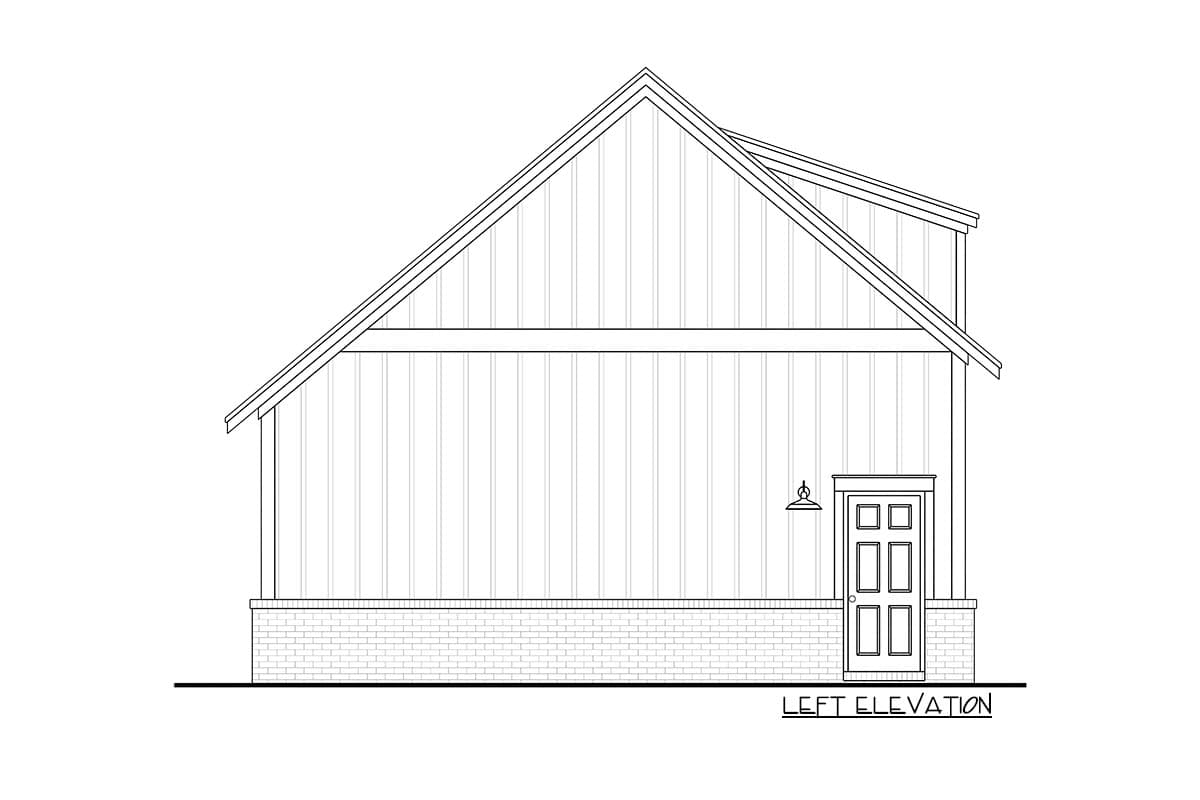

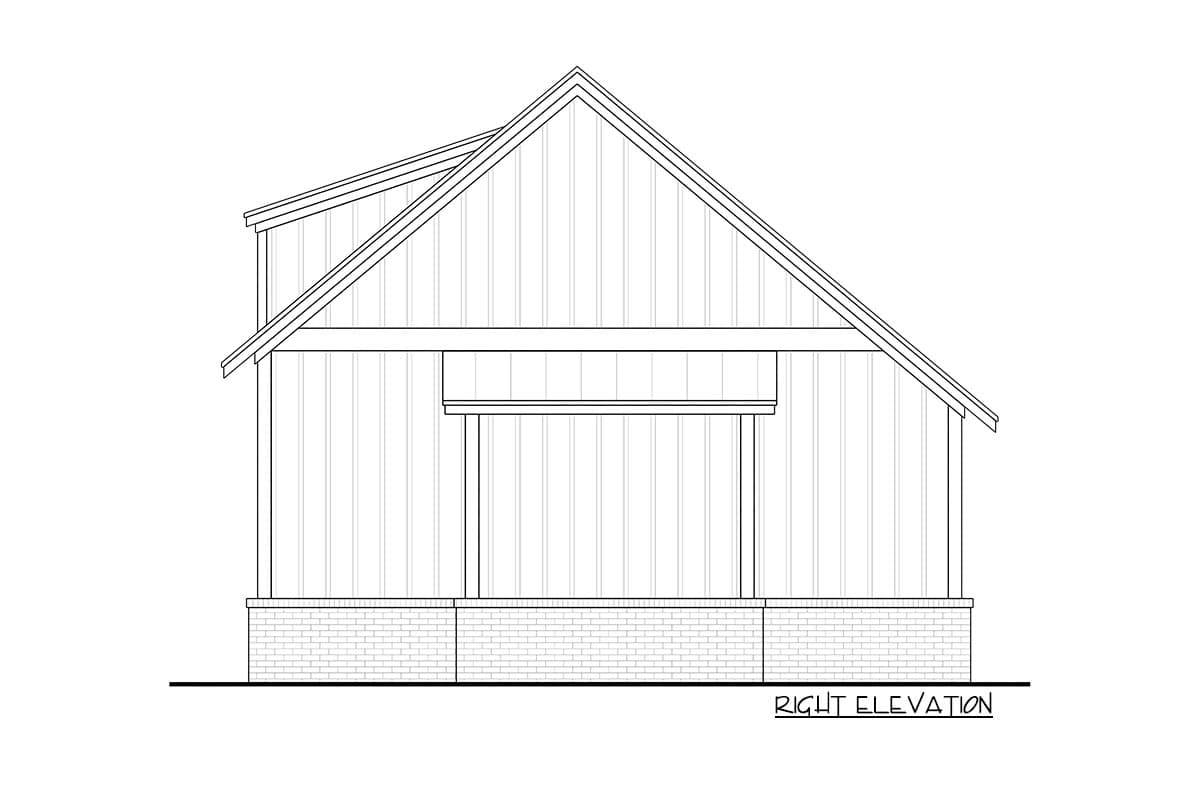

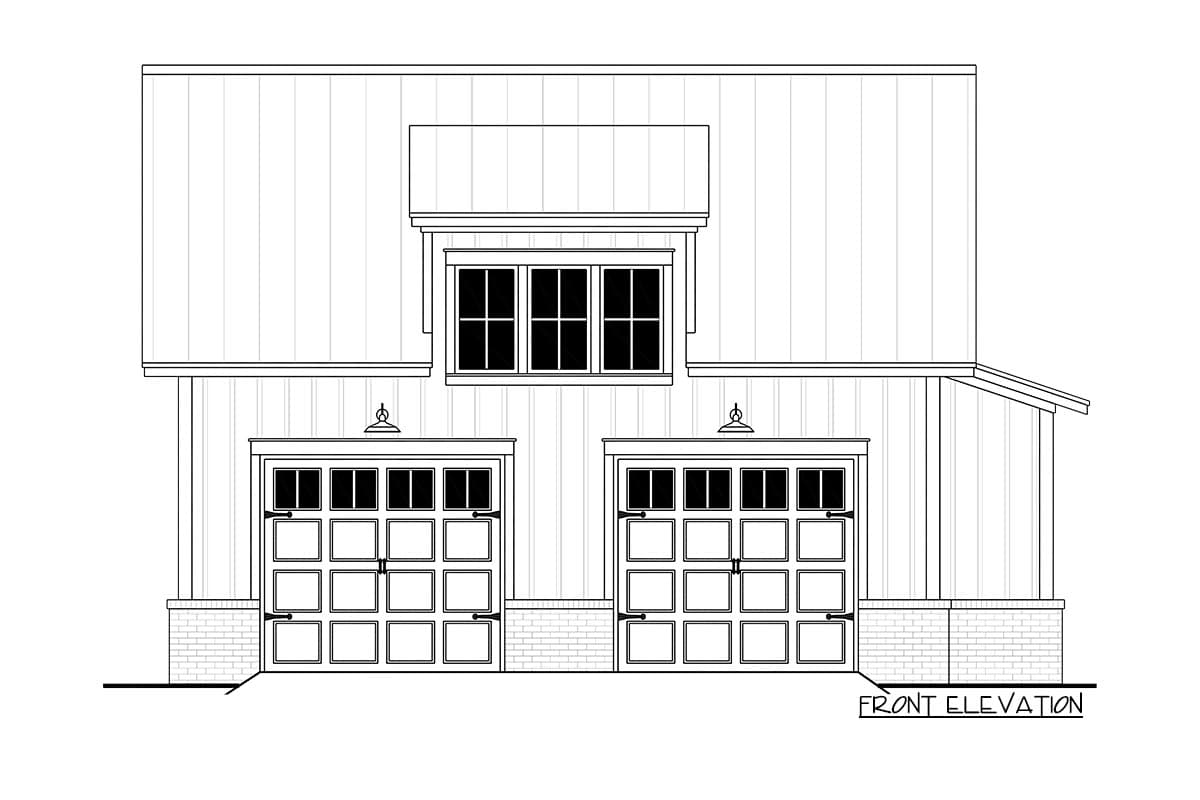

Page 3  Exterior views with additional details
Page 4  Cross section and roof plan with additional notes and details
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
