2-car Detached Garage with Storage in Back

Plan 61293UT

  • 844

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 2

    Cars

  • Matching 10' by 10' garage doors open giving your vehicles access to this 2-car detached garage plan.
  • The left bay is accessible by a door in back of the bay, giving you the choice to go outside to your left or to go stow some gear away on the right.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

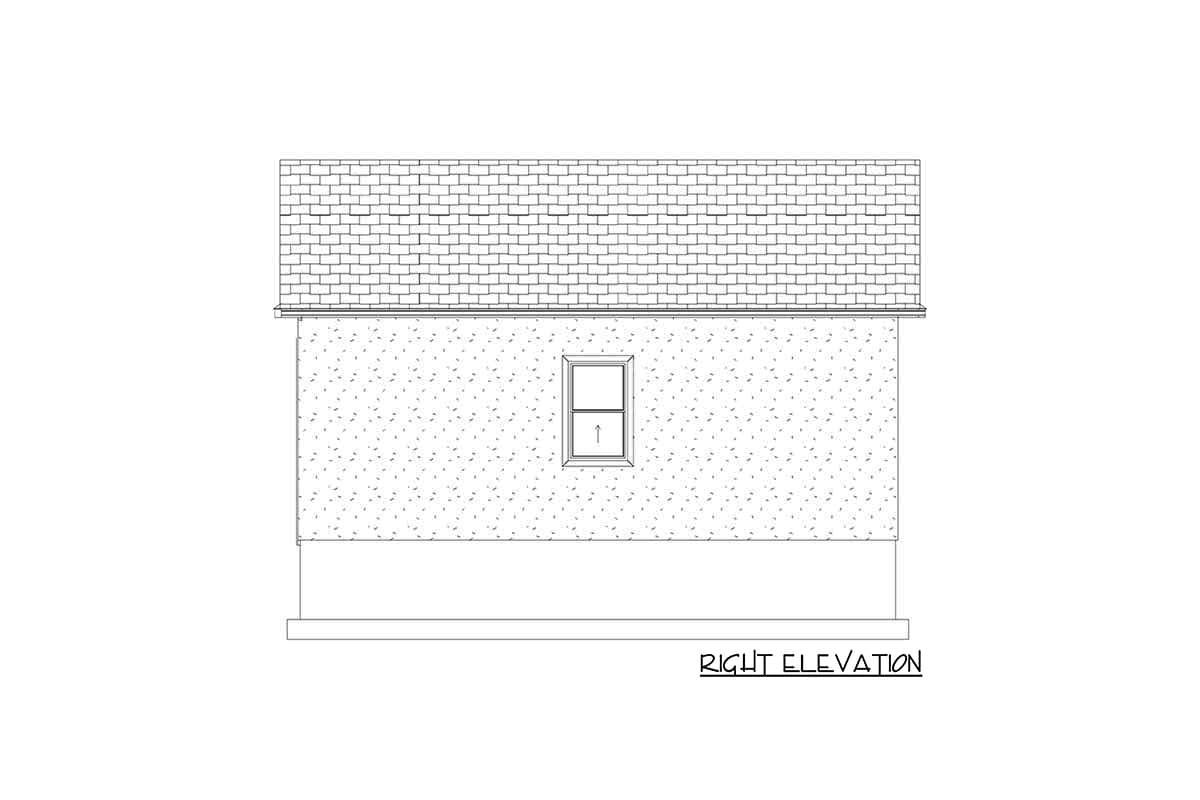

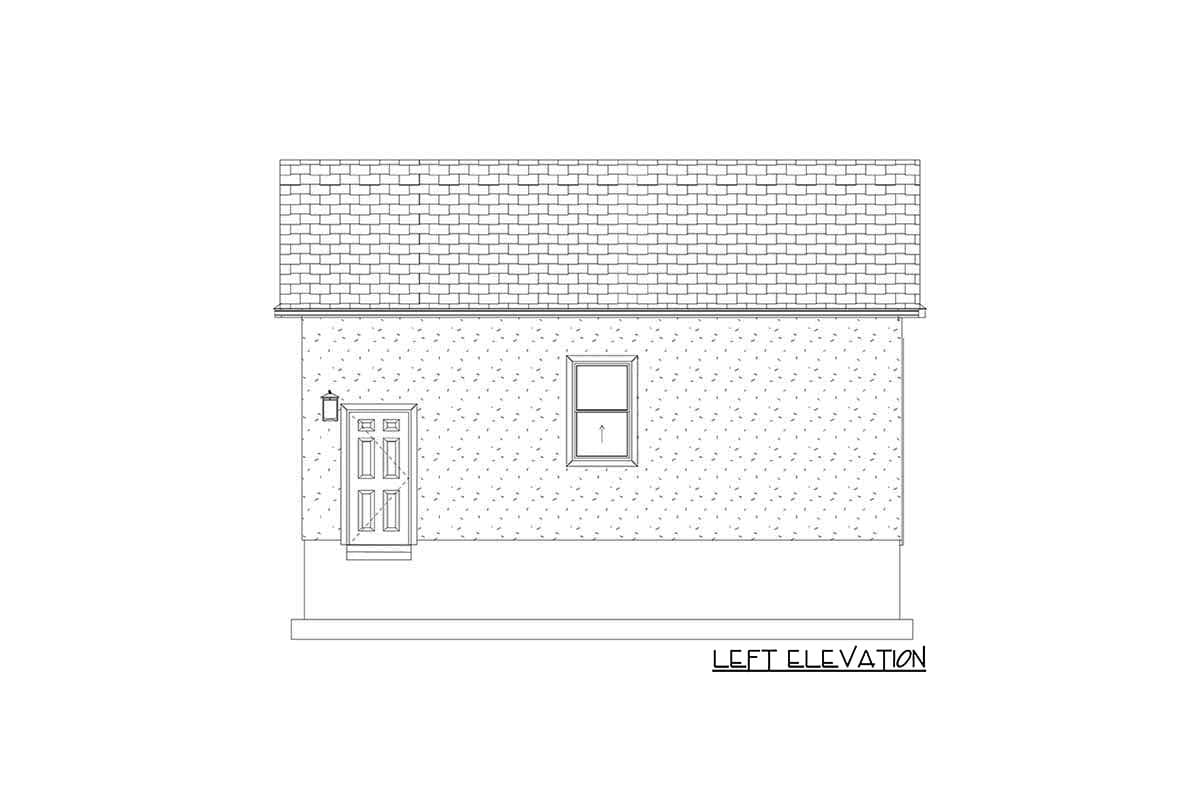

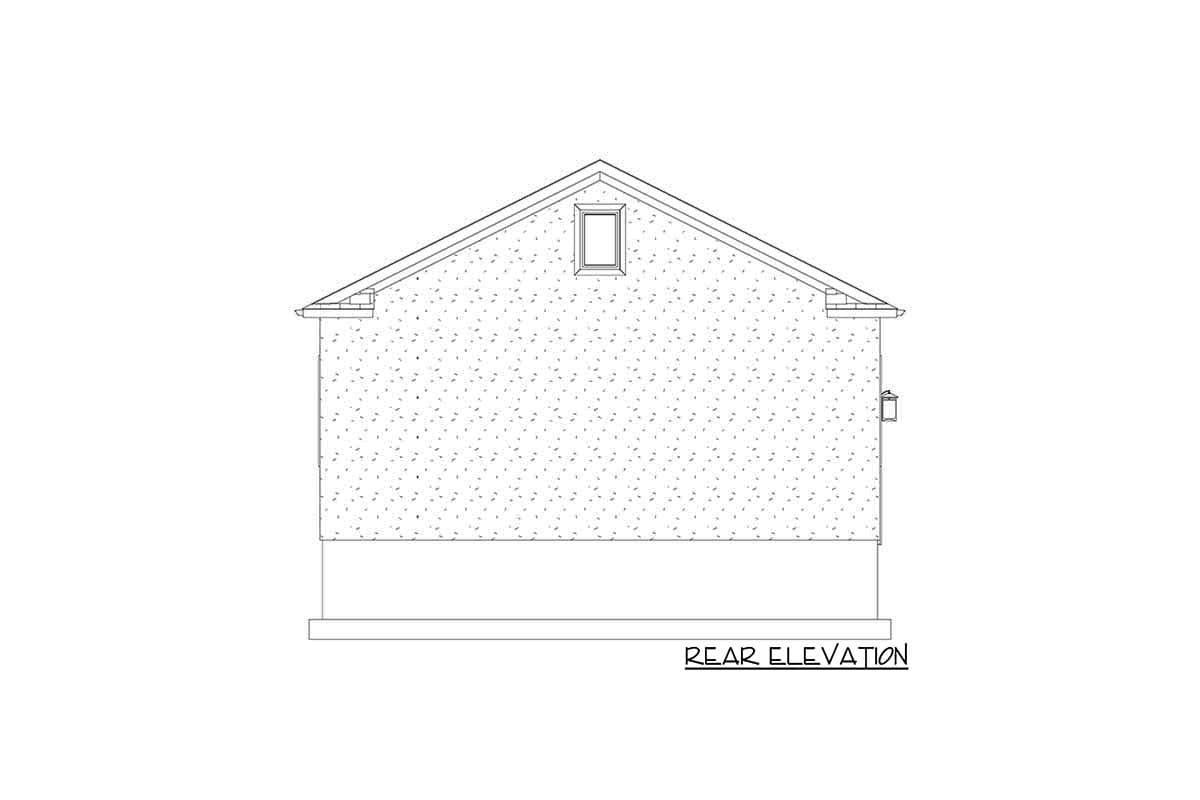

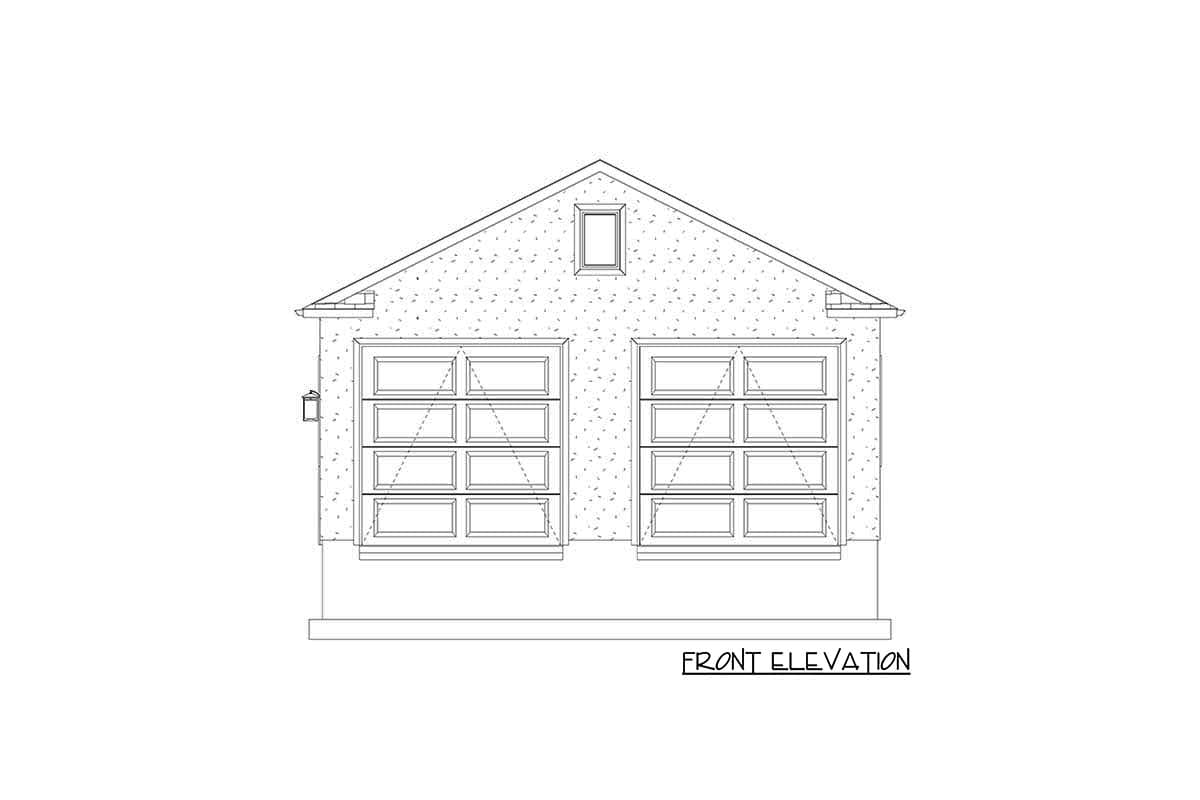

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

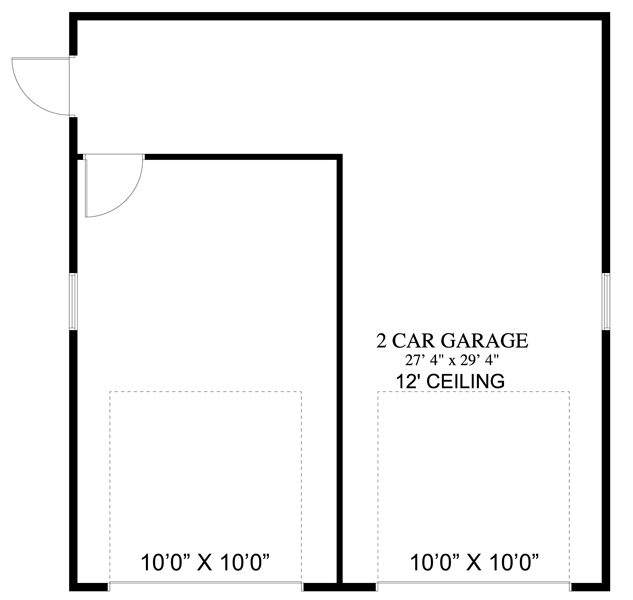

2-car Detached Garage with Storage in Back - 61293UT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 844 sq. ft.
  • 1st Floor: 844 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 30' 0"
  • Max ridge height: 19' 2"

Garage

  • Area: 844 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
