Plan 72911DA

2-Car Gar with Flexible Space Above

Heated S.F.
1,502
Beds
0
Baths
1.5
Stories
2
Cars
2

Floor Plan

Plan 72911DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72911DA

M-F 9am-5pm EST |

1-203-761-8500

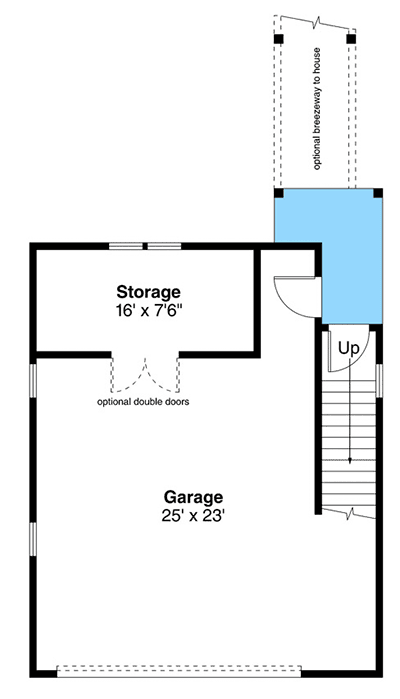

Main Level

Plan 72911DA: 2-Car Gar with Flexible Space Above - Floor Plan - Main Level - Carriage

2nd Floor

Plan 72911DA: 2-Car Gar with Flexible Space Above - Floor Plan - 2nd Floor - Carriage

Plan Details

  • This country-style garage plan gives you parking for two cars and storage on the main floor and a flexible space above.
  • In back of the 2-car bay is a generous-sized storage room with optional double doors if you are looking to close this space off.
  • Separate from the garage yet still enclosed is a set of stairs that lead up to the second floor recreation room.
  • The uses for the upstairs space are endless. It would make a great guest studio apartment, hobby or craft room, apartment for older children or whatever suites your lifestyle.
  • The beverage bar offers a small kitchenette space with full sink, dishwasher and refrigerator. Two sets of closets provide additional storage plus there is a full bathroom.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

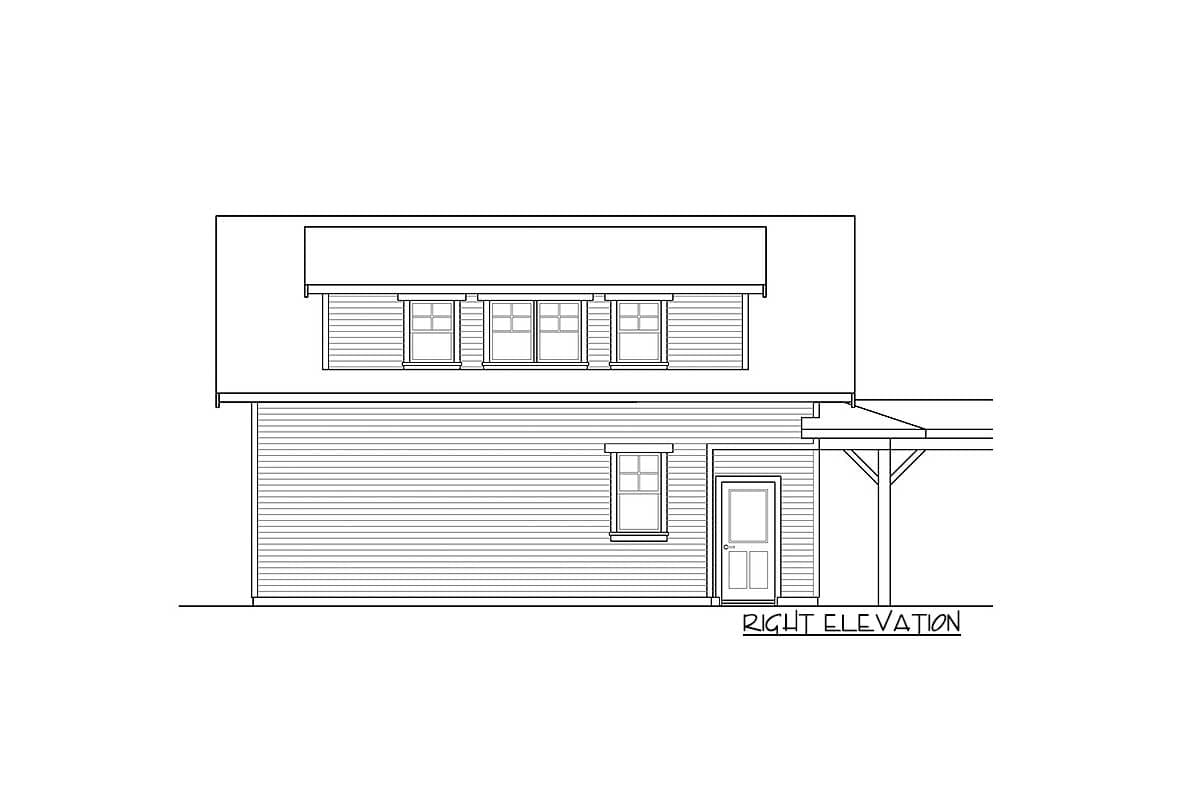

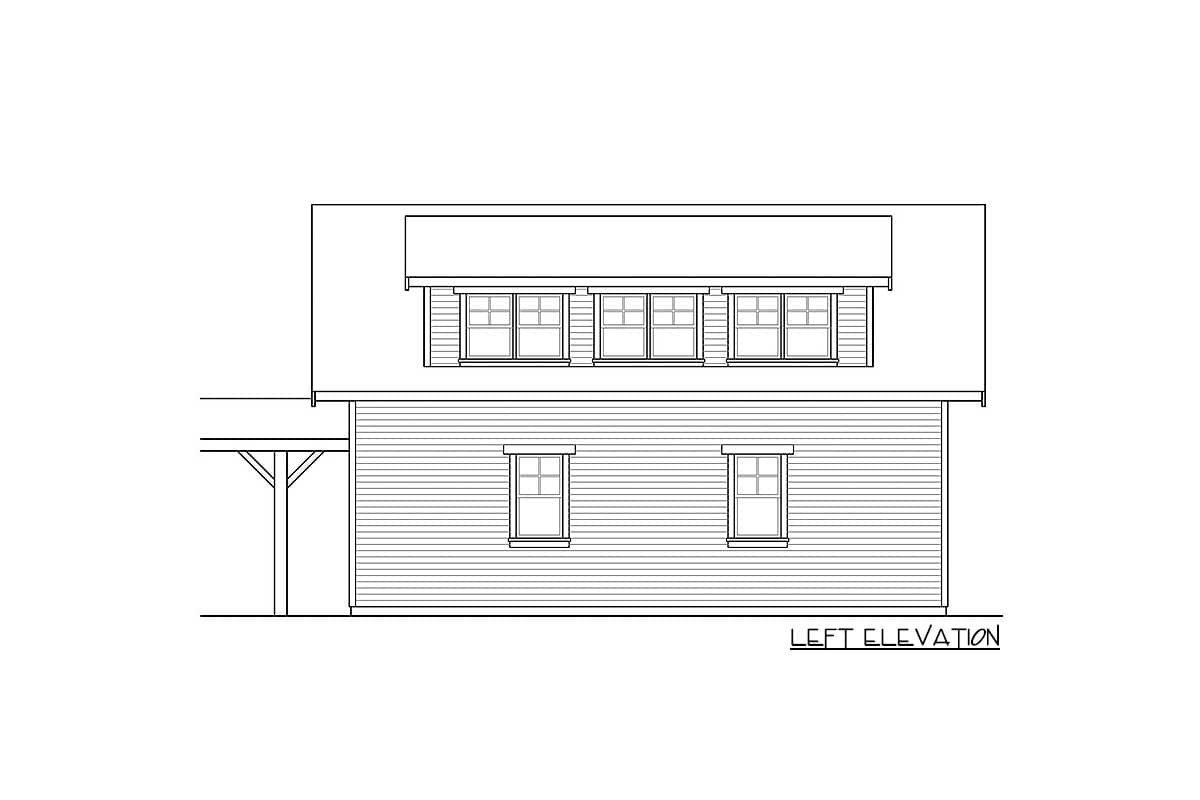

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,502 sq. ft.

2nd Floor

805 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

36' 0"

Max Ridge Height

22' 1"

Garage

Type

Detached

Area

697 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Architectural Style

Carriage

Square Footage Breakdown

Total Heated Area

1,502 sq. ft.

2nd Floor

805 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

36' 0"

Max Ridge Height

22' 1"

Garage

Type

Detached

Area

697 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Architectural Style

Carriage
